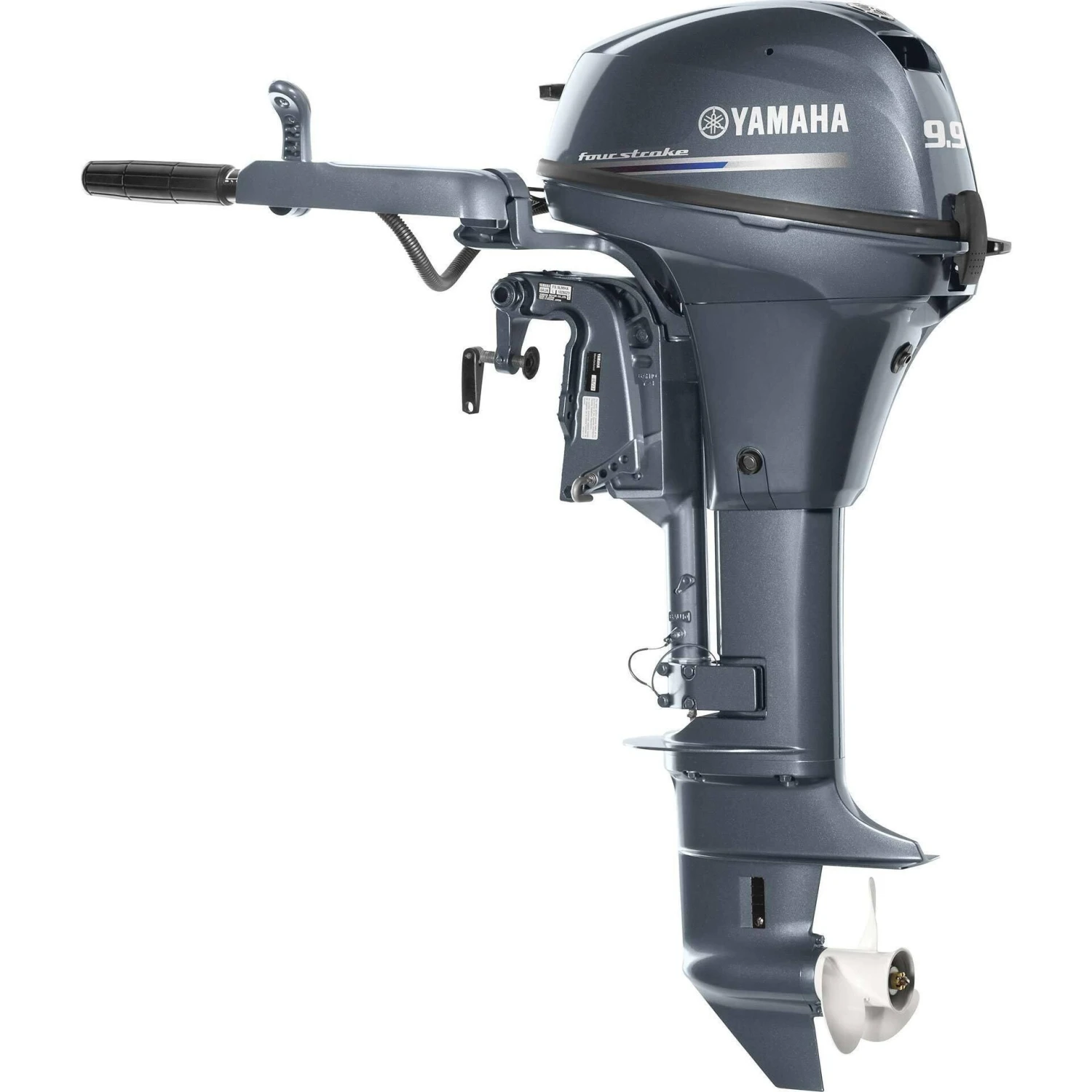

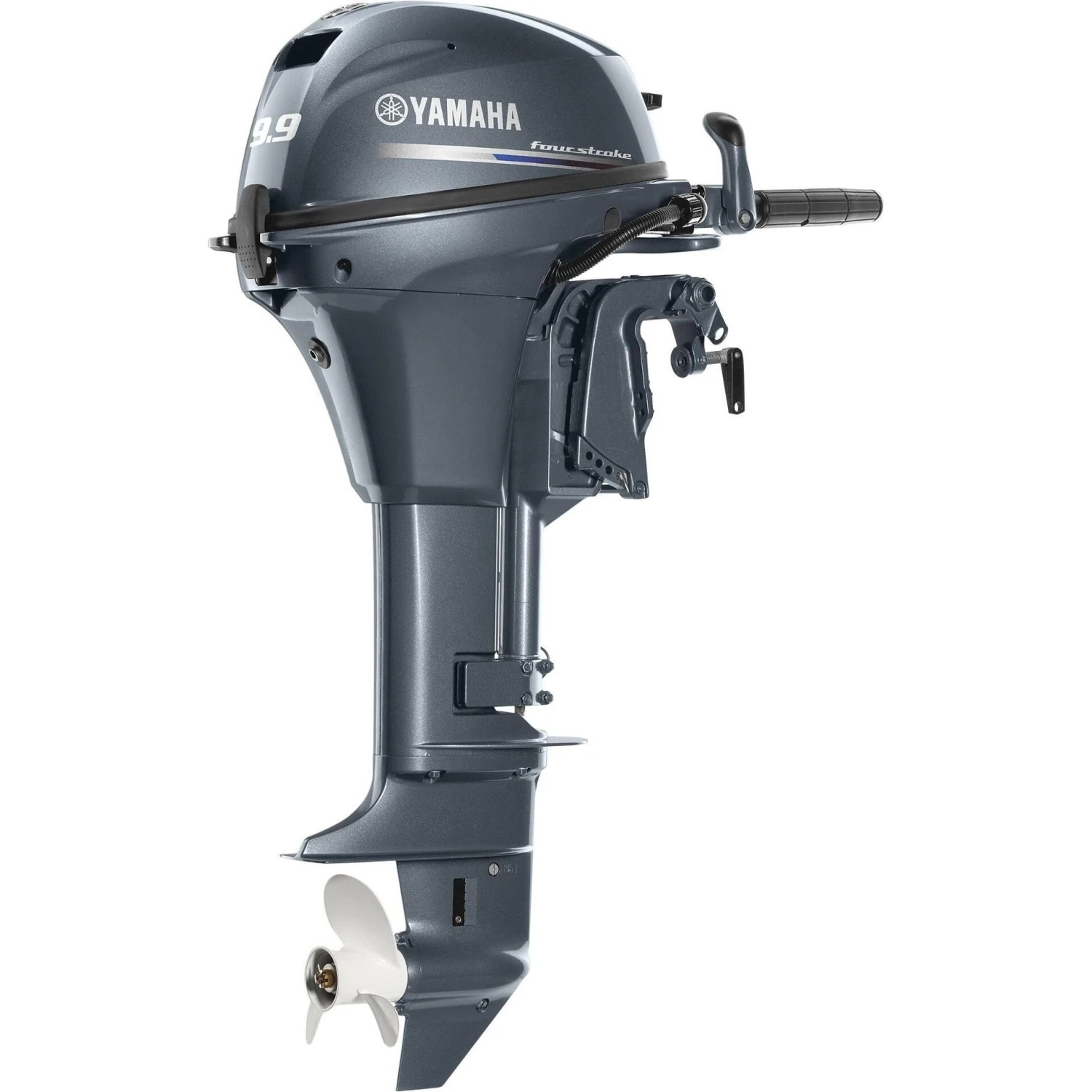

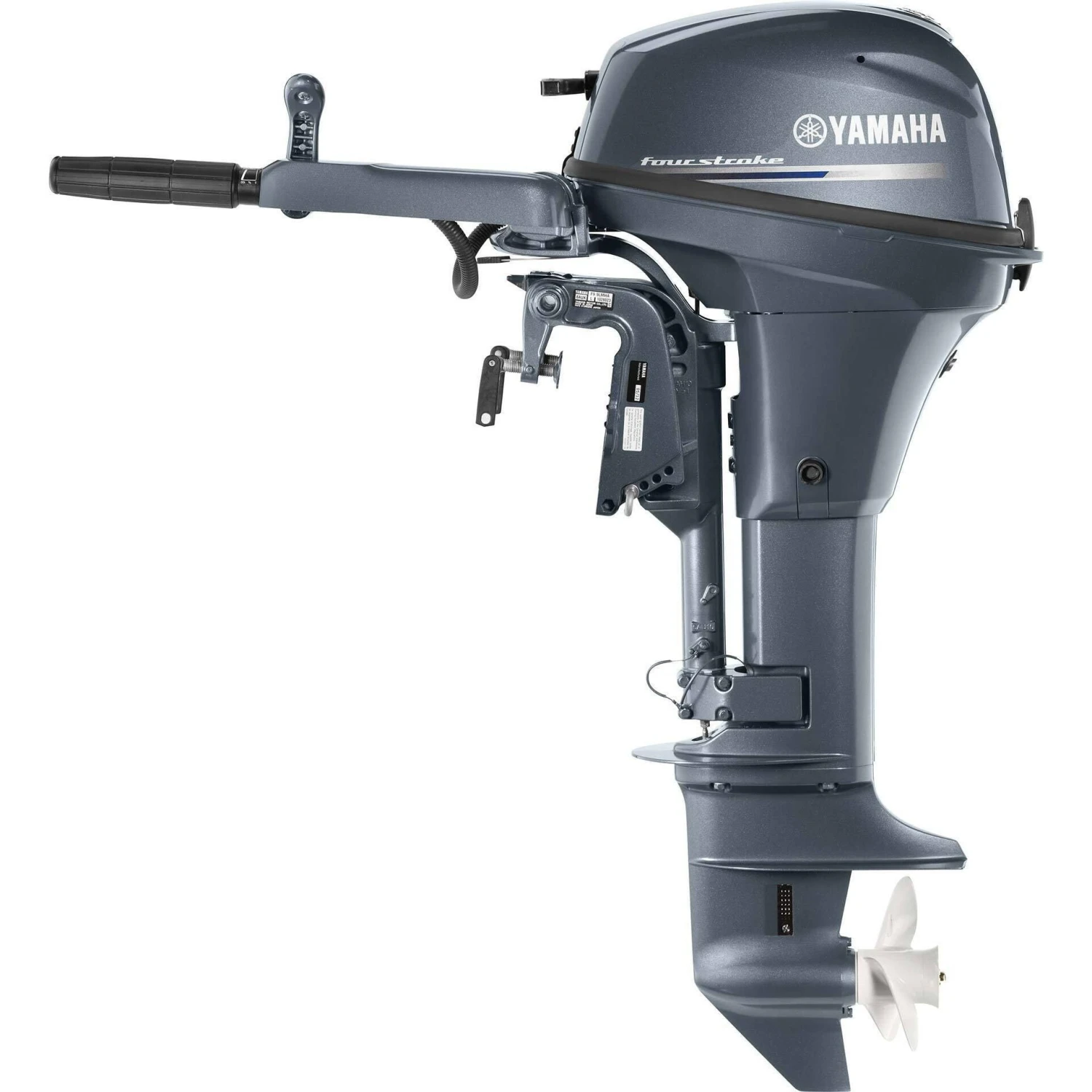

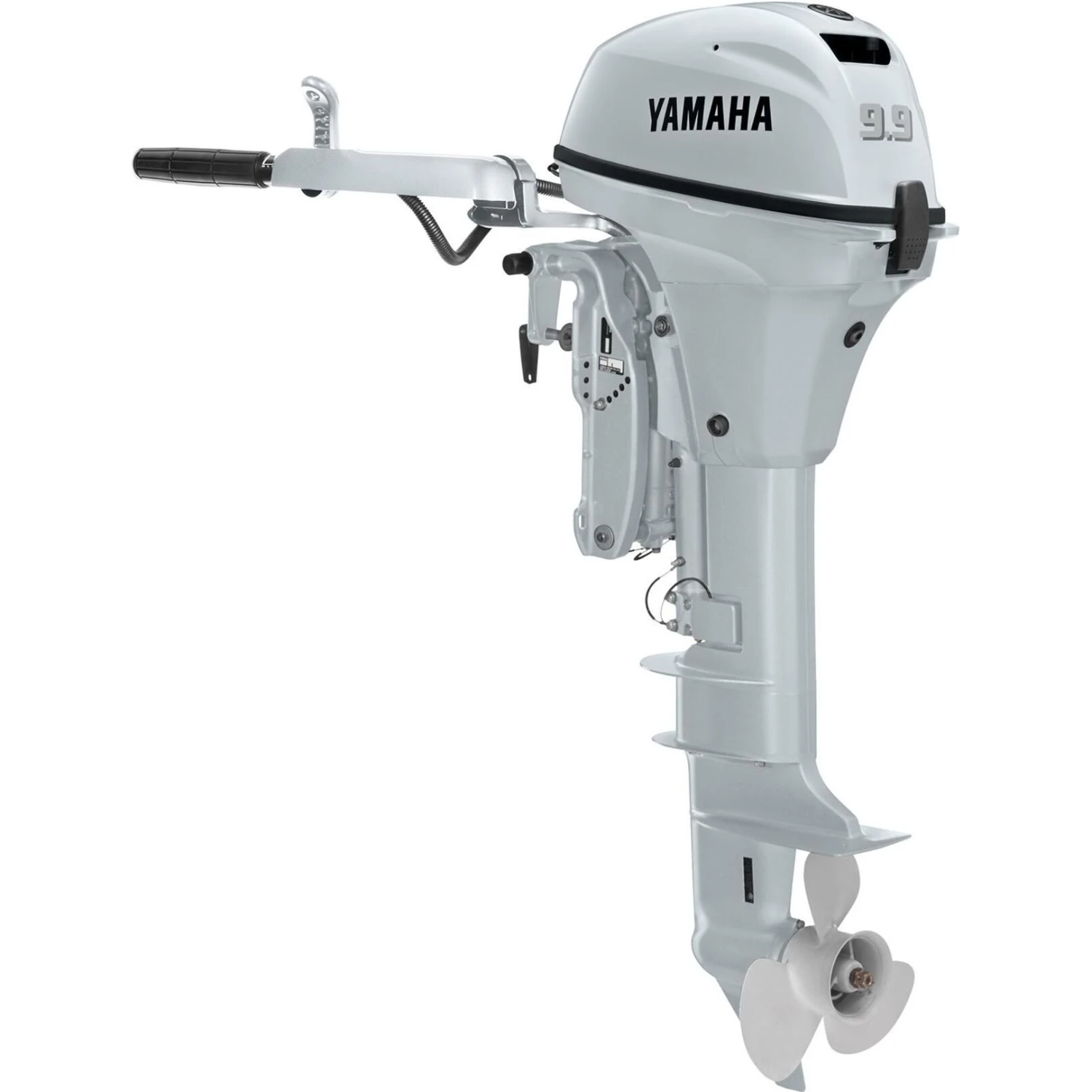

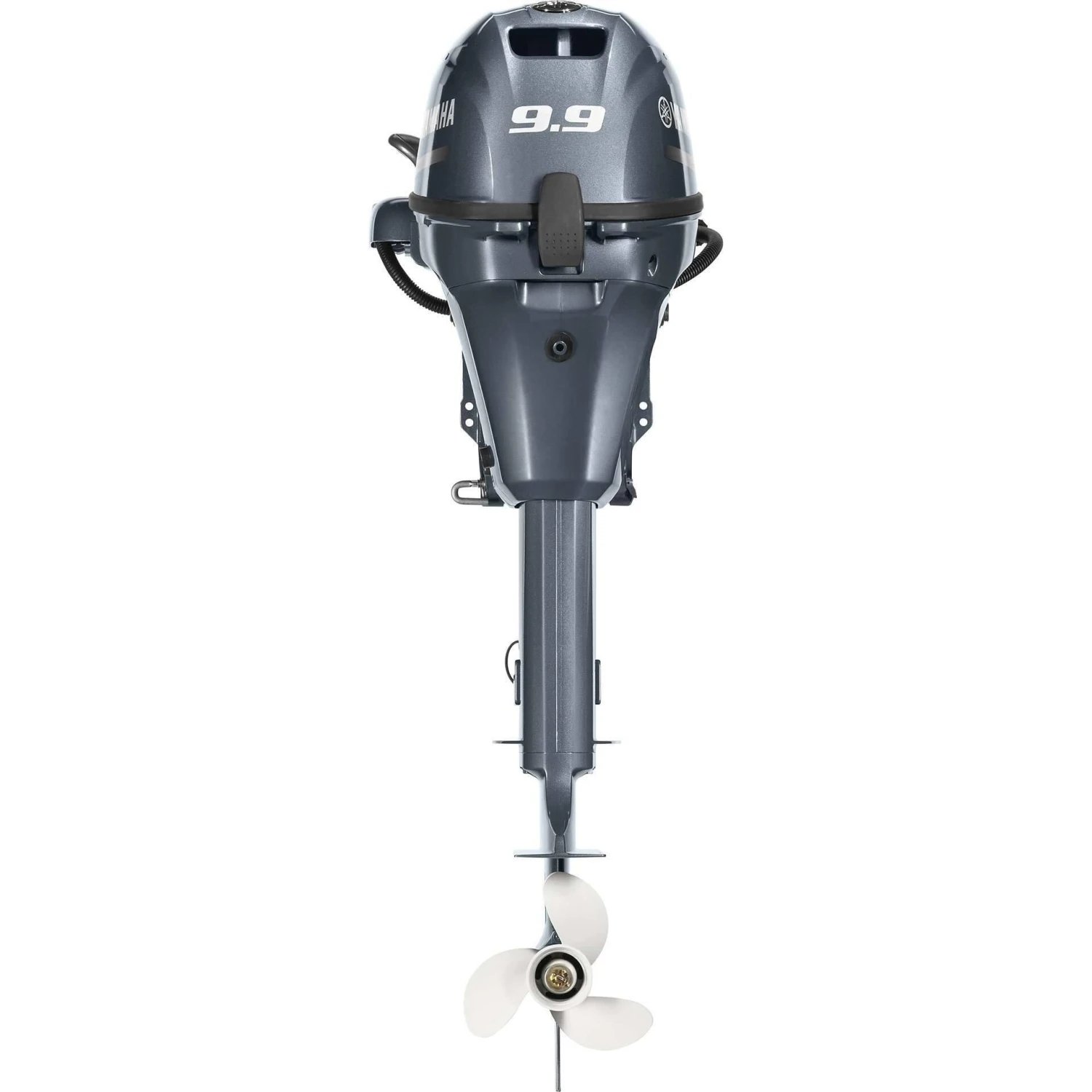

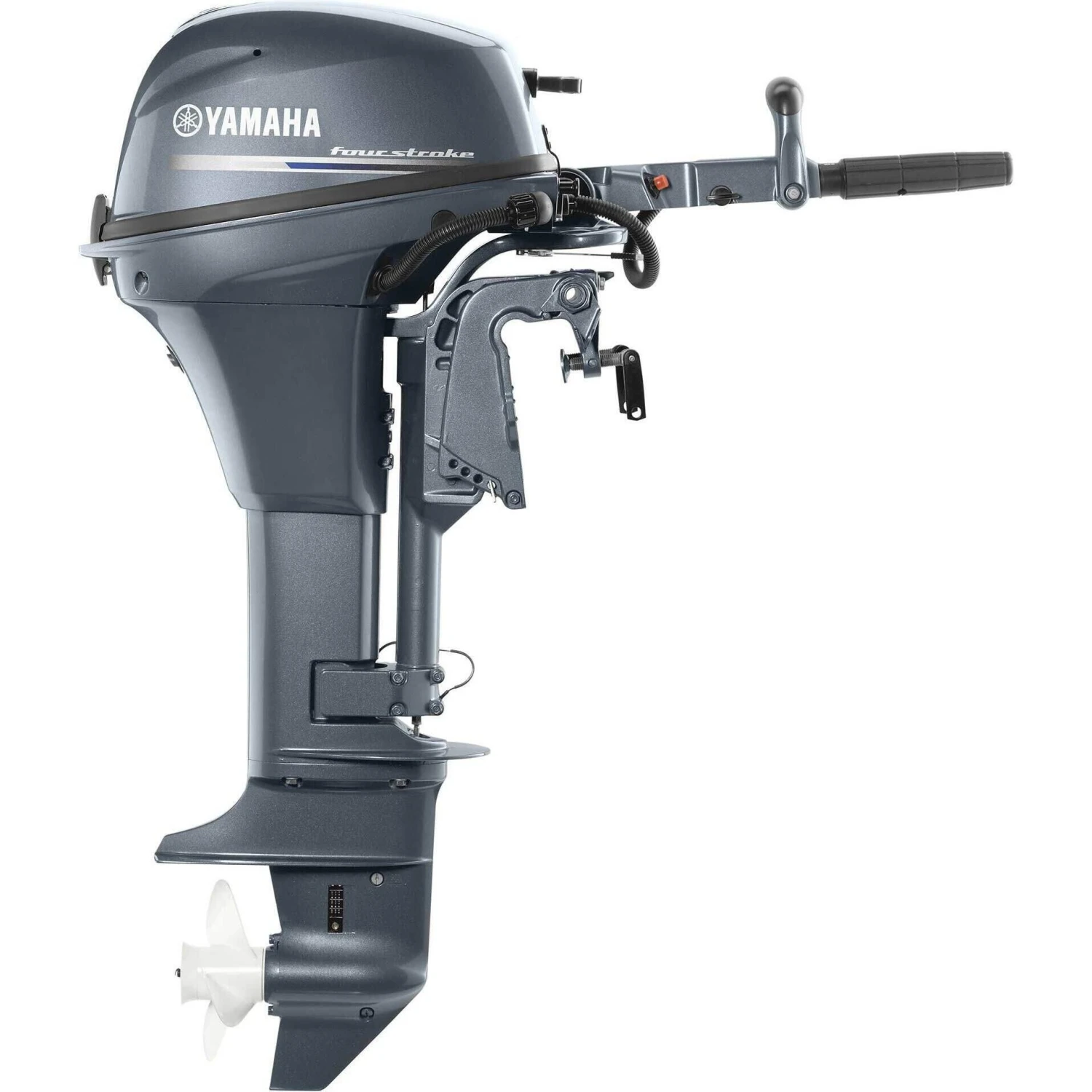

Yamaha 9.9 HP Tiller Outboard Motor – F9.9 – 2024

This 212 cc, 9.9 HP portable is an impressive little outboard with a new, shorter tiller handle for increased comfort and the option of manual or electric start.

Features:

• Forward, neutral and reverse shift
• Single carburetor
• Water cooled
• Fresh water flush
• Fuel line included

Specifications:

• Engine type: 2 cylinder
• Displacement: 212 cc
• Bore x stroke: 56 x 43mm (2.20 x 1.70 in.)
• Prop shaft horsepower: 9.9 HP @ 5500rpm
• Full throttle RPM range: 5000 ~ 6000
• Alternator output at wide open throttle: 6
• Compression ratio: 9.4:1
• Fuel induction system: carb
• Weight (dry weight without propeller): 39 kg (87 lbs) – 42 kg (93 lbs)
• Recommended fuel: Octane 87
• Recommended engine Oil: Yamalube 4M
• Recommended fuel Filtration: yamaha 10-Micron Fuel/Water Separating Filter (external)
• C.A.R.B. rating: 3-Star
• Exhaust: through propeller
• Intake: 4
• Ignition: CDI microcomputer
• Spark Plug: BR6HS-10
• Alternator output: 6
• Lubrication: wet Sump
• Engine oil capacity: 0.8 L
• Recommended cooling: thermostatic control
• Ethanol blend limit: 10% maximum
• Gear ratio: 2.08:1
• Gear shift: forward, neutral, reverse
• Shaft length: 15″ or 20″
• Degree of tilt: 71 deg.
• Degree of trim: -4 deg. through +16 deg.
• Dry weight: 15″ shaft / 39 kg (87 lbs), 20″ shaft / 42 kg (93 lbs)
• Steering angle (maximum): 43 deg. from center, either direction
• Standard propeller: 3-blade aluminum (8 1/2″ x 8 1/2″)
• External fuel tank not included
• Factory Warranty: 3 years. Warranty begins on date of purchase.

Note: Fuel tank not included.

Owner’s Manual (6.86 MB)
