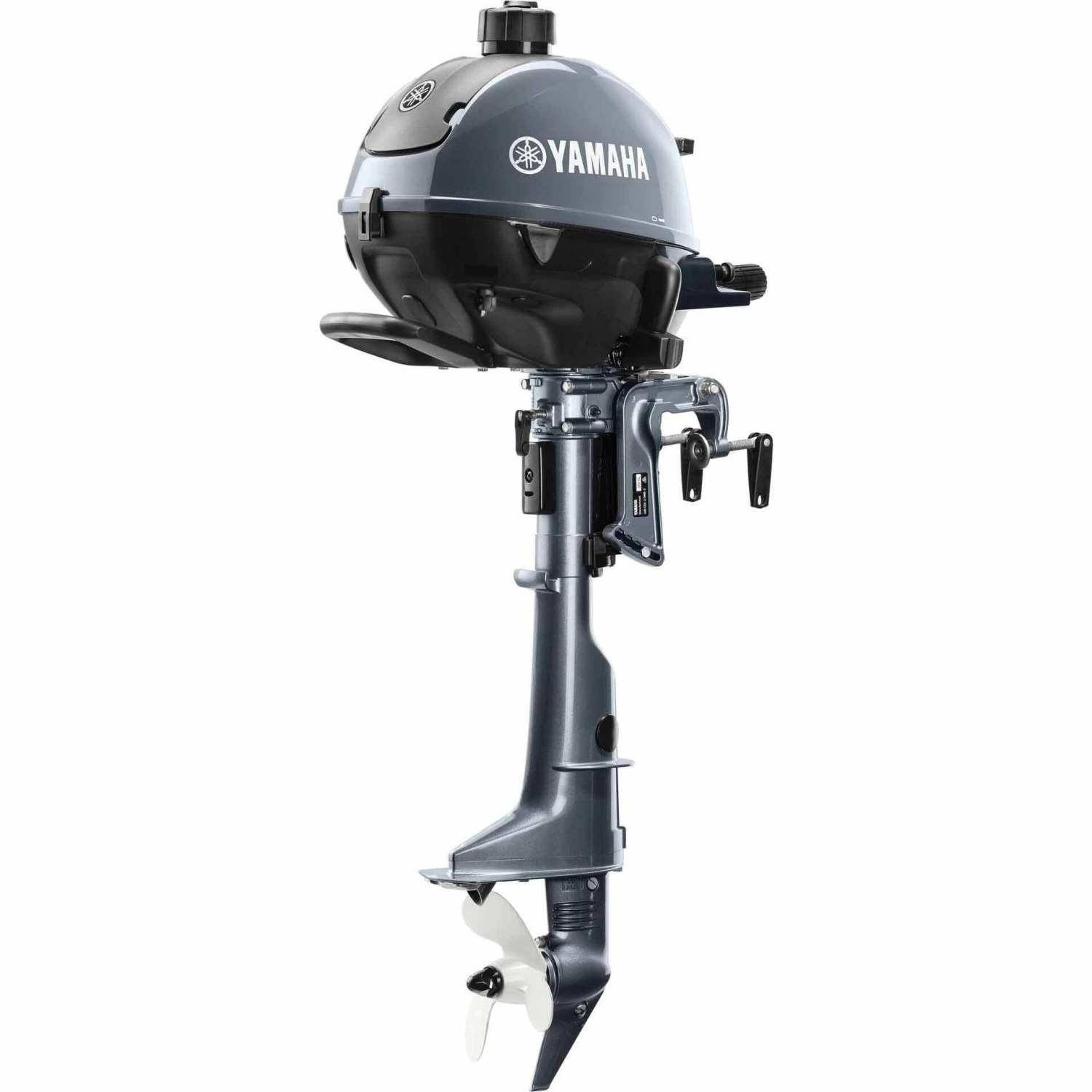

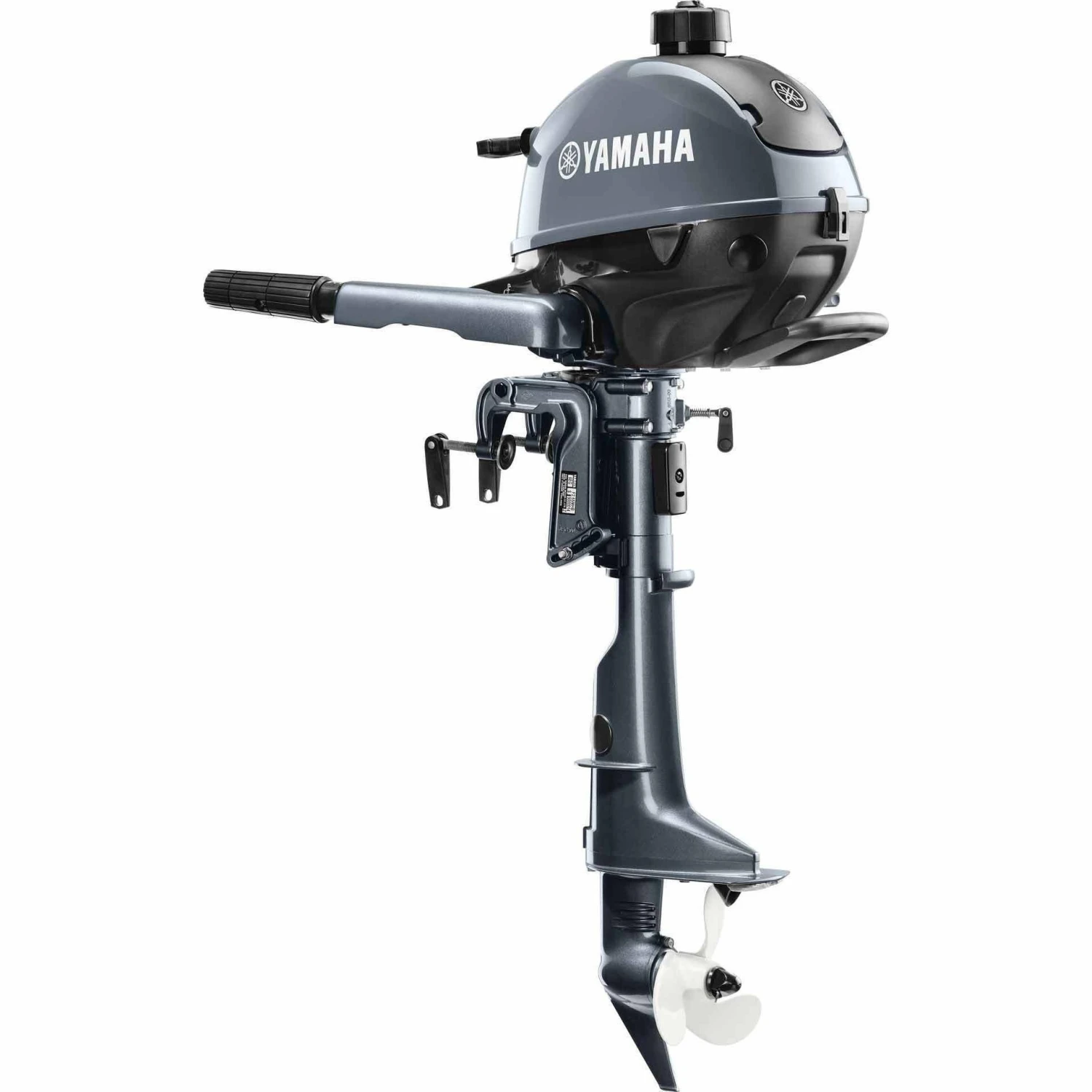

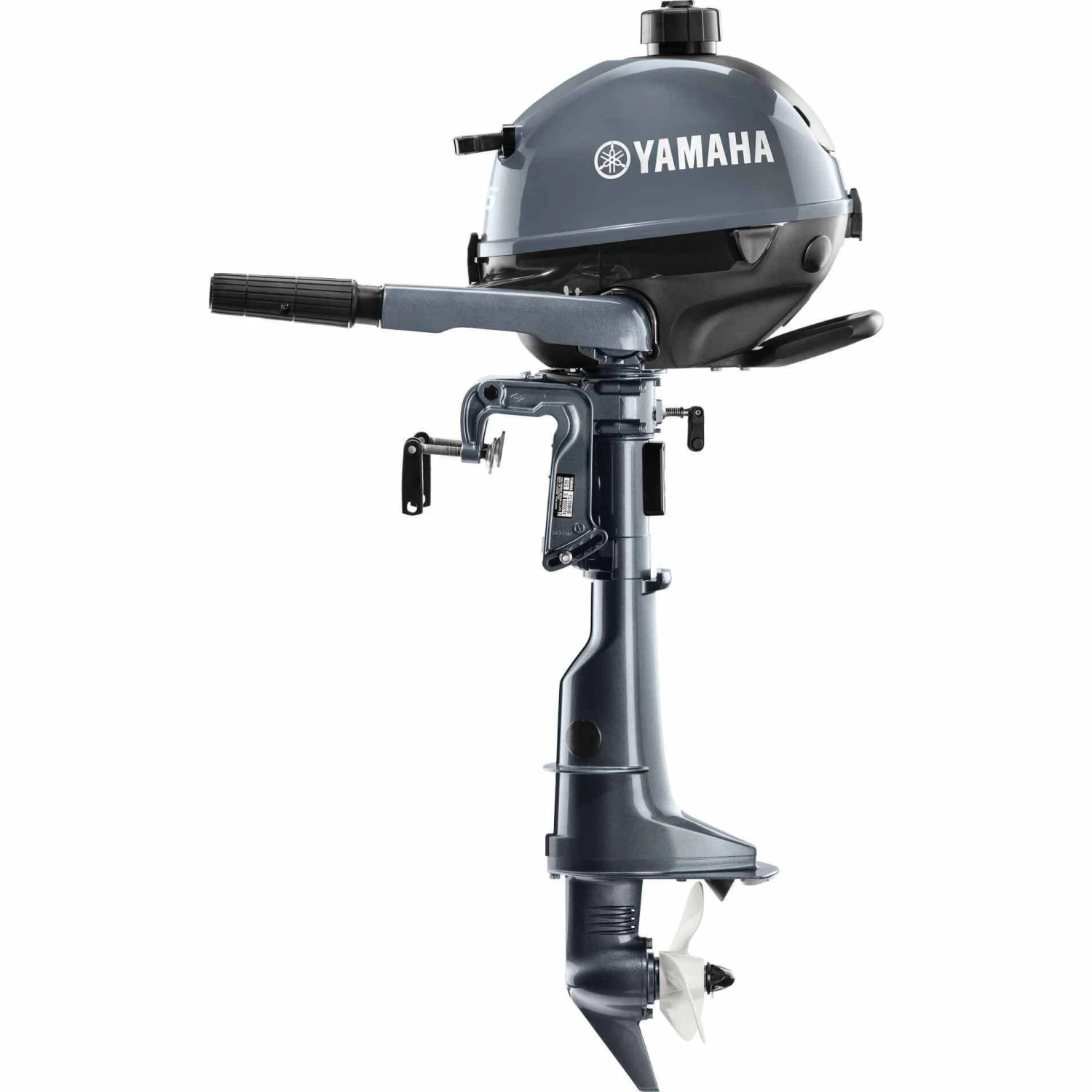

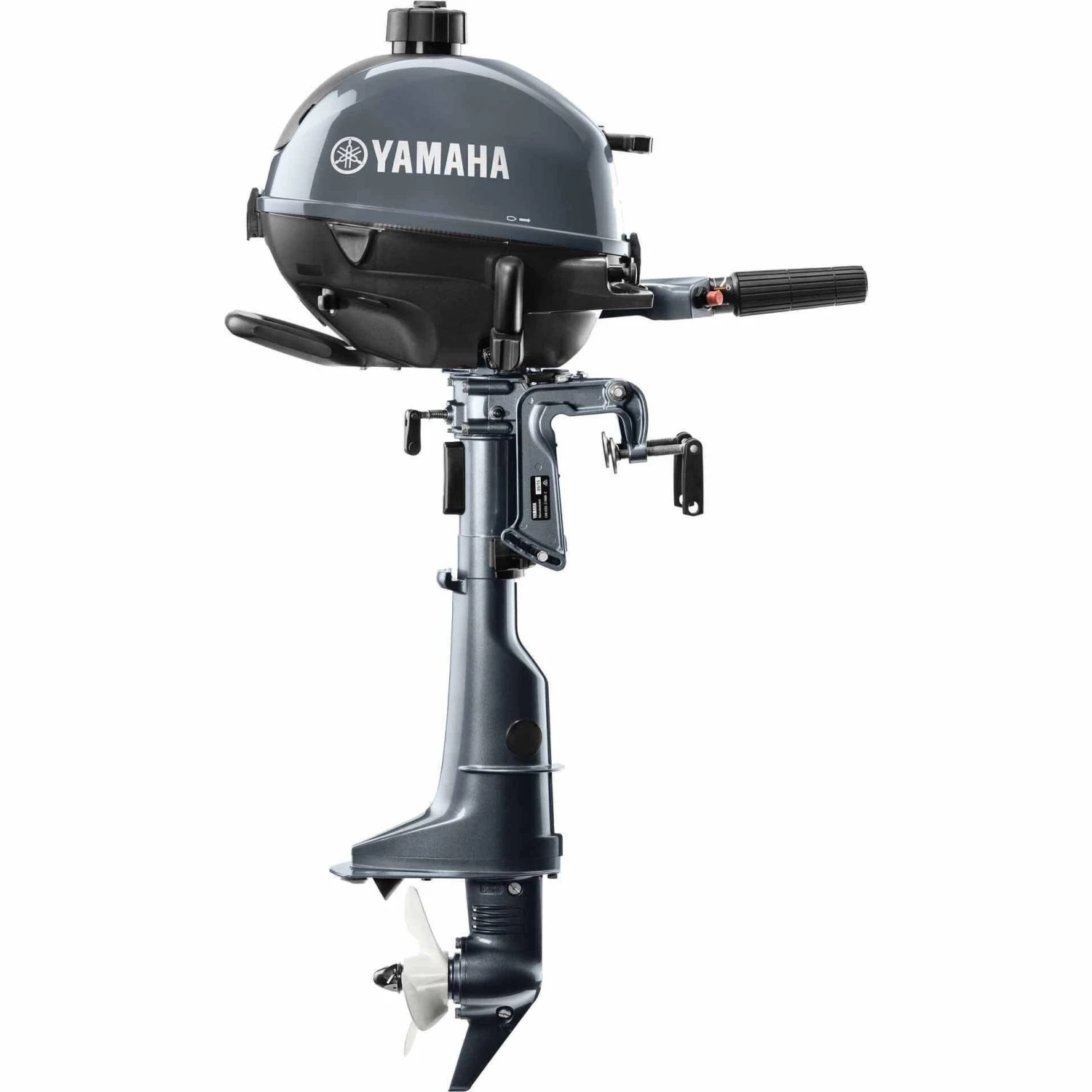

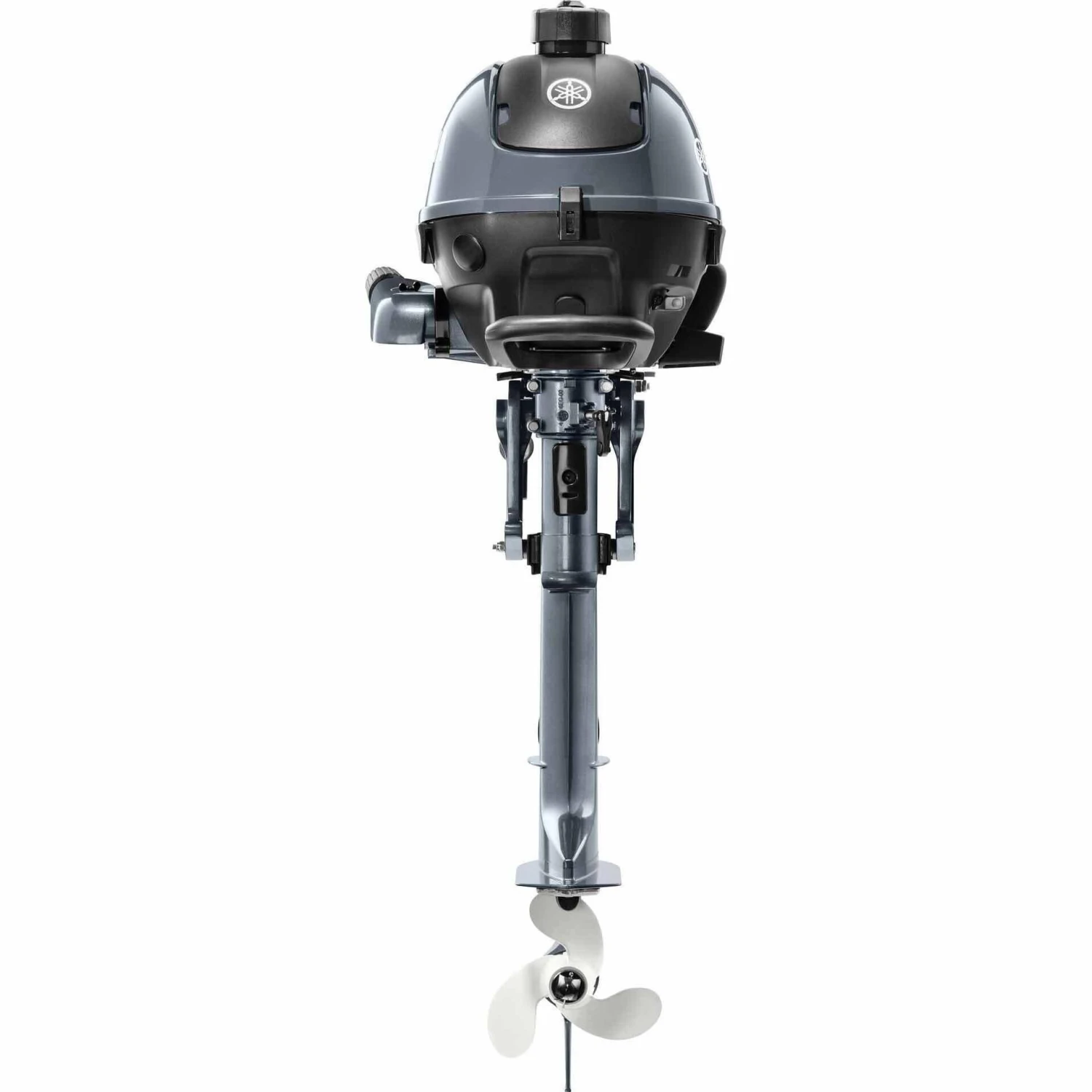

Yamaha 2.5 HP Tiller Outboard Motor – F2.5 – 2024

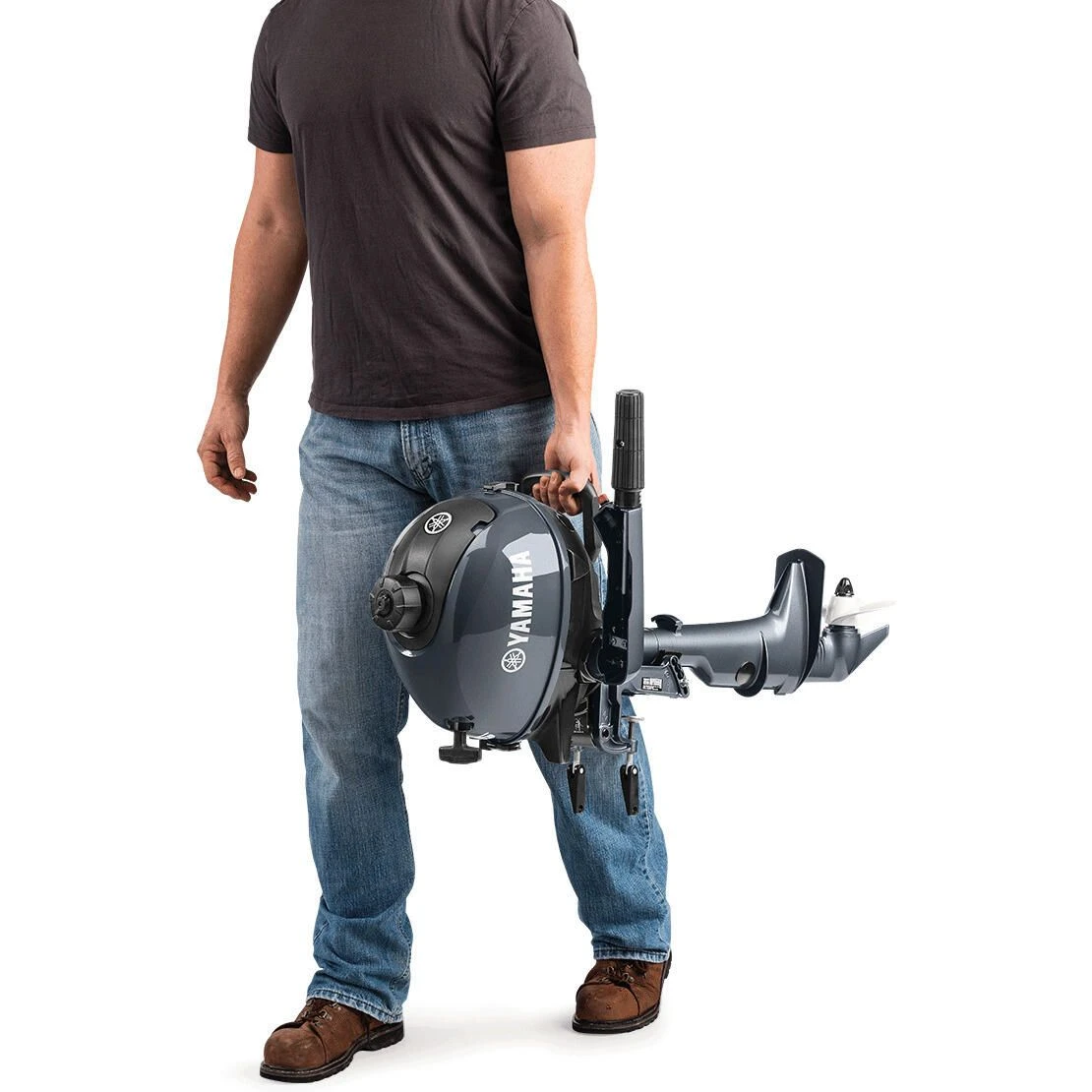

Yamaha’s 72 cc 2.5 HP portable outboard is the smallest motor on the roster, but it still packs a punch. Completely redesigned, it’s even more portable, easier to store and clean burning.

Features:

• Forward / neutral shift (360 deg, swivel steering)
• 3-way storage positions – (starboard, front and port)
• Large tiller handle
• Single carburetor
• Water cooled
• Integral fuel tank: 0.24 gal (0.9 L)
• Decompression device: reduces pulling force for easier starting

Specifications:

• Engine Type: 1 cylinder
• Displacement: 72 cc
• Bore x stroke: 54 x 31.5 mm (2.13 x 1.24″)
• Prop shaft horsepower: 2.5 HP at 5500 rpm
• Full throttle RPM range: 5250 ~ 5750
• Compression ratio: 8.8:1
• Fuel induction system: carbureted
• Weight: 17 kg (37 lbs) – 20 kg (40lbs) (dry weight without propeller)
• Recommended fuel: octane 87
• Recommended engine oil: Yamalube 4M
• C.A.R.B. rating: 2-Star
• Exhaust: above propeller
• Intake: 2
• Ignition: TCI
• Spark plug: CR6HSB
• Lubrication: splash
• Engine oil capacity: 0.35L
• Recommended tooling: thermostatic control
• Ethanol blend limit: 10% maximum
• Gear ratio: 2.01:1
• Gear shift: forward, neutral
• Shaft length: 15″ – 20″
• Degree of tilt: 79 deg.
• Degree of trim: -4 deg. through +16 deg.
• Dry weight: 15″ shaft / 17 kg (37 lbs), 20″ shaft / 20 kg (40 lbs)
• Mounting centers: N/A
• Steering angle (maximum): 360 deg. from center, either direction
• Fuel line included
• Standard 3-blade aluminum propeller (7 1/4″ x 5″)
• Factory warranty: 3 years. Warranty begins on date of purchase.

Note: External fuel tank not included.

Owner’s Manual (2.56 MB)
