Trident Marine 1300 LPG Propane Gas Control & Detection System – 1300-7761-KIT

The Trident Marine 12V DC Propane Control & Detection System turns the solenoid valve ON / OFF from control panel in the galley and monitors the cabin for presence of propane. It will also turn the propane off at solenoid valve automatically when alarm is activated.

Features:

• Turns solenoid valve ON / OFF from control panel in the galley
• Turns propane off at solenoid valve automatically when alarm is activated
• Mute button allows alarm to be silenced for one minute
• Test button allows unit to be tested for proper operation
• The only control panel on the market today that can be used on either 12V DC or 24V DC without the need of additional components
• Small footprint
• Easy to install only (2) holes to drill and (4) wires to connect
• Add up to a total of (3) propane detectors

Specifications:

• Power: 12V DC (panel will operate on 24V DC when used with 24V DC solenoid)
• Amp Draw:
  • 163 mA when Off
  • 953 mA when ON or stand-by mode
  • 255 mA in alarm mode
• Panel Size: 2-3/4″ W x 3-3/4″ H x 7/8″ D

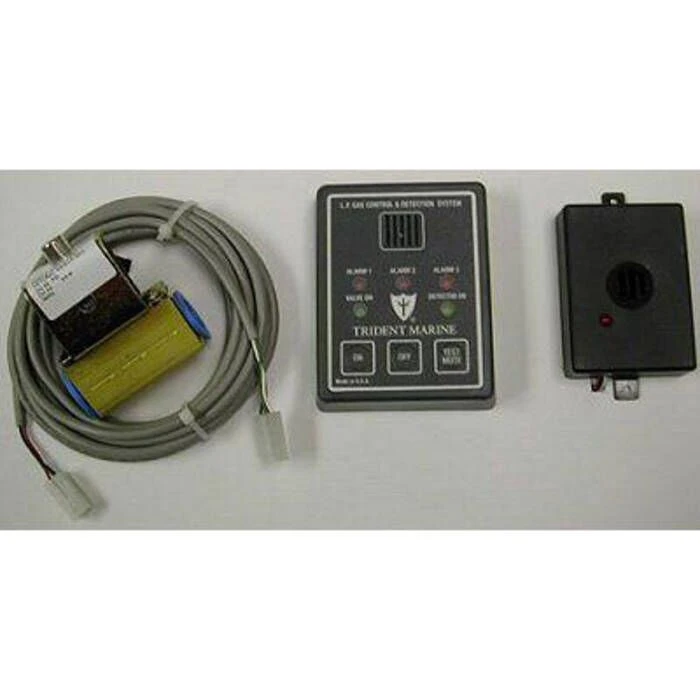

In the Box:

• 3-Zone propane control / detection panel
• (1) Propane detector
• 3/8″ Brass solenoid valve
• (2) Connection fittings
• 10′ Quick-Connect Cable
