TRiB AirCap Replacement Air Valve Cap With LED Pressure Readout Display – 100-004

The #1 cause of problems with an inflatable boat is under-inflation. Topping off your boat before use will prevent damage to your investment. Failure of seat patches, flooring, transom attachments and even seams can occur with improper inflation.

But now, the TR&imacrB (pronounced tribe) airCap replacement air valve cap pressure gauge helps you maintain optimum air pressure with a constant readout of pressure right on your valve cap.

Two models of the airCap are available: one for Leafield C7/D7 valves and one for Halkey-Roberts and similar valves. They both measure up to 20 PSI making them ideal for a range of inflatable craft including rafts, IKs, SUPs and RIBs.

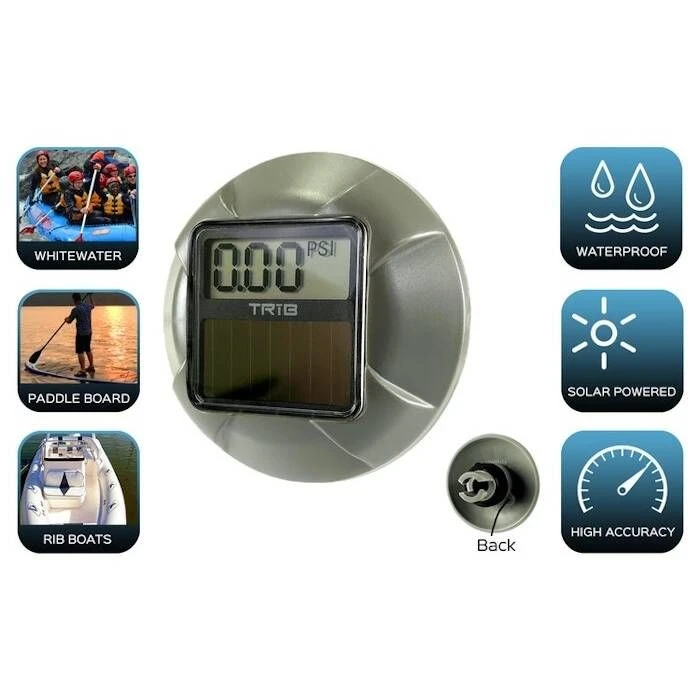

The airCap features a solar-powered, highly accurate, digital LED readout that displays well in full sunlight and in low-light conditions for those dawn and dusk outings. And a headlamp or flashlight will provide enough light to power your airCap. The airCap is sealed and water resistant.

The 100-004 Halkey-Roberts model has an optional audible alarm that can be turned on or off and is triggered when pressure has reached unsafe levels. The 100-001 Leafield C7/D7 model does not have the alarm option.

Which Trib airCap is right for me?

Images below show Leafield C7/D7 and Halkey-Roberts style valves.

The model 100-004 airCap HR, is compatible with Halkey-Roberts New Short, Summit 2, and other similar valves. The HR has an over-pressure alarm that the user can turn on or off and set to any value between 0.5 and 20 PSI.

Features:

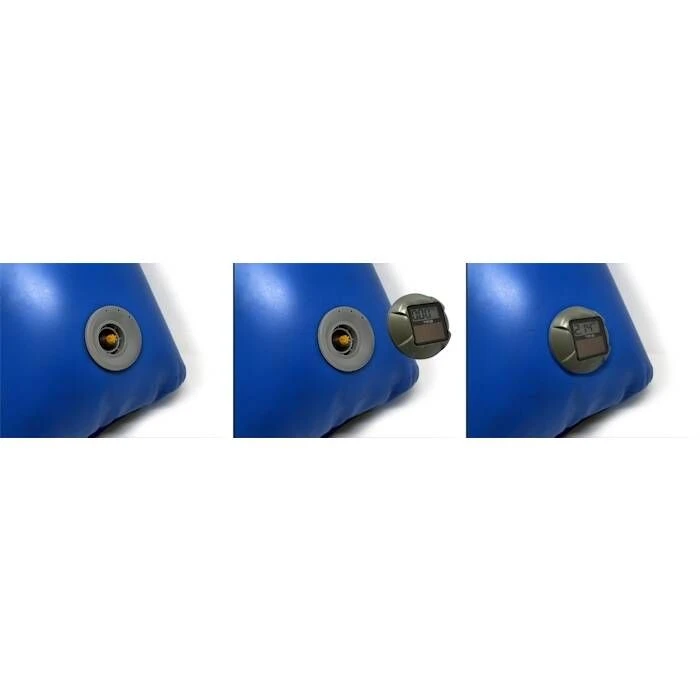

• Trib airCap is designed to replace inflatable’s existing inflation valve cap
• airCap displays inflation pressure whenever suitable light source is present
• High-visibility, easy-to-read LCD displays pressure to one-hundredth of a PSI
• Performs in low-light at dusk, dawn and by headlamp
  • airCap will operate in most light conditions, even when it is cloudy or overcast
  • If it is necessary to operate airCap after dark, a headlamp or flashlight will provide enough light to power your airCap
• airCap is rugged, fully sealed, ready for extreme boating adventures
• Solar powered; no batteries or parts to replace
• Pressure Range airCap will read to pressures of 20 PSI (138 kPa, 1.38 Bar)
• airCap HR has an over-pressure alarm that the user can turn on or off and set to any value between 0.5 and 20 psi.
  • Above 20 PSI, airCap displays “OP” to alert the user that the your inflatable boat and or SUP is over pressure
  • Operation in over pressure condition is not recommended and could damage your airCap and inflatable
• Avoid abrasive surfaces contacting your airCap, especially on lens
• airCap can be left attached to your inflatable or removed when inflatable is in storage

Specifications:

• Pressure Accurately measures up to 20 PSI
• Overpressure Alarm airCap
  • airCap HR has a user selectable audio alarm
    • Pre-programmed to alarm at 2.5 PSI or 3.5 PSI
    • Can be manually turned on or off
• Pressure display units: (PSI, kPa, Bar)
• Low-Light Operation: Display visible at dusk, dawn, under headlamp
• Water Resistance: Sealed, submersible
• Durability: Long, battery-free life
• Diameter: 2.8″

Compatibility Guide (1.44 MB)

Installation Guide
