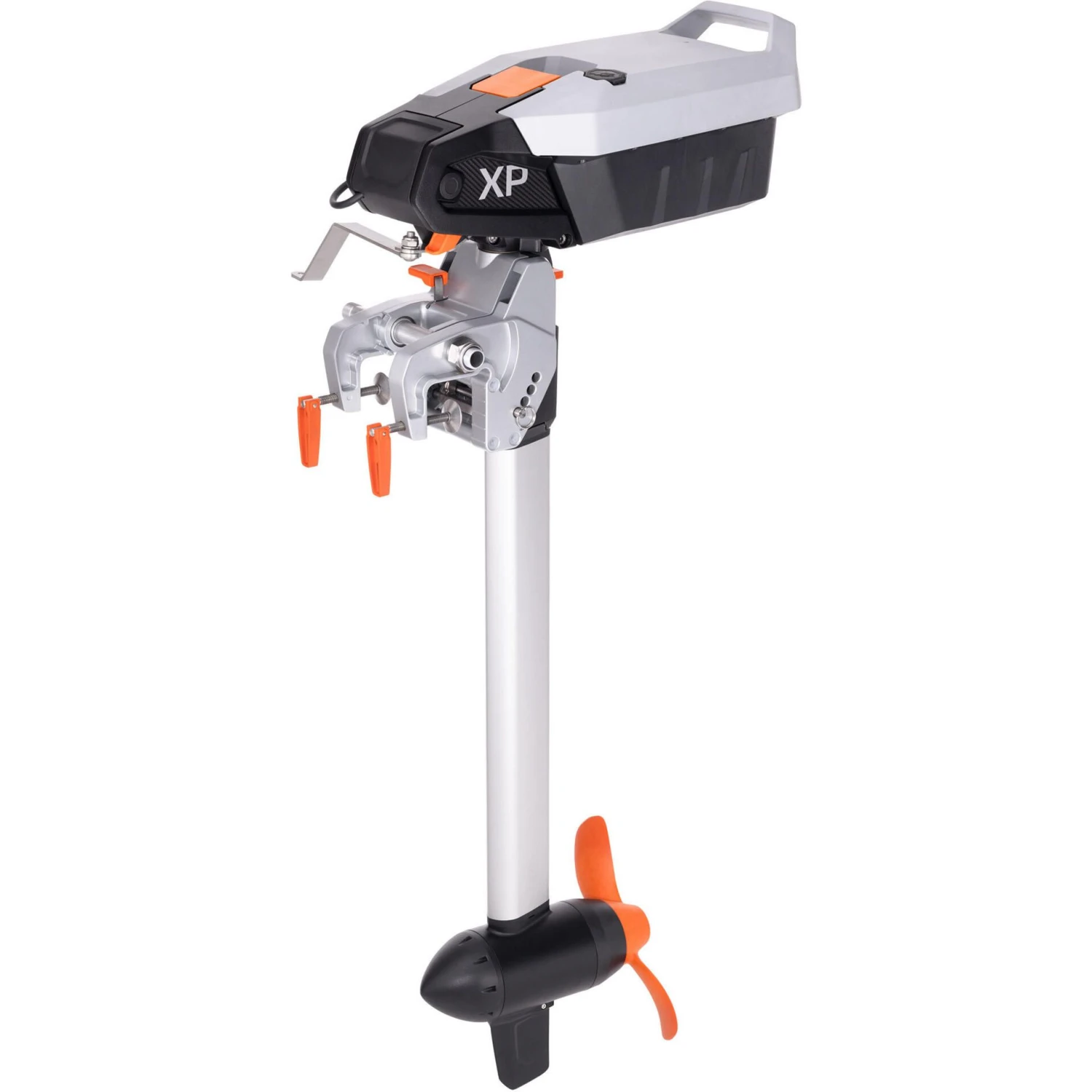

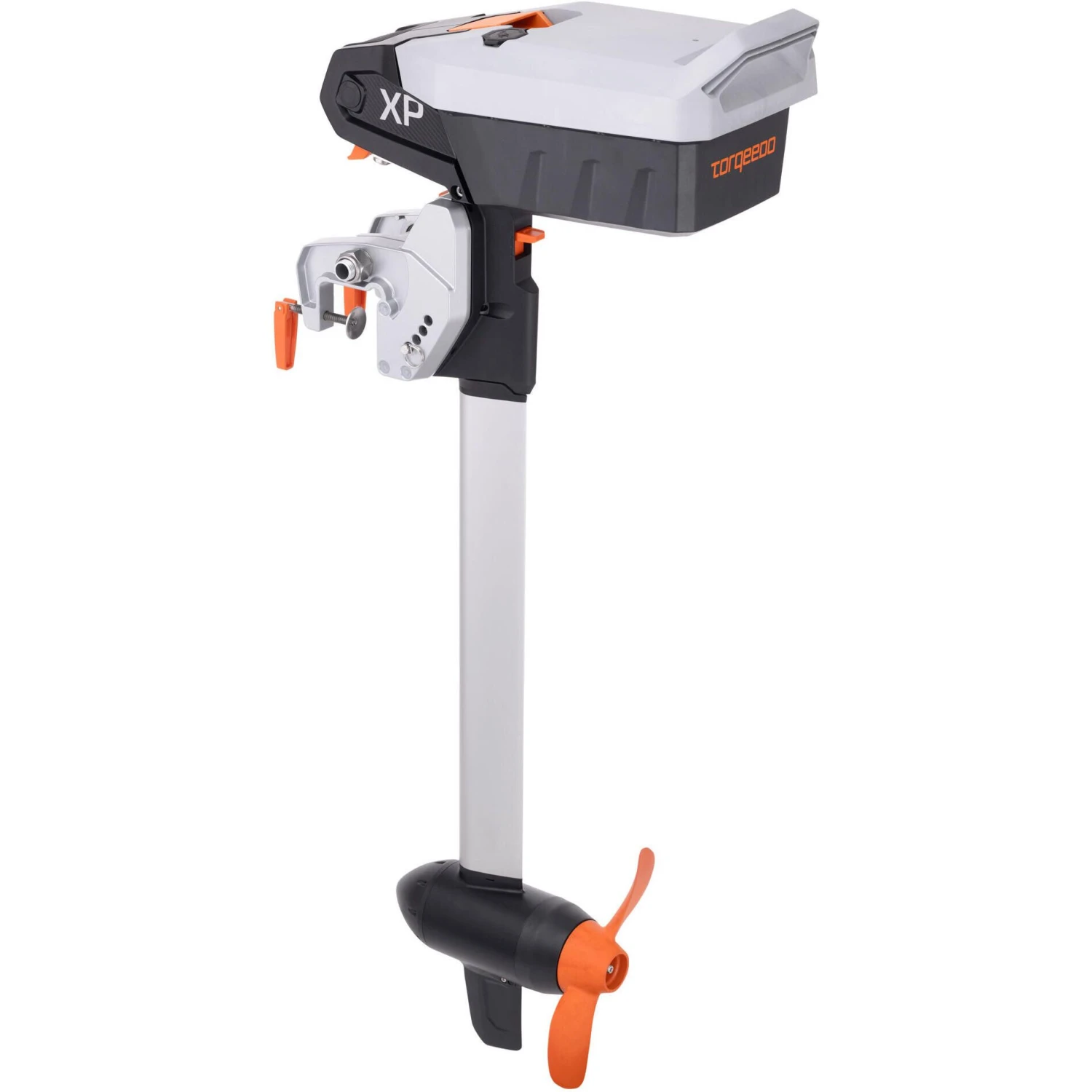

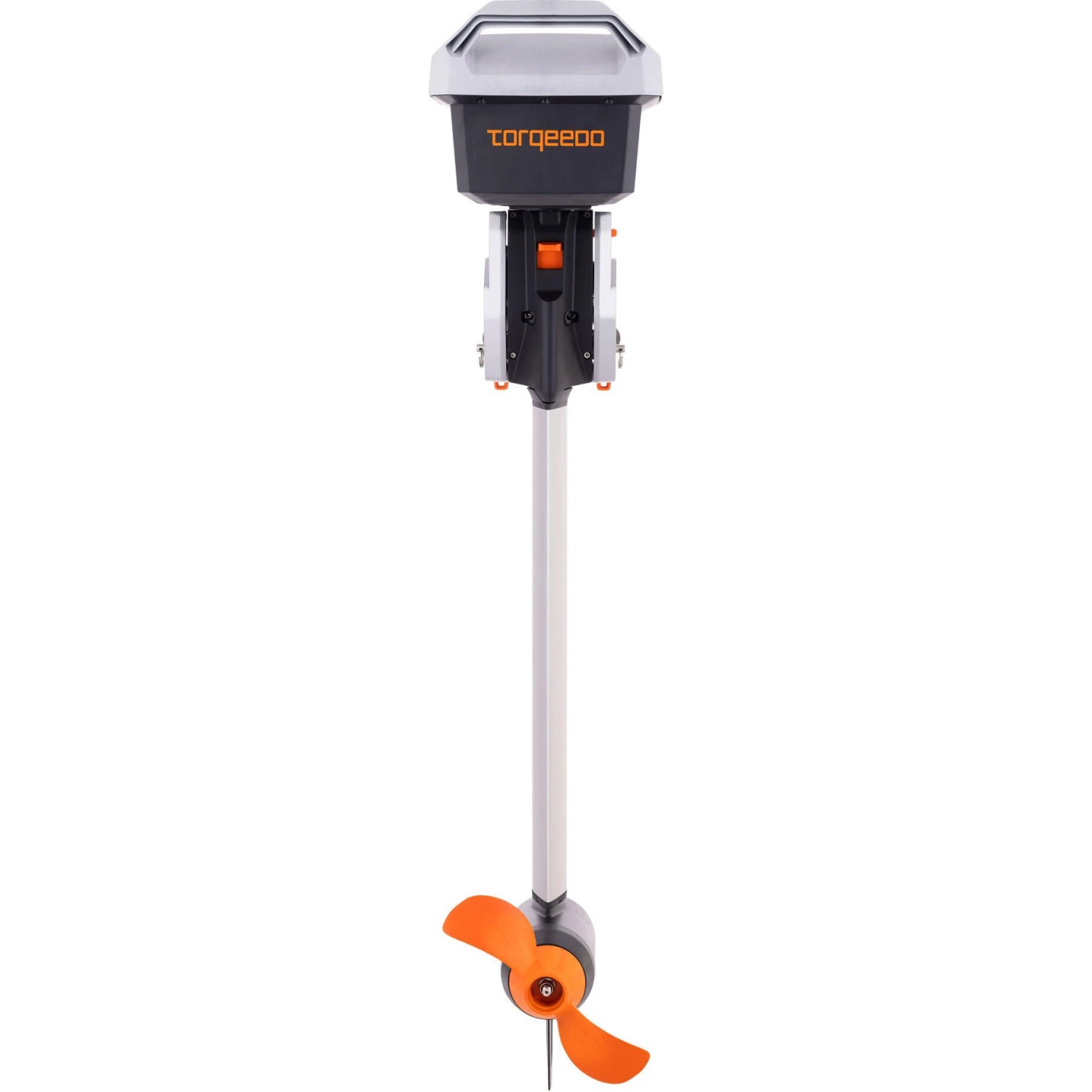

Torqeedo Remote Electric Motor -Travel XP

Features:

• Powerful performance:
  • The Travel XP provides 44% more thrust than the standard Travel model, making it ideal for bigger boats and challenging conditions.
• 5 HP-equivalent:
  • With 1600W of electric power, the Travel XP offers the equivalent thrust of a 5 HP outboard motor, ensuring efficient and reliable performance.
• Lightweight and portable:
  • Starting at 27.8 lbs (12.6 kg), The Travel XP’s motor makes it easy to handle and install.
• Emission-free boating:
  • Experience emission-free and eco-friendly boating with the Travel XP, contributing to a cleaner and greener environment.

Specifications:

• Continuous Input Power: 1600W
• Shaft Length (Top Edge Transom To Center Propeller Shaft):
  • Short Shaft: 24.5″ / 62.5 cm, ideal for 15″ transom height
  • Long Shaft: 29.5″ / 75 cm ideal for 20″ transom height
• Weight (Motor Only):
  • Short Shaft (62.5 cm / 24.5″): 29.9 lbs (13.6 kg)
  • Long Shaft (75 cm / 29.5″): 30.8 lbs (14 kg)
• Recommend Battery: 1425Wh
• Standard Propeller: Propeller A 11 x 8 WDR
• Maximum Propeller Speed: 1400 RPM
• Control: Remote throttle
• Data Link: TorqLink
• Steering: Easy adjustable 360 deg. or ±60 deg. or fixed
• Tilting Device: Manual with impact protection
• Tilt Angle: Max. 90 deg., 2 steps
• Trim Device: Manual, 4-step
• Shallow Water Positions, Number Of Steps Depending On Trim Pos.: Min. 2, max. 4
• Stepless Forward/Reverse Drive: Yes

Note: Battery not included, sold separately. Product # 1084749.

Product Brochure (3.83 MB)

Owner’s Manual (9.68 MB)
