Torqeedo Cruise 12.0 Fixed Pod Electric Motor – Torqlink – 1283-00

Features:

• Aluminum Reinforced Fixed Position Pod Drive, Robust Design
• Recommended for Sailboats up to 12 tons
• Diesel Inboard Equivalent: 25 HP
• Forward/Neutral/Reverse drive
• Onboard Computer and Display with GPS-Calculated range and runtime
  • When used in combination with a Torqeedo Power Battery you get a Real Time Display of Speed, Input Power, Exact Battery Status and Remaining Range
• Operates with Lithium or AGM/Lead-Gel Batteries (Sold Separately)
• TorqLink Data Interface – enables fast data exchange between TorqLink components without gateway

Specifications:

• Engine Type: Electric – 48V
• Remote (Remote Throttle Not Included)
• Weight: 73.9 lbs
• Power Cable: 4.5 Meters
• Diesel Inboard Equivalent: 25 HP (Propulsive Power)
• Diesel Inboard Equivalent: 25 HP (Thrust)
• Propulsive Power inW: 6,720
• Static thrust: Up to 405 lbs
  • Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values
• RPM Range: Variable to 1,400
• Standard Propeller: 5 Blade fiberglass reinforced polyamide
  • v15/p10k
  • Slower Speed
  • Greater Thrust
• Waterproof (IPx9K outside the hull when completely assembled)
• Requires 48V DC
• Can be powered by (2 or more) Torqeedo Power 48-5000 batteries
• External Battery(s) are not included with this model
• This model does not use an Internal battery
• Optional Folding Propeller (Sold Separately)
• Factory Warranty: 2 years. Warranty Begins on Date of Purchase.

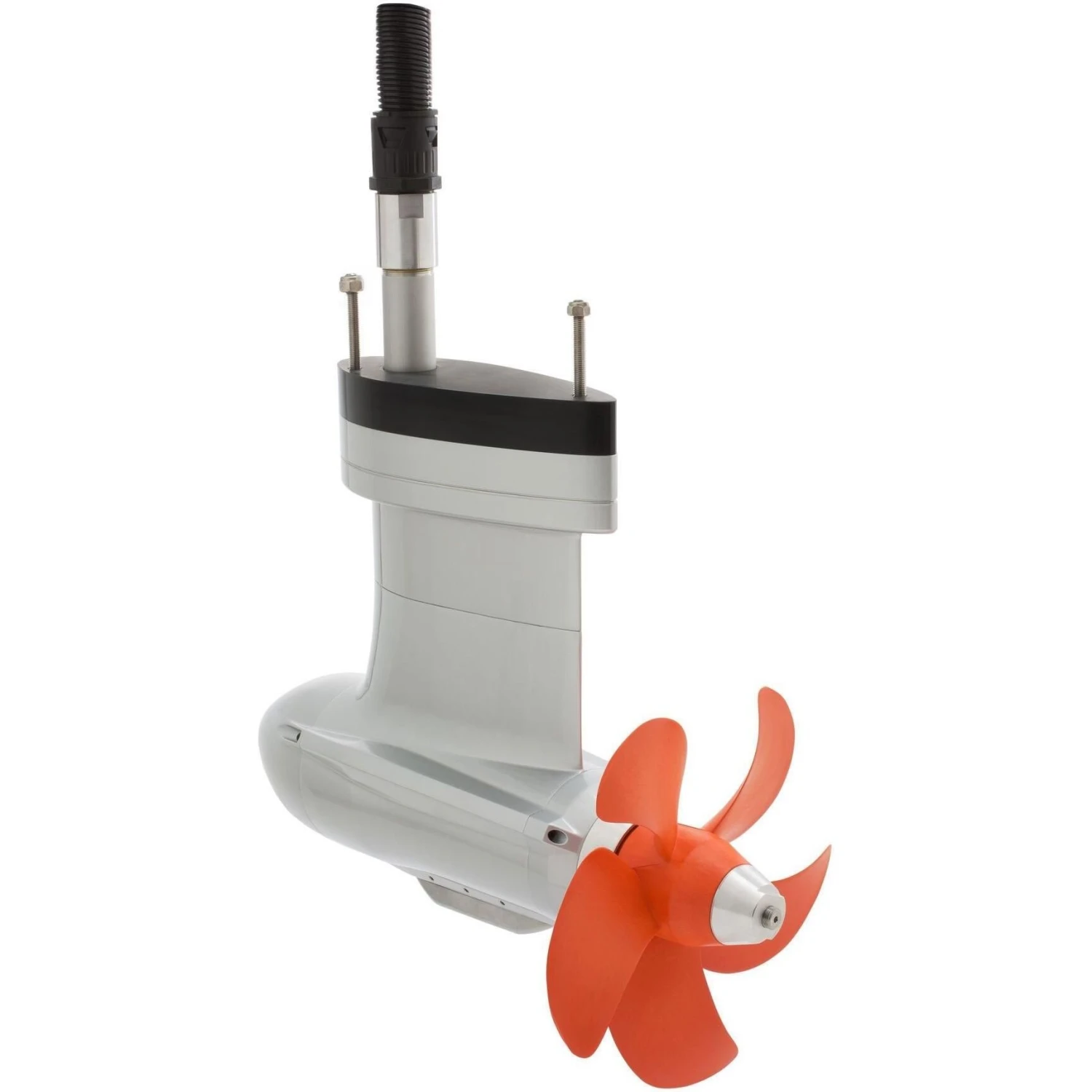

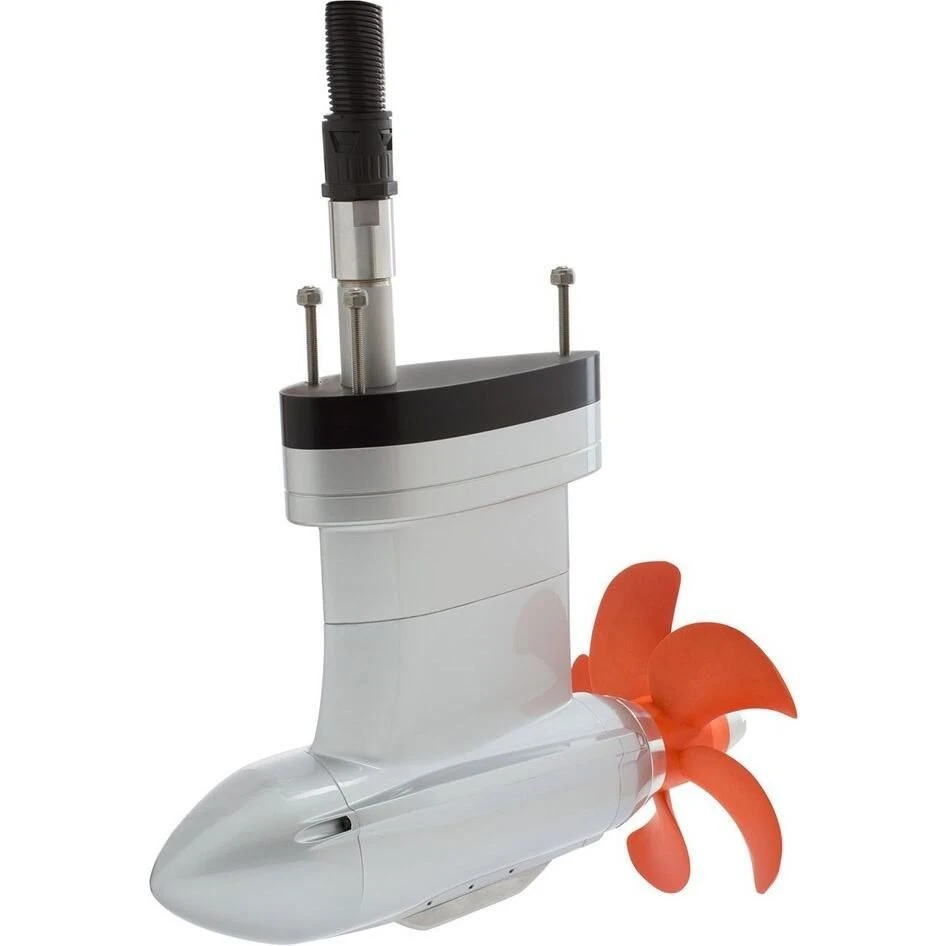

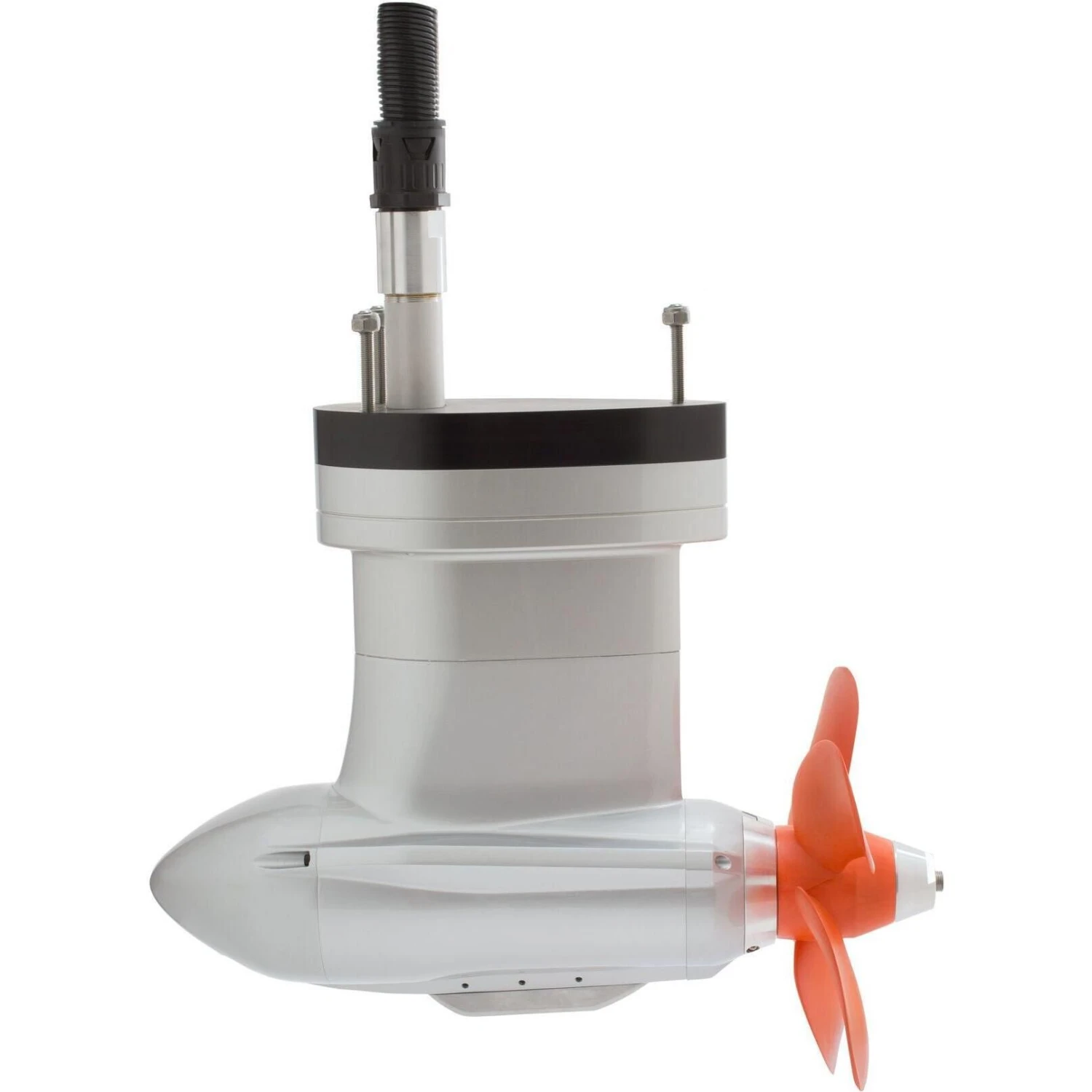

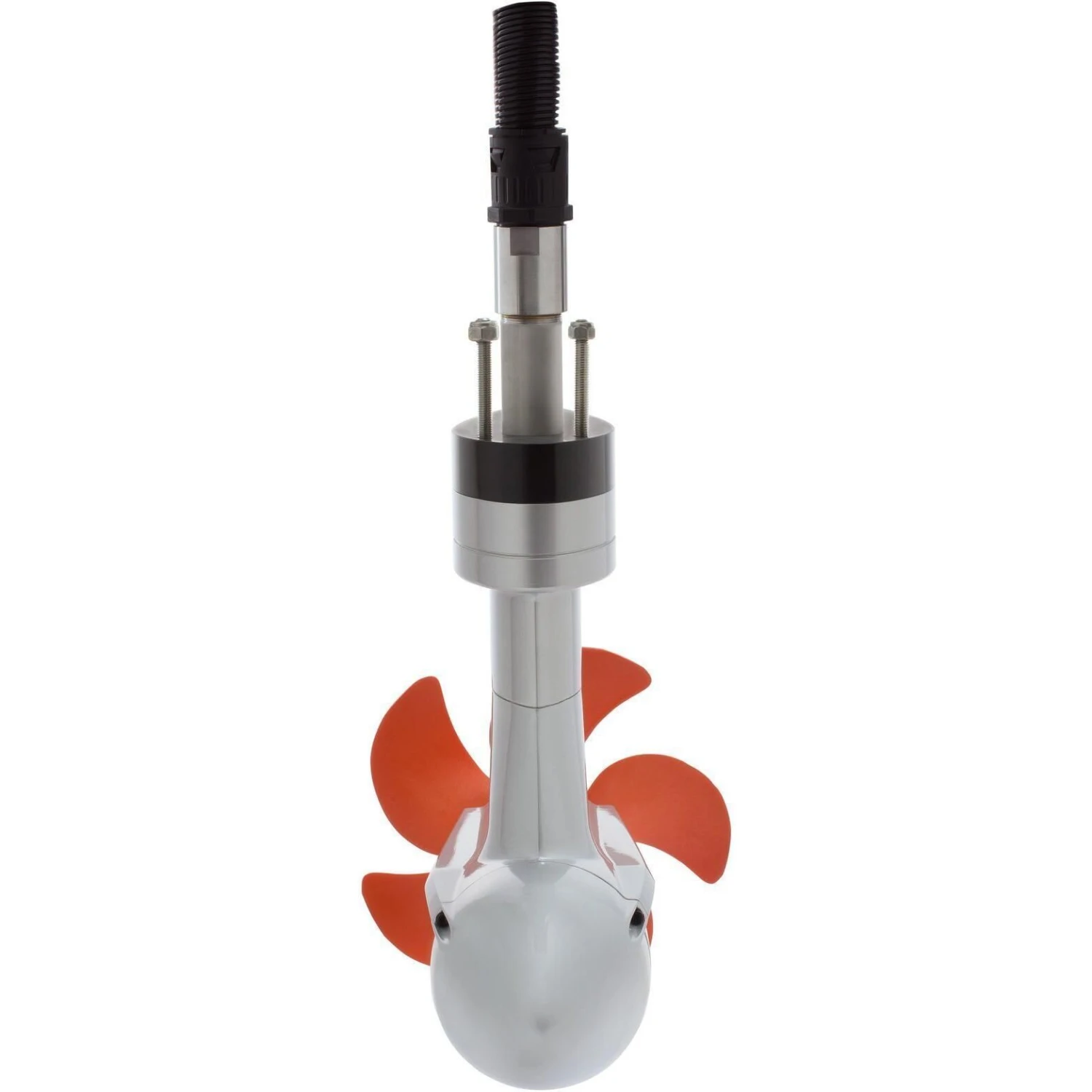

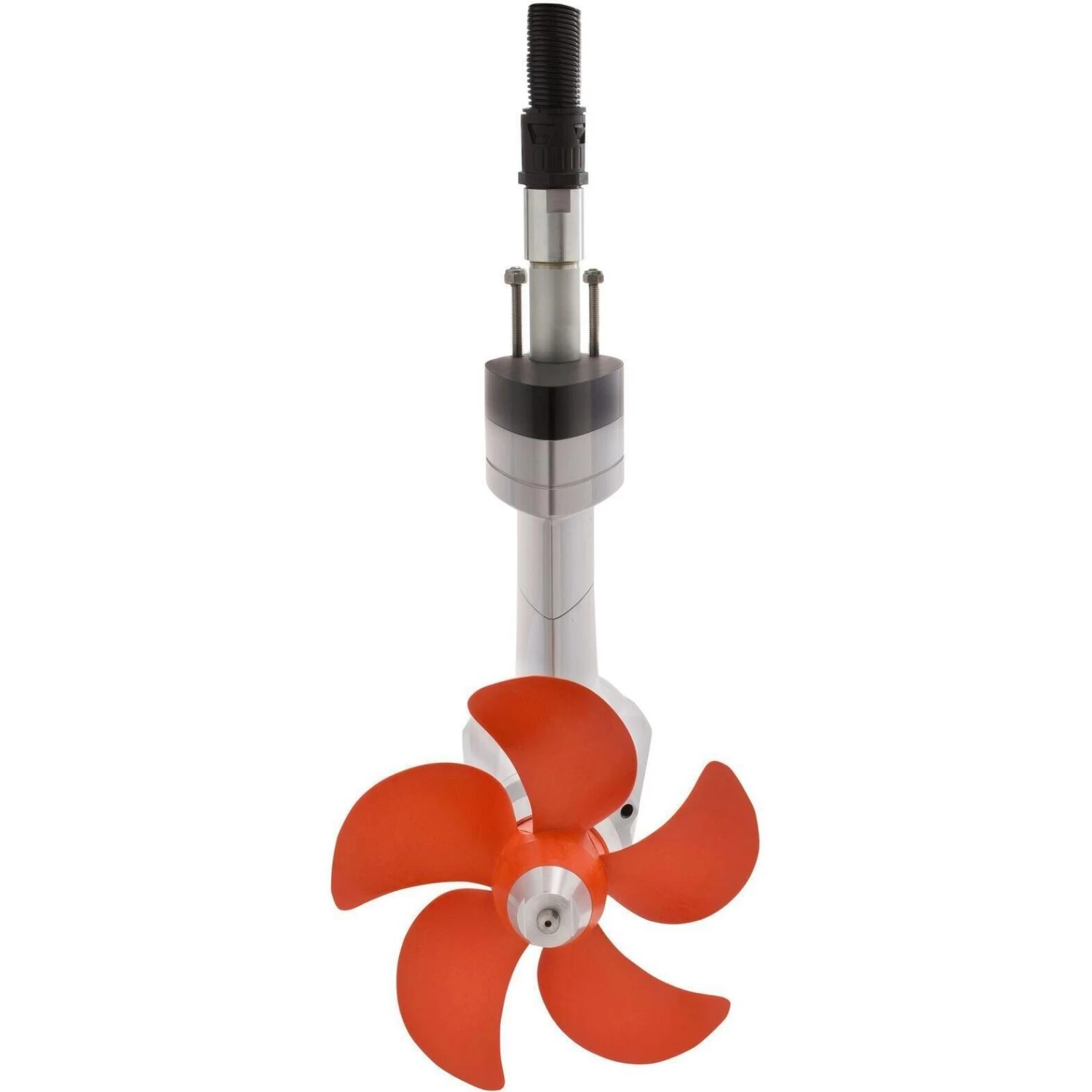

Note: Images show Cruise 10.0FP model.

Note: If using a power source other than the Torqeedo 48-5000 (x2) Power Battery to power your Cruise, the actual percentage remaining, the remaining range and the runtime will be estimated. Only a Torqeedo Power Battery will communicate with your motor to give real time information.

Note: Engine power is reduced to 6kW when operating with only one Power 48-5000 battery

Owner’s Manual (5.05 MB)

Technical Data Sheet (1.42 MB)
