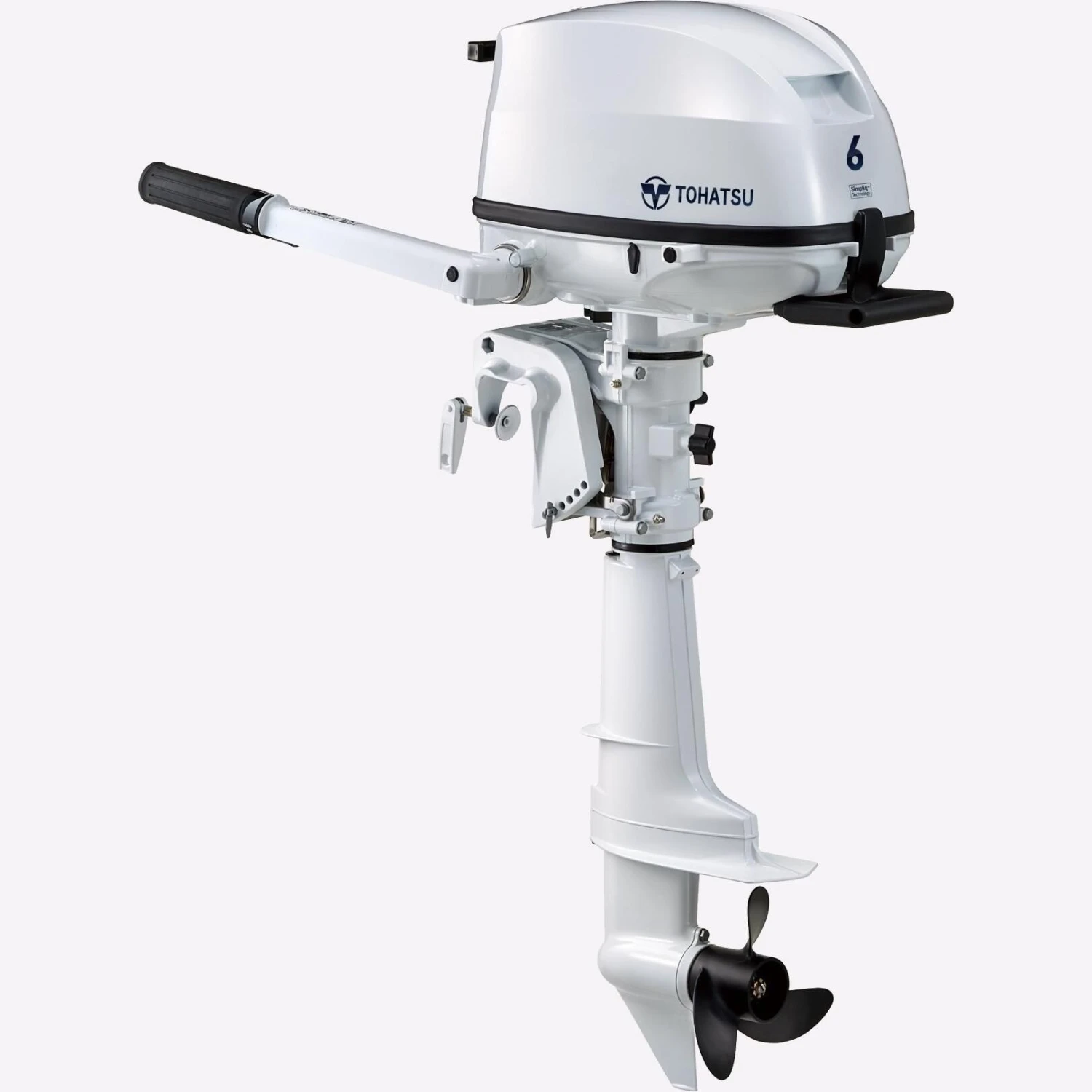

Tohatsu 6 HP Tiller Outboard Motor With Internal Tank – MFS6 – 2024

The 6 HP 4-stroke outboard provides all the power you need for motoring in a small craft. This engine provides fuel efficiency second to none, and a redesigned carrying handle and holding grip makes it convenient to transport! With all of this available at a competitive price, it is no wonder this powerful 6 HP outboard receives so much attention and praise!

Features:

• Newly designed top and bottom cowls
• 3-way storage positions without worrying about oil spill
• Front mounted shift lever
• Greatly reduced vibration for smooth and stable running at all speeds
• Greatly reduced induction noise for a quieter ride
• EPA and CARB 3-Star rating approved
• Newly designed Tohatsu’s unique front and back carrying handles for easier transportation
• Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
• Recoil starter with larger reel making manual starting fast and easy
• Shallow water drive
• 6 trim positions
• Adjustable steering friction for reducing steering effort
• New longer tiller handle (110 mm extension)
• Through-the-prop exhaust for a quieter ride
• Thermostatically controlled cooling system for consistent engine temperature
• Stainless steel water pump housing liner for outstanding durability
• High grade marine aluminum alloy that provides the ultimate protection against corrosion
• Zinc coating on internal water passages for superior corrosion resistance
• Low oil pressure indicator
• Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
• Start-in-gear protection for safer engine starting
• Over-rev. limiter

Specifications:

• Engine: 4 Stroke 1 Cylinder
• Output: 6 HP (4.4 kW)
• Displacement: 123 cc (7.5 cu.in.)
• Bore x Stroke: 59 x 45 mm (2.32″ x 1.77″)
• Starting: Manual
• Control Type: Tiller Handle
• Gear Shift: Forward – Neutral – Reverse
• Gear Ratio: 2.15:1
• Fuel: Unleaded Gasoline (87 Octane)
• Oil Type: NMMA Certified FC-W® 4-stroke oil SAE 10W-30/40 (SF, SG, SH, SJ)
• Oil Capacity: 450 ml (15 oz)
• 1.1L (0.29 gal) internal fuel tank
• Weight (based on lightest model): starting at 25 kg (55 lbs.)
• Alternator Output: Optional: 12V, 60W, 5A
• Max. RPM Range: 5,000 – 6,000
• Digital CD Ignition System
• Start In Gear Protection
• Thermostat Controlled Cooling System
• Standard Propeller: 3-Blade Aluminum (7.7″ x 8″)
• 0.29 gal front fill integral fuel tank
• Through-the-prop exhaust
• Oil Pressure Warning
• Shallow Water Drive
• External fuel tank capable (not included)
• Factory Warranty: 5 years. Warranty begins on date or purchase.

Note: External fuel tank and fuel line not included.
