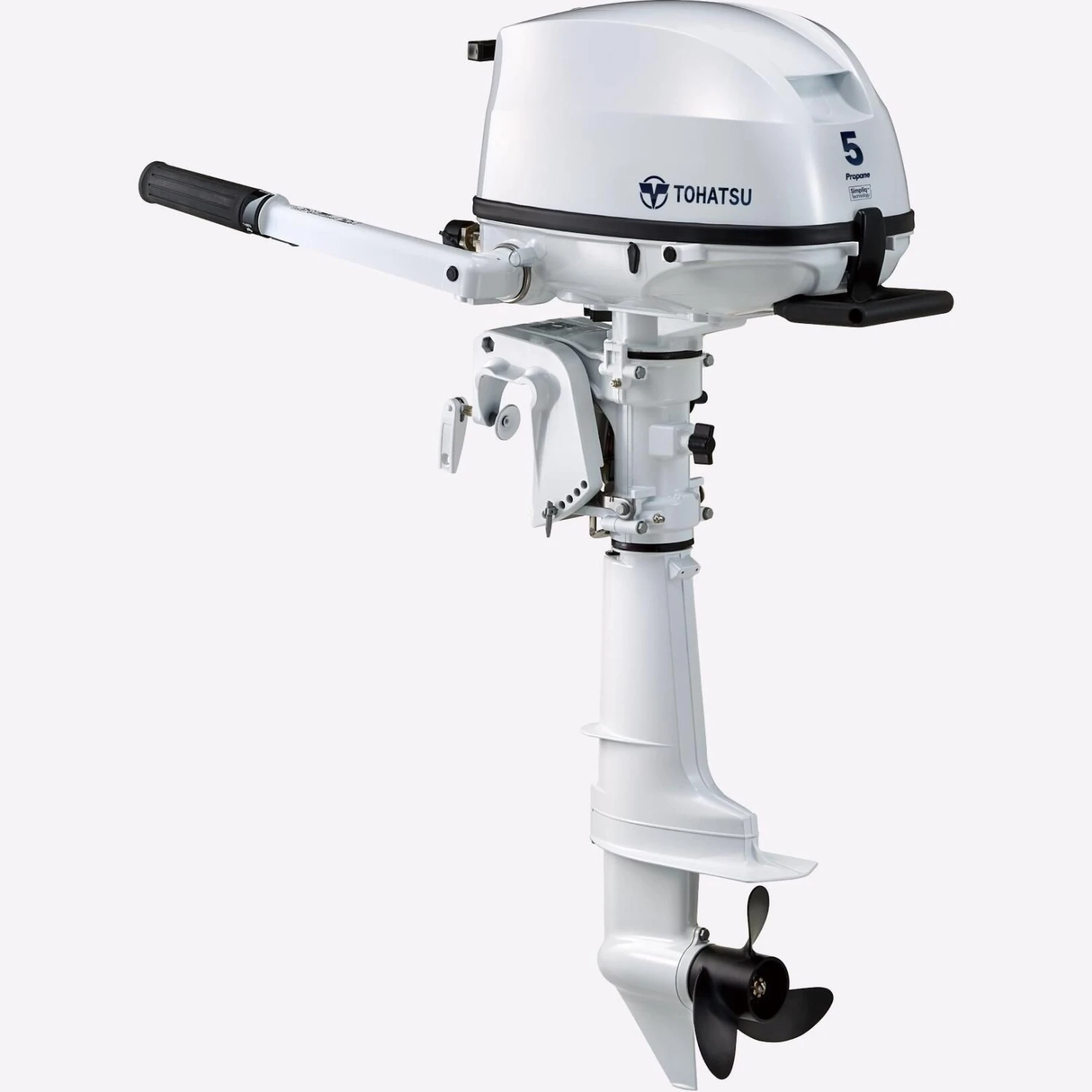

Tohatsu 5 HP Tiller Propane Outboard Motor – MFS5LPG – 2024

Thanks to Tohatsu’s 5 HP Propane / Liquefied Petroleum Gas (LPG) outboard, sailors are no longer forced to carry gasoline on board. The 5 HP LPG comes equipped with a fuel line that will connect to any standard North American propane tank. This innovative LPG outboard will run for a full 5 hours at WOT on a single 11 lbs propane tank, without sacrificing performance.

Features:

• Newly designed top and bottom cowls
• No possibility of ethanol/gasoline related failures
• Virtually maintenance free fuel system
• 30% cleaner emissions
• Quieter operations without compromising engine performance
• 3-way storage positions without worrying about oil spill
• EPA and CARB 3-Star rating approved
• Unique front and back carrying handles for easier transportation
• Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
• A larger recoil reel and compression release valve makes starting fast and easy
• Shallow water drive and 6 trim positions
• Adjustable steering friction for reducing steering effort
• Through-the-prop exhaust for a quieter ride
• Aluminum rubber hub propeller for quieter operation, less vibration and better performance
• Thermostatically controlled cooling system for consistent engine temperature
• Stainless steel water pump housing liner for outstanding durability
• High grade marine aluminum alloy that provides the ultimate protection against corrosion
• Zinc coating on internal water passages for superior corrosion resistance
• Low oil pressure indicator
• Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
• Start-in-gear protection for safer engine starting
• Over-rev. limiter
• Exclusive Fuel Safety Shut Off Valve

Specifications:

• Engine (No. of Cylinders): 1
• Output: 5 HP (3.7 kW)
• Displacement: 123 cc (7.5 cu.in.)
• Bore x Stroke: 59 x 45 mm (2.32″ x 1.77″)
• Starting: Manual
• Control Type: Tiller Handle
• Gear Shift: Forward – Neutral – Reverse
• Gear Ratio: 2.15:1
• Fuel: LPG HD-5 (More than 65% Propane)
• Fuel Consumption @ WOT: 11 lbs (5 kg) 5h
• Oil Type: NMMA Certified FC-W 4-stroke oil SAE 10W-30/40 (SF, SG, SH, SJ)
• Oil Capacity: 15 oz (450 ml)
• Max Torque: 7.2/4,100 (N-m/rpm)
• Regulator: 2-Step Diaphragm
• Weight (lightest available model): 59.5 lbs
• Max. RPM Range: 5,000 – 6,000
• Digital CD Ignition System
• Safety Fuel Shut Off Valve
• Start In Gear Protection
• Thermostat Controlled Cooling System
• 3-blade 7.7″ x 8″ aluminum proppeller
• Through-The-Prop Exhaust
• 6′ fuel line
• Oil Pressure Warning
• Shallow Water Drive
• Factory Warranty: 5 years. Warranty begins on date or purchase.

Note: Propane tank not included.

Owner’s Manual (1.56 MB)
