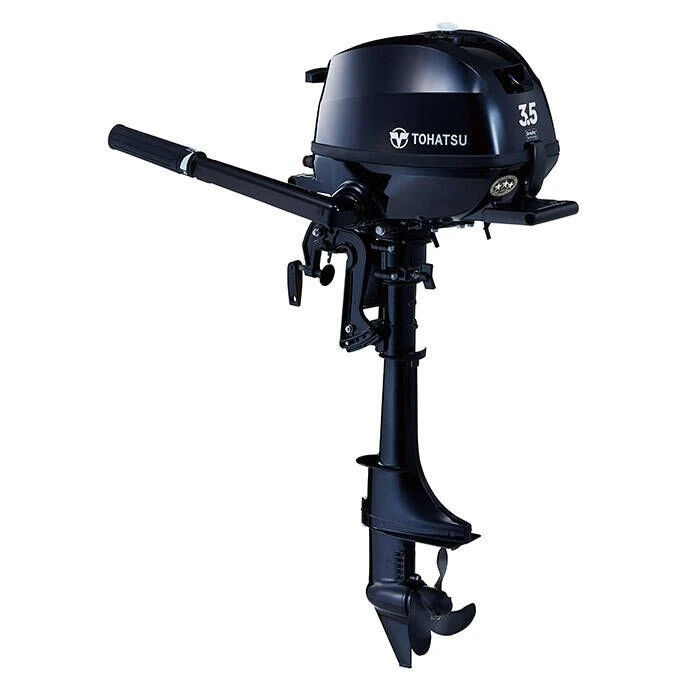

Tohatsu 3.5 HP Tiller Outboard Motor – MFS3.5 – 2022

This portable best-seller has been upgraded with newly designed top and bottom cowl based on the Tohatsu Design Philosophy for Marine Products using Simpliq™ Technology with ergonomically designed front and back carrying handles. In addition, you can now store your engine in 3 different positions without worrying about oil spillage. The 3.5 HP is lightweight and has a four point vibration absorption system to minimize vibration. And with sensational fuel economy this little compact 3.5 HP engine has it all; making it one of the best choices available for portable outboard power.

Features:

• Ergonomically designed new Large Front & Back Carrying Handles which allow easier carry and transportation from having one handle positioned slightly below another
• 3-way storage positions (Port, Front & Starboard side down) without worrying about oil spill
• This Tohatsu patented powerhead design is tilted 15 deg. to the right inside the lower motor cover to create a compact top cowling design and also help with portability
• The twist type throttle control is provided on the steering handle for quick steering as well as one-handed operation to assure your safety
• The outboard can be turned to any direction, up to 360 deg. for simple steering that is needed for small boats
• Conveniently located on the side of the motor, the oil level sight- gauge makes it easy to check the oil level without having to remove the cowling
• The specifically designed motor mounting system efficiently absorbs vibration at all rpm ranges
• Newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products
• 3-way storage positions without worrying about oil spill
• Newly designed front and back carrying handles for easier transportation
• Water cooled and thermostatically controlled cooling system for consistent engine temperature
• Digital CD ignition system for easier starting, quicker throttle response and smoother trolling
• Forward-neutral shifting with 360° steering
• Easy to check oil level gauge indicator located on the engine’s side
• Light and compact
• Ultra-low emission, EPA and CARB 3-Star rating approved

Specifications:

• Engine (No. of Cylinder): 1
• Output: 3.5 HP (2.6 kW)
• Displacement: 85.5 cc (5.2 cu.in.)
• Bore x Stroke: 55 x 36 mm (2.17″ x 1.42″)
• Starting: Manual
• Control Type: Tiller Handle
• Gear Shift: Forward – Neutral
• Gear Ratio: 2.15:1
• Shaft length: 15″ or 20″
• Fuel: Unleaded Gasoline (87 Octane)
• Oil Type: NMMA Certified FC-W® 4-stroke oil SAE 10W-30/40 (SF, SG, SH, SJ)
• Oil Capacity: 10 fl. oz (300 ml)
• Fuel Tank: 0.26 gal (1 L) Integral Tank
• Weight (based on lightest model): 41 lbs (18.4 kg)
• Alternator Output: N/A
• Max. RPM Range: 5,000 – 6,000
• Digital CD Ignition System: Standard
• Thermostat Controlled Cooling System: Standard
• Factory Warranty: 5 years. Warranty begins on date of purchase.
