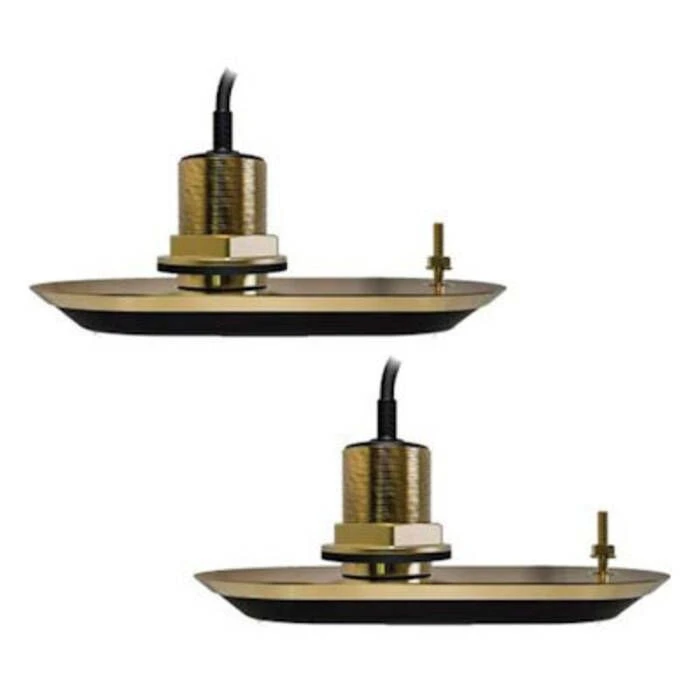

Raymarine RV-212 3D Bronze Thru-Hull Transducer (2-Pack) – T70318

Designed for inboard or outboard boats, the RV-212 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

Features:

• Designed for inboard or outboard boats
• Contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 1° to 12°, which completely eliminates the need for fairing blocks
• Easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar
• 4-Channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside
• Built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion
  • Crystal-clear imagery in waves, swells, and while maneuvering
• The low-profile design slips effortlessly through the water without causing drag or cavitation
• Rugged cast-bronze thru-hull bodies suitable for fiberglass or wooden hulls
• One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
• 2-Meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet)
• Built-in fast response water temperature sensor for quick, accurate readings

Specifications:

• Beam 180 Degrees
• Connection Interface 25-Pin
• Connector Deadrise Angle 1 to 12 Degree
• Frequency CHIRP Imaging and CHIRP Sonar
• Material Bronze
• Maximum Depth
  • Sonar: 900 Feet
  • 3D: 300 Feet
  • Down Imaging: 300 Feet
  • Side Imaging: 300 Feet
• Mount Type Thru Hull
• Sonar:
  • 3D DownVision
  • SideVision
  • CHIRP
• Transmit Power 100W
• Type Thru-Hull
• Waterproof

In the Box:

• (2) RV-212 Bronze Thru-Hull Transducers
  • (1) Port / (1) Starboard
  • Adjustable Tilt: 0-12 Degrees
• Split Transducer Y-Cable
• 8 Meter Transducer Extension Cable
