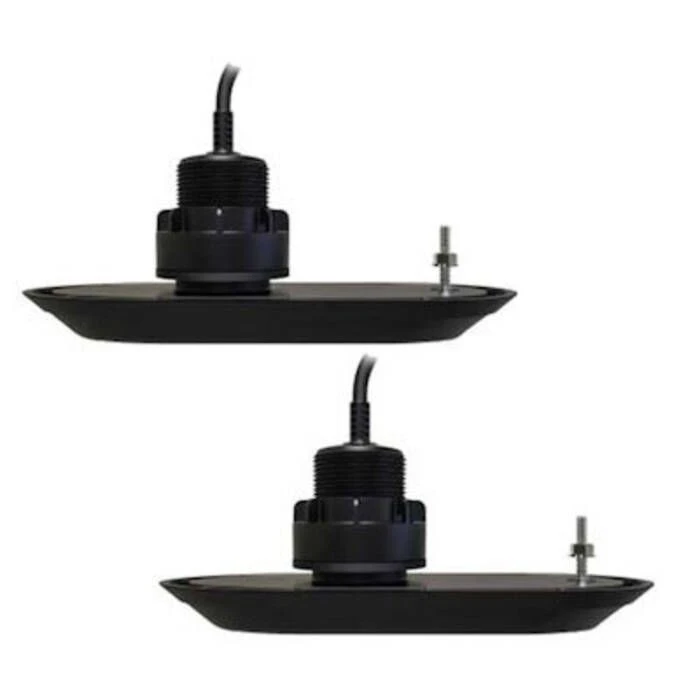

Raymarine RealVision RV-312 3D Plastic Through Hull Transducer (2-Pack) – T70320

Designed for inboard or outboard boats, the RV-312 Plastic Thru-Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

Features:

• 4-Channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside
• Complete with built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion
• Enjoy crystal-clear imagery in waves, swells, and while maneuvering
• Built-in fast response water temperature sensor for quick, accurate readings
• Internal offset to accommodate hull deadrise angles from 1° to 12°. This completely eliminates the need for fairing blocks
• Low-profile design slips effortlessly through the water without causing drag or cavitation
• The RV-312 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminum hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
• 2 Meter pigtail, joining y-cable and 8 meter extension cable, resulting in an overall cable length of 10 meters (33 ft.)

Specifications:

• Beam 180 Degrees
• Connection Interface 25-Pin
• Connector Deadrise Angle 1 to 12 Degree
• Frequency CHIRP Imaging and CHIRP Sonar
• Material Plastic Stainless Steel
• Maximum Depth
  • Sonar: 900 Feet
  • 3D: 300 Feet
  • Down Imaging: 300 Feet
  • Side Imaging: 300 Feet
• Mount Type Thru Hull
  • Sonar
  • 3D
  • DownVision
  • SideVision
  • CHIRP
• Transmit Power 100W
• Type Thru-Hull
• Waterproof

In the Box:

• (2) RV-312 Plastic Thru-Hull Transducers
  • (1) Port / (1) Starboard
  • Fixed Tilt: 12 Degrees
• Split Transducer Y-Cable
• 8 Meter Transducer Extension Cable
