Ocean Signal RescueME PLB1 Emergency Alert – 730S-01261

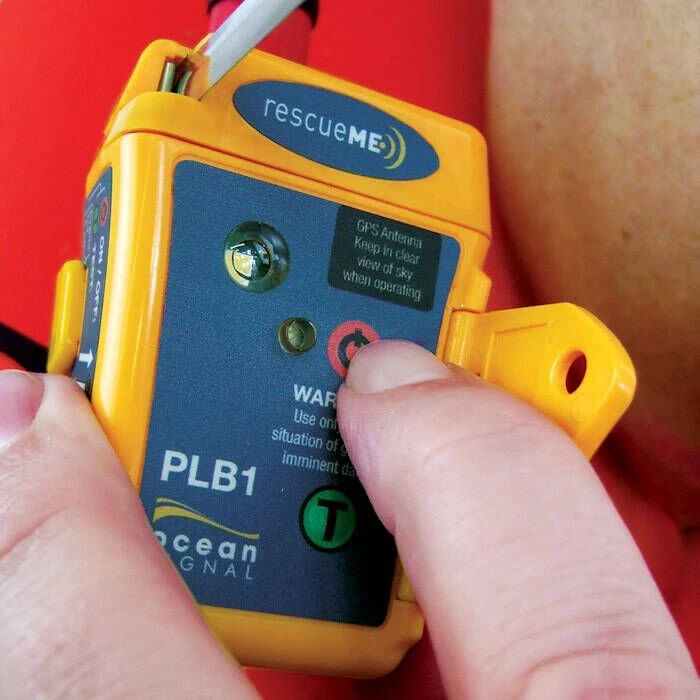

Whether you’re out at sea or hiking in the mountains, the rescueME PLB1 provides the reassurance that global emergency services can be alerted by the press of a button. The rescueME PLB1 can be operated with a single hand if necessary. A simple spring-loaded flap covers the activation button preventing inadvertent use.

The Ocean Signal rescueME PLB1 works with the only officially recognized, worldwide, dedicated search and rescue satellite network (operated by Cospas Sarsat). As this is funded by governments, there are NO CHARGES to use this service.

When activated, the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link. Rescue services nearest to your are promptly notified of your emergency and regularly advised of your current location to assist prompt rescue.

Important Buoyancy Note: The rescueME PLB1 includes a flotation pouch to allow the device to float. Please note that the PLB will not float in an operating position in the pouch. Please ensure the PLB is firmly attached to the pouch with the lanyard provided, using suitable self-locking knots.

Features:

• 30 percent smaller than similar devices

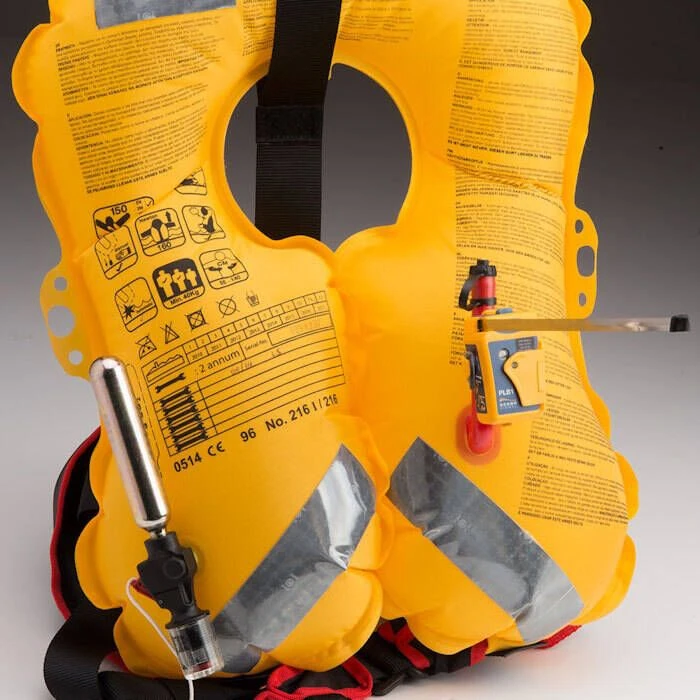

• Easily fits in lifejacket
• Waterproof to 15m
• 24+ hour operational life
• Link VI Operates on the global Cospas Sarsat rescue system
  • Free to use
  • No subscription charges
  • No subscription
• 7 year battery life
• 7 year warranty

Includes:

• Homing Beacon to aid nal location by search and Rescue craft
• High brightness strobe light >1candela
• Internal 66 channel GPS receiver
• High intensity (1 candela) strobe
• Fast accurate positioning

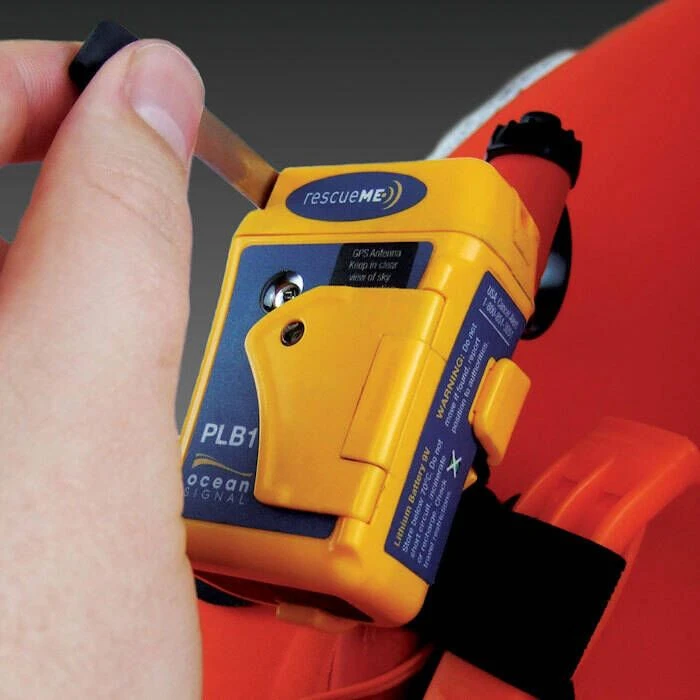

• Easily deployed antenna

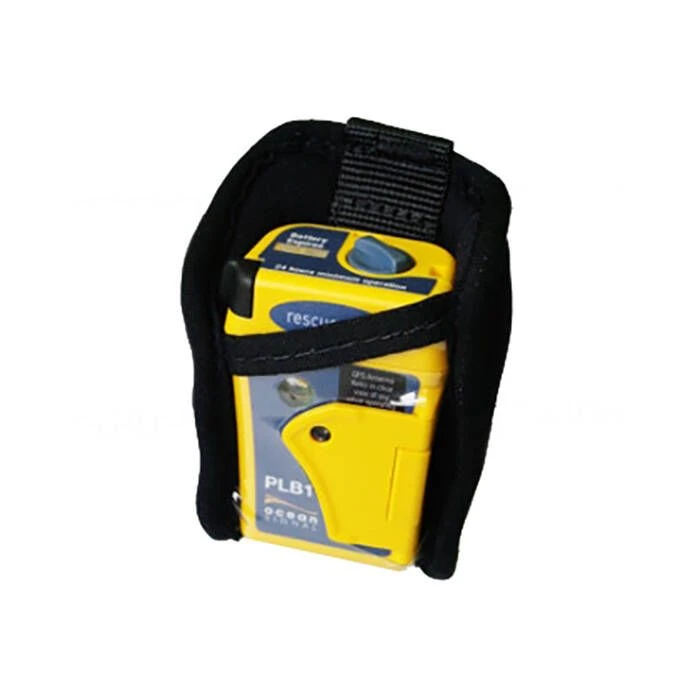

• Supplied with free flotation pouch
• Unique mounting clip

Specifications:

• 406MHz Satellite Transmitter
  • Frequency: 406.040MHz
  • Tolerance: ±1kHz
  • Output Power: 5W (nominal)
  • Stability: 2ppb/100ms
  • Modulation Phase: ±1.1radians (peak)
  • Emission Designator: 16K0G1D
  • Encoding: Bi-phase L
  • Data Rate: 400bps
  • Duration: 520ms
• 121.5MHz Homing Beacon
  • Frequency: 121.5MHz
  • Stability: ±50ppm
  • Output Power: 25-100mW PERP
  • Modulation: Swept Tone AM
  • Emission Designator: 3K20A3X
  • Modulation Depth: 85-100%
  • Sweep Range: 400Hz 1300Hz
• GPS Receiver
  • Sensitivity Cold Start: -148dBm Sensitivity Re-acquisition -163dBm
  • Satellites channels tracked: 60
  • GPS Antenna: Microstrip patch
• Low Duty Cycle Strobe
  • Light Type: High intensity LED
  • Output Power: ~1candela
• Battery
  • Type: Lithium Primary
  • Chemistry: Manganese Dioxide (LiMnO2)
  • Operational Life: >24hours @ -20° C
• Environmental
  • Operating Temperature Range: -20° C to +55° C
  • Storage Temperature Range: -30° C to +70° C
  • Waterproof: 15 meters at +20° C
  • Drop: 1 meter @ -30° C

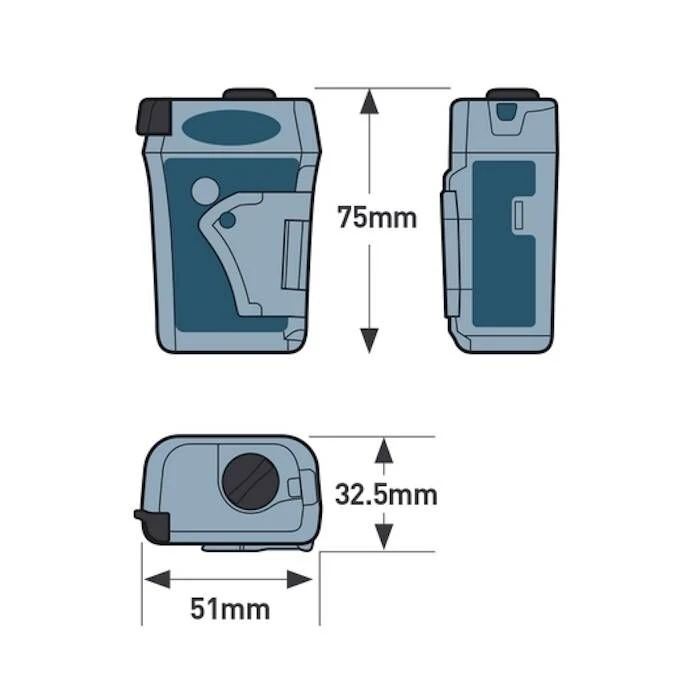

• Dimensions
  • Height: 3″ (77 mm)
  • Width: 2.1″ (51 mm)
  • Depth: 1.3″ (32.5 mm)
  • Weight: 4 oz. (116 g)
• Standards
  • Cospas-Sarsat T.001 / T.007
  • ETSI EN302 152
  • RTCM SC11020
  • FCC CFR47 part 95K

Note: Battery will be replaceable after the expire period or after the unit has been activated. The battery is not user replaceable and must be sent to an authorized service dealer for replacement.

Owner’s Manual (3.78 MB)

Safety Data Sheet
