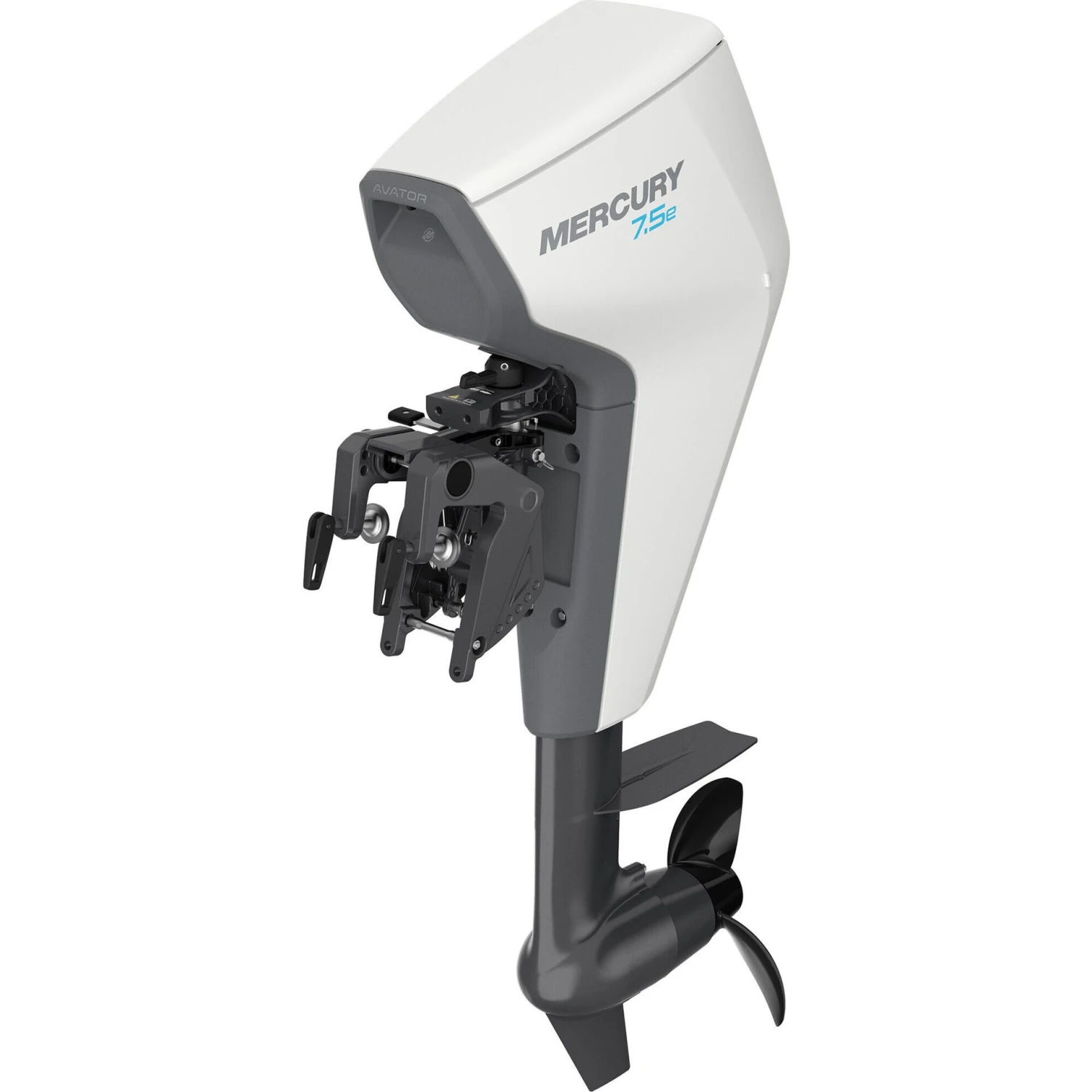

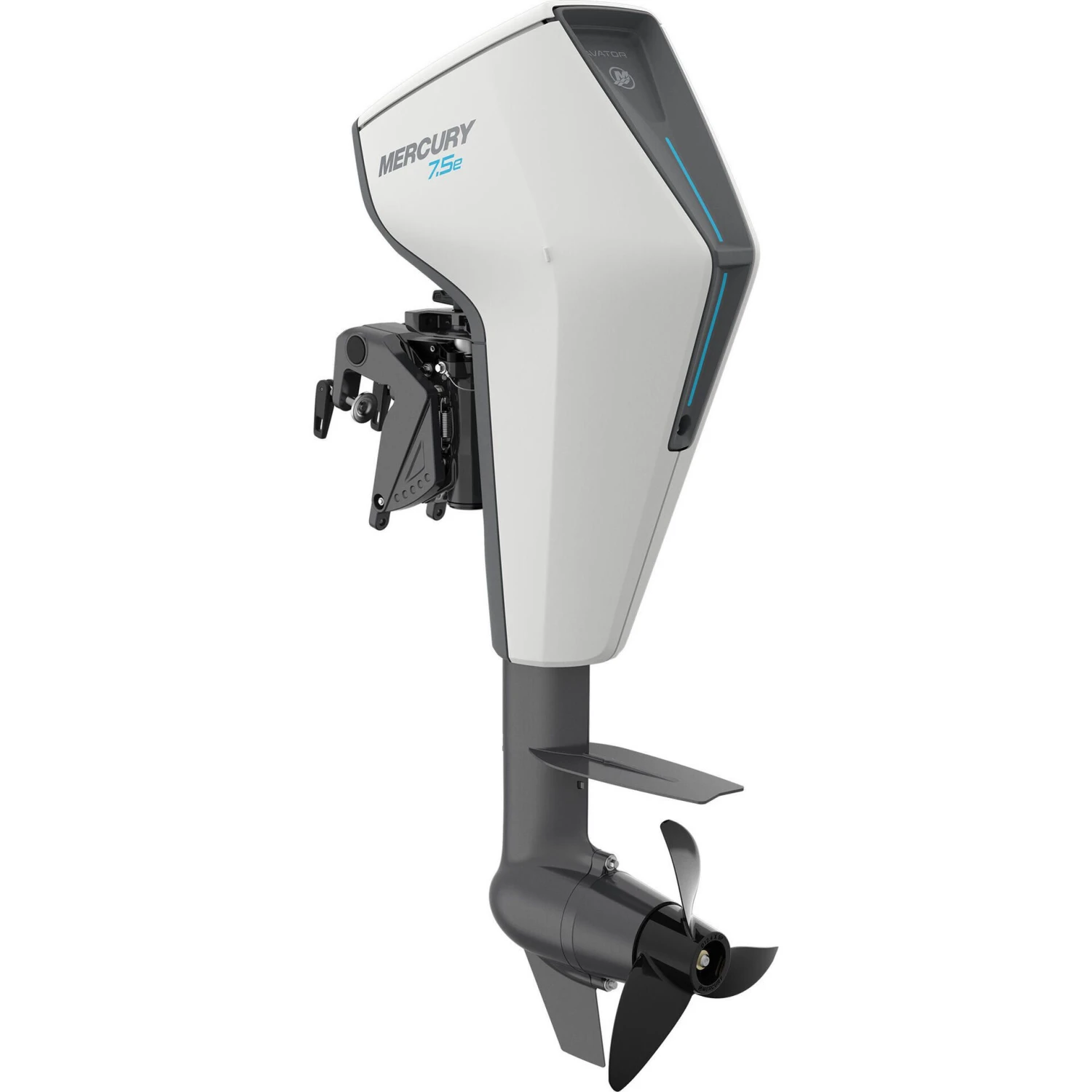

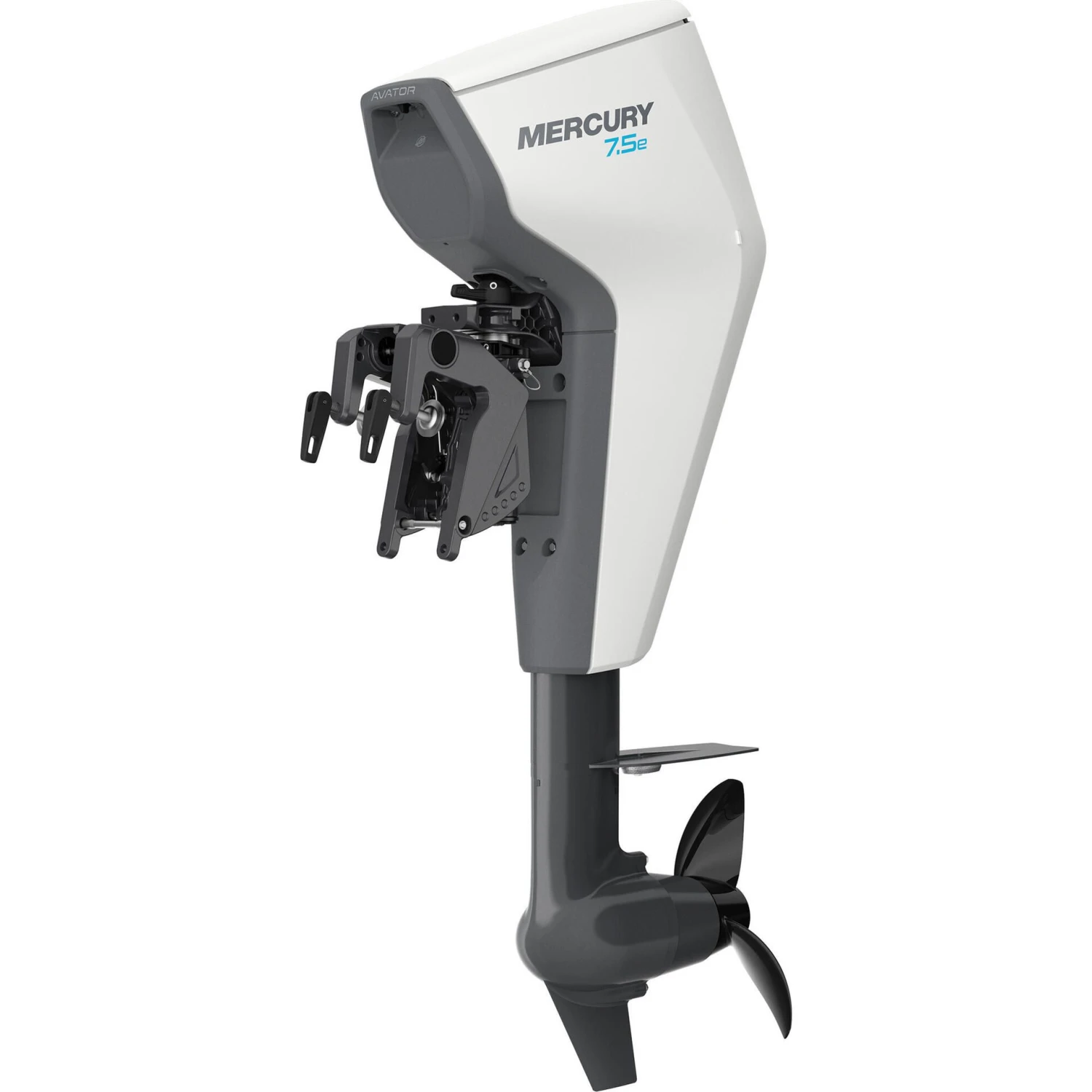

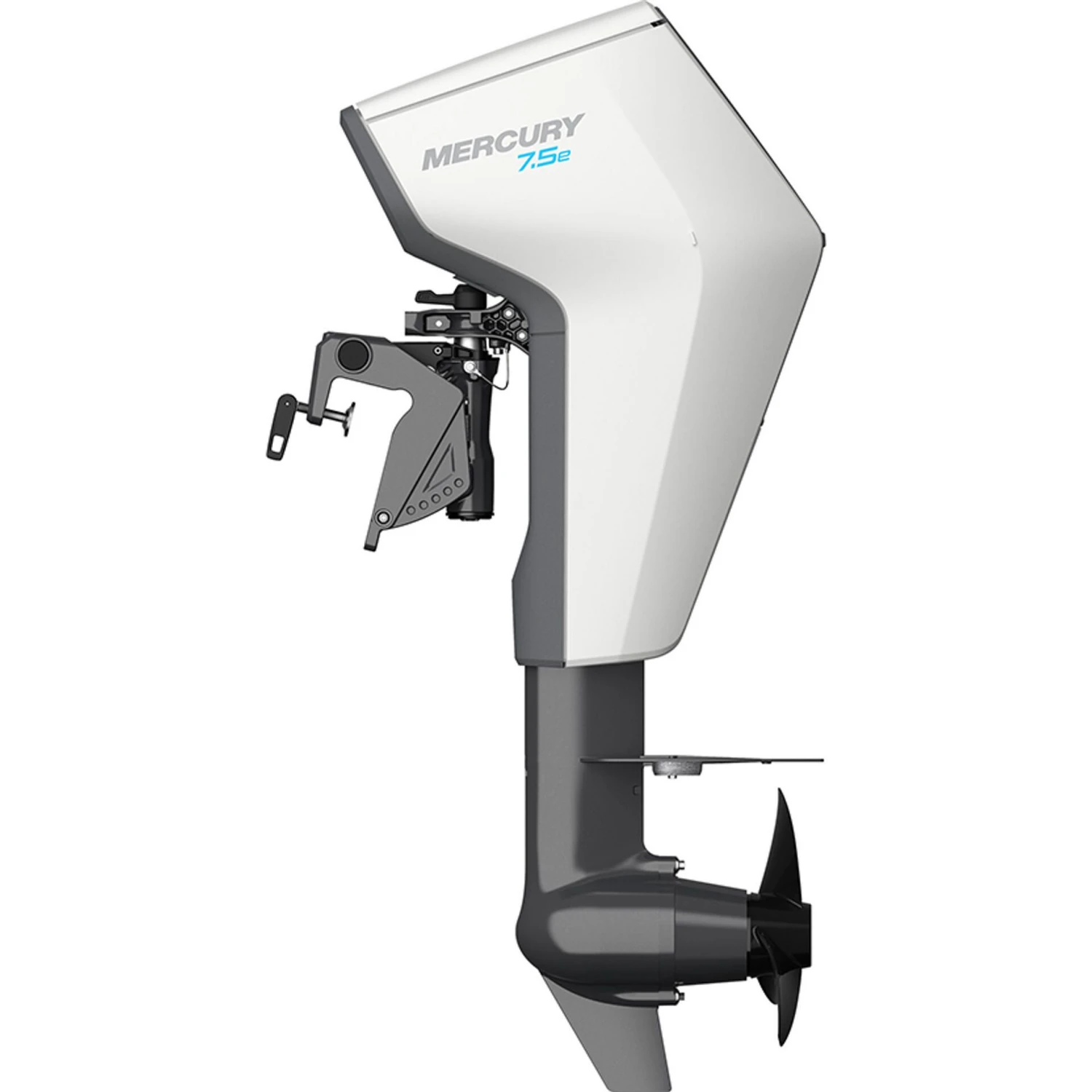

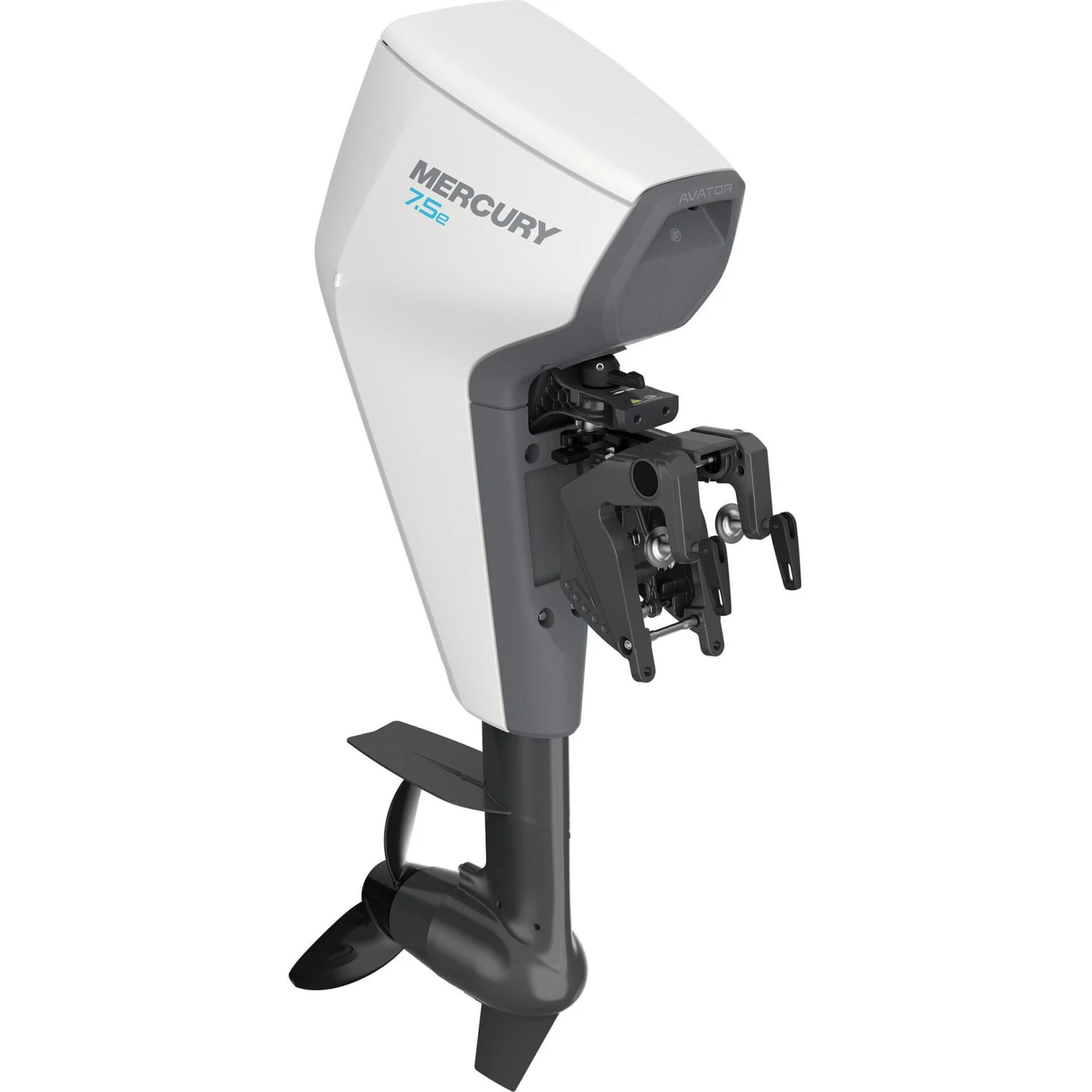

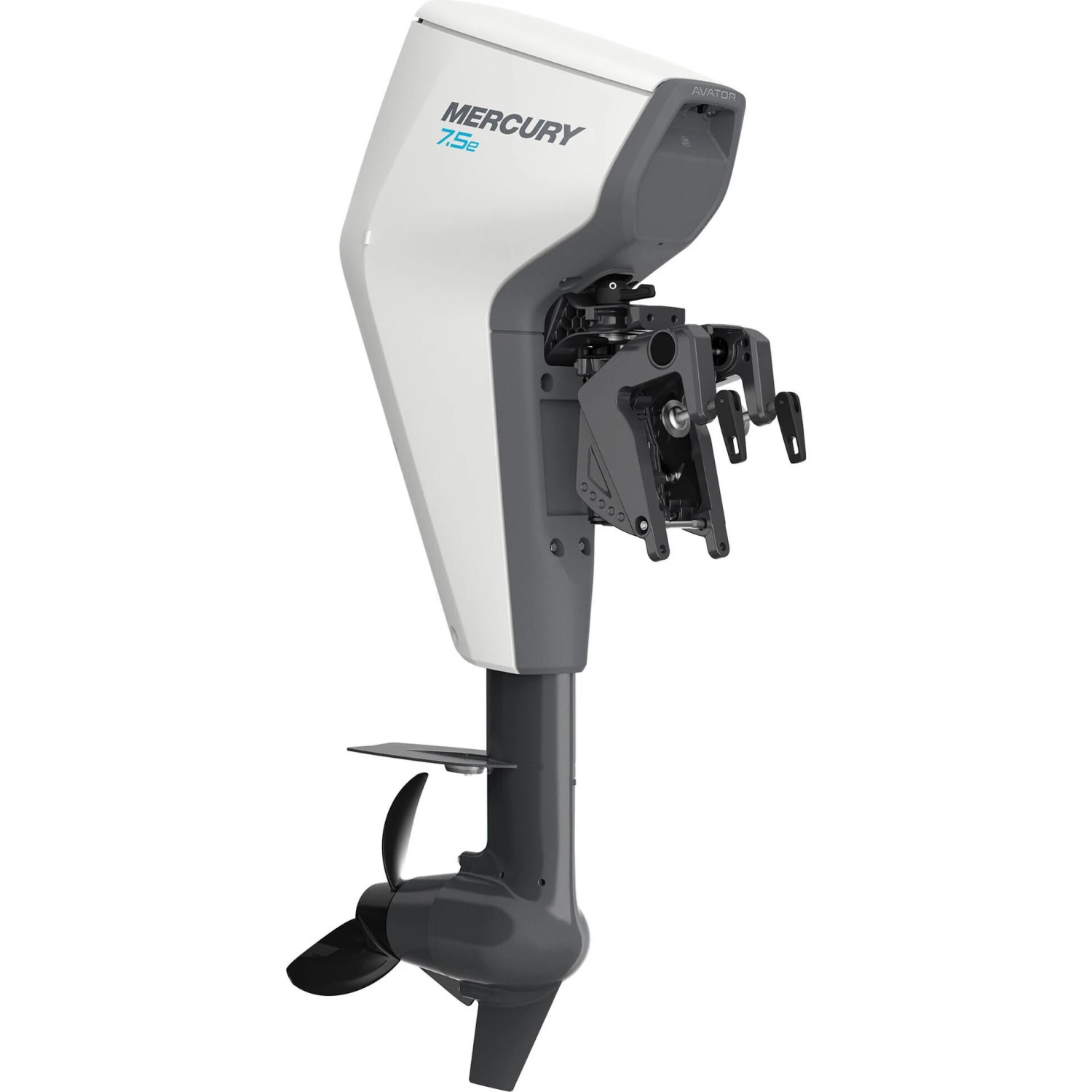

Mercury 750W Remote Electric Outboard Motor – Avator 7.5e – 2024

The Mercury Avator 7.5e electric outboard delivers speed and acceleration performance similar to a 3.5 HP internal combustion outboard, making it ideally suited for a variety of small boats, tenders and as secondary power on sailboats. The Avator 7.5e electric outboard delivers clean, quiet power that’s as simple to use as it is fun to drive. Featuring a quick-connect battery and intuitive controls that make setup and operation a breeze. With advanced displays and other technologies that monitor your battery level and range, you can explore the water with confidence. Just grab the controls and point the bow toward adventure. Avator makes getting there effortless.

Features:

• Smooth and Quiet:
  • With its whisper-quiet motor and ultra-smooth performance, a Mercury Avator electric outboard will get you where you’re going without interrupting the conversation
• Quick-Connect Battery:
  • The 1 kWh lithium-ion battery has no cables to connect

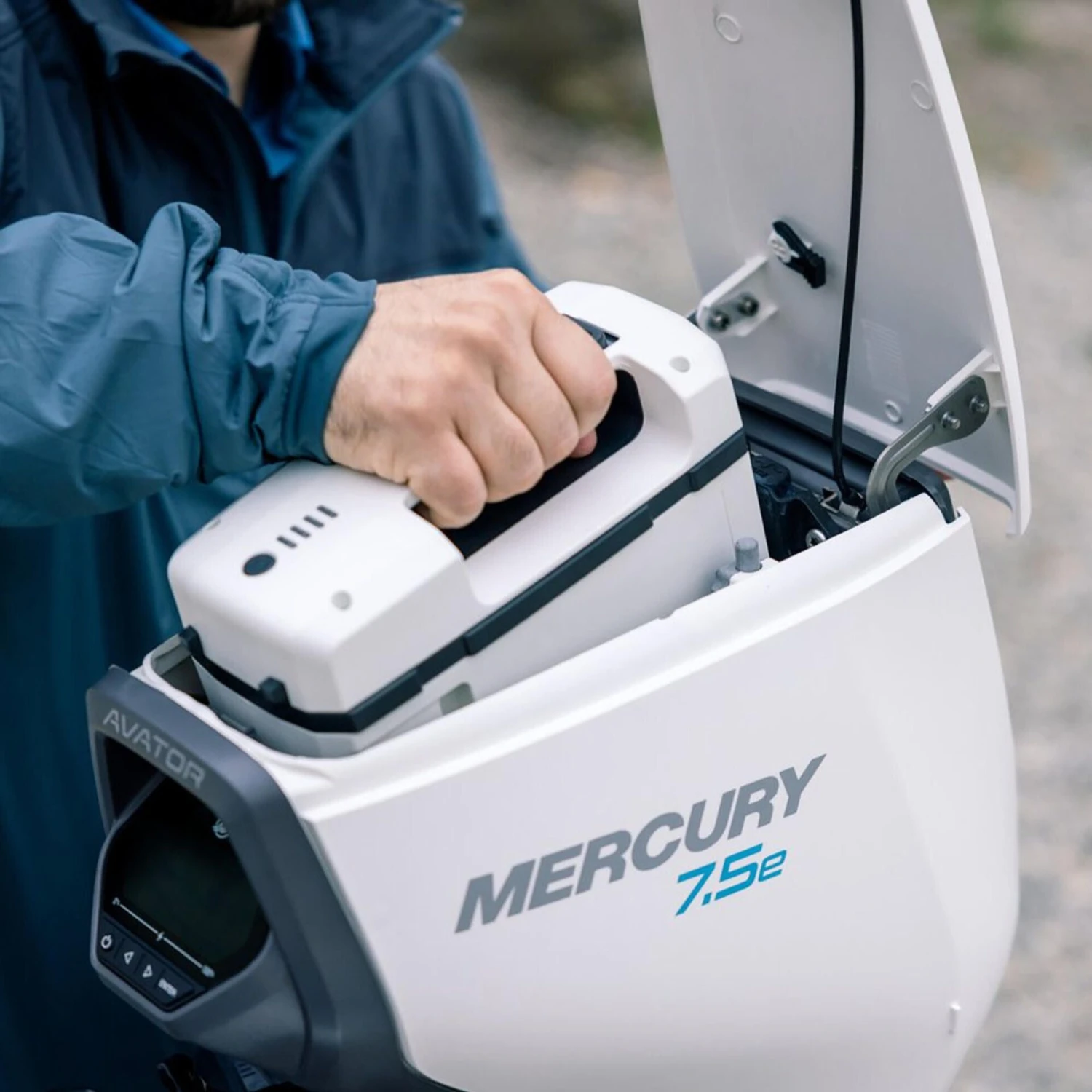

  • It slides into place under the flip-up top cowl, saving you valuable space within the boat
  • Need to go even farther? No problem. You can bring along an available spare battery that swaps into place in seconds
• Safe Boating by Design:

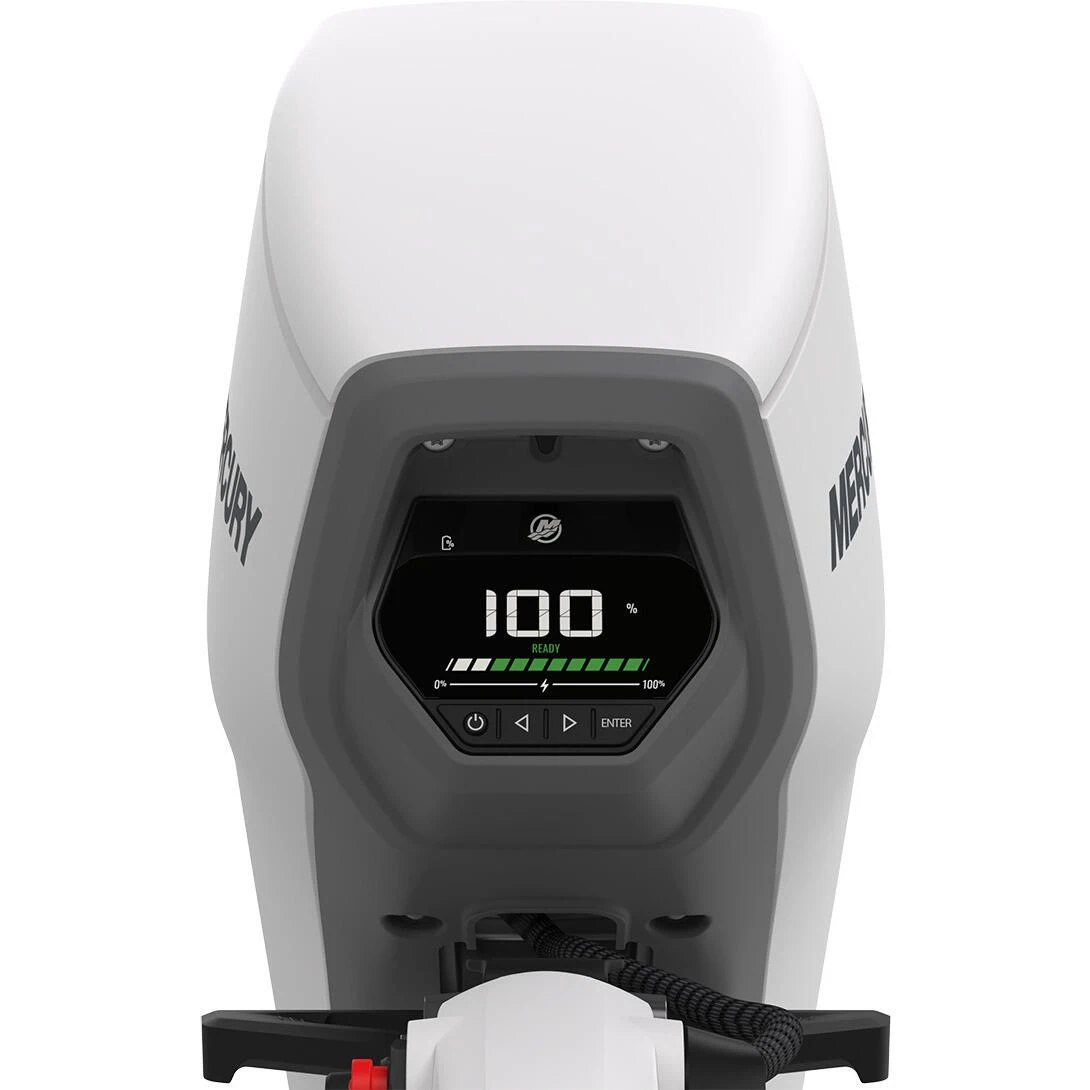

  • Explore safely and with confidence knowing your outboard is digitally monitoring the propulsion system and can alert you if there are issues
  • All Avator outboards also include an emergency stop lanyard
  • Remote controls come standard with a key switch and a neutral locking mechanism to prevent accidental shifting
• Strong Transverse Flux Motor:
  • Industry-first transverse flux motor technology, the Avator 7.5e outboard delivers 750W of power at the prop shaft
  • The motor generates high torque with little effort, maximizing battery life and range while providing quick, efficient performance
• High-Efficiency Prop:
  • Crafted of a high-strength, impact-resistant composite material
  • Three-blade design maximizes thrust for longer battery life with minimal noise and vibration

Specifications:

• Input Power: 916W
• Rated Prop Shaft Power: 750W (which is comparable in speed and acceleration to that of a 3.5hp internal combustion outboard)
• Rated Voltage: 48V
• Battery: Integrated 1 kWh
• Battery Type: Li-Ion
• Battery IP Rating: IP67
• Charger (Standard): 110W
• Total Weight Excluding Battery: 45.2 – 46.3 lbs
• Battery Weight (1kWh): 17 lbs / 7.7 kg
• Steering: Remote
• Shaft length: 15″, 20″, or 25″
• Standard propeller: 12.7″ x 7″
• Factory warranty: 3 years (pleasure applications), 1 year (commercial applications). Warranty begins on date of purchase.

Included:

• 1 kWh Battery
• 100W charger
• 7″ Propeller

Notes:

• Do not use aftermarket propellers with this product. The use of an aftermarket propeller may result in damage.
• Control box not included

Product Brochure (3.15 MB)

Battery Safety Data Sheet

Operation and Installation Manual (4.96 MB)
