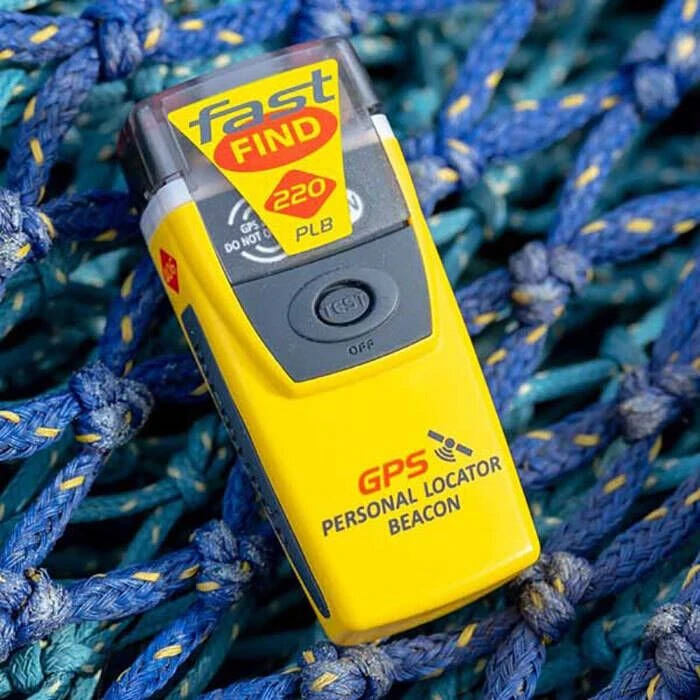

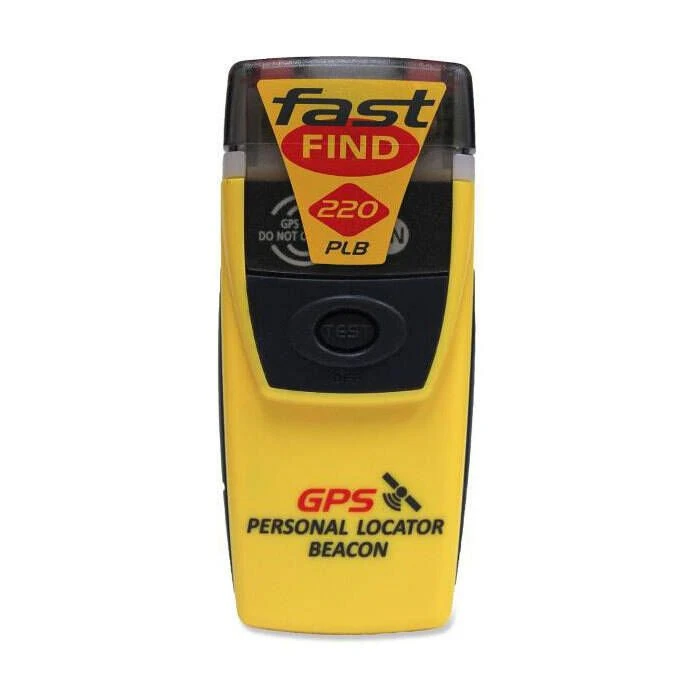

McMurdo Fastfind 220 Personal Location Beacon With GPS – 91-001-220A-C

Designed for marine enthusiasts and adventurers, the McMurdo Fastfind 220 alerts search and rescue services, allowing them to quickly locate you in the event of an emergency, on land or at sea.

Features:

• World’s first Personal Location Beacon (PLB) using Galileo GNSS
• Simple design, easy to use and operate
• Subscription-free device, so you have no cost of ownership after initial purchase
• Worldwide coverage and ensures you are rescued by professionals
• Transmits two signals simultaneously once activated
  • 406 MHz Professional global emergency service
  • 121.5 MHz Homing signal to speed up local recovery
• MEOSAR compatible for enhanced detection capability
• High brightness LED SOS light
• Minimum 24 hour continuous operation
• 6 Year battery storage life
• Waterproof to 10 meters
• Self test facility with battery use indicator

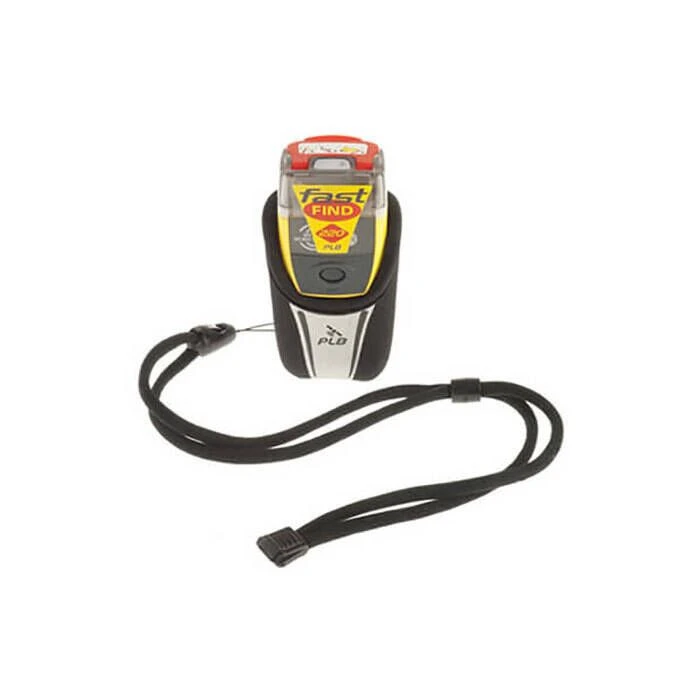

• Supplied with flotation pouch
• Safe-stow antenna
• For use on land, sea and air
• Floats with buoyancy pouch (Included)

Specifications:

• Standards: Cospas-Sarsat T.001/T.007 class2, RTCM 11010.2, ETSI EN 302152-1, AS/NZS 4280.2, NSS-PLB11
• Sealing depth: Immersion to 10m (30ft) for 5 mins
• Operating temperature: -20 to +55° C (-4 to +131° F)
• Storage temperature: -30 to +70° C (-22 to +158° F)
• Altitude: 12,192m (40,000ft)
• Buoyancy: Category 2, will not float (keep in buoyancy pouch provided)
• Battery type: Lithium Manganese
• Transmit duration: > 24 Hours @ -20° C (-4° F)
• Battery life (storage): 6 Years
• Battery use: Logged by microprocessor
• Frequency: 406.031 MHz (alert) / 121.5 MHz (homer)
• Power: 5W (alert) / 50MW (homer) nomina
• GNSS Receiver: GPS(L1)+GALILEO(E1), 72 channel, ceramic patch antenna
• Dimensions (D x W x L): 34 x 47 x 106mm (1.34 x 1.85 x 4.17in)
• Weight: 152g (5.36oz)
• Indicator light: High brightness LED signal light
• SOS Flash light: Morse code SOS flash pattern, 30 operations
• Activation: Manual, three stage
• Self-test: Tests transmitters, battery and light
• Warranty: 1 Year (+4 years with online registration)

McMurdo Fastfind 220 PLB Product Data Sheet (3.38 MB)

McMurdo Fastfind 220 PLB User Manual (1.57 MB)
