Marinco Trumpet Mini Air Horn

The Marinco FullBlast compressor driven air horns are the loudest and most complete line of 12V air horns available. All of the air horns produce sound levels ranging between 120 and 127dB, which means all of the air horns meet the ABYC and NMMA regulations for boats up to 20 m. or 66′. Both 12 and 24 volt compressors are CE listed.

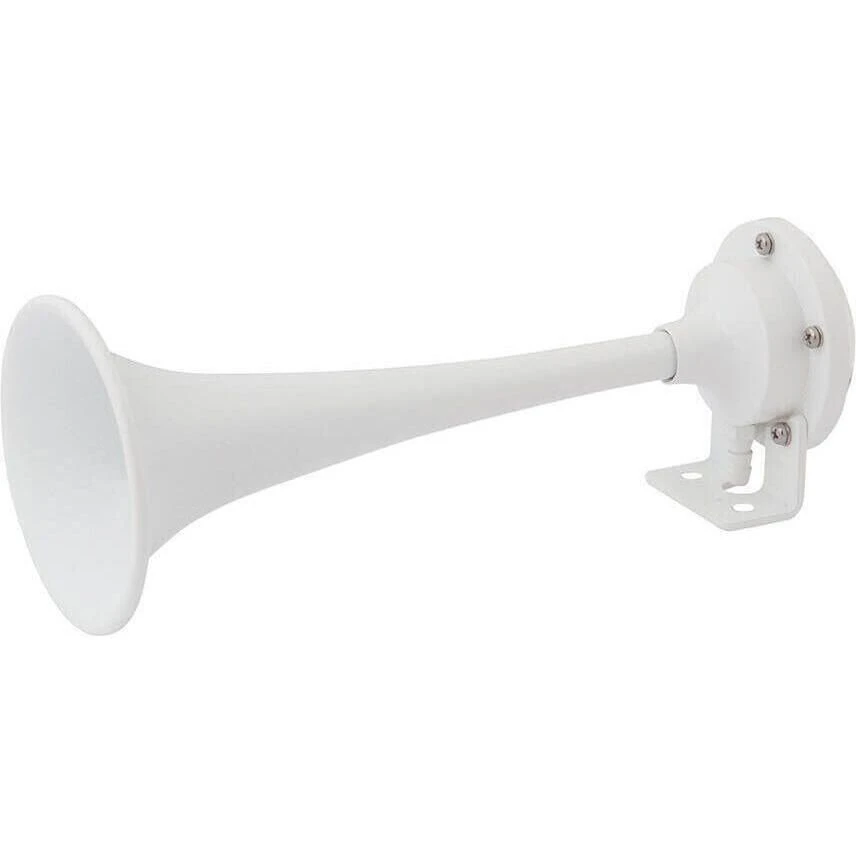

White Epoxy Coated Single Horn Specifications:

• Maximum amp draw: 20A
• Voltage: 12V
• dB(A) Rating: 123 at one meter, 1/3 octave band
• Fundamental frequency: 630 +/- 15Hz
• Dimensions: 9.5″ x 3.5″ x 3.5″ (L x W x H)
• Solid brass construction
• Non-corrosive Lexan® polycarbonate diaphragm

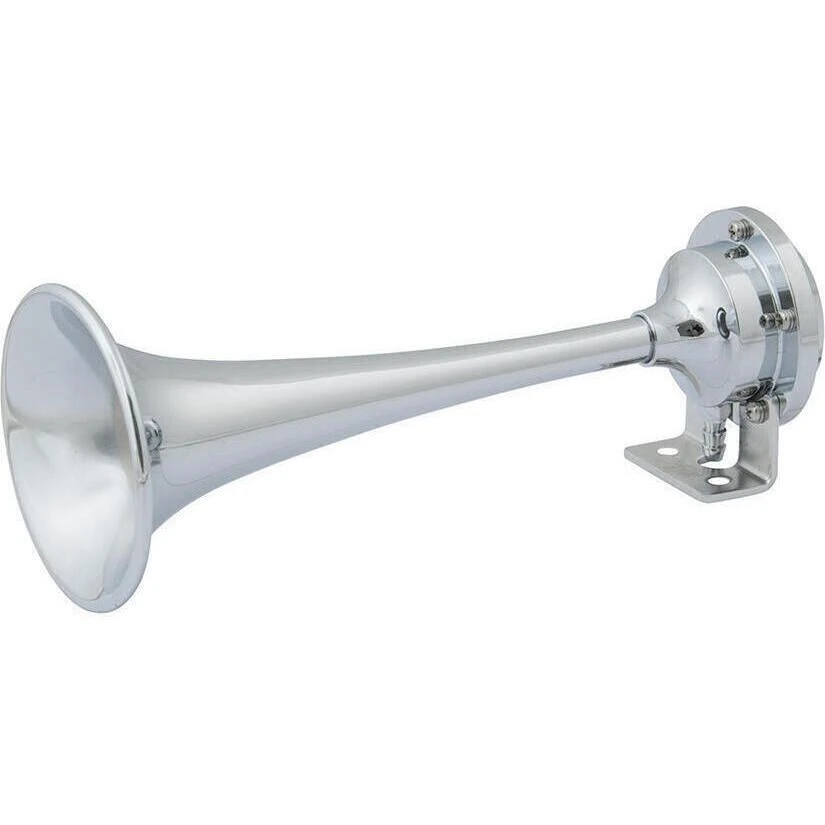

Chrome Plated Single Horn Specifications:

• Maximum amp draw: 20A
• Voltage: 12V
• dB(A) Rating: 126 at one meter, 1/3 octave band
• Fundamental frequency: 630 +/- 15Hz
• Dimensions: 9.5″ x 3.5″ x 3.5″ (L x W x H)
• Solid brass construction
• Non-corrosive Lexan® polycarbonate diaphragm

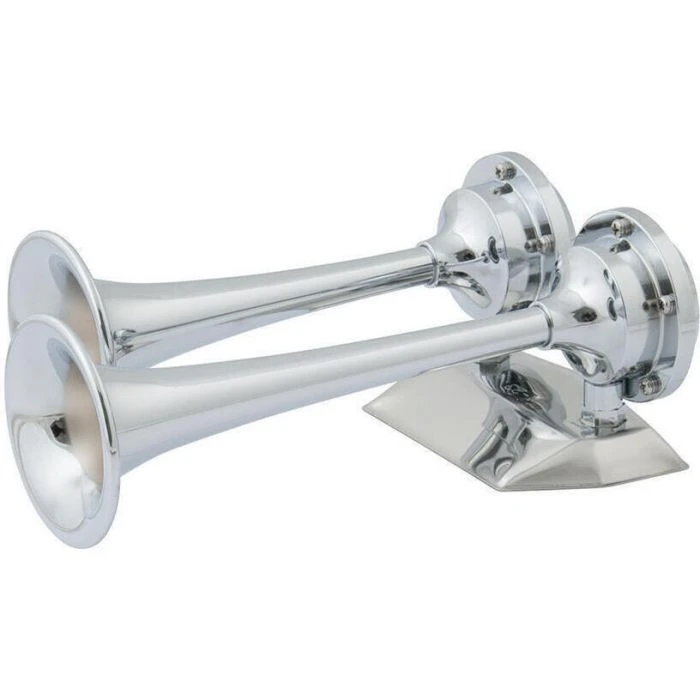

Chrome Plated Dual Horn Specifications:

• Maximum amp draw: 20 amps
• Voltage: 12V
• 12V compressor produces 9 – 11 PSI
• dB(A) Rating: 127 at one meter, 1/3 octave band
• Fundamental frequency: 630 +/- 15 ; 525 +/- 15Hz
• Dimensions: 9.5″ x 5″ x 3.75″ (L x W x H)
• Solid brass construction
• Non-corrosive Lexan® polycarbonate diaphragm

Included:

• Compressor
• Air tubing
• Fittings
• Hardware

Single Installation Instructions

Dual Installation Instructions
