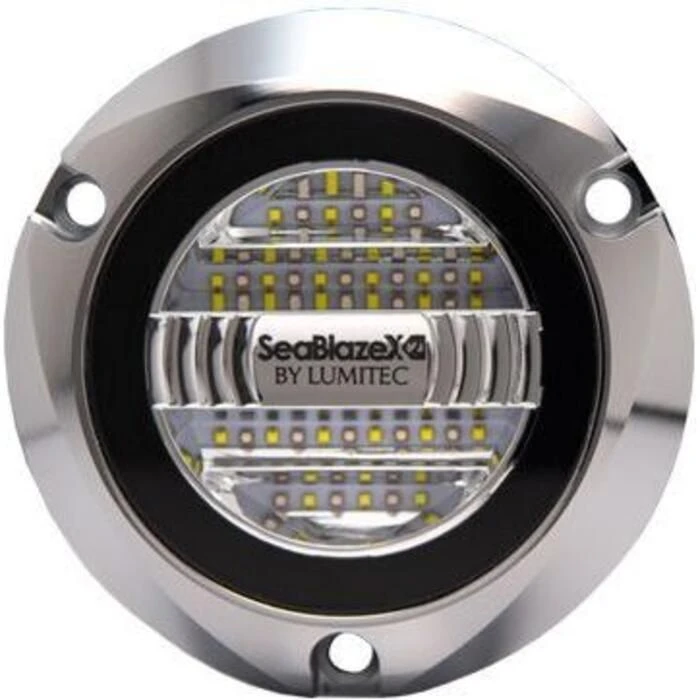

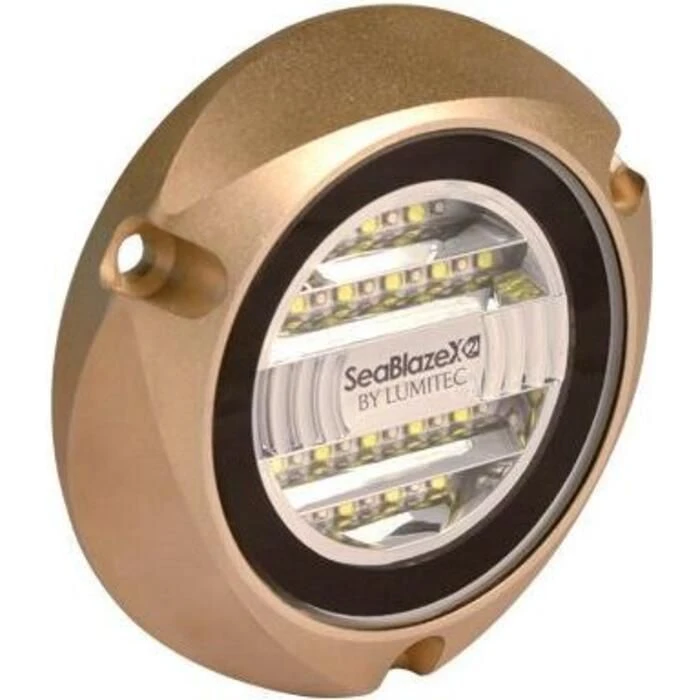

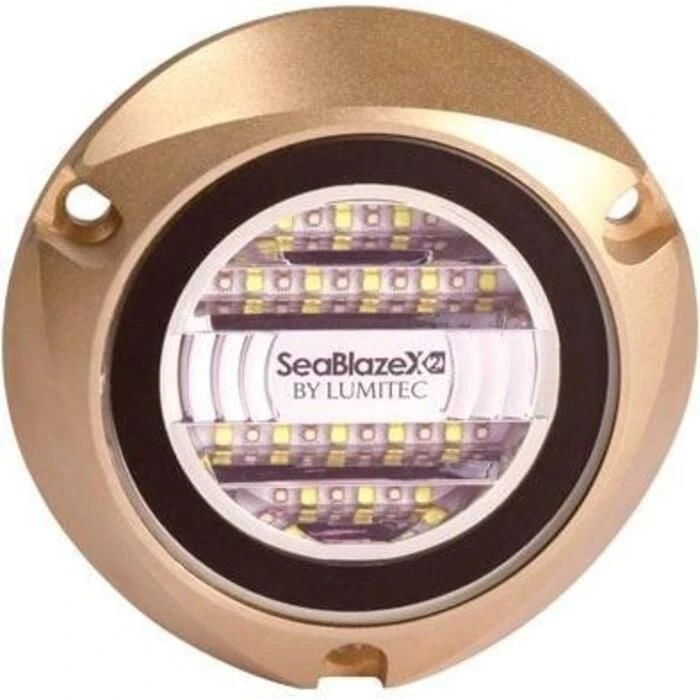

Lumitec SeaBlazeX2 LED Underwater Light

As competitors have struggled to catch up to the performance and value of the phenomenally successful SeaBlazeX, Lumitec has pushed ever farther ahead. Introducing SeaBlazeX2. SeaBlazeX2 delivers the exceptional performance, quality, and value of the industry-leading SeaBlazeX, with 60% greater output. SeaBlazeX2 delivers more than 6,000 integrating-sphere-measured lumens, surface mount, no external drivers, and a pedigree of reliability recognized the world over. The bar has once again been raised.

Features:

• Completely water sealed and IP68 compliant
• Easy Installation: Surface mount with small 1/2″ through-hull hole and simple 3-wire hook up
• No external controller boxes required
• Constructed of marine grade bronze and heat-tempered glass
• Over 2,000+ hours of rigorous ASTMB-117 Salt Spray Chamber testing
• Proudly designed and manufactured in the USA
• 3-year warranty on all Lumitec products

Specifications:

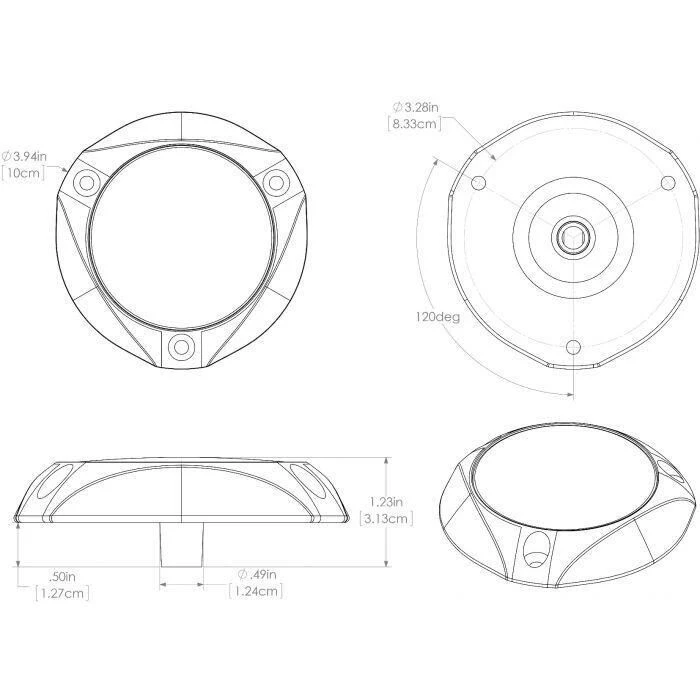

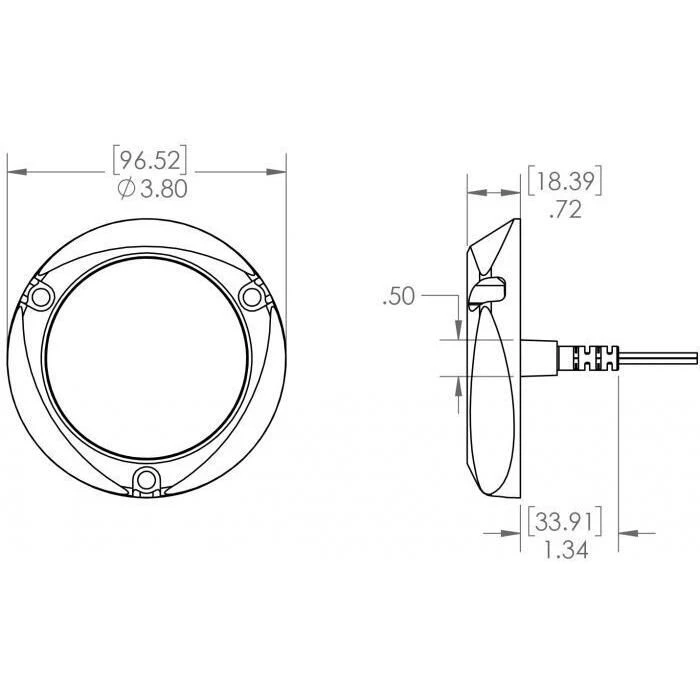

• Diameter: 3.94″
• Depth: 0.85″
• Mounting hole diameter: 1/2″
• Voltage: 10 – 30V DC
• Amp Draw: 5A @ 12V, 2.5A @ 24V
• Rated Watts: 60W
• Lumens (White): 6000
• Correlated Corrected Temperature (CCT): 6500
• Color Rendering Index (CRI): 70+
• Color Match Commitment (CM): No
• Third Party Dimmer Compatibility (3PD): No
• Timed Toggled Protocol (TTP): Yes
• PLI Enabled: Yes
• Finish/Housing: Polished
• IP Rating: 68
• Operating Temp (°F): -31 to 131 F
• Operating Temp (°C): -35 to 55 C
• CE Certified: Yes
• UL Certified: No

Installation Instructions
