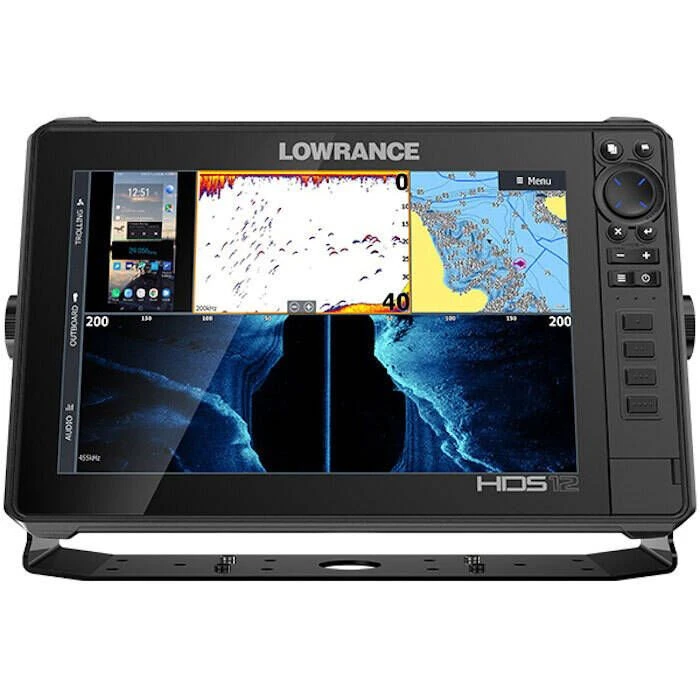

Lowrance HDS-12 LIVE Multifunction Display With Transducer – 000-14428-001

This product is intended for use in North or South America only. All functions may not be available outside of those regions.

Fish like you’re a charter captain with the Lowrance HDS-12 LIVE with Active Imaging 3-1 Transducer onboard. This package offers the best collection of innovative sonar features available, including, LiveSight™ real-time sonar, StructureScan® 3D with Active Imaging™, Genesis Live onscreen mapping and FishReveal™.

Features:

• Easy and efficient interface:
  • You will have an easier time viewing fish, structure and bottom detail on bright and clear SolarMAX™ HD screens that offers clean and crisp views from any angle, in direct sunlight even through polarized sunglasses
  • On-the-water adjustments will be quicker and easier with the refreshed HDS interface designed with a simpler feature layout to deliver next-level ease of use and efficiency
• Active Imaging:
  • See structure and cover with a new level of refined detail at a range unmatched by anyone else with new, Lowrance Active Imaging
  • Active Imaging is available with 3-in-1 transducer (CHIRP, SideScan and DownScan Imaging) and Active Imaging 2-in-1 transducer (SideScan and DownScan Imaging) options
• View all structure imaging
  • Side-by-Side: For the first time, you can get a side-by-side view of all your structure imaging technology with the enhanced capabilities of HDS LIVE, which supports simultaneous viewing of StructureScan 3D, SideScan and DownScan Imaging™ panels
• Most advanced fishfinder technology:
  • Simultaneously view CHIRP Sonar with Active Imaging to get the best possible view of fish and structure, below and to the sides of your boat
• LiveSight:
  • Get live views of fish movements across the bottom, in and around cover and structure with new, revolutionary LiveSight™ sonar
  • Capable of showing views beneath, or in front of your boat, LiveSight™ is at its best when trolling or fishing from a single spot. HDS LIVE comes LiveSight™ ready, so all you need to do is mount the LiveSight™ transducer and get after the fish
• C-MAP Genesis LIVE:
  • Create your own high-definition 1/2-foot contour maps, in real time, on your HDS LIVE screen with C-MAP Genesis Live
• Smartphone notifications:
  • Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE
  • Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your HDS LIVE display
• LiveCast smartphone integration:
  • You no longer have to choose between watching the big game and spending a day on the water with LiveCast™ smartphone integration. Watch video, view Google maps and fishing data on the high-resolution screen of your HDS LIVE display via the HDMI connection on HDS LIVE. View data from your smartphone and keep your eye on the fish with a LiveCast-sonar split screen
• FishReveal™ Smart Target View:
  • Makes fish easier to see on DownScan Imaging™ by combining crystal-clear CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish
• High performance processor:
  • Whether panning the chart, tracking back through your sonar history or creating a Genesis LIVE map, you will get responsive, smooth operation with no lag from the quad-core processor at the heart of HDS LIVE
  • The high- performance processor can easily drive todays technology, like Active Imaging, LiveSight sonar, Genesis Live, StructureMap, Live Network sonar with power to spare for future innovations
• Modern, low-profile design:
  • Enhance the look of your console with the new, zero-edge glass design of HDS LIVE, featuring the exceptional crispness, vibrant images and extreme viewing angles of SolarMAX™ HD technology
  • Create clean, sleek look at the console with an HDS LIVE flush mount
• Larger, programmable keys:
  • Its easier than ever to quickly access functions with the larger keys on HDS LIVE, no matter the conditions
  • Plus with four programmable keys, you can set up one-touch access to the features you use the most
• 6-Way split screen view:
  • See more information all at the same time with the new, six-screen split offered on HDS12 LIVE fishfinder/chartplotters
• Live network sonar:
  • Cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
  • Get sonar views from bow-mounted transducer and the in-hull or transom-mounted transducer at the same time on the same display
• Dual-channel CHIRP:
  • Deep water and trolling anglers will never miss a fish, watching two Lowrance CHIRP frequencies at the same time via a dual-channel CHIRP split screen
  • Run a High CHIRP panel for the best target separation close to the bottom or in tight schools, a Medium CHIRP panel to cover the widest area
  • Ideal for watching bait schools under a transducer in shallow water, or go deeper with a Low CHIRP panel to cover more of the water column
• C-MAP® Easy Routing and Navionics® Dock-to-Dock Autorouting:
  • You will navigate faster and easier with automatic route planning
  • Menu activated, the feature automatically plots the shortest and safest course based on a boats draft, beam and height, creating a route around a landmass, shoals and other fixed navigational hazards
  • Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts
• C-MAP navigation palette:
  • Enhances the readability of C-MAP charts, especially near shore, where the colors used for land, docks, anchorage areas, water, and channels are nicely differentiated and water contour lines are distinct
  • That makes it easy to tell where the boat is in relation to a channel, navaid, ledges and drop-offs, or a point of land
  • The color scheme is much easier on the eye
• Wireless connectivity:
  • Integrated wireless connectivity with the Lowrance® LINK App and other onboard devices, allows you to download software updates and custom C-MAP® Genesis maps directly to the display and offers wireless smartphone viewing/tablet control of HDS Carbon displays
• Network all components:
  • Plug-and-play compatibility with Lowrance performance modules, including Broadband Radar™, SonicHub®2 Marine Audio, SiriusXM® Marine Weather and audio, Class B AIS and DSC VHF, as well as industry-leading technologies, like Mercury® VesselView® Link, Bluetooth® control of Power-Pole® shallow water anchors equipped with the C-Monster™ Control System and the SmartSteer™ interface, featuring control of MotorGuide® Xi5 trolling motor and the Lowrance® Outboard Pilot
  • Compatible
    • Active Imaging™ 3-in-1
    • StructureScan® 3D with Active Imaging
    • LiveSight™ Real-Time Sonar
    • Point-1 Antenna support (external)
    • Precision-9 Compass compatibility
    • Broadband 4G™ Radar, 000-10419-001
    • Broadband 3G™ Radar, 000-10418-001
    • Lowrance Halo24 Radar, 000-14541-001
    • Outboard Pilot Cable Steer Pack, 000-11749-001
    • Outboard Pilot Hydraulic Pack, 000-11748-001
    • SonicHub2 Marine Audio Server Pack, 000-12301-001
    • WM-3 SiriusXM® Weather and Radio Module, 000-11076-001
    • Connects and communicates with HDS Carbon and HDS Gen3 multifunction displays
    • Dual Ethernet networking port
    • Micro-C connection for NMEA 2000® devices
    • Video input via optional adapter cable
    • NMEA 2000® Starter Kit, 000-0124-69
    • Supported by Lowrance Service & Support programs

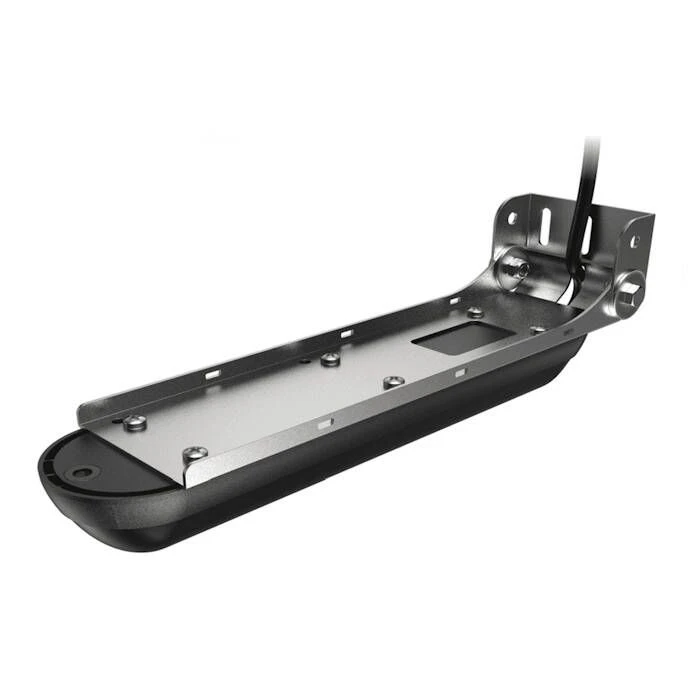

000-14489-001 Active Imaging 3-in-1 Transducer:

• Active Imaging 3-in-1 combines the Active Imaging scanning sonar with a traditional Medium/High CHIRP sonar element for easy single transducer installation
• Includes 7.6 m (25 ft) cable with 9 pin connector
• Scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range
  • These transducers do this by better directing the SideScan beams which increases resolution and improves range performance
• Active Imaging is available in two models
  • Combines the Active Imaging scanning sonar with a traditional Medium/High CHIRP sonar element for easy single transducer installation
  • Operates at 800kHz or 455kHz with maximum ranges of 150ft (800kHz) or 300ft (455kHz)
• Utilizes the latest techniques in sonar signal generation
• Constructed of a polymer that reacts to sound waves more closely to water
  • This ensures that no sonar signal is lost during transmit or receive
• Include separate sonar elements for SideScan transmit and receive
  • Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution)
  • Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance
• Key Features
  • Active Imaging sonar offers no compromise high resolution detail to users
  • 800kHz operation covers many use cases and ranges
  • With 800kHz range and resolution capabilities users do not need to choose between seeing in high detail or seeing far
  • High resolution IPS screens of NSS evo3 and HDS Live show the full image, allowing the user to see the entire underwater environment
  • Active Imaging 3-in-1 transducers combine industry leading CHIRP sonar with Active Imaging Side and Down views giving users total coverage with award winning sonar
  • They do not require any modules or extra hardware for use with next-generation displays

Some features require additional component purchase

Specifications:

• Overview
  • Display: 12″ / 304.8 mm IPS
  • Screen: High-Resolution SolarMAX™ HD multi-touch display
  • Resolution: 1280 x 800
  • Backlighting: LED
  • Operating Voltage: 12 Volt DC (10-17 Volt DC min-max)
    • Supply Voltage: 12 Volt DC (10-17 Volt DC min-max)
    • Power Consumption: 49.68 Watt (3.6 Amp at 13.8 Volt DC) max
  • Warranty: Two year
• Sonar
  • Depth Alarm: Yes
  • Sonar Frequencies: 455/800 kHz (StructureScan® 3D with Active Imaging, Active Imaging 3-in-1), 40-60kHz, 85-145kHz, 130-210kHz (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band) Max Side-Scanning Range: 600 feet per side
  • Shallow Alarm: Yes
  • Temperature Readings: Yes
  • Transducer Type: Multiple selections Lowrance® and Airmar®
• Max Depth Per Sonar Operation:
  • StructureScan 3D: SideScan 600 ft/183m; DownScan 300 ft/92m
  • Active Imaging HD: 300 ft / 91 m @ 455/800 KHz
  • CHIRP: 3,500 ft / 1067 m (transducer dependent)
• Technical/Environmental
  • Waterproof Standard/Rating: IPx7
  • Dimensions
  • Product Width: 13.68 in 347.5 mm
  • Product Depth: 3.26 in 83 mm
  • Product Height: 9 in 228.5 mm
• GPS Navigation
  • Navigation: Routes: 100
  • Navigation: Waypoint Storage: 3,000
  • GPS Antenna Type: Internal 10Hz ultra-high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)
  • Plot Trails: 100 trails
  • GPS Alarms: Yes
• Mapping:
  • Preloaded C-MAP US Enhanced charts with Inland and coastal coverage, plus worldwide reference background map Mapping
    • Options: C-MAP Insight Pro, C-MAP Lake Insight HD, C-MAP MAX-N+, Navionics®+, Navionics Platinum+, Gold and HotMaps® Premium, Fishing Hotspots® PRO and more
• Networking Connectors
  • NMEA Port: NMEA 0183 + NMEA 2000®
  • Power and Video: Red 10-pin power connector
  • 2 Ethernet Ports
  • Channel 1 Transducer port:
    • Blue 9-pin connector for Broadband/CHIRP sonar, StructureScan 3D with Active Imaging, SideScan and DownScan Imaging™, LiveSight Forward and Down
  • Channel 2 Transducer Port:
    • Black 9-pin connector for Broadband/CHIRP sonar, Active Imaging 3-in-1 / 2-in-1, TotalScan, StructureScan HD with SideScan and DownScan Imaging™

In the Box:

• 12″ HDS Live unit (304.8 mm)
• Active Imaging 3-in-1 transducer
• U-bracket kit – plastic (includes knobs)
• Power / NMEA0183 cable
• SD-card door gasket kit
• Bezel
• Sun cover
• Documentation pack

Owner’s Manual (13.11 MB)

Installation Guide with Dimensional Drawings (4.38 MB)
