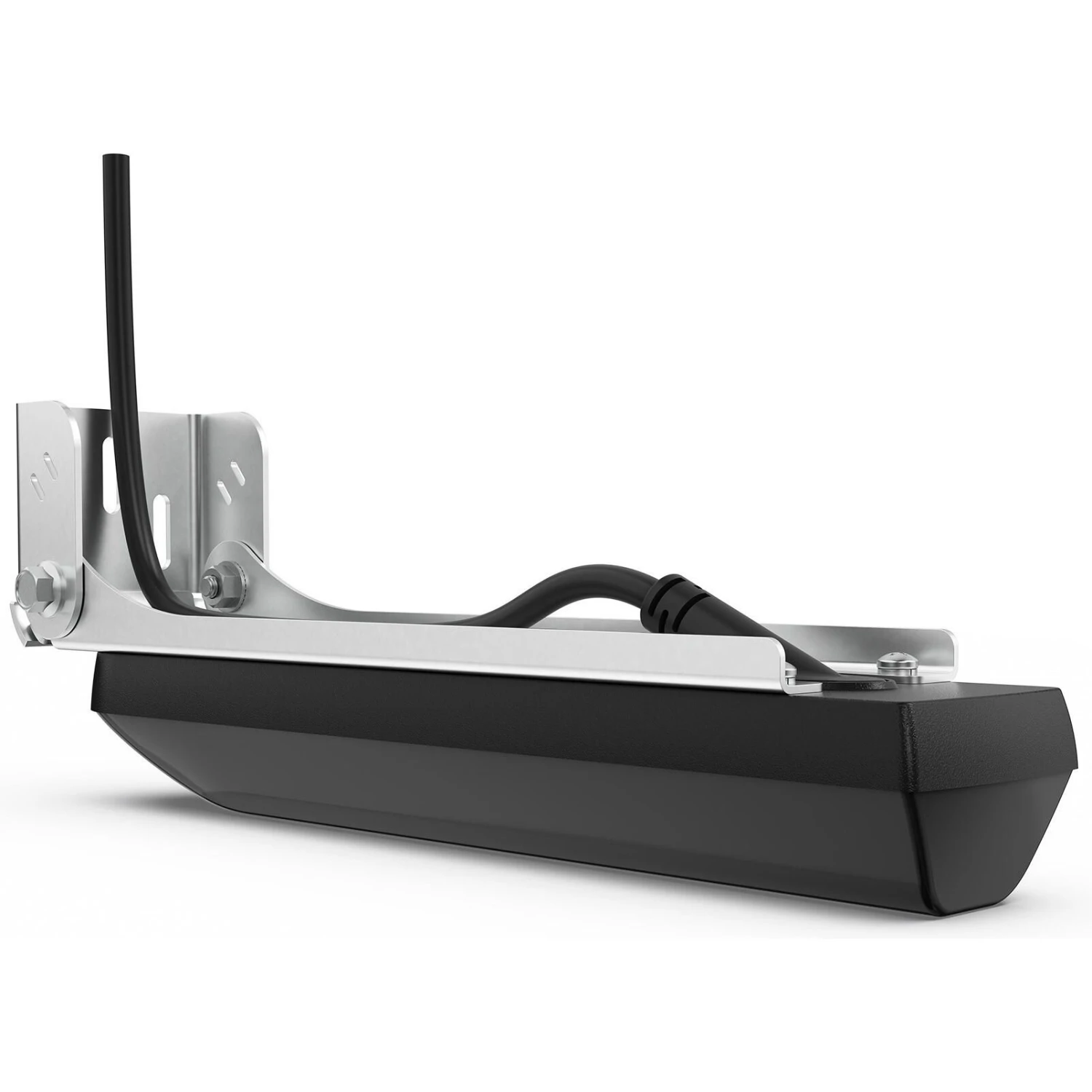

Lowrance Active Imaging HD 3-in-1 FishReveal Transducer – 000-16060-001

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan view, making fish identification easy.

Features:

• Delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™
  • CHIRP Sonar: See fish, structure and the bottom with greater clarity with Lowrance CHIRP, which delivers the best views of individual fish targets
  • SideScan HD Imaging: Perfect for searching large areas for fish-holding structure, allowing you to cover more water in a shorter period of time, and view areas too shallow for your boat – like next to the shore or bank
  • DownScan HD Imaging: Identifies how fish are relating to structure, providing photo-like images of rocks, trees, bottom composition and other underwater structure directly beneath the boat
• Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 KHz frequencies
• New shape capable of holding bottom over 50 MPH
• Large mounting area with offset holes
• Spray deflector to reduce spray on 0° to 30° transom installations
• Cable tie attachment points
• Non-reversible design
• Compatible directly with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon and Elite FS.

Specifications:

• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
• Shock Vibration: 100,000 cycles of 20 G
• Storage Temperature Range: -22°F to 158°F (-30°C to 70°C)
• Waterproof Rating: IP67
• Dimensions (WxHxD): 5.90″ (149.8 mm) x 3.24″ (82.4 mm) x 2.28″ (58.0 mm)
• Mounting Type: Bracket mount
• Weight: 2.67 lbs (1.21 kg)
• Interface:
  • Direct connect to: HDS ProS3100
  • Ethernet to: HDS Live Elite FS Requires S3100 Module
• Warranty period: 1 Year + 4 additional years of upgrade options

Note: Requires S3100 sonar module for Fish Reveal SideScan.
