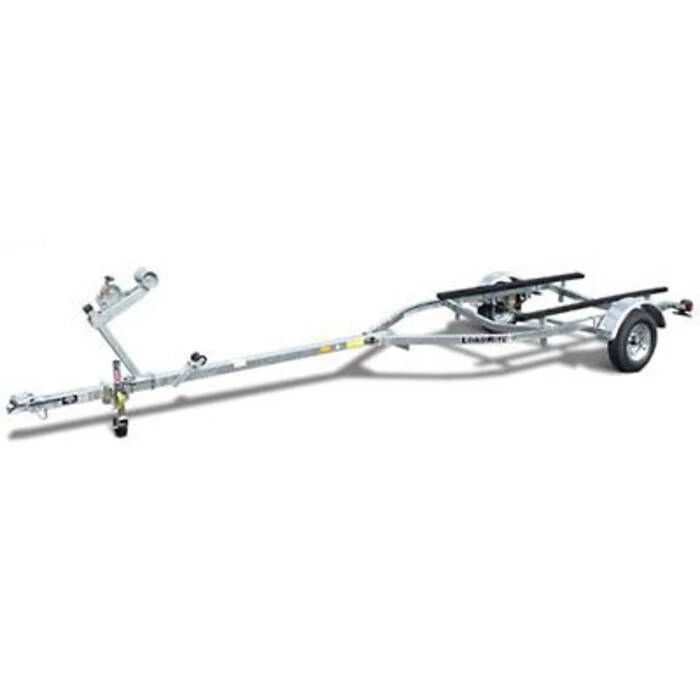

Load Rite Elite Series Single-Axle Galvanized Bunk Trailer – 2022 – 16F1200WT

Load Rite Elite Series Single-Axle Galvanized Bunk Trailer

Features:

• Bunk-type trailer recommended for boats 14′ to 16′ in length
• Heavy-duty frame features patented tubular construction that shrouds wiring from damage during use
• Hot-dipped galvanized finish provides exceptional strength and corrosion resistance
• Single-axle trailer offers outstanding maneuverability

Specifications:

• Trailer Type: Bunk
• No. of Axles: 1
• Load Capacity: 1200 lbs
• Application: Boats 14′ to 16′
• Material / Finish: Galvanized steel
• Overall Length: 18′ 3″
• Overall Width: 5′ 4″
• Width Between Fenders: 4′ 1″
• Length Bow Eye to Transom: 16′ 4″ max. / 9′ 8″ min.
• Bunk Type: “V”
• Suspension: Torsion
• Brakes: No
• Lights: LED
• Coupler Size: 2″
• Tire Size: 4.80 x 12 B
• Tongue Jack: Included
• Regulatory: NMMA certified

Note: Bunk trailers are recommended for boaters who load and launch less frequently, or who launch where there is little tidal influence. Bunk trailers offer excellent hull support for long-term storage.

Product Spec Sheet

Elite Series “2 Plus 3 Years Coupler to Taillight Warranty”
