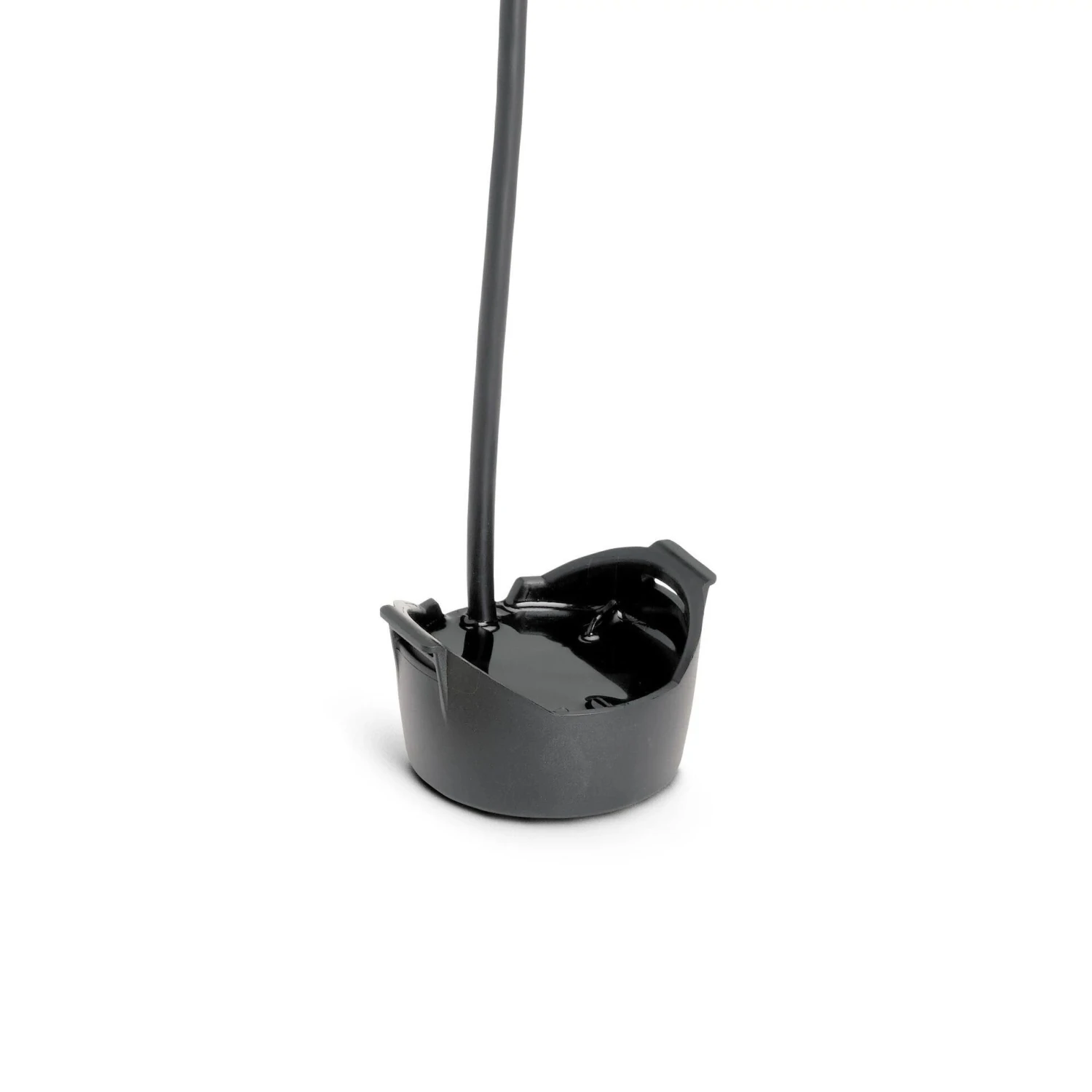

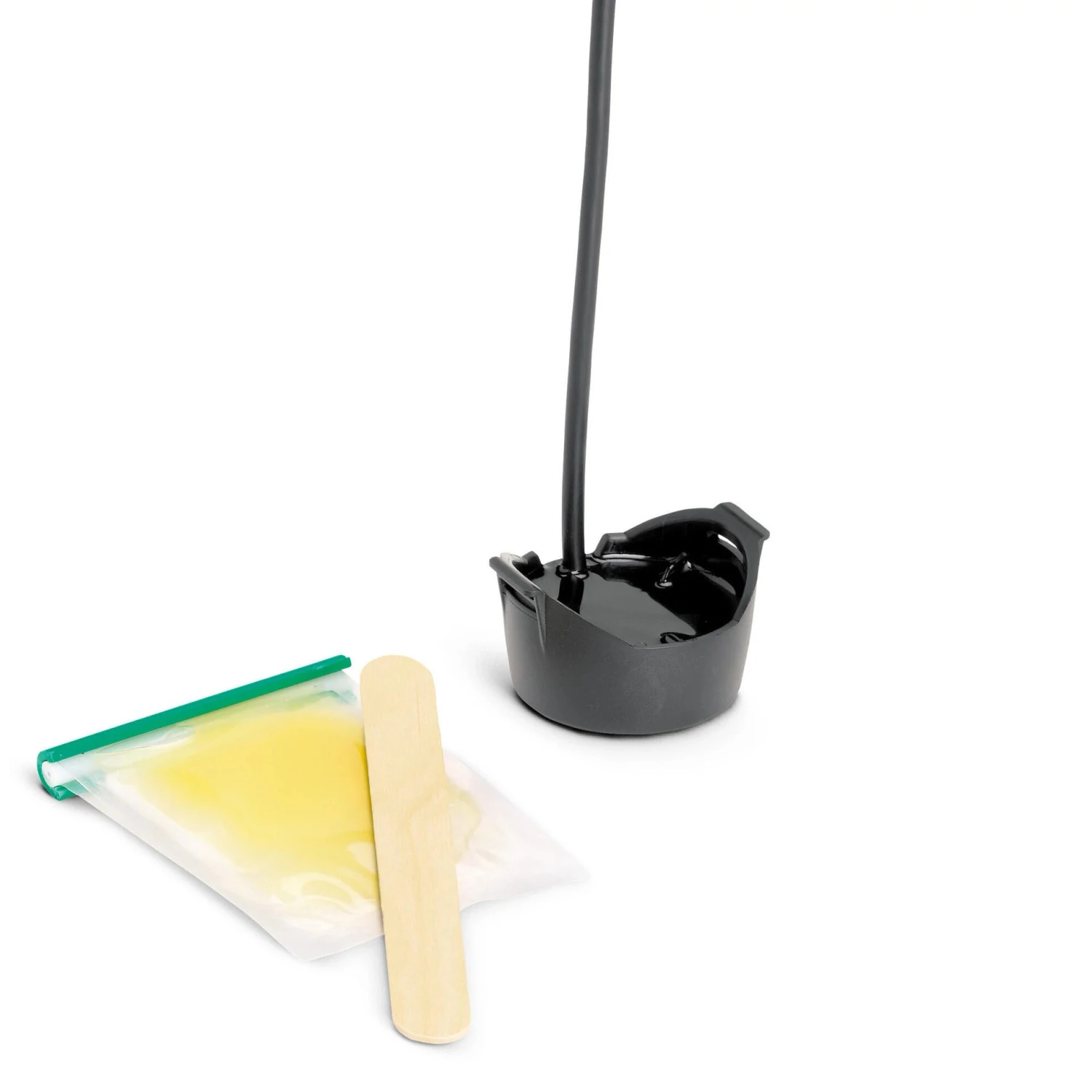

Humminbird XP 9 HW HELIX Dual Spectrum CHIRP In-Hull Transducer – 710275-1

In Hull Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220 kHz and max depth of 1200ft. For use in single layer fiberglass hull. No temperature

Features:

• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• Mount type: in-hull
• Sonar type: dual spectrum

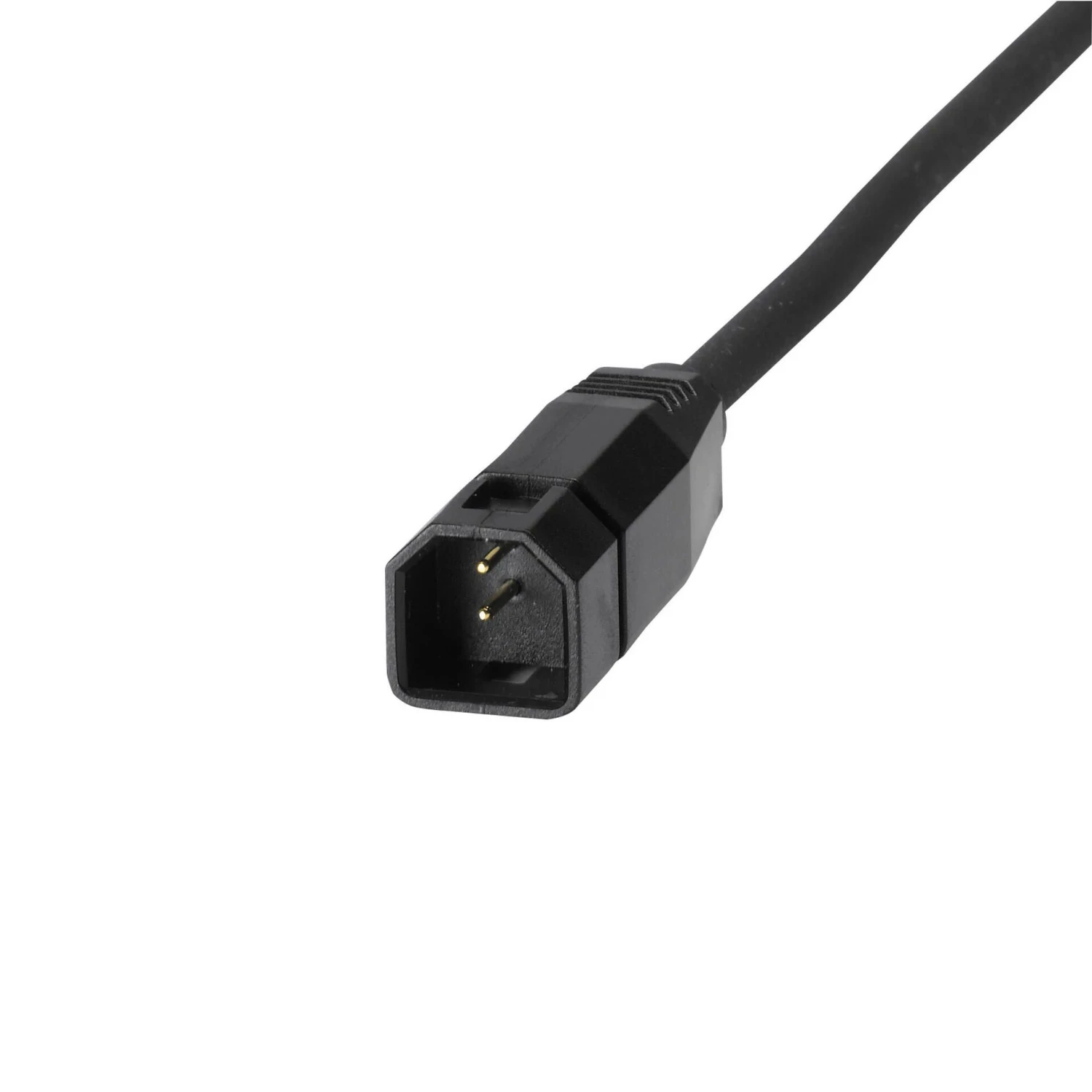

• Cable Length: 15′

Specifications:

• HELIX 5 CHIRP G2/G3: GPS-equipped models only
• HELIX 7 CHIRP G2/G3/G4: GPS-equipped and CHIRP DI G2 models
• HELIX 7 CHIRP G2N/G3N/G4N: all models
• HELIX 8 CHIRP G3N/ G4N: all models
• HELIX 9 CHIRP G2N/G3N/G4N: all models
• HELIX 10 CHIRP G2N/G3N/G4N: all models
• HELIX 12 CHIRP G2N/G3N/G4N: all models
• ICE HELIX CHIRP G2/G3 and newer: all models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer

Note: Side Imaging™ and Down Imaging™ units can support the XP 9 HW as a 2D sonar only transducer. This transducerdoes not support Side Imaging or Down Imaging.
