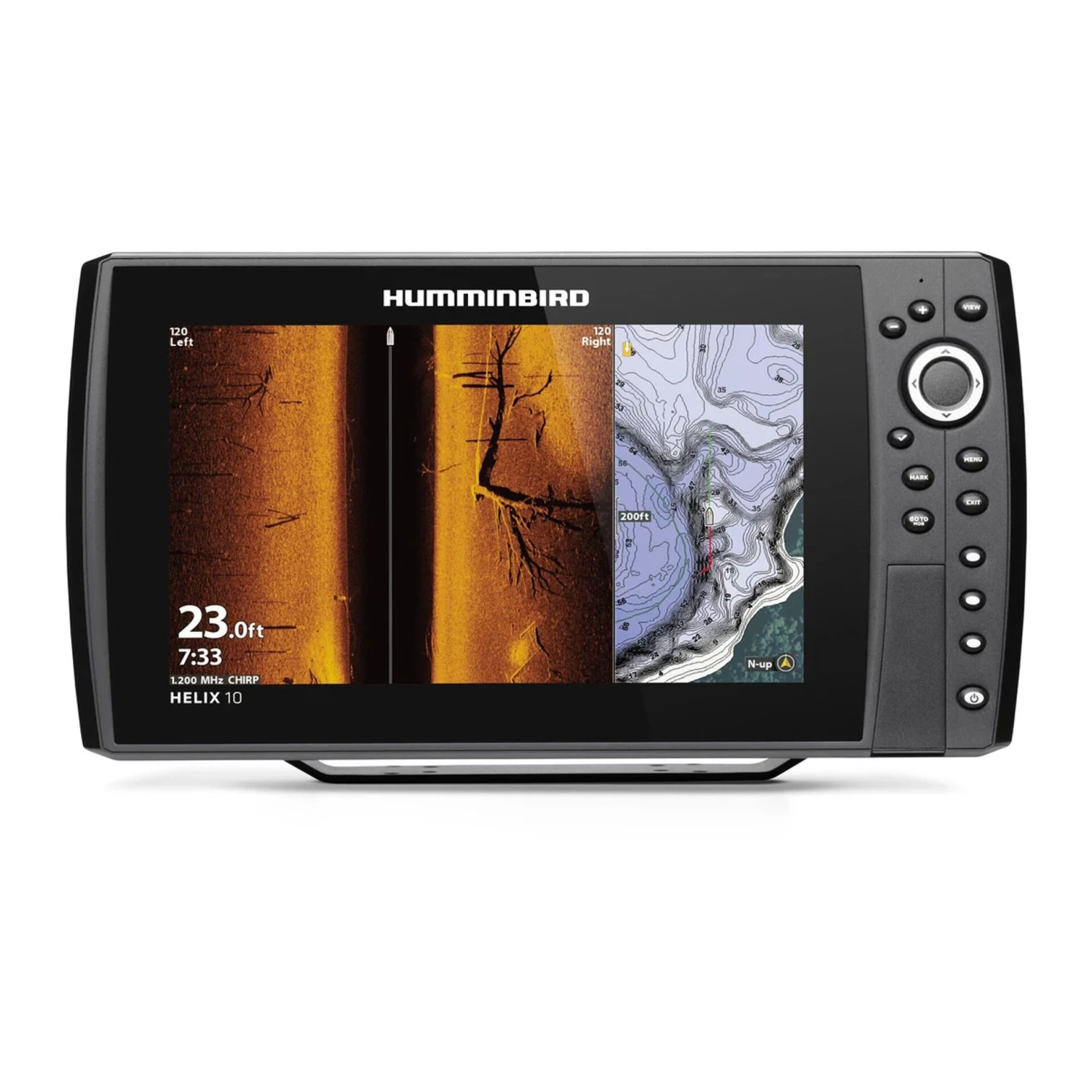

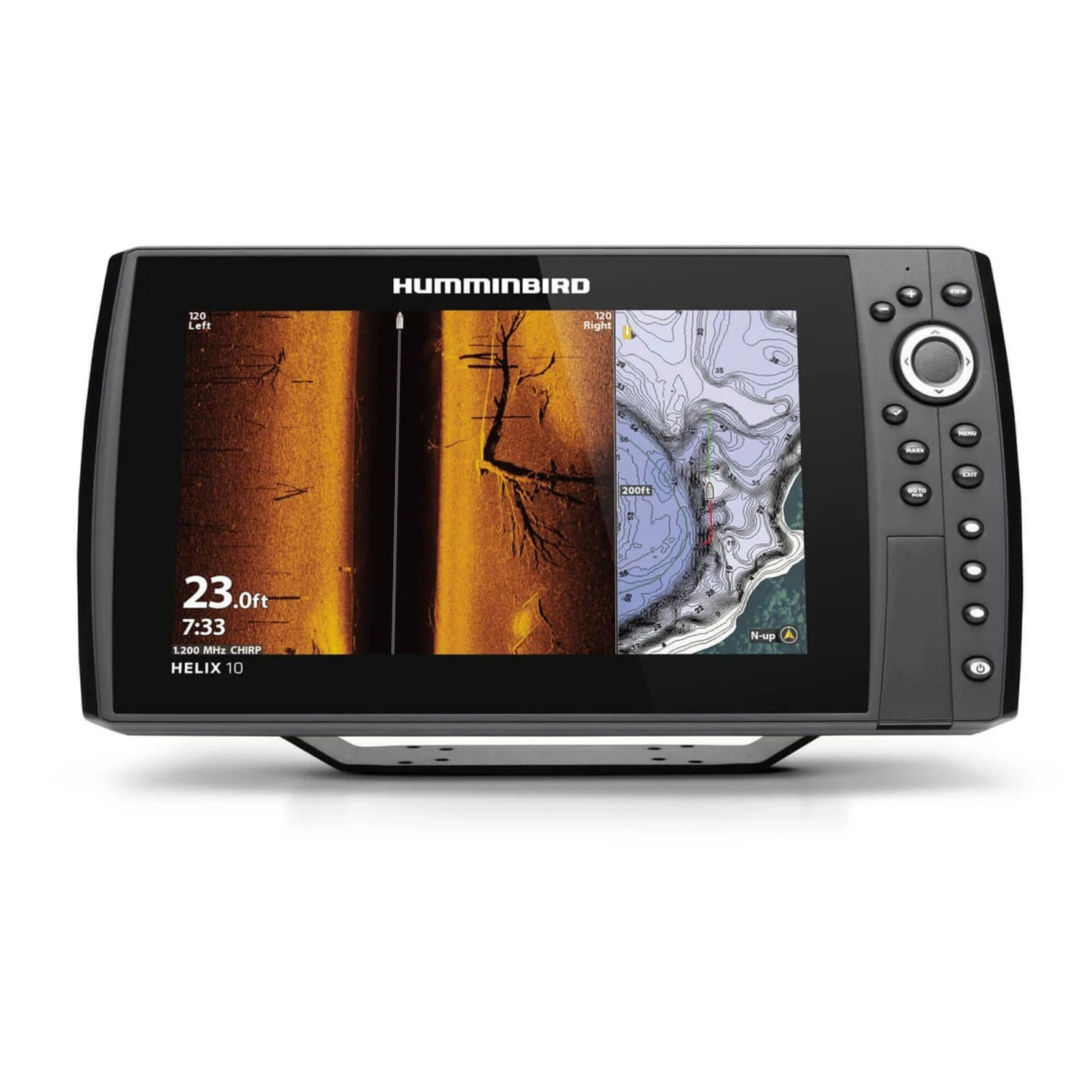

Humminbird HELIX 10 CHIRP MEGA SI+ GPS G4N Fishfinder

The HELIX 10 CHIRP MSI+ GPS G4N features a 10.1″ display, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS with Humminbird Basemap. The HELIX 10 includes standard features such as AutoChart Live, Wi-Fi and NMEA 2000®, in addition to Bluetooth® and Ethernet networking for compatibility with the One-Boat Network™

Features:

• Keypad control: Master HELIX at the touch of a button. Access the preloaded views from the user-friendly menu system, operated by soft key controls
• MEGA Side Imaging+: See the world below like never before with a crystal-clear Side Imaging viewing out to 200′ on either side of your boat

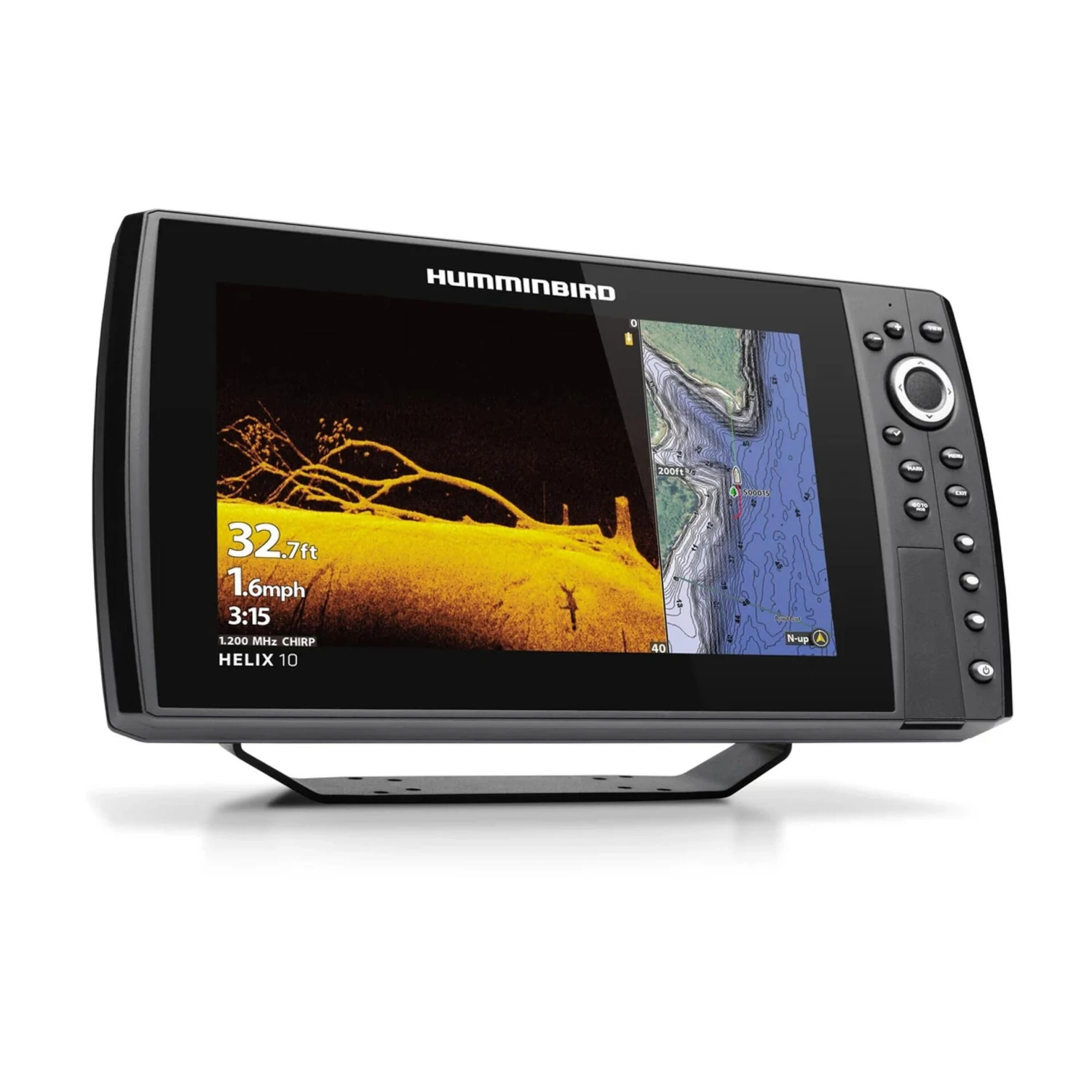

• MEGA Down Imaging+: Get unprecedented underwater clarity with Down Imaging coverage down to 200′ below your boat

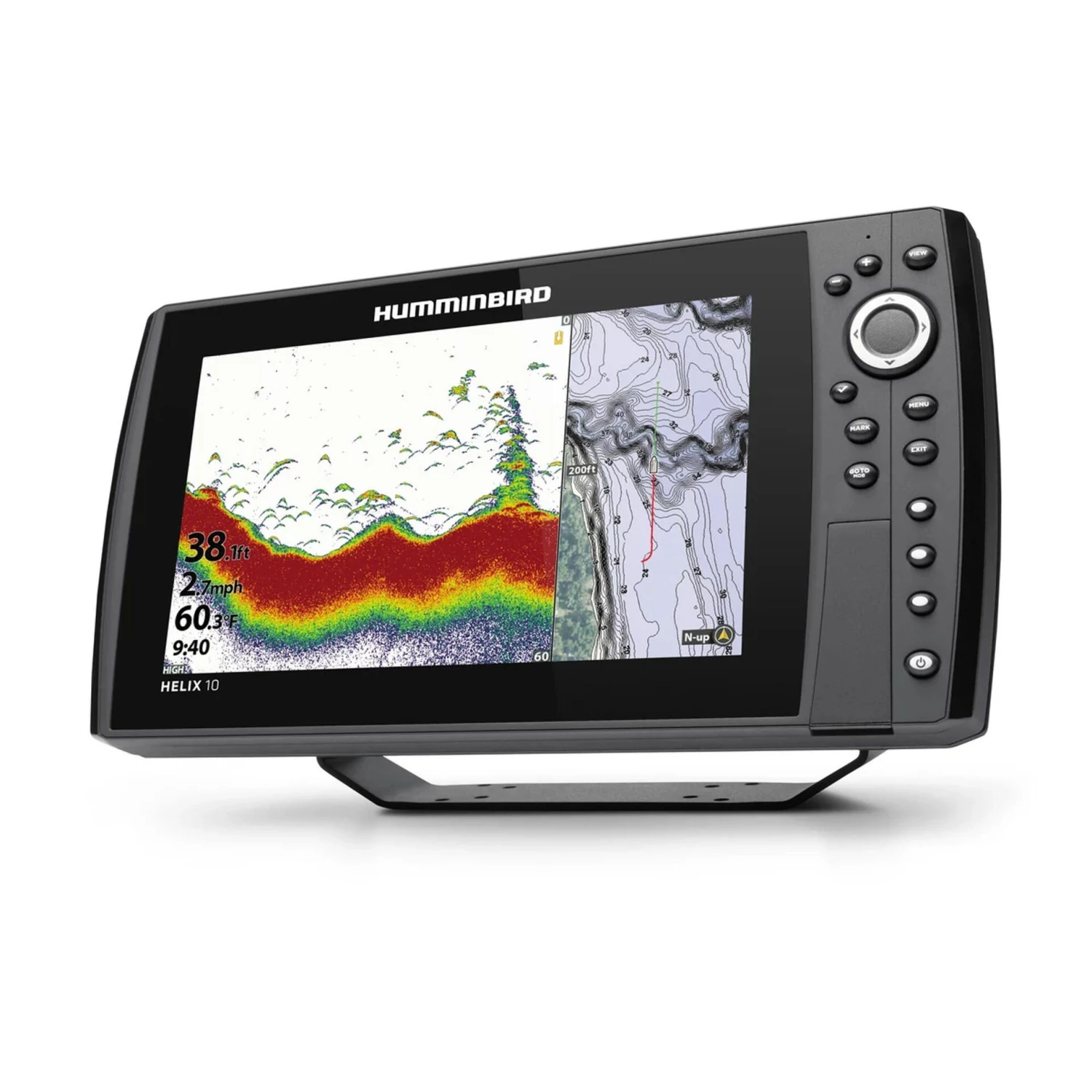

• Dual Spectrum CHIRP sonar: know what’s down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom
• Internal GPS and Humminbird Basemap: gives you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features
• One-Boat Network Compatible: integrate and communicate with Minn Kota motors and Cannon Optimum downriggers
• Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system
• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers
• NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information

Specifications:

• Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Sonar-Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
• Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
• CHIRP – Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
• Depth-Sonar: 1,200′ (standard transducer), 3,500′ (optional 50 kHz)
• CHIRP – Imaging-Frequencies Supported: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 125′ (800 kHz), 200′ (MEGA), 400′ (455 kHz)
• Range-Side Imaging (Side-To-Side): 800′ (455 kHz), 250′ (800 kHz), 400′ (MEGA)
• Dual SD card slot
• Screen Snap Shot/sonar recording
• GPS Chartplotting/trackplotting
• Upgradable Software
• View Preset Keys
• X-Press Menu System
• Custom Digital Readout/view selections
• Custom View Selections
• Temperature/temperature alarm/graph/speed built in

Compatibility:

• AIS
• AutoPilot
• MEGA 360/Live
• Minn Kota Built-In MEGA DI/SI
• Minn Kota i-Pilot Link,
• Minn Kota Talon/Raptor
• Minn Kota US2 Sonar
• NMEA 2000
• One-Boat Network
• Radar
• LakeMaster/Coast Master
• Navionics Gold/HotMaps/Platinum/Platinum +
• Heading Sensor GPS

Included:

• Control head
• Screen cover
• Transom-mount transducer (optional)
• Power cable

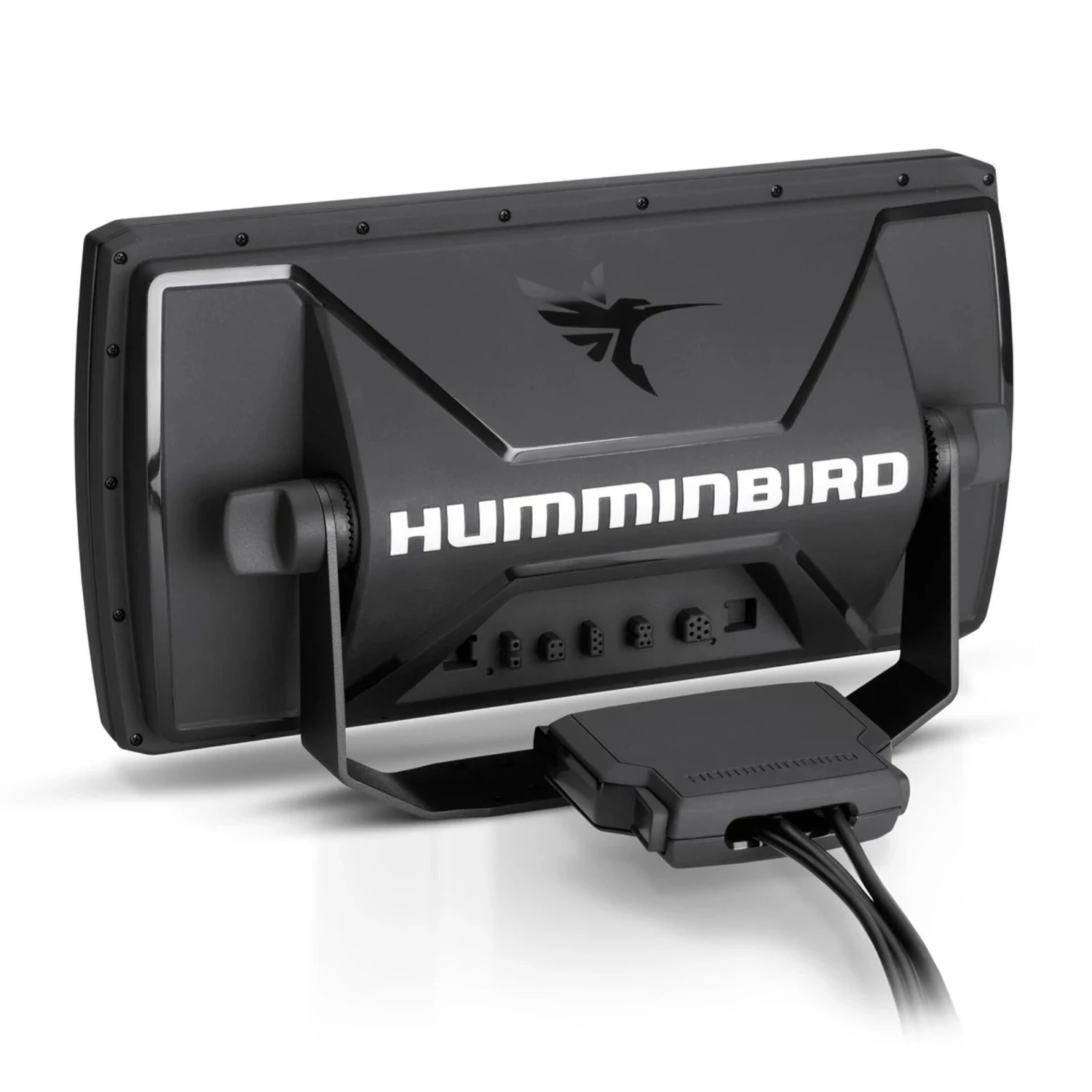

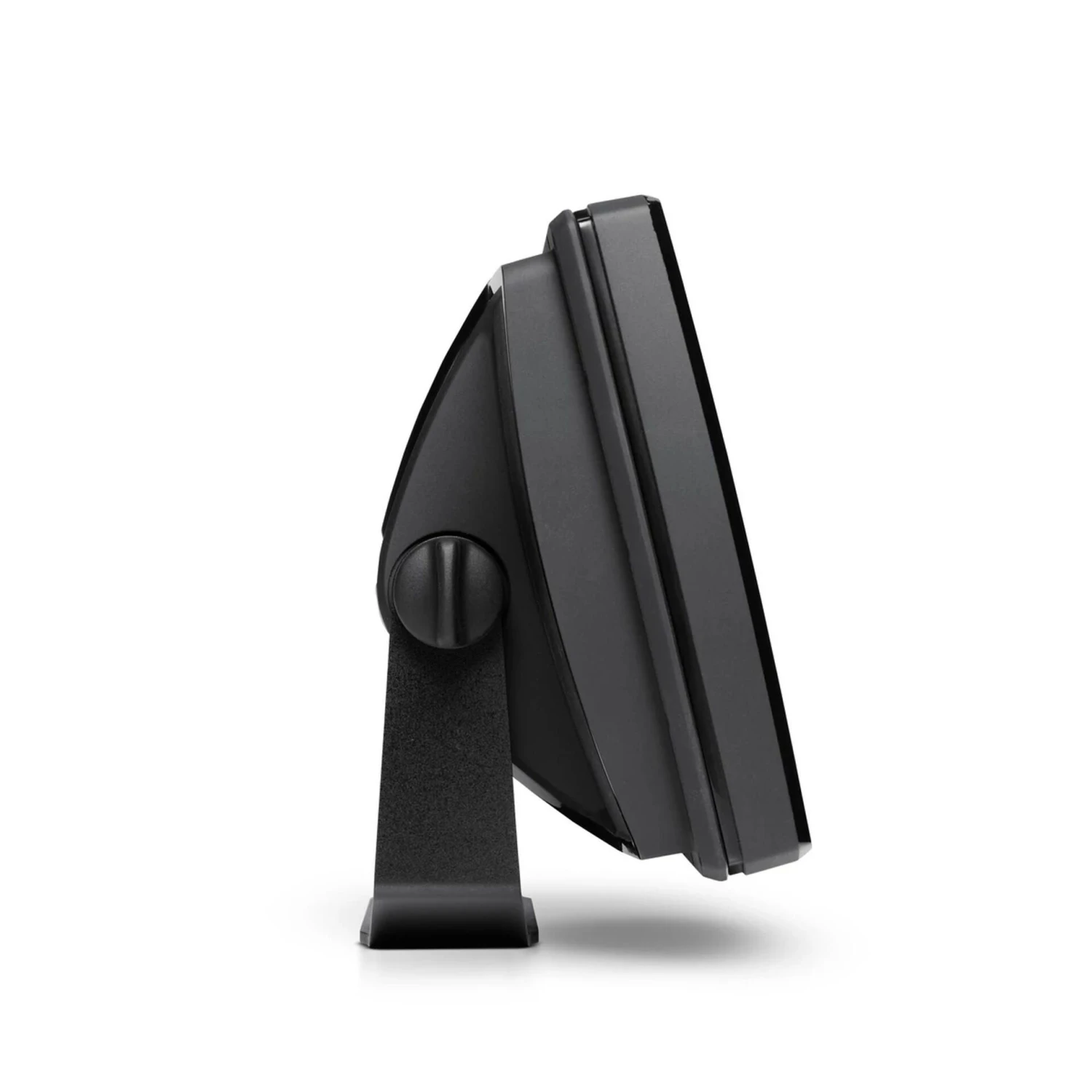

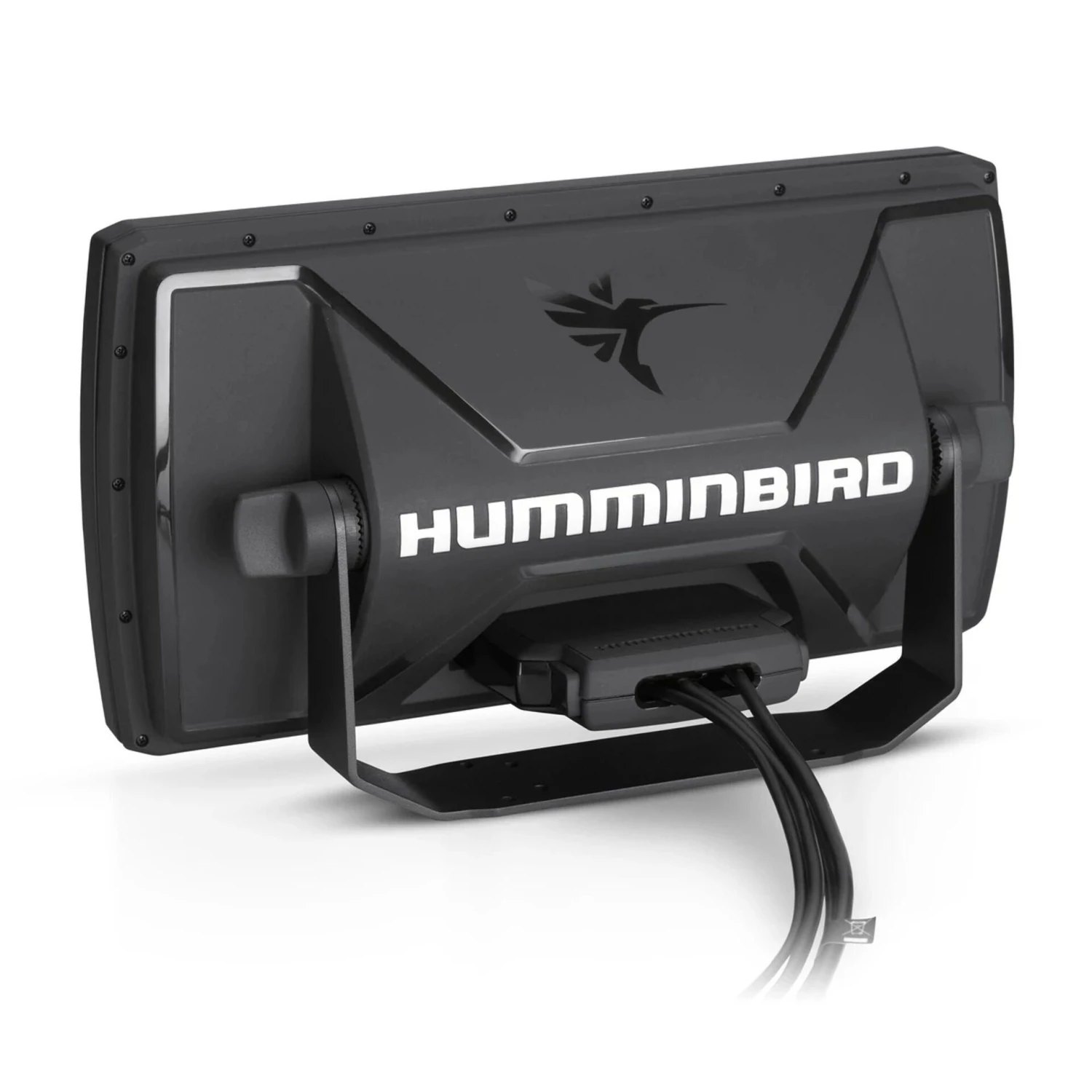

• Gimbal mounting bracket and mounting hardware

Owner’s Manual (6.37 MB)

Installation Instructions (2.49 MB)
