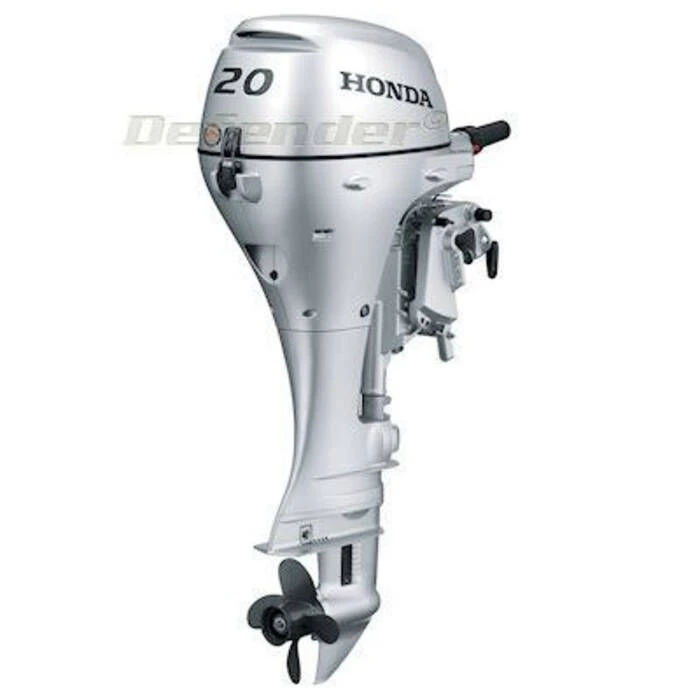

Honda 20 HP Tiller Outboard Motor – BF20 – 2022

Ideal for small fishing boats, sailboats or as a kicker for a larger fishing boat. The BF20 also has one of the largest displacements in its class, giving you big performance. And with 4-Front Corrosion Protection and Fresh Water Flushport, you get increased reliability and convenience.

Features:

• Easy starting
• High output charging
• 4-Front Corrosion Protection
• Large displacement for exceptional power

Specifications:

• Engine type: 4-Stroke SOHC 2 Cylinder/4 Valves
• Displacement: 350 cc (21.5 cubic inches)
• Bore & Stroke: 59 mm x 64 mm (2.3″ x 2.5″)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Rated Power: 20 HP @ 5,500 RPM
• Oil capacity: 1.1 L with filter replacement
• Cooling System: Water Cooled
• Fuel Delivery: 1 Carburetor
• Ignition System: PGM-IG
• Starting System: Electric/Recoil
• Exhaust: Through Hub
• Lubrication: Wet Sump
• Trim Range: 4 Stage 8°-12°-16°-20°
• Tilt Range: 72°
• Gear Ratio: 2.08:1
• Gear Shift: F-N-R
• Steering: tiller
• Alternator with voltage regulator (Electric Start): 12A/148W
• Alternator with voltage regulator (Rope Start): 6A/76W
• Propeller: 4-Blade Aluminum
• Diameter x Pitch, Standard: 9 1/4″ x 10″
• Diameter x Pitch, Power Thrust: 10″ x 7″
• Oil Pressure Alert: Standard
• Temperature Alert: Standard
• Rev-Limiter: Standard
• Dry weight: 47-50 kg (104-110 lbs)
• Fuel tank capacity: 3.2 gal
• Fuel line included
• Alternator (electric start models): 12A/148W
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Owner’s Manual (8.98 MB)
