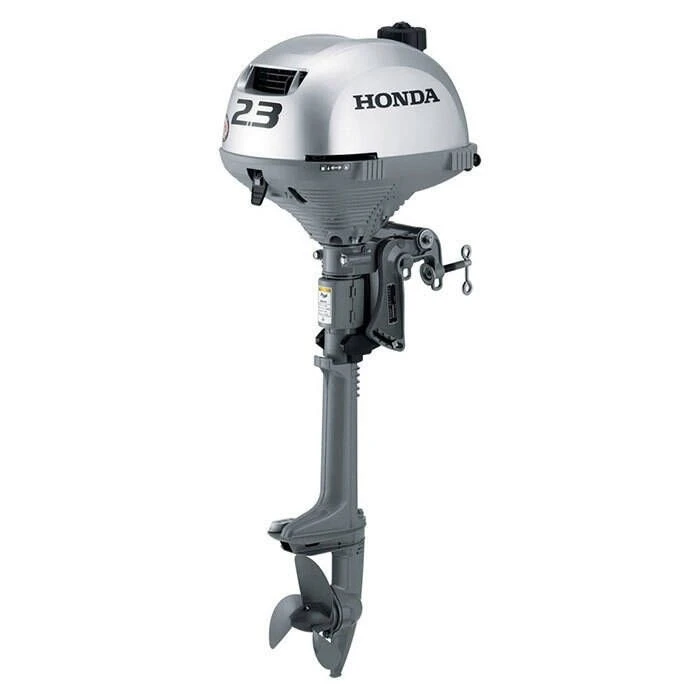

Honda 2.3 HP Tiller Outboard Motor – BF2.3 – 2022

The world’s lightest 4-stroke outboard with world-class fuel economy, the BF2.3 is ideal for tenders, small fishing boats or as auxiliary power. Quiet and simple to run with its automatic clutch, it also gives you incredible versatility and convenience thanks to the Shallow-Water Drive, Fold-Down Tiller Handle and Integrated Fuel Tank.

Features:

• Four-Stroke Engine Design: World-renowned Honda quality combines proven reliability with no oil-gasoline mixing
• Honda’s centrifugal clutch facilitates the running of the engine at idle, with no propeller rotation, for tight navigation or just idling at the dock
• Easily transportable, this little outboard is ideal for small boats, dinghies and canoes. Lightweight 4-stroke design and is the only 4-stroke in the 2.3 HP class
• Maintenance-free, high-energy output for quick and easy starting
• No water pump to worry about being plugged with weeds or damaged by sand, and less weight to carry
• Standard safety feature allows the operator to clip the safety switch lanyard or tether to the wrist, which will automatically activate the engine stop switch if the operator leaves the helm
• Reduces the risk of engine damage while navigating in shallow water
• A sacrificial anode mounted on the lower unit protects other metal components from corrosion
• Centrifugal drive clutch: offers a neutral-gear position at idle
• 360º Degree Swivel Steering: provides excellent manoeuvrability in tight areas
• Integral Fuel Tank: facilitates easy removal and portability as one unit. Vent may be closed for transport or extended storage periods
• Carburetor Drain Screw: Allows quick and easy draining of the carburetor’s float bowl for transport or extended storage periods
• Twist Grip Throttle with Friction Adjuster: Allows for superior throttle control, and the throttle tensioner minimizes driver fatigue
• Large Front-Mounted Carrying Handle: Provides superior portability and ease of installation
• Fold-Down Tiller Handle: A more compact design allows for easy transportation and storage

Specifications:

• Engine: 4-Stroke, OHV; 1 Cylinder / 2 Valves
• Displacement: 57.2 cc / 3.49 cu.in
• Bore & Stroke: 45 mm x 36 mm (1.8″ x 1.4″)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Propshaft Rated Horsepower (HP): 2.3 HP @ 5,500 RPM
• Cooling System: Air Cooled
• Fuel Delivery: 1 Carburetor
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Ignition System: Transistorized Magneto Ignition
• Starting System: Recoil
• Exhaust: Under Water, above propeller
• Lubrication: Forced splash
• Recommended Oil: SAE 10W30 API service classification SJ or later
• Oil Capacity: 0.25 L (0.26 qt)
• Trim Range: 5, 10, 15, and 20 deg.
• Tilt Range: 75 deg.
• Gear Ratio: 2.42:1
• Gear Shift: F & N – 360º Swivel Steering
• Oil Pressure Alert: Standard
• Over Rev-Limiter: Standard
• Propeller Type: 3-Blade (Polymer)
• Propeller Diameter x Pitch: 184 mm x 120 mm (7 1/4″ x 4 3/4″)
• Weight (with propeller mounted): 13.6 kg (29.5 lbs)
• Fuel tank capacity: 0.29 gal (1.1 L)
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Owner’s Manual (6.33 MB)
