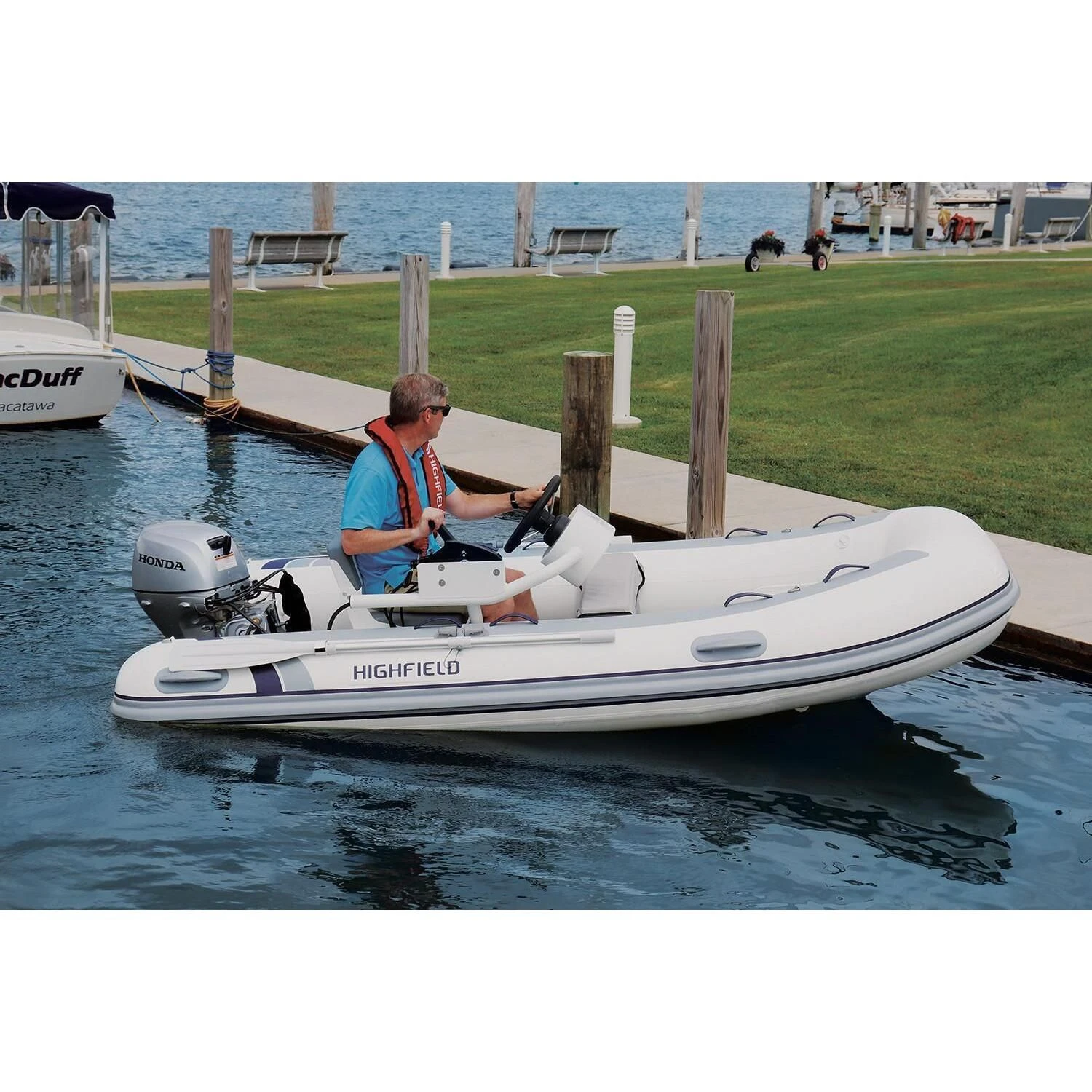

Highfield Classic CL-380 FCT Aluminum RIB 12′ 6″ Boat With Honda 30 HP Motor – BF30 -2024

The CL380 with FCT Console is rated for up to 7 people. The standard bow locker is ideal for storing your fuel tank or additional equipment. The high quality finish and luxury look belies the fact that this range of tenders has been designed to work hard. A durable aluminum hull coupled with a full length keelguard make these ideal for those beach hopping days with friends and family. The weight savings achieved, compared to equivalent fiberglass RIBs, means you’ll enjoy impressive performance with smaller engines, and with a range of sizes, the Classic range really does offer a tender for everyone.

The FCT steering console turns the Classic into an easy handling runabout, perfect for having fun when you’ve anchored for lunch. The raised deck means you’ll keep your feet and gear dry. Davit lifting eyes are welded into the deck for easy launching and towing, and the heavy duty rub strake with spray deflecting profile will give you peace of mind when coming back alongside the dock.

Highfield Classic CL-380 FCT Features:

• ORCA® Hypalon or PVC tube
• Welded seams (PVC tube models)
• Flush mount non-return valves
• High tensile chromated & powder coated aluminum hull
• Self-draining deck
• Included bow locker fits 24 L (6.34 gal) fuel tank
• Integrated transom supports
• Removable seat
• Lifting points and towing eyes
• Tow bridle points
• Anti-slip EVA Foam Deck
• Heavy duty rubbing strake
• Full length keel guard
• Bow cushion
• Bow step
• Hull finish:
  • Models with White/Light Grey tubes come with a white painted hull
  • Models with Dark Grey/Black tubes come with a grey painted hull

Highfield Classic CL-380 FCT Specifications:

• Overall Length: 12′ 6″ (3.80 m)
• Internal Length: 9′ 5″ (2.87 m)
• Beam: 5′ 7″ (1.70 m)
• Internal Width: 2′ 7″ (0.79 m)
• Dead Rise: 15°
• Tube Diameter: 17″ (44 cm)
• Number Of Air Chambers: 3
• Maximum Load: 1404 lbs (637 kg)
• Maximum Capacity: 7 persons
• Boat Weight: 183 lbs (83 kg)
• 4 liftings points
• Recommended Motor Power: 25 HP (30 HP Maximum), Short Shaft

Honda BF30D3SRT Specifications:

• Engine type: 4-Stroke SOHC; 3 Cylinders / 6 Valves
• Displacement: 552 cc / 33.7 cu.in.
• Bore & Stroke: 61 x 63 mm (2.4″ x 2.48″)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Propshaft Rated Horsepower (HP): 30 HP @ 6,000 RPM
• Cooling System: Water Cooled
• Fuel Delivery: 3 Carburetors
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Ignition System: Capacitor Discharge; Digital CDI
• Starting System: Electric
• Exhaust: Through Prop Hub
• Lubrication: wet sump
• Recommended Oil: SAE 5W30 API service classification SJ or later
• Oil Capacity: 1.70 L (1.80 Imp. qt) with oil filter repl.
• Trim Range: -4° to +12°
• Tilt Range: -4° to 64°
• Gear Ratio: 2.08:1
• Gear Shift: F-N-R
• Alternator: 10A/126W
• Over Rev-Limiter/Temperature/Oil Pressure Alert
• Propeller Type: 3-blade (Aluminum)
• Propeller Diameter x Pitch: 235 x 305 mm (9 1/4″ x 12″)
• Shaft Length: 15″
• Color: grey
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Included:

• Tank strap kit
• Under seat bag
• Highfield dry bag
• Foot pump, oars, repair kit
