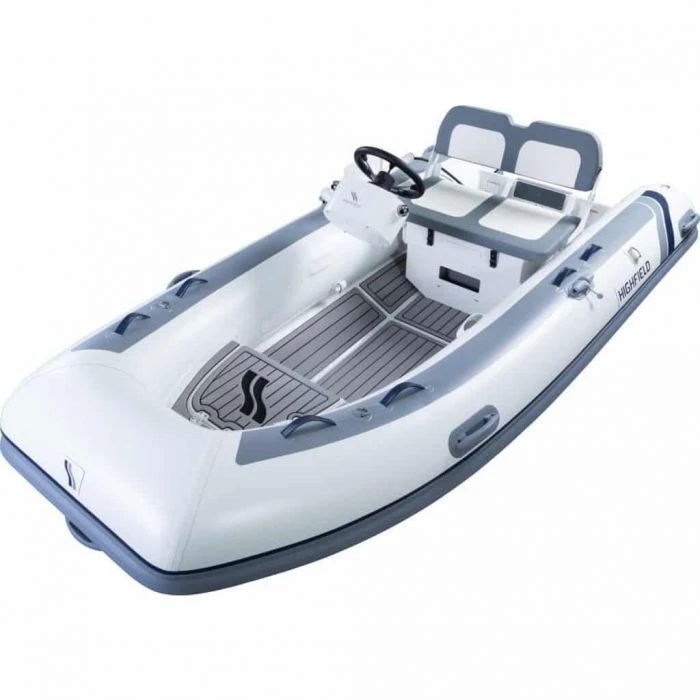

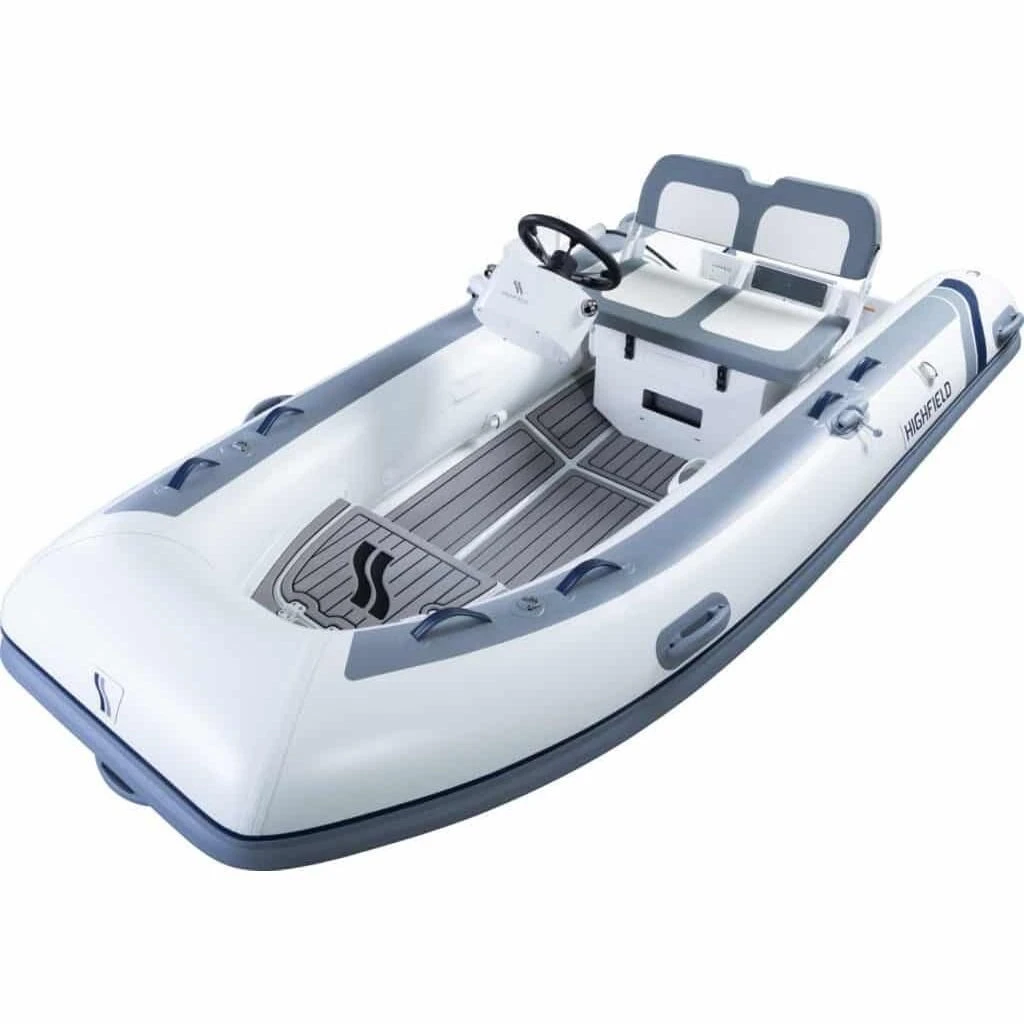

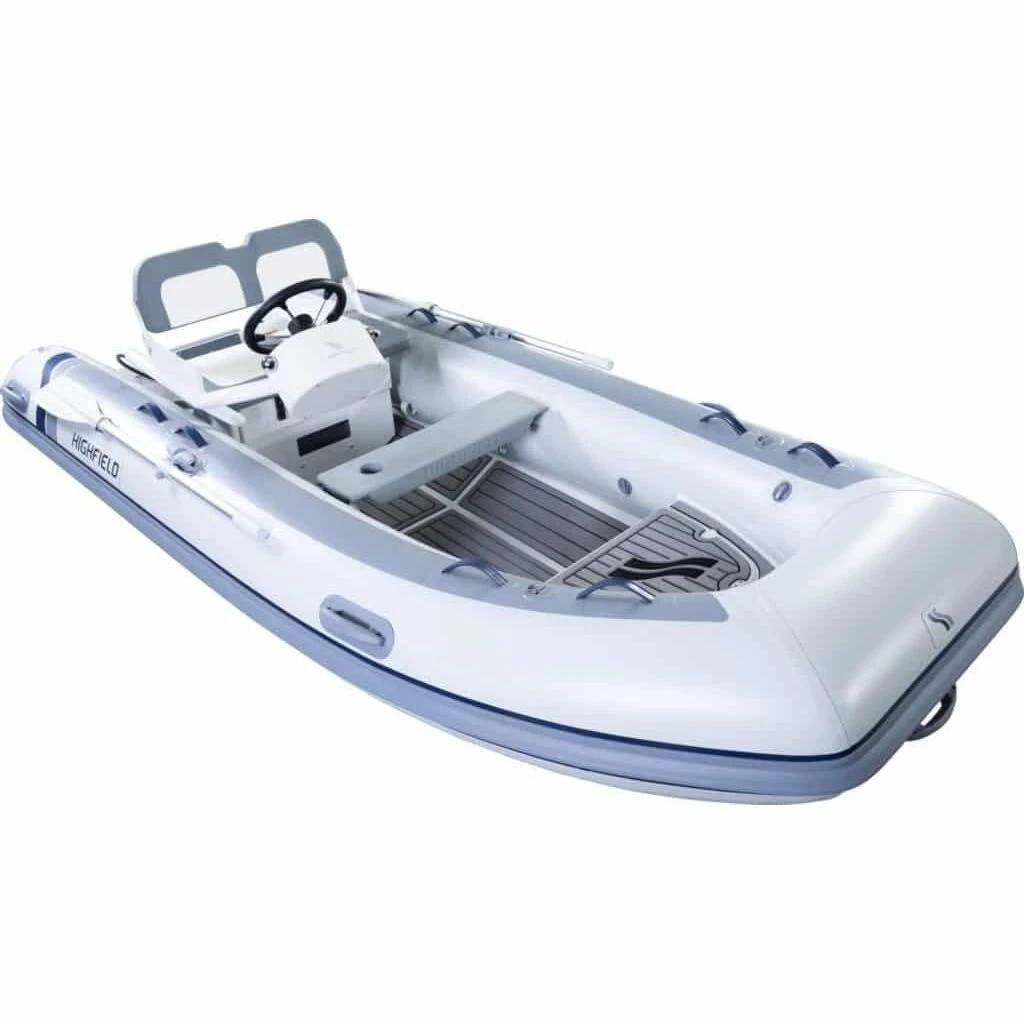

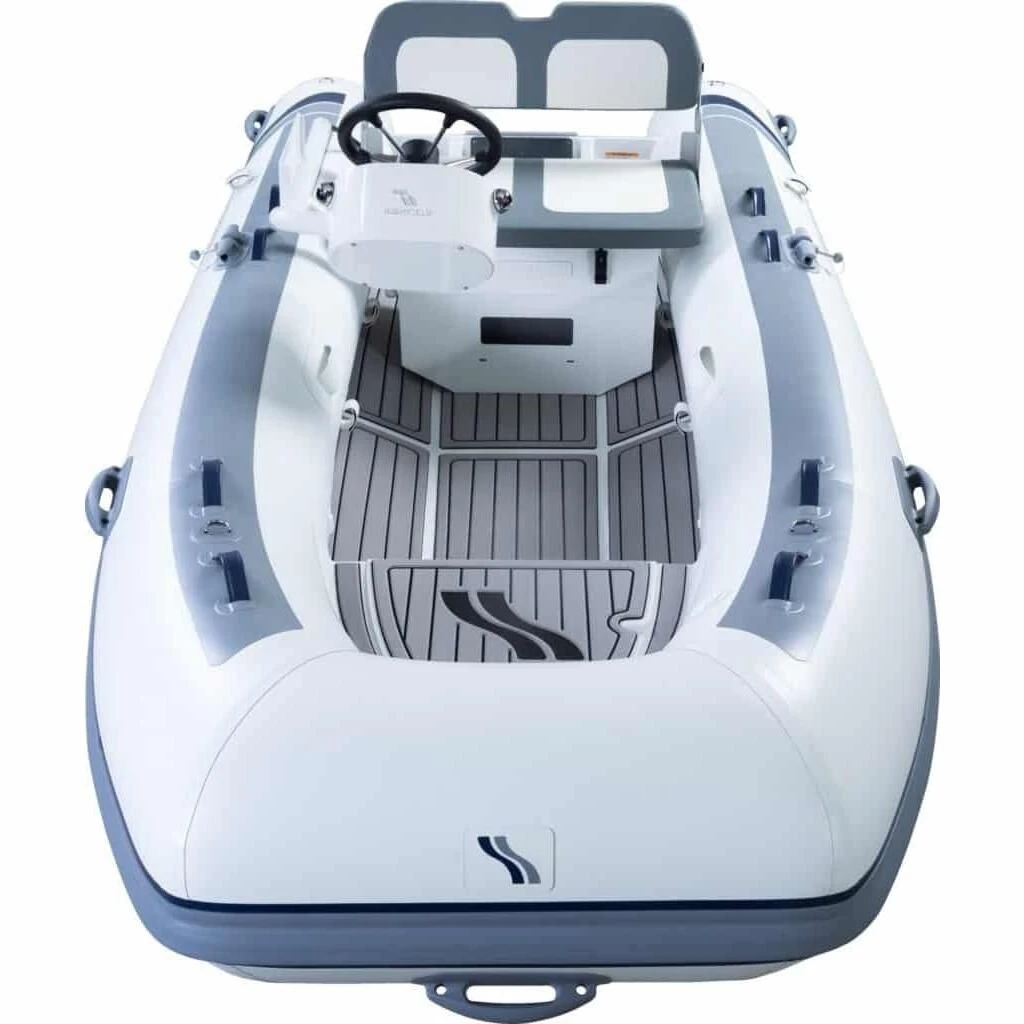

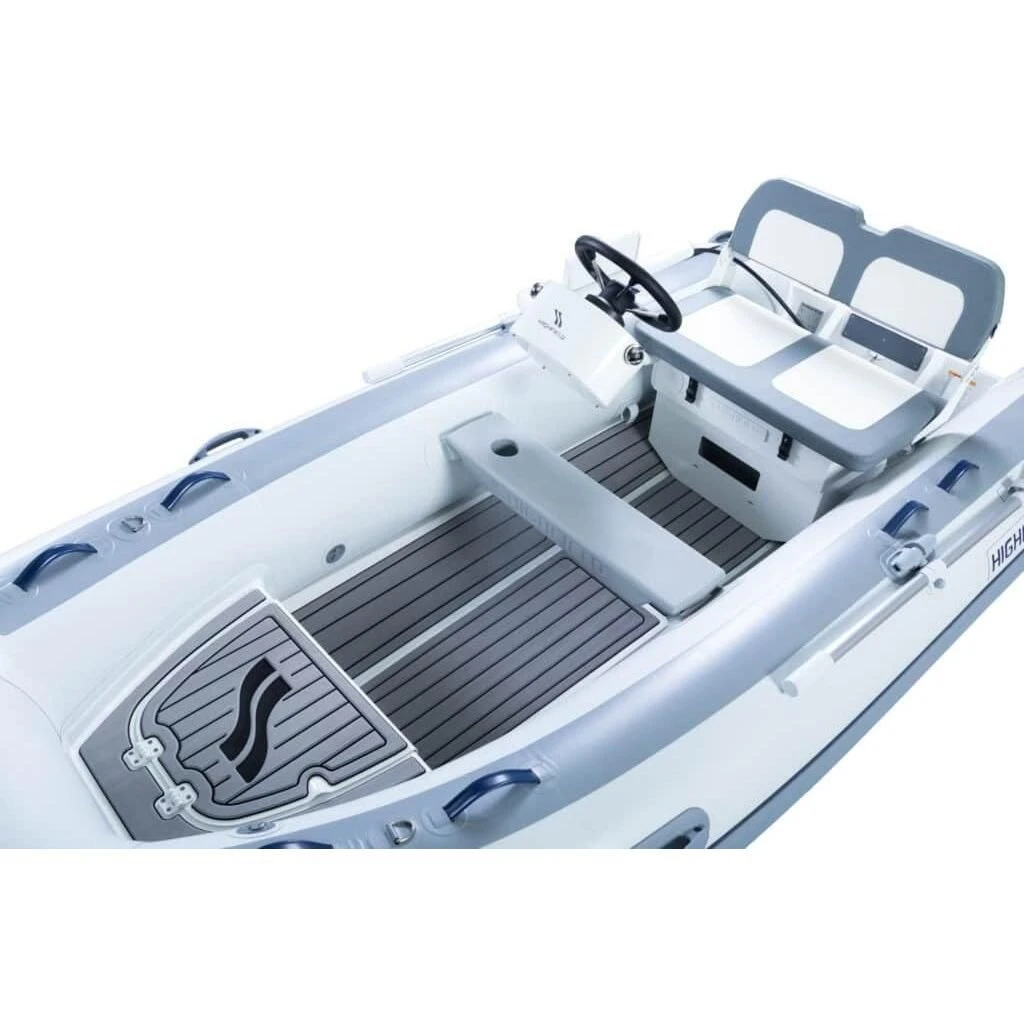

Highfield Classic CL-340 FCT Aluminum RIB 11′ 2″ Boat With Tohatsu 25 HP Motor – MFS25D -2024

Rated for up to 6 people. The standard bow locker is ideal for storing your fuel tank or additional equipment. The high quality finish and luxury look belies the fact that this range of tenders has been designed to work hard. A durable aluminum hull coupled with a full length keelguard make these ideal for those beach hopping days with friends and family. The weight savings achieved, compared to equivalent fiberglass RIBs, means you’ll enjoy impressive performance with smaller engines, and with a range of sizes, the Classic range really does offer a tender for everyone.

The FCT steering console turns the Classic into an easy handling runabout, perfect for having fun when you’ve anchored for lunch. The raised deck means you’ll keep your feet and gear dry. Davit lifting eyes are welded into the deck for easy launching and towing, and the heavy duty rub strake with spray deflecting profile will give you peace of mind when coming back alongside the dock.

Highfield Classic CL-340 FCT Features:

• ORCA® Hypalon or PVC tube
• Welded seams (PVC tube models)
• Flush mount non-return valves
• High tensile chromated & powder coated aluminum hull
• Self-draining deck
• Included bow locker fits 24 L (6.34 gal) fuel tank
• Integrated transom supports
• Removable seat
• Lifting points and towing eyes
• Tow bridle points
• Anti-slip EVA Foam Deck
• Heavy duty rubbing strake
• Full length keel guard
• Bow cushion
• Bow step
• Hull finish:
  • Models with White/Light Grey tubes come with a white painted hull
  • Models with Dark Grey/Black tubes come with a grey painted hull

Highfield Classic CL-340 FCT Specifications:

• Overall Length: 11′ 2″ (3.40 m)
• Internal Length: 8′ 1″ (2.47 m)
• Beam: 5′ 7″ (1.70 m)
• Internal Width: 2′ 7″ (0.79 m)
• Dead Rise: 15°
• Tube Diameter: 17″ (44 cm)
• Number Of Air Chambers: 3
• Maximum Load: 1215 lbs (551 kg)
• Maximum Capacity: 6 persons
• Boat Weight: 157 lbs (71 kg)
• 4 liftings points
• Recommended Motor Power: 15 HP (20 HP Maximum), Short Shaft
• Aluminum Hull Thickness: 2.5 mm (approximatelty 1/16″)

Tohatsu MFS25DETS Specifications:

• Engine: 4 Stroke 3 Cylinder
• Output: 25 HP (18.4 kW)
• Displacement: 500 cc (30.5 cu.in.)
• Bore x Stroke: 61 x 57 mm (2.4″ x 2.25″)
• Gear Shift: Forward – Neutral – Reverse
• Gear Ratio: 2.17:1 (12:26)
• Shaft length: 15″
• Fuel: Unleaded Gasoline (87 Octane)
• Oil Type: NMMA Certified FC-W 4-stroke oil SAE 10W-30/40 (SF, SG, SH, SJ)
• Oil Capacity: 1.7 L (1.8 qt)
• Alternator Output: 12V, 210W, 17.5A
• Max. RPM Range: 5,000 – 6,000
• Electronic Fuel Injection
• Digital CD Ignition System
• Start In Gear Protection
• Thermostat Controlled Cooling System
• Through-The-Prop Exhaust
• Overheat Buzzer
• Oil Pressure Warning
• Variable Idle Speed
• Shallow Water Drive
• Color: Aqua Marine Blue
• Factory Warranty: 5 years. Warranty begins on date of purchase.

Included:

• Tank strap kit
• Under seat bag
• Highfield dry bag
• Foot pump, oars, repair kit

Highfield Owner’s Manual (3.84 MB)

Dimensions Diagram

Chock Information

Tohatsu MFS25 Owner’s Manual (2.95 MB)
