Garmin Livescope Plus Ice Fishing Li Bundle

Get improved resolution, reduced noise, clearer images, and better target separation with the LiveScope Plus ice fishing bundle LI. It includes an ECHOMAP UHD 93sv combo, a LiveScope Plus sonar system, and a lightweight lithium battery.

Features:

• Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200′ in any direction
• Adapt your fishing technique with a LiveScope Plus system, which offers two live-scanning sonar modes Down and Forward with improved resolution, reduced noise, clearer images and better target separation
• LiveScope Forward sonar shows up to 200′ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole
• LiveScope Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig
• The unit comes preloaded with LakeVu g3 maps with integrated Garmin and Navionics data, covering more than 18,000 lakes in the U.S. It also supports Garmin Navionics+ cartography (sold separately)
• The built-in flasher (requires an accessory purchase) provides accurate jig and fish detection as they swim into the sonar beam
• You can create custom pages that combine LiveScope Plus sonar, flasher, and map on your display
• Fish even longer with a lightweight lithium battery that won’t weigh you down on the ice

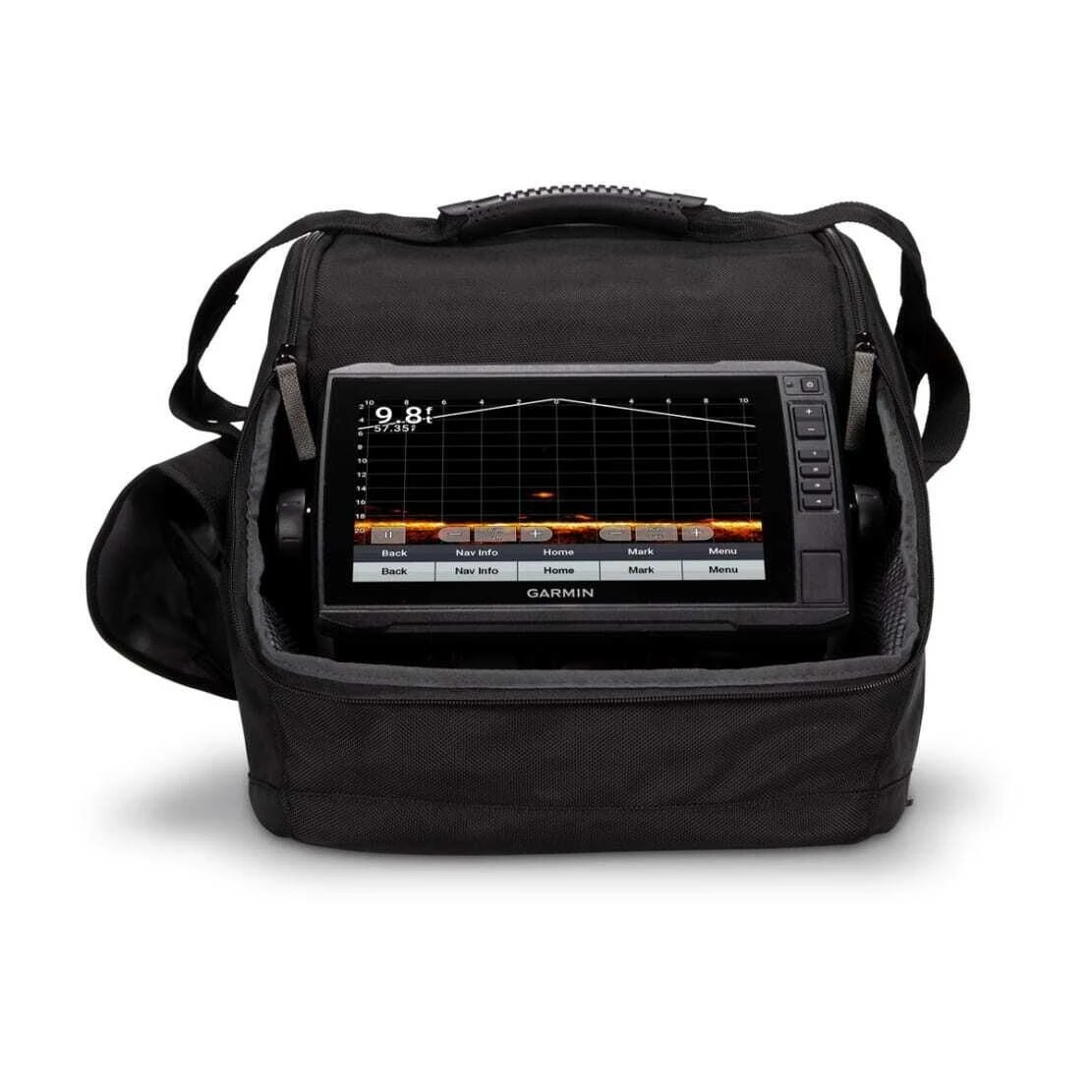

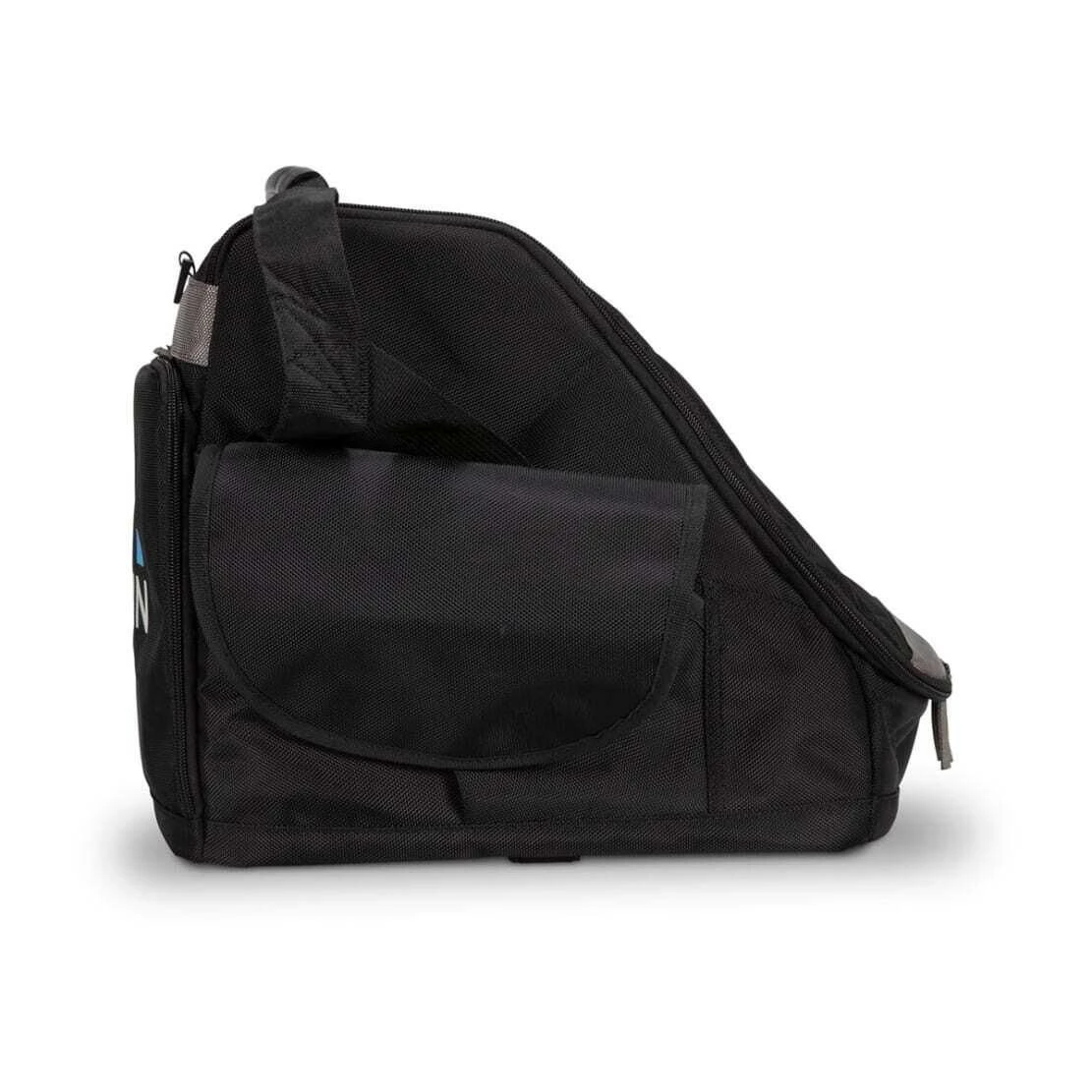

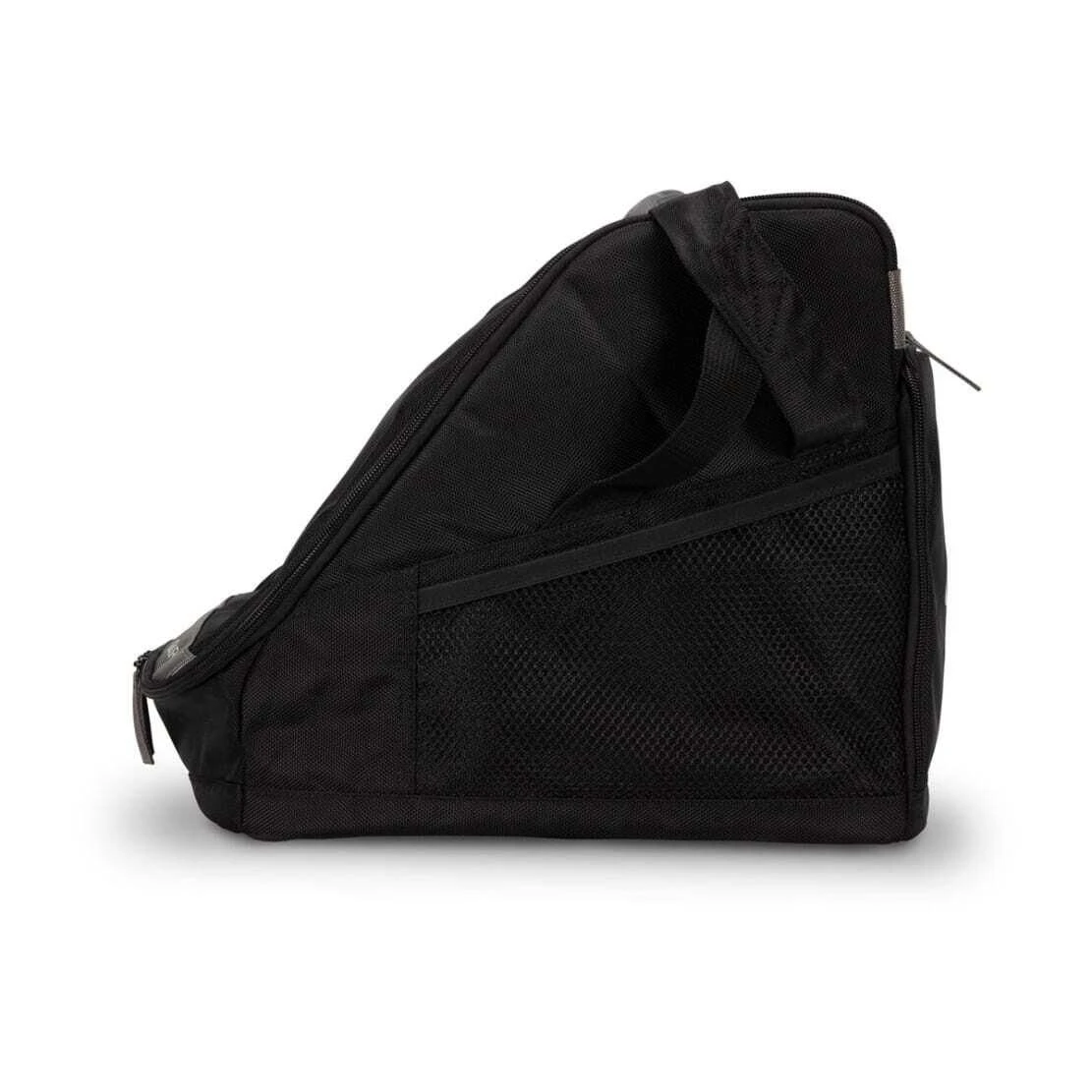

• Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season

Specifications:

• Physical dimensions: 13.8″ × 12.2″ × 13.0″ (35 × 31 × 33 cm)
• Display size: 7.8″ x 4.8″; 9″ diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
• Display resolution: 800 x 480 pixels
• Display type: WVGA display
• Weight: 28.0 lbs (12.7 kg)
• Water rating: IPX7
• Power consumption: 6.2W
• Antenna: Internal or external over NMEA 2000
• Transmit power: 500W
• Receiver: 5 Hz
• Garmin Marine Network Ports: 1 Panoptix port
• Tide tables
• Garmin sonar compatible
• Frequencies supported: 530 – 1,100 kHz
• Maximum depth: Down and Forward: 200′ (61.0 m)
• Bottom Lock (shows return from the bottom up)
• Water temperature log and graph
• Sonar recording
• Sonar history rewind
• NMEA 2000 compatible
• Transducer pin numbers: 21
• NMEA 0183 inport ports: 1
• NMEA 0183 output ports: 1
• Wireless connectivity
• Battery: 16.5 Ahr Lithium-ion, 3.4 lbs
• Runtime (0°C 100% backlight): 11.4 hours
• Bag size: Extra large
• Included transducer: Panoptix LiveScope Plus System

Included:

• ECHOMAP UHD 93sv chartplotter
• LiveScope Plus System
• Zero degrees mount
• LiveScope ice fishing mount
• Tilt/swivel mount
• Power cable
• Documentation
• Portable fishing kit
• Bag with handle
• Lithium-ion battery
• Battery charger
