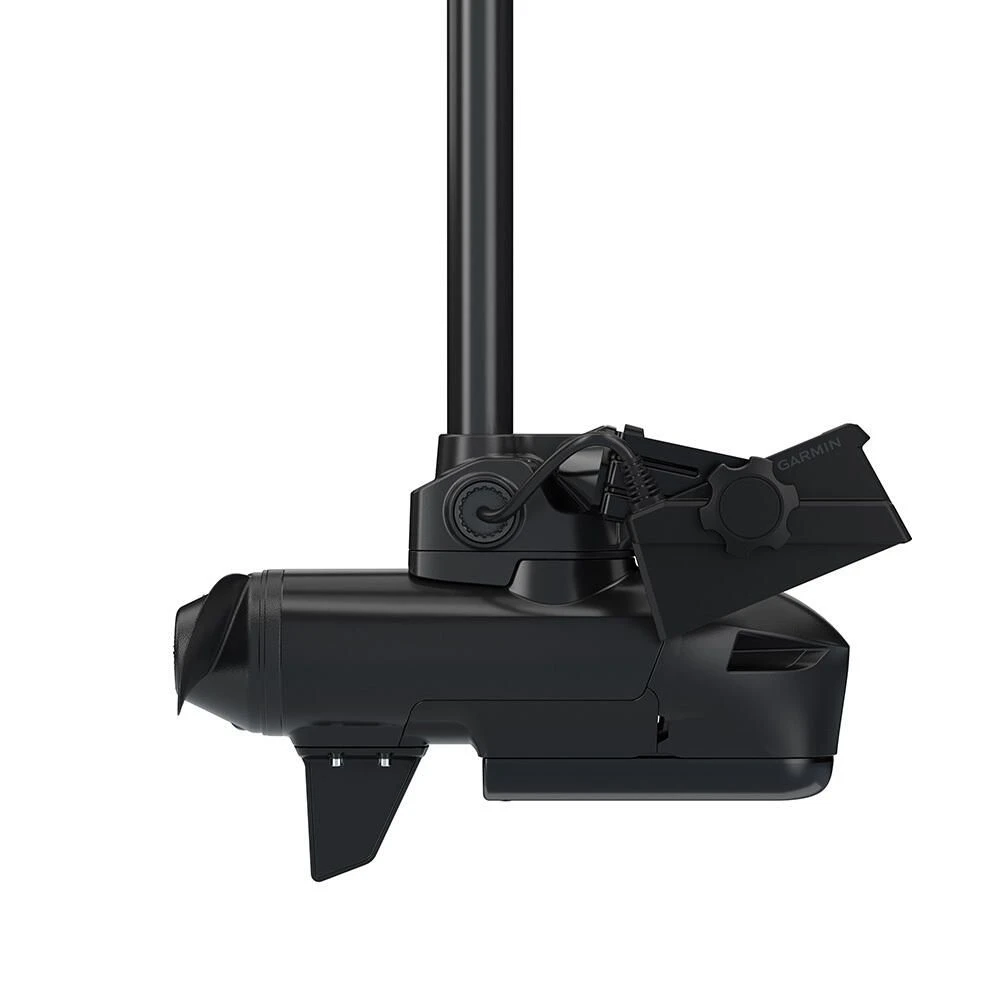

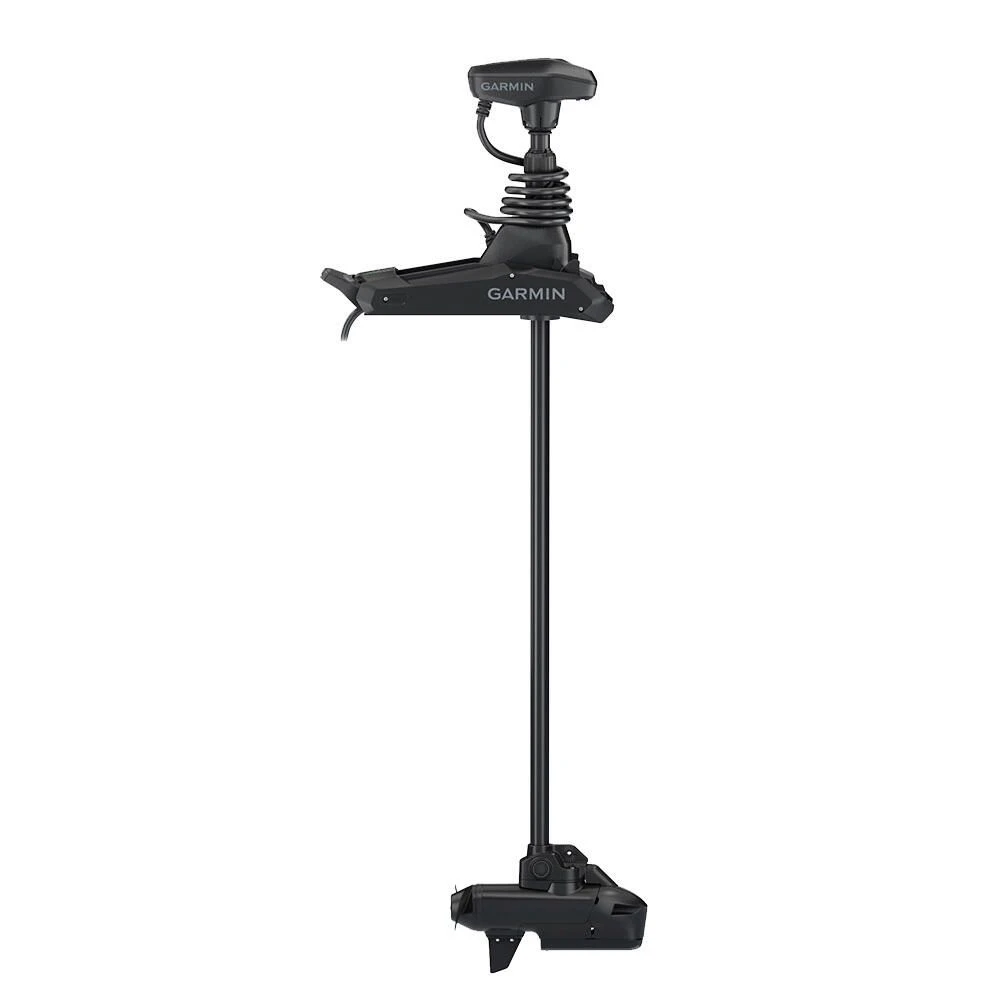

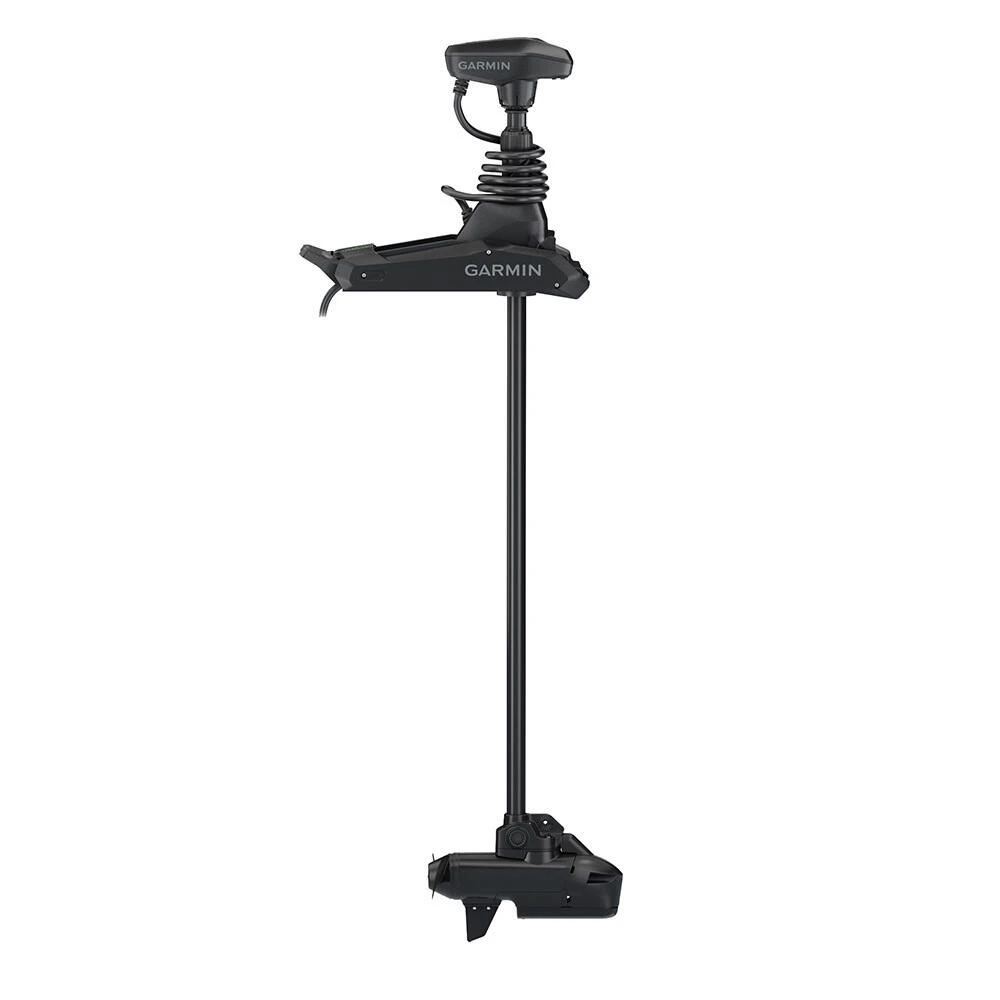

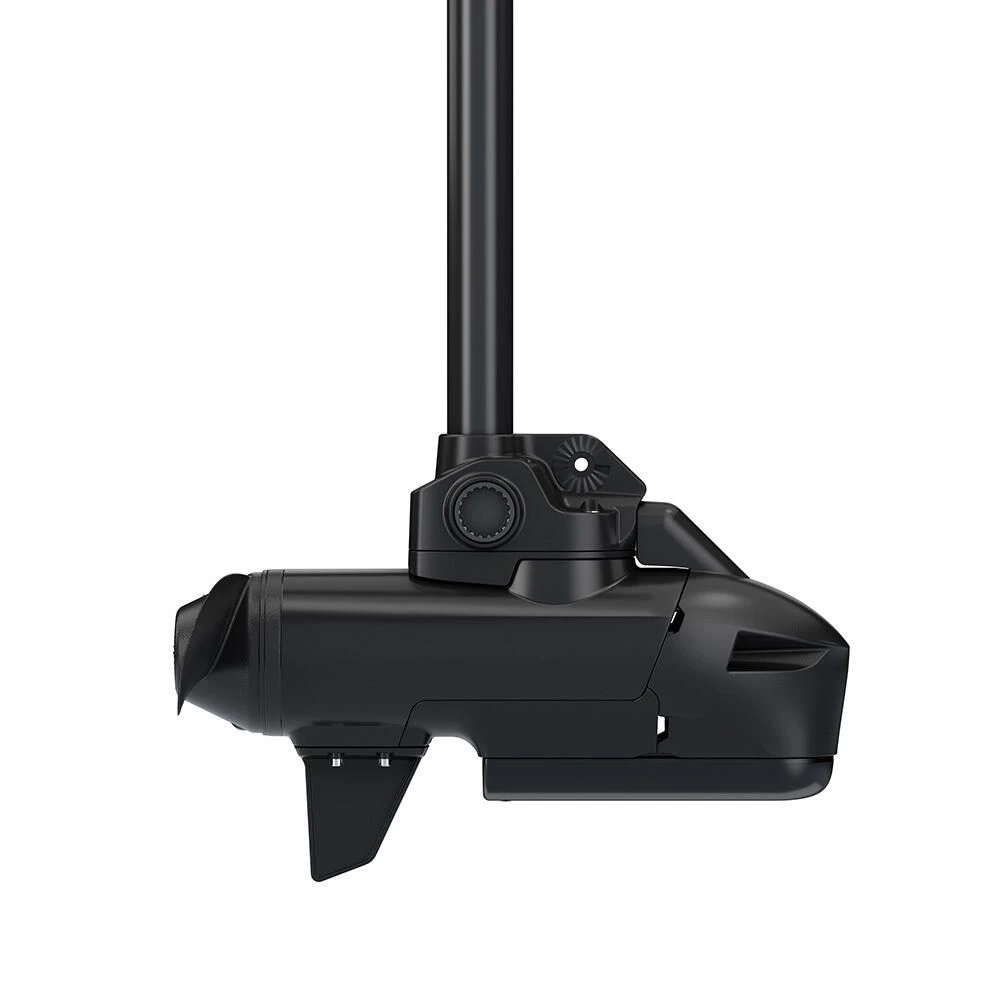

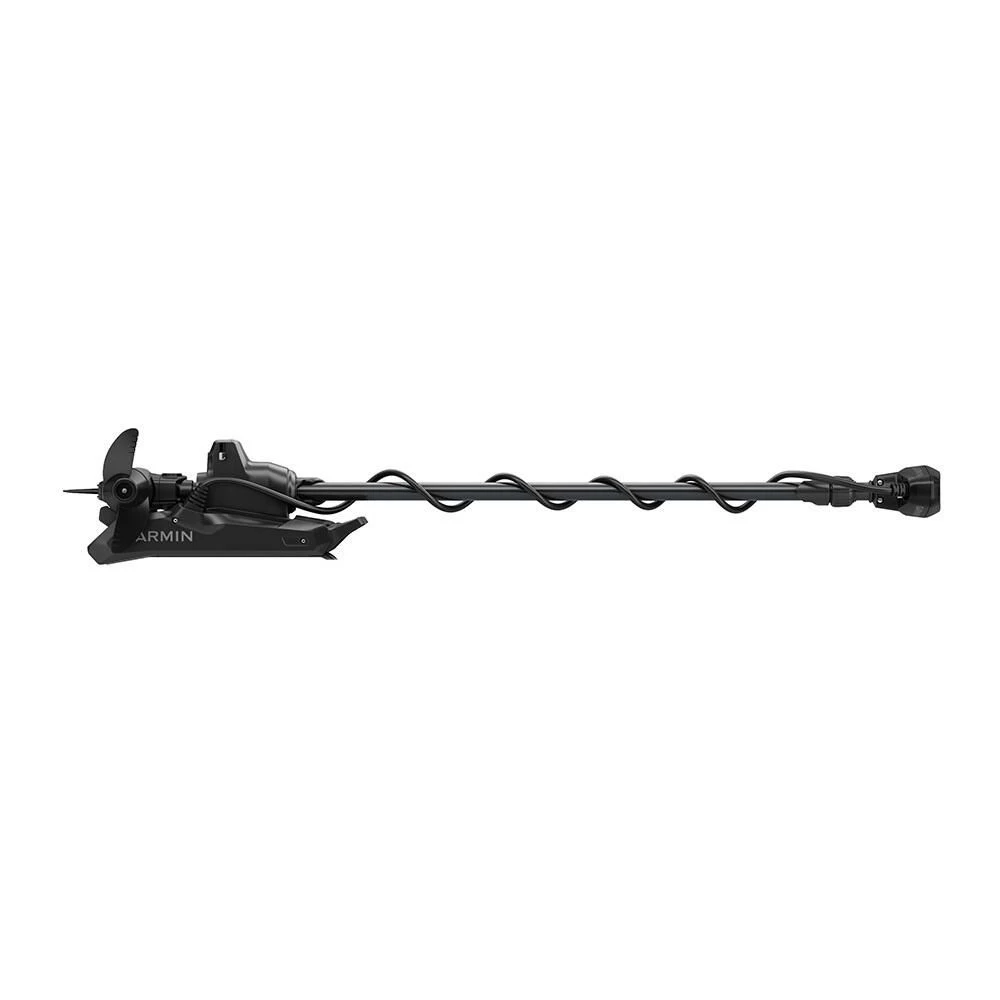

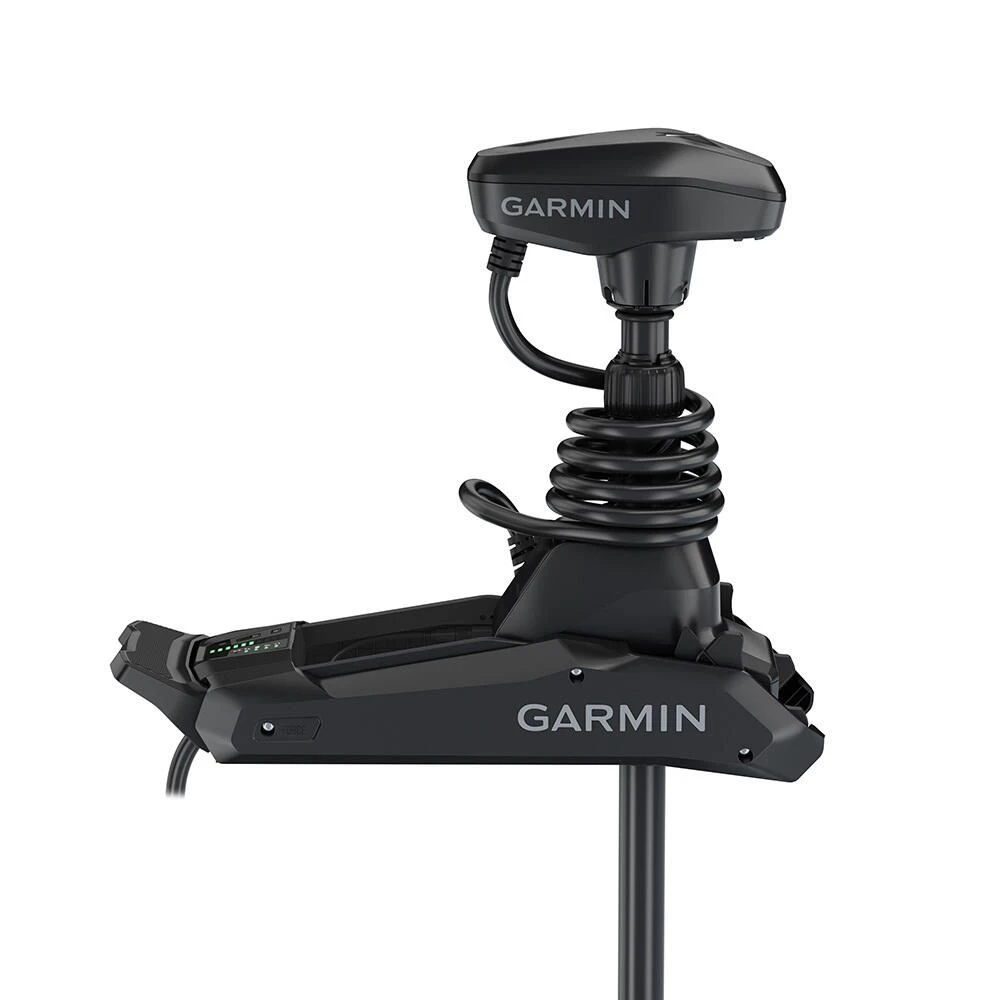

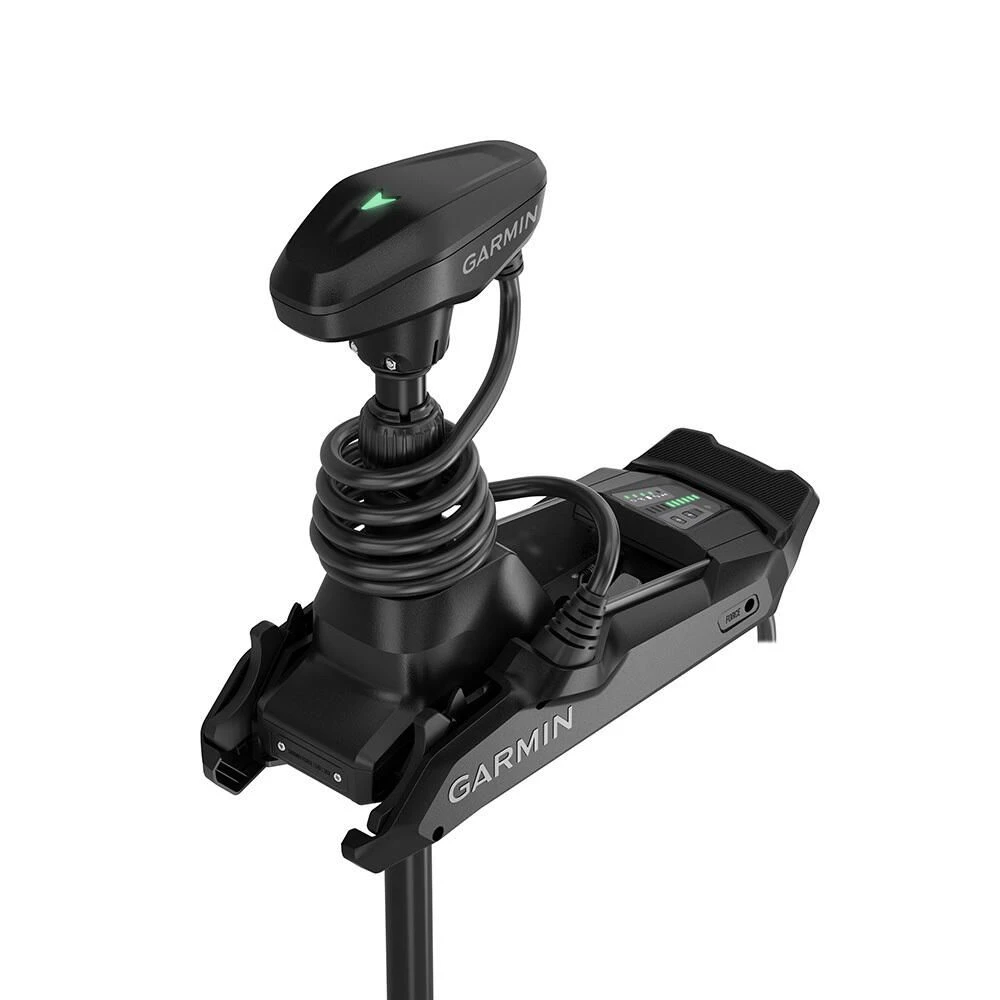

Garmin Force Kraken Trolling Motor With GT56UHD Transducer

The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.

Features:

• With 100 lbs of thrust, Force Kraken is the most powerful trolling motor on the market
• Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing – and not running out of battery
• Optimized to operate in rough open-water conditions, at either 24 or 36V, thanks to the powerful and efficient brushless motor design
• Sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection
• Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish with wireless integration
• Pivot-style mount for easy installation
• Get brilliant UHD sonar with the included GT56 transducer

Specifications:

• Color: Black
• Mount style: Pivot
• Max thrust:
  • 100 lbs per ISO 13342 using high efficiency propeller at 36V
  • 80 lbs per ISO 13342 using high efficiency propeller at 24V
• Voltage: 24V or 36V
• Built-in GPS: Yes (dual frequency GPS)
• Water rating: IPX7
• Mounting location: Bow
• Wireless remote: Yes (included)
• Frequencies supported:
  • Traditional: High-wide CHIRP (150-240 kHz)
  • ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
• Transmit power:
  • Traditional: 350W
  • ClearVu/SideVu: 500W
• Maximum depth:
  • CHIRP sonar: 800′ freshwater
  • ClearVu: 400′; SideVu: 500′
• Depth/speed/temperature: Depth and temperature
• Number of pins: 12-pin (orange connector)
• Foot pedal power installation: 12V/24V/36V wired or battery powered (2 AA)
• AA battery life: 1 full season
• Factory warranty: 3 years. Warranty begins on date of purchase. Limited lifetime on shaft.

Included:

• Force® Kraken Trolling Motor
• GT56UHD-TR transducer
• Remote
• High efficiency propeller
• Assembly and mounting hardware
• Documentation

Installation Instructions (3.49 MB)
