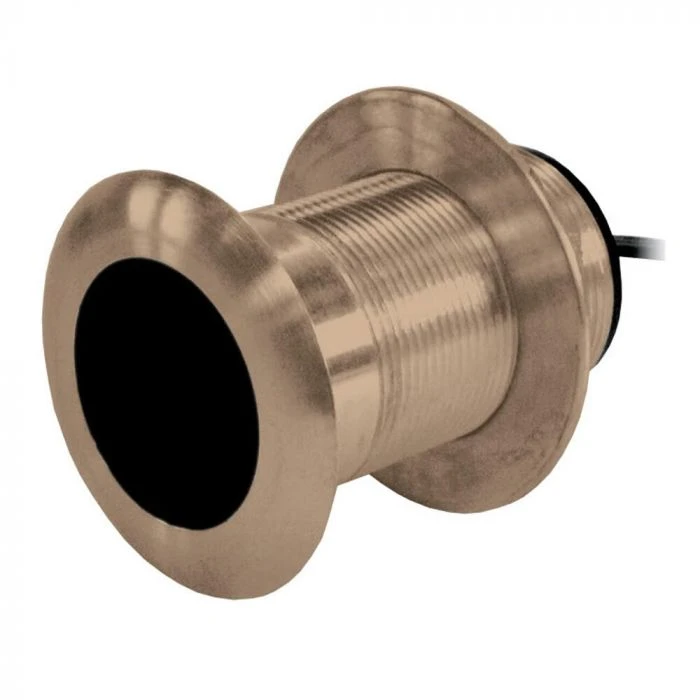

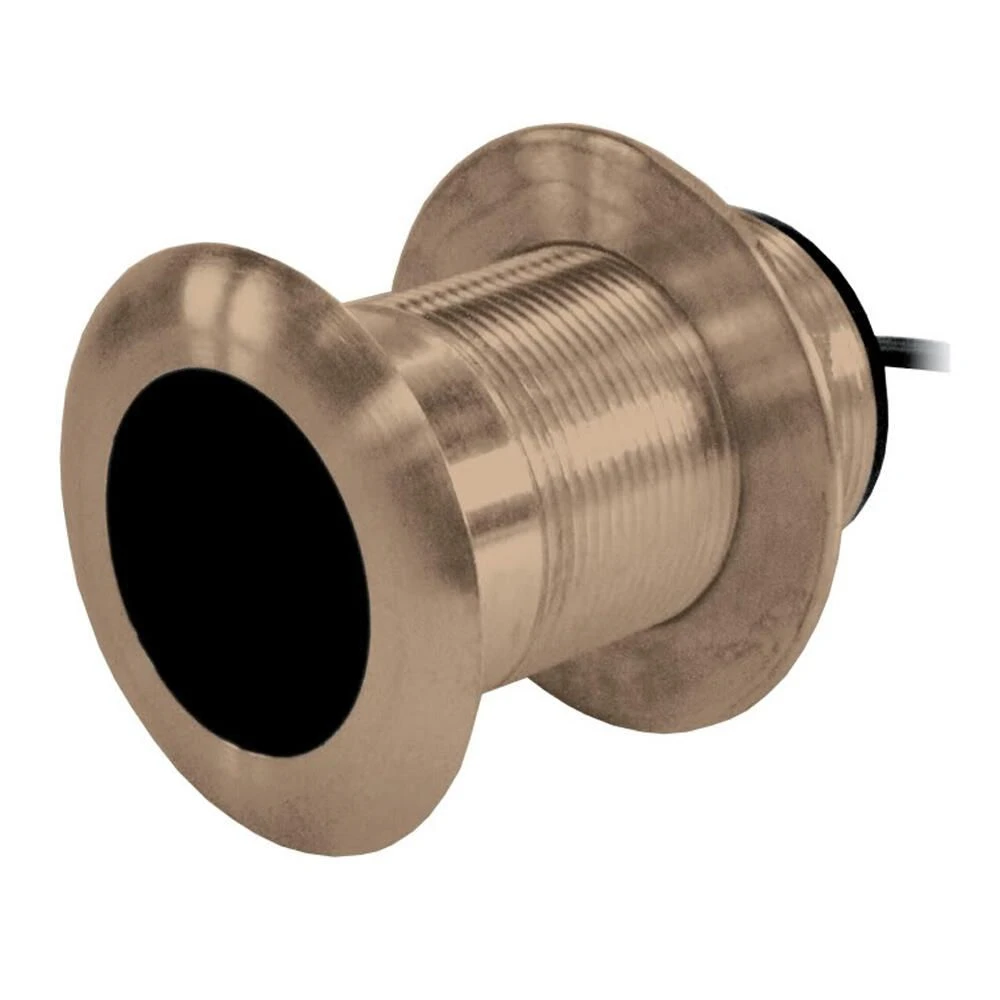

Garmin Airmar B117 Bronze Thru-Hull Transducer

An excellent choice for fiberglass and wood hulls, this bronze thru-hull mount transducer performs well at high speeds.

Features:

• 600W narrow stem transducer has a depth of 800 to 1,200′ and an operating frequency of 50 to 200 kHz
• Transducer kit comes with installation instructions – follow the instructions carefully to avoid damaging your boat
• When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required

Specifications:

• Frequency: 50/200 kHz
• Power: 600W
• Beamwidth: 45°/12°
• Maximum depth: 800-1,200′
• Cable length: 33′
• Transducer depth/speed/temperature: Depth and temperature
• Number of pins: 6- or 8-pin (model dependent)
• Supported deadrise/transom angles: 0°-7° deadrise
