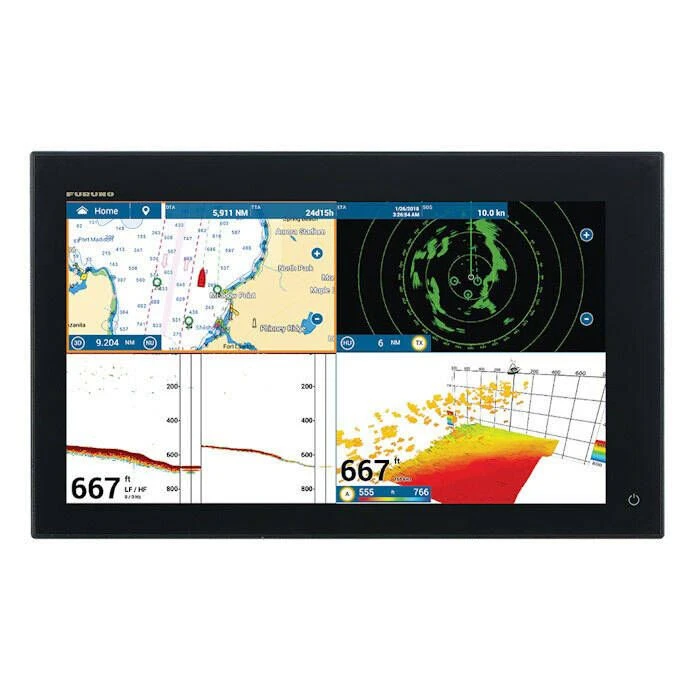

Furuno NavNet TZtouch3 Multifunction Touch Screen Display – TZT19F

This lightning-fast 19″ Multifunction Display features a sleek edge-to-edge glass display that delivers ultra-clear images from any angle. This MFD will not only make your helm functional but will also add style and ergonomics.

Features:

• Furuno TZT19F NavNet TZtouch3 Multifunction Touch Screen Display
  • 19″ Hybrid Control IPS Display
  • Built-in 1kW Dual Channel TruEcho CHIRP™ Sounder
• Cartography: MapMedia mm3d charts
  • Fast chart rendering engine with Time Zero Technology
  • Raster Charts all the charts and details of hydrographic office’s paper charts are included
  • Vector Charts MapMedia Charts are precise, clear and detailed
• More Powerful quad-core processor for lightning-fast response
• Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder
• High-Power 2/3/5kW TruEcho CHIRP™ Fish Finder network amp (sold separately)
  • Connect a 5kW or 10kW transducer using BT-5, Power output is 3kW (sold separately)
• Compatible with power-packed 100W & 200W NXT Solid-State Doppler Radars
• Deep water Multi-Beam Sonar for up to 300m depth & 200m side scan (requires DFF3D module and transducer)
• Large 19″ multi-touch IPS display for maximum brightness
• Pin Code Lock – require a password to access your TZtouch3 upon startup

Specifications:

• Display: 19″ Touch / Swipe Display
  • Size: 18.5″ W
    • FHD 1920 x 1080
  • Display Type Color Multi Touch LCD
  • All-Glass edge to edge touch screen
• Internal 56 Channel GPS/WAAS Receiver
• Built in dual frequency 1Kw Fishfinder with Rez Boost
• 30,000 waypoints & 200 Planned Routes with 500 Points/Route
• Waterproof rating: IP56
• Chart Type Vector or Raster or Satellite Photo or 3D Data or C-Map or CMOR
• Frequency CW 50-200kHz or CHIRP 40kHz to 225kHz
• Power Usage 12-24 VDC
• Power Output 300 W or 600 W or 1 kW
• Receiver Type GPS or SBAS or WAAS-GPS

In the Box:

• TZT19F Multifunction Display 19″
• 000-037-162-00 Grey Silicone Cover
• 000-197-091-10 Power Cable Assy 2m with Spare Fuse
• 000-197-069-10 12 to 10-pin Transducer adapter cable
• 100-360-677-10 LCD Cleaning Cloth
• (2) 001-476-050-00-00 Flush Mount Fixture
• (2) 100-431-320-10 Flush Mount Sponge 12H
• (2) 100-431-330-10 Flush Mount Sponge 12V
• (2) 000-162-897-10 Slotted Head Hex Bolt (M6 x 122)
• 0000-177-010-10EMI Core GRFC-101
• (1 Set) 000-197-177-10 Connector Caps
• 000-197-112 Flush Mounting Template
• 000-197-102 Operator’s Guide
• 000-197-106 Installation Manual
