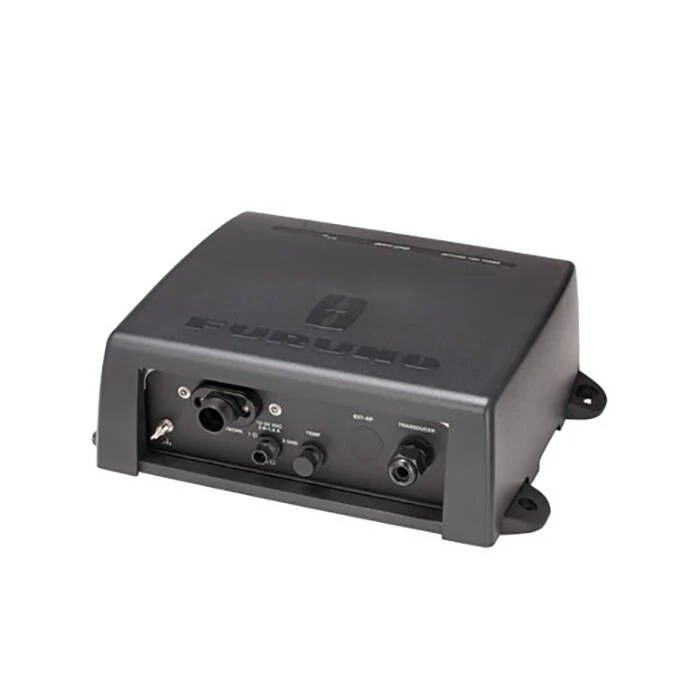

Furuno DFF1-UHD TruEcho CHIRP Network Fishfinder

Designed to operate over a wide range of frequencies utilizing a broadband transducer, the DFF1-UHD TruEcho CHIRP™ Network Fishfinder delivers significant advancements in signal clarity and target definition that will help put more fish in your boat.

Features:

• Operates over a broadband range of frequencies utilizing a broadband transducer
• Clear presentation separates bottom structure from bottom fish, and bait fish from game fish
• Vastly improved shallow water performance
• Reveals more fish by eliminating surface clutter & noise
• Better shallow water performance, tracking of the bottom, and improved detection of thermoclines
• Enhanced ability to distinguish targets from noise using improved signal to noise ratio
• Uses a precise sweep pattern across (90) frequencies (50 kHz +/- 20 kHz, 200 kHz +/- 25 kHz) within a long duration transmission
  • Allows Furuno’s superior Digital Signal Processing (DSP) to display targets with unparalleled clarity, accuracy and resolution
• Display Modes:
  • Single (High or Low frequency)
  • Dual (both High & Low frequencies)
  • Bottom-Lock, Bottom-Zoom
  • Bottom Discrimination
  • Marker Zoom (NavNet 3D only)
  • A-Scope

Specifications:

• Frequency: Dual-frequency Broadband CHIRP 50 kHz +/- 20 kHz, 200 kHz +/- 25 kHz
• Range scale: Max. 1,200 m
• Range phasing: Up to 2,400 m (8,000 ft., 1,300 fa.)
• Accu-Fish: Available
• Bottom discrimination: Available
• Temperature: -15°C to +55°C
• Waterproofing: IEC 60529 IP20
• Power supply: 12-24 VDC
• Transducer: 1 kW

Furuno DFF1-UHD TruEcho CHIRP Network Fishfinder Product Data Sheet
