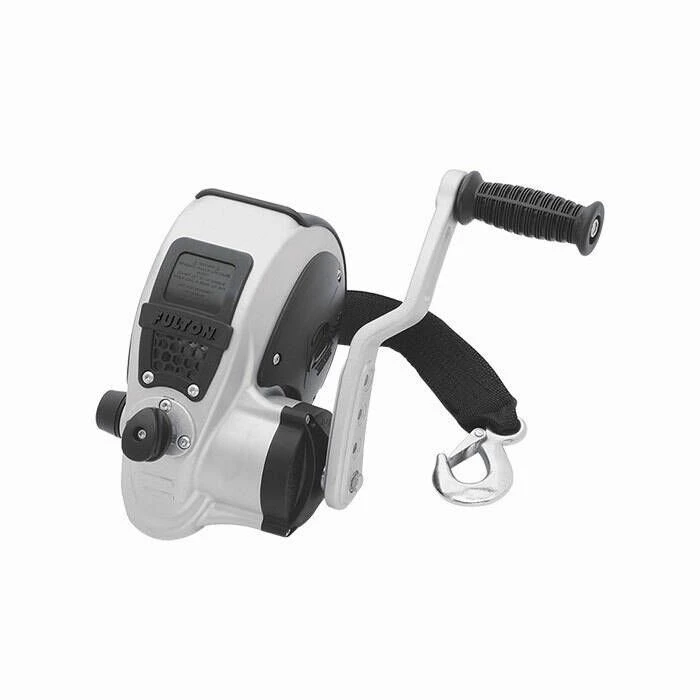

Fulton F2 Trailer Winch – FW32000101

Features:

• Self-engaging one-handed system shifts from high to low speed
• Completely enclosed design
• Finish: Sharkskin™
  • Self-healing
  • Maximum corrosion resistance
  • Used in salt water environments and other demanding climate applications
  • 1200 hour salt spray rating per ASTM B117
• Includes all mounting hardware
• E.I.S. – Easy Install System
• Ergonomic 4-position adjustable handle adjusts from 6″–9″
• Center drive enclosed ratchet
• User-friendly pull-turn knob to engage ratchet plunger pin
• Includes strap guide

Specifications:

• 2-Speed
• Weight Carrying: 3,200 lbs (TW / GTW)
• Gear Ratio: 5.1:1 and 3.17:1
• Handle Length: (4) Position
  • 6″, 7″, 8″ and 9″
• Strap: 20′ x 2″ with Hook
• Warranty: Limited Lifetime

Guidelines for Selecting a Winch Capacity:

• Minimum Winch Capacity = Maximum Weight of Boat, Including Motor, Fuel, Gear ÷ 2
  • Example: Boat, Motor, Fuel, Gear Weight = 2,800 lbs
  • 2,800 ÷ 2 = 1,400 lbs
  • Select T1500 Winch, rated at 1,500 lbs
• If shallow water or steep inclined launches are expected to be used ÷ Maximum Weight by 1.5
  • Example: Boat, Motor, Fuel, Gear Weight = 3,100 lbs
  • 3,100 ÷ 1.5 = 2,067 lbs
  • Select T2100 Winch, rated at 2,100 lbs
