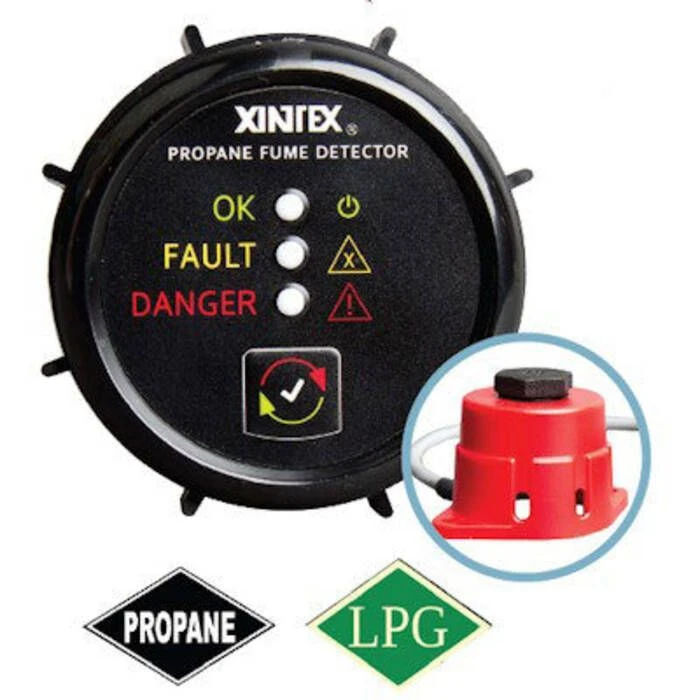

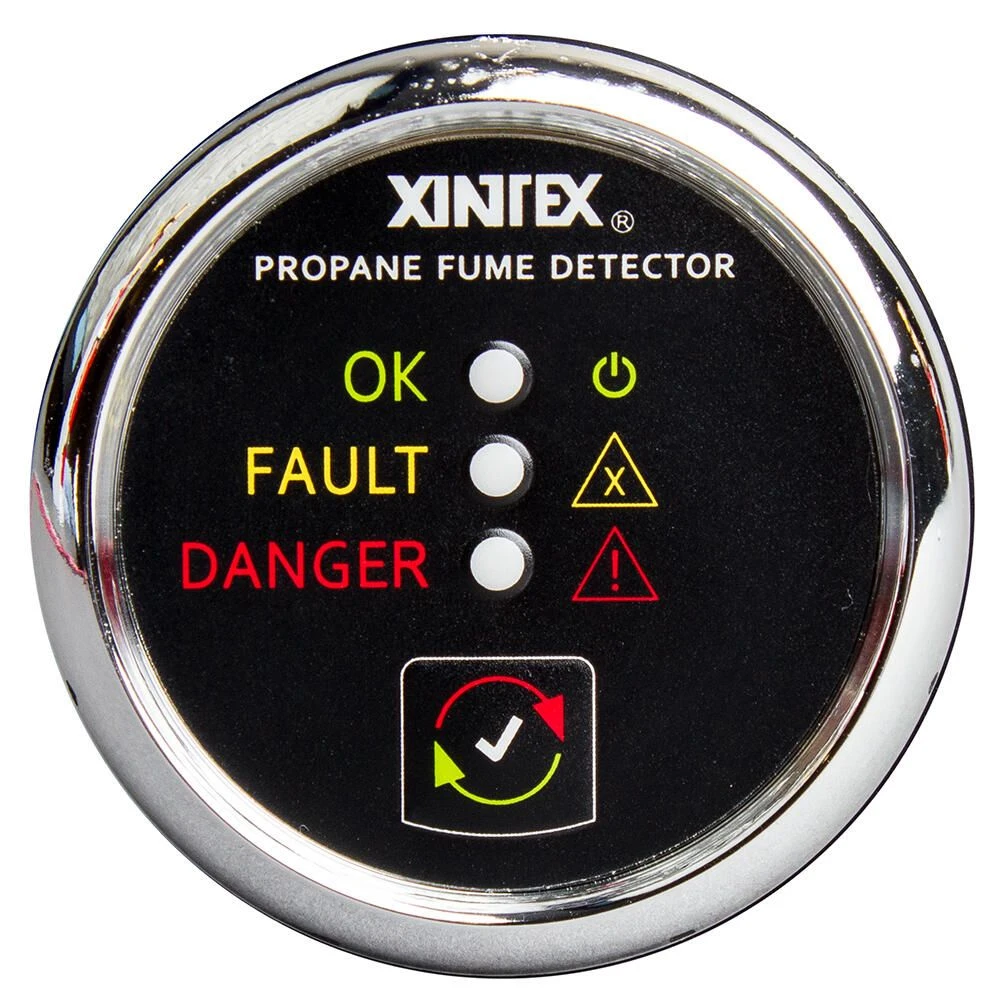

Fireboy Single Channel Propane Fume Detector With 1 Sensor

The FireBoy Propane Fume Detector with (1) Sensor detects propane leaks early to prevent personal injury and possible explosions. If propane is detected at 20% of the LEL (lower explosive limit), a 68 dBA alarm will sound and a red LED will illuminate.

Features:

• Propane (LPG) detector with (1) sensor and solenoid
• Detect propane leaks early to prevent personal injury and possible explosions
• 68 dBA Alarm will Sound and Red LED will Light at 20% of the LEL
• LEL = Lower Explosive Limit
• Simple Installation

Specifications:

• Round black display
  • Includes LEDs and Silence / Test Button
• Bezel Diameter: 2 3/16″ (56 mm)
• Cutout: 2 1/16″ (52 mm) round hole
• Power: 9-30V DC
• Current Draw @ 12V DC:
  • Nominal: 55 mA
  • Maximum: 95 mA
• Reverse polarity protected
• Operating Temperature: -40°F to 185°F

Included:

• FireBoy 1-Channel Propane (LPG) Detector – P1BR-N01-D
• Plastic Fuel Sensor – FS-T01-S
• Extension Cable, 20′ (6 m) – FS-X01
• Manual – 18142

Owner’s Manual
