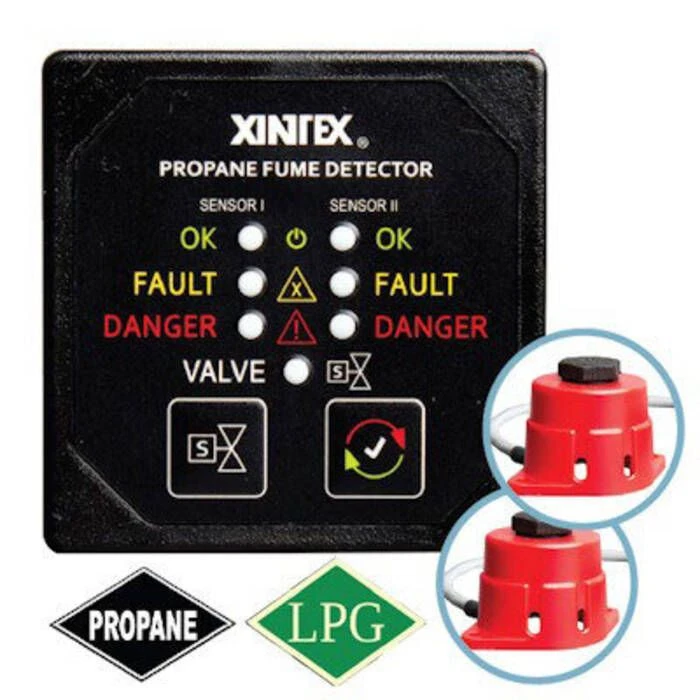

Fireboy Propane Fume Detector With 2 Sensors And Solenoid

The FireBoy Propane Fume Detector with (2) Sensors and solenoid detects propane leaks in the area covered by the sensor. early to prevent personal injury and possible explosions. If propane is detected at 20% of the LEL (lower explosive limit), the solenoid will automatically shut off the gas supply to prevent personal injury and possible explosions. At the same time a 68 dBA alarm will sound, a red LED will illuminate to alert the people on board of the emergency.

Features:

• Propane (LPG) detector with (2) sensors and solenoid
• Detect propane leaks early to prevent personal injury and possible explosions
• 68 dBA alarm will sound and red LED will light at 20% of the LEL
• LEL = Lower Explosive Limit
• The solenoid automatically shuts off gas supply in alarm condition
• Simple Installation

Specifications:

• Round display
• Bezel: 2 3/16″ (56 mm)
• Cutout: 2 1/16″ (52 mm) round hole
• Includes LEDs and silence / test button
• Power: 12/24V DC
• Reverse polarity protected
• Operating Temperature:
  • -40°F to 185°F
  • -40°C to 85°C

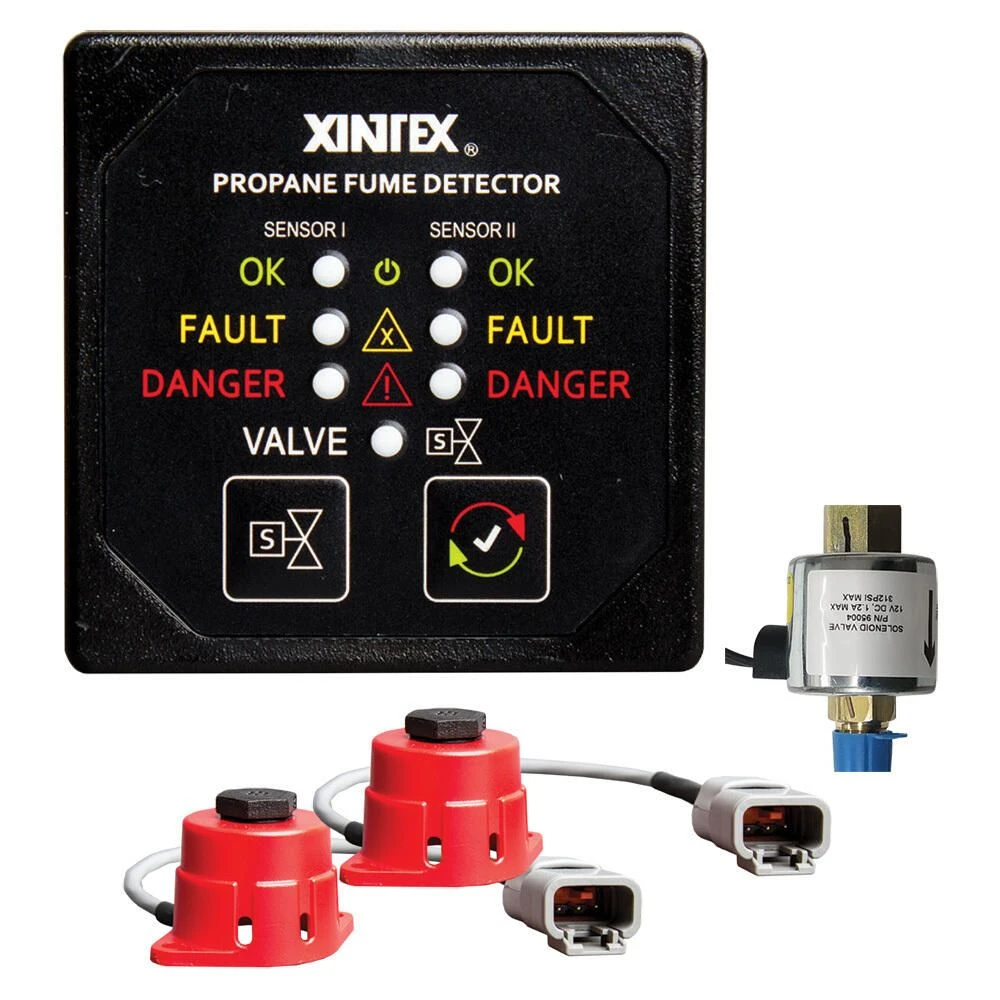

Package Includes:

• FireBoy Propane (LPG) Detector – P1BR-S01-D
• Plastic Fuel Sensor – FS-T01-S
• Extension Cable, 20 ft. (6 m) – FS-X01
• Manual – 18142
