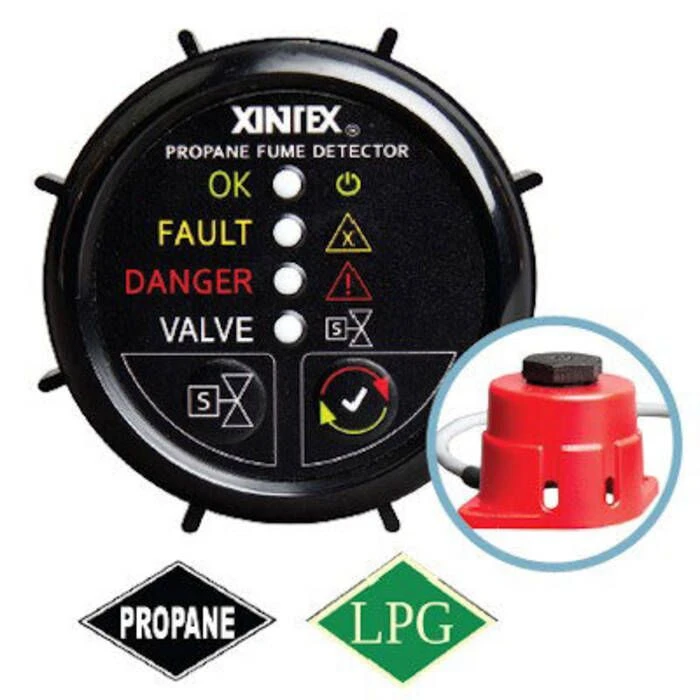

Fireboy Propane Fume Detector With 1 Sensor And Solenoid

The FireBoy Propane Fume Detector with (1) Sensor and solenoid detects propane leaks in the area covered by the sensor early to prevent personal injury and possible explosions. If propane is detected at 20% of the LEL (lower explosive limit), the solenoid will automatically shut off the gas supply to prevent personal injury and possible explosions. At the same time a 68 dBA alarm will sound, a red LED will illuminate to alert the people on board of the emergency.

Features:

• Propane (LPG) detector with (1) sensor and solenoid
• Detect propane leaks early to prevent personal injury and possible explosions
• 68 dBA alarm will sound and red LED will light at 20% of the LEL
• LEL = Lower explosive limit
• The solenoid automatically shuts off gas supply in alarm condition
• Simple installation

Specifications:

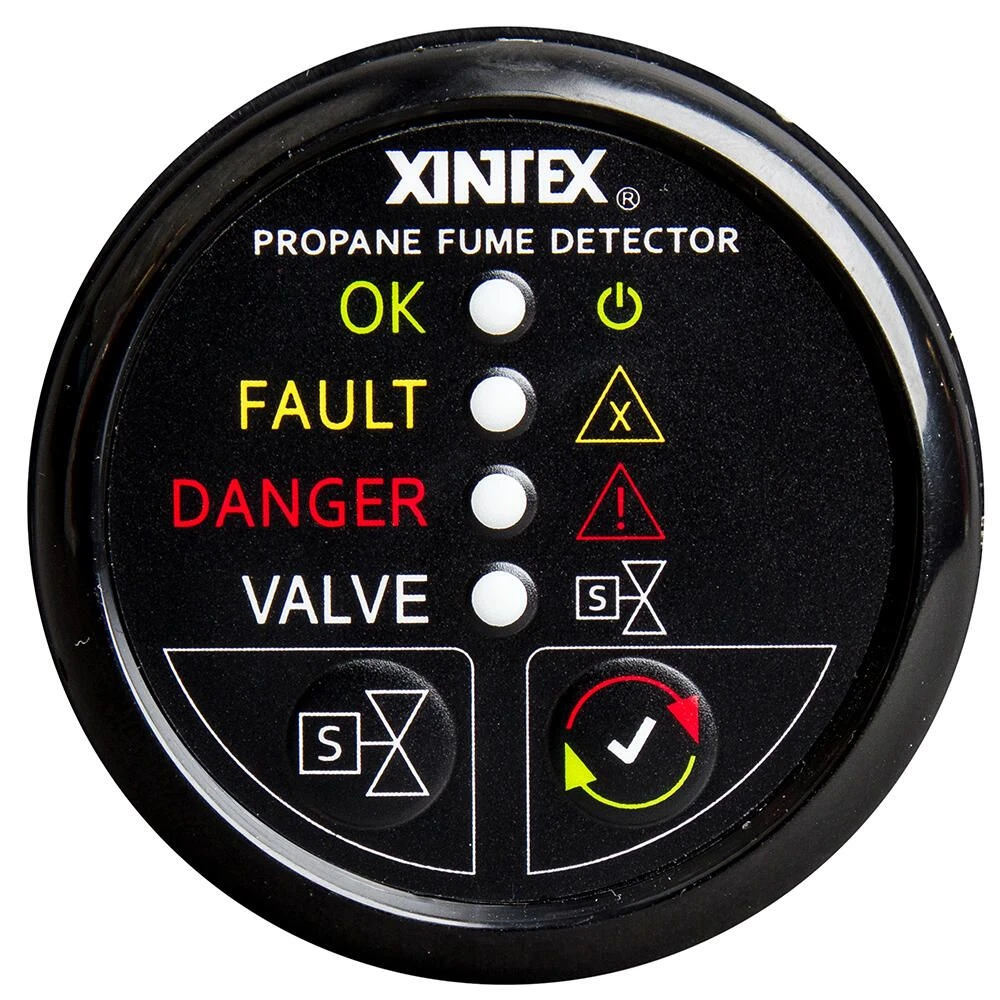

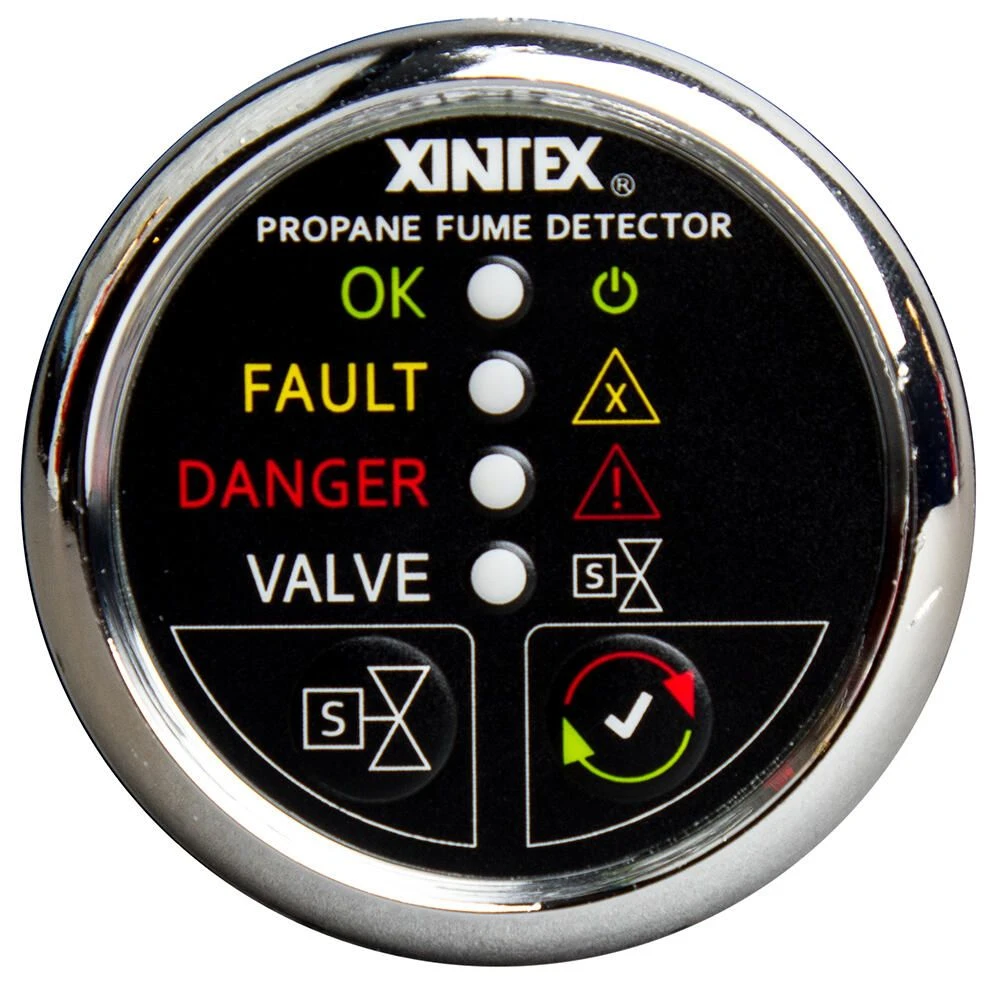

• Round black display
  • Includes LEDs and silence / test button
• Bezel: 2 3/16″ (56 mm)
• Cutout: 2 1/16″ (52 mm) round hole
• Power: 12/24V DC
• Reverse polarity protected
• Operating temperature:
  • -40°F to 185°F
  • -40°C to 85°C

In the Box:

• FireBoy 1-Channel Propane (LPG) Detector – P1BR-S01-D
• Plastic fuel sensor – FS-T01-S
• Extension cable – 20 ft. (6 m) – FS-X01
• Solenoid valve – 95004
• 3/8 in. x 1/4 in. adapter – 101106
• Manual – 18143
