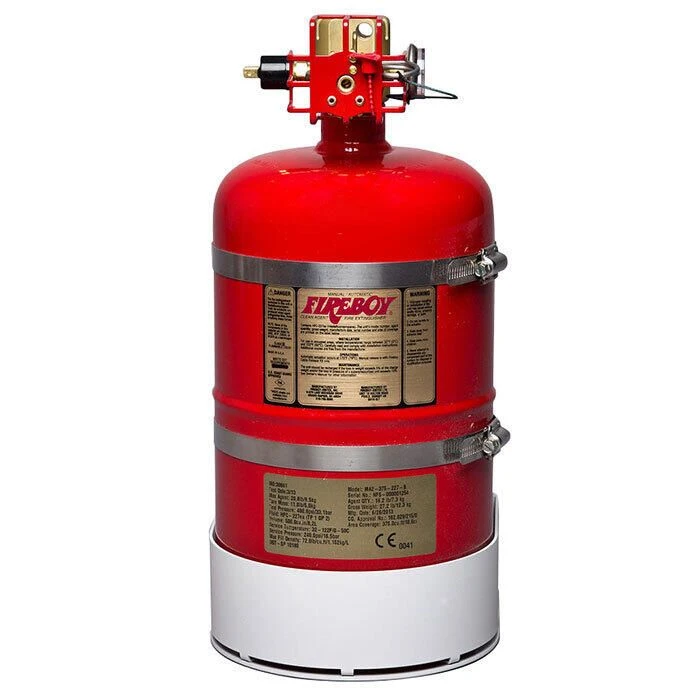

Fireboy Manual/Automatic Vertical Low Profile Fire Extinguishing System

FireBoy’s Automatic low profile series Fire Extinguishing System is manufactured for a broad range of applications, including marine, industrial, and commercial uses. This system is heat activated to discharge fire protection fluid automatically at 175° F (79° C) with no operator intervention required. When the Fireboy System discharges, the extinguisher is designed to rapidly empty its cylinder and extinguish the fire within seconds. No clean-up is required.

Features:

• Pre-engineered, total flooding system designed to combat fires in engine rooms and machinery spaces
• Discharge is automatic at 175° F (79° C) for round-the-clock engine compartment fire protection
• No water or powdery residue
• Easy to read color coded pressure gauge on cylinder – identifies “charged/discharged” status
• Powder coated 1020 cold rolled steel mounting bracket with stainless steel straps
• 2″ Round system status indicator light
• Locking lever for increased safety when removing or installing cable
• 3-Year limited warranty

Specifications:

• Actuation temperature: 175° F (79° C)
• Clean agent chemical: FK-5-1-12
• System pressure: 360 psi (@ 70° F)
• Dimensions: 10″ Diameter x 23″ height

Included:

• (1) Fire extinguisher
• Mounting bracket with straps
• System status indicator light
• Owner’s manual with installation instructions

Owner’s Manual
