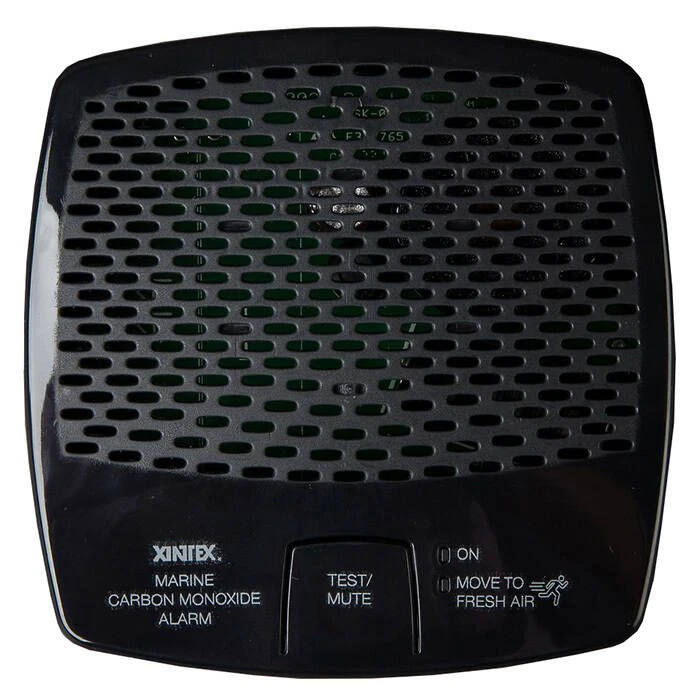

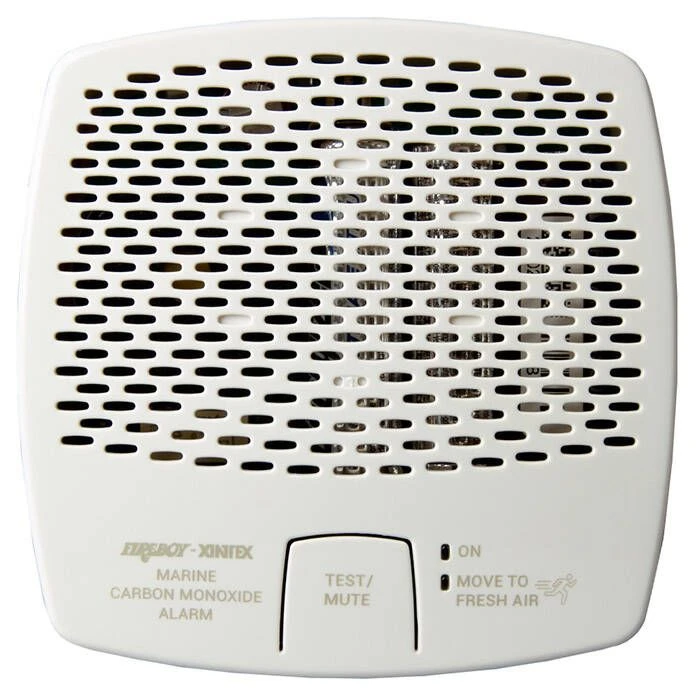

Fireboy CMD6 Marine Carbon Monoxide Alarm Interconnect

FireBoy’s CMD6 Marine Carbon Monoxide Alarm is the most advanced marine CO alarm on the market; providing relay and interconnect functions that not only help monitor carbon monoxide concentration, but notifies inhabitants of its presence too.

Features:

• Modern and compact design for inconspicuous protection
• Microprocessor controlled
• Conformal coated circuit board for added protection
• Immediate and stable electrochemical sensor for reduced false alarms
• Vibration and shock tested, with an approximate service life of 7 years
• Stylish housing and durable mounting bracket same as CMD5-M carbon monoxide alarm
• 12 or 24V DC operation with battery backup
• Internal relay module available for generator shutdown or external signal
• Interconnect multiple CMD6 CO alarms to sound together
  • When one CMD6-MDR alarms, all connected detectors will alarm to alert boat inhabitants in other locations to the presence of CO
• Highly resistant to most chemicals, solvents and cleaners
• Conforms to UL Standard 2034, Edition 4 Marine
• Meets ABYC A-24 standard

Specifications:

• Operating voltage: 12 or 24V DC
• Maximum voltage range: 9-32V DC
• Nominal current draw: >4mA
• Operating temperature: -22° F to +158° F
• Alarm point: Time Weighted Average
• Alarm horn: 85 dB
• Relay output: 1A Max
• Dimensions: 3.5″ x 3.5″ x 1.21″

Included:

• Carbon monoxide detector
• Wall mount bracket
• Manual

Data Sheet

Owner’s Manual
