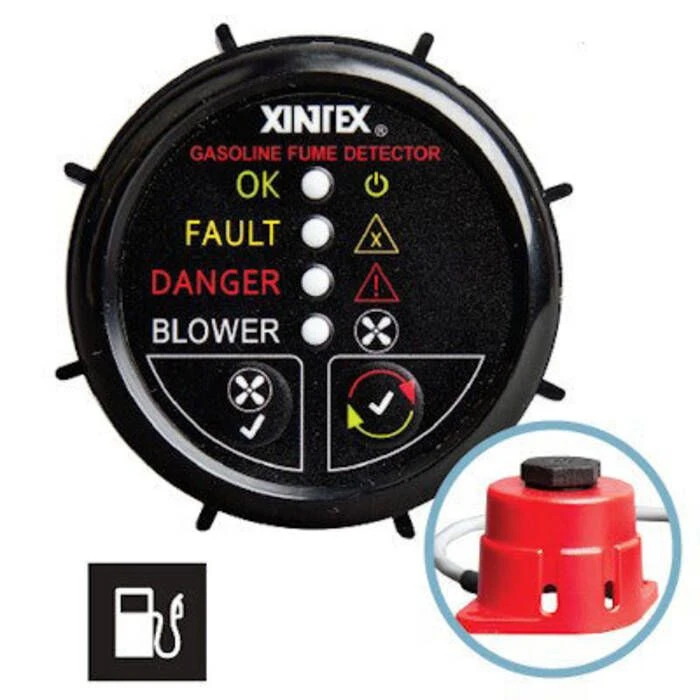

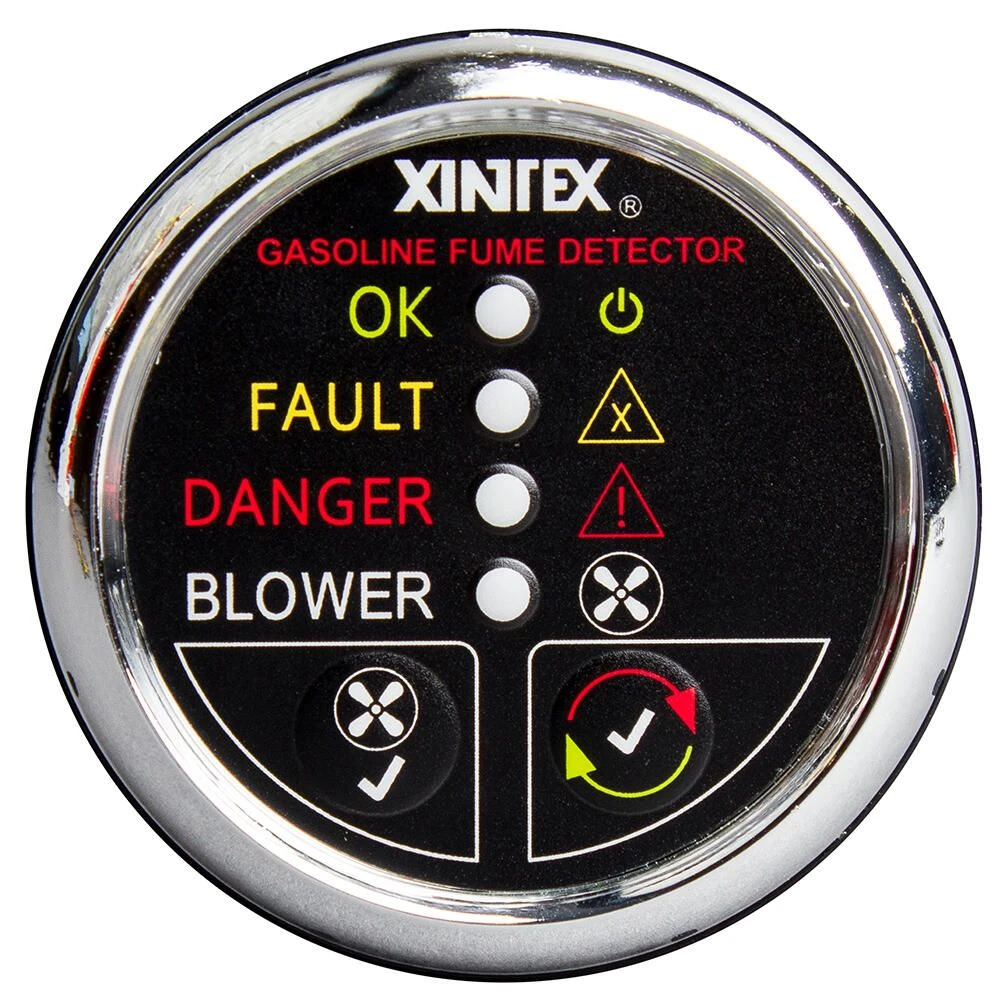

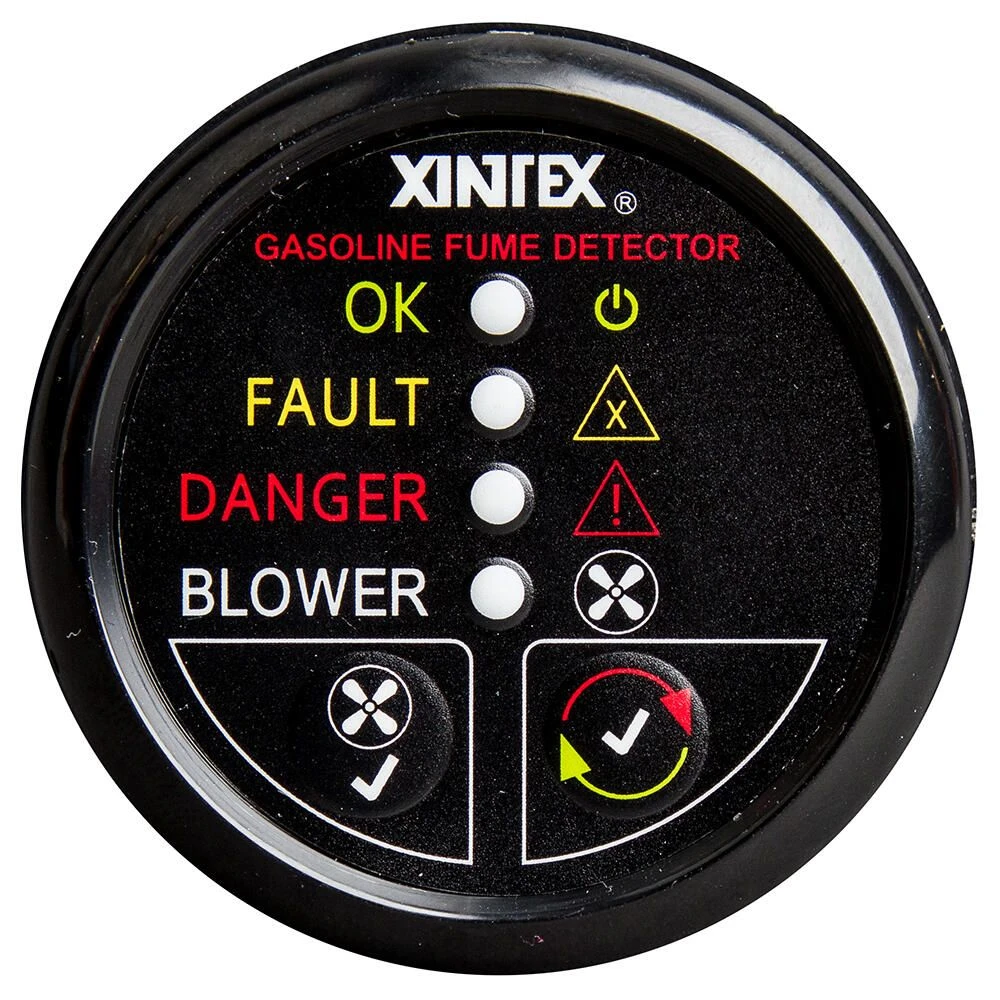

Fireboy 1 Channel Gasoline Fume Detector With Blower Control

The single channel, FireBoy Gasoline Fume Detector with Blower Control is an effective means to monitor gasoline fumes in an engine compartments, leaking fuel tanks, or fumes from un-burnt hydrocarbons emitted from faulty exhaust systems.

Features:

• FireBoy 1-Channel Detector with Sensor, includes built in automatic blower control
• Detect gasoline leaks early to prevent personal injury and possible explosions
• 68 dBA Alarm will Sound and Red LED will light at 20% of the Lower Explosive Limit
• Simple to install, offers a reliable means to monitor gasoline fumes
• Automatically actuates your bilge blower to purge the space of fumes

Specifications:

• Round Black Display, includes LEDs and Silence / Test Button
• Bezel: 2 3/16″ (56 mm)
• Cutout: 2 1/16″ (52 mm) round hole
• Power: 9-30V DC
• Current Draw @ 12V DC:
  • Nominal: 55 mA
  • Maximum: 95 mA
• Reverse Polarity Protected
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)

Included:

• (1) Channel Gasoline Detector with Automatic Blower Control – G1BR-B01-D
• Plastic Fuel Sensor – FS-T01-S
• Extension Cable, 20′ (6 m) – FS-X01
• 30 AMP Relay (@ 12 VDC) – MB30RLY
• Manual – 18141

Installation Instructions
