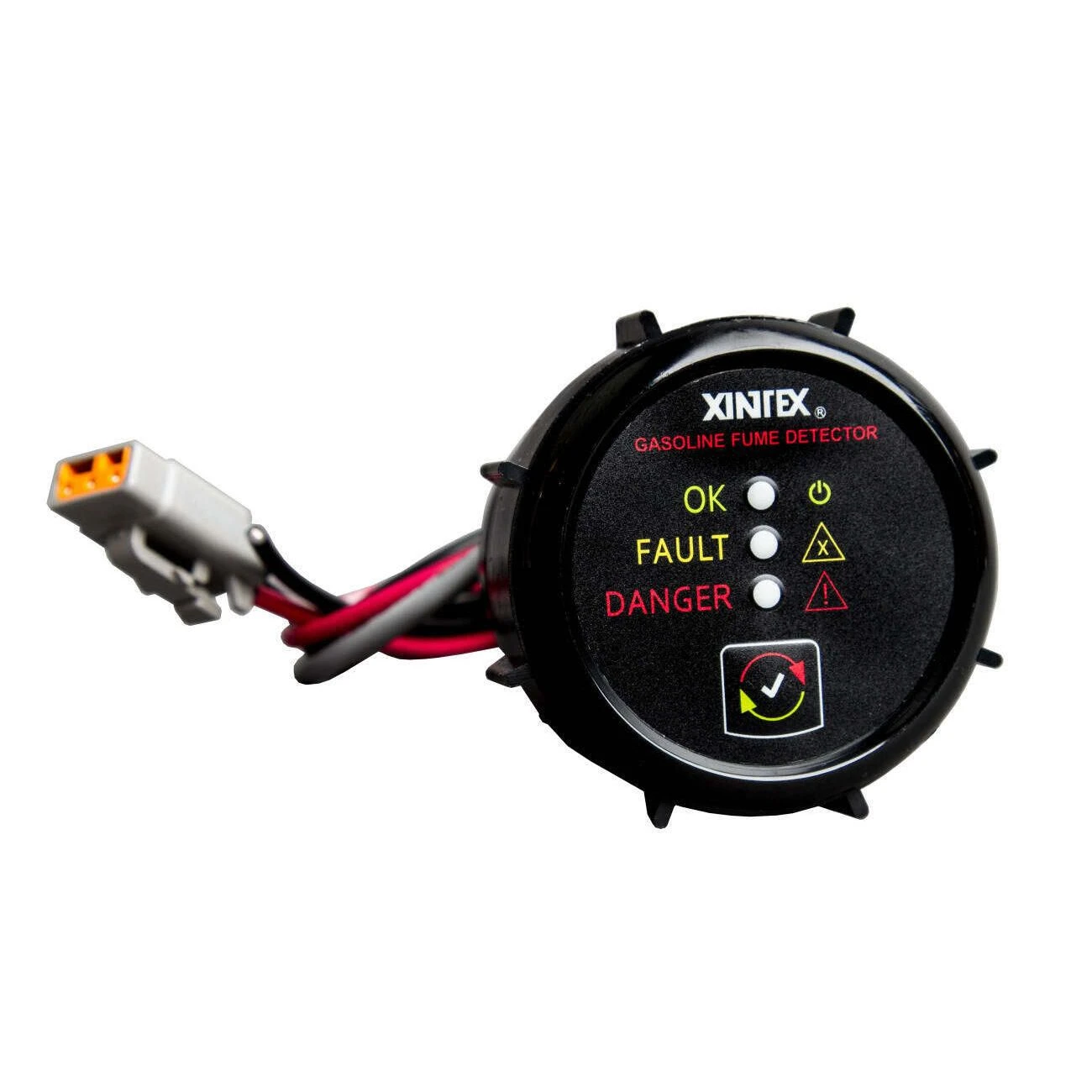

Fireboy 1 Channel Gasoline Fume Detector

The single channel, FireBoy Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartments, leaking fuel tanks, or fumes from un-burnt hydrocarbons emitted from faulty exhaust systems.

Features:

• FireBoy (1) Channel Gasoline Detector with display
• Detect gasoline leaks early to prevent personal injury and possible explosions
• 68 dBA Alarm will Sound and Red LED will light at 20% of the Lower Explosive Limit
• Simple to install, offers a reliable means to monitor gasoline fumes

Specifications:

• Type: Single channel

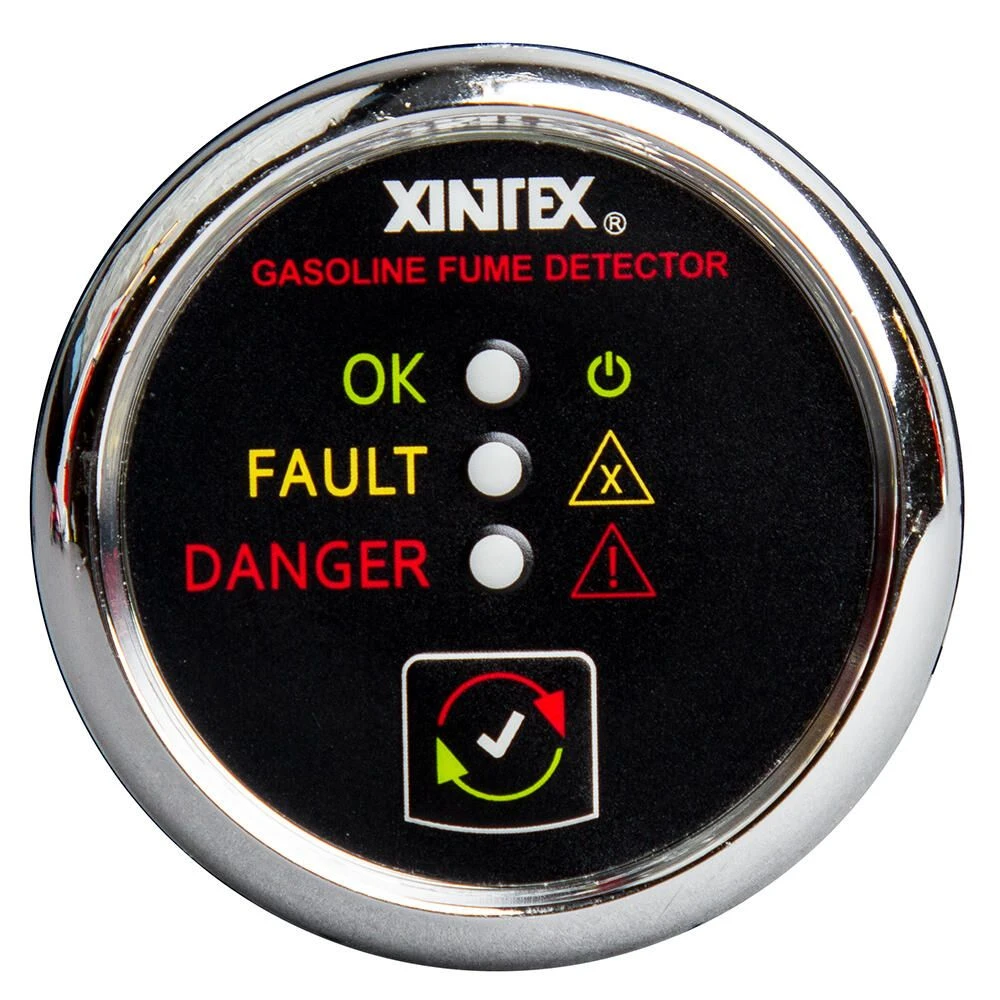

• Round display, includes LEDs and Silence / Test Button
• Bezel: 2 3/16″(56 mm)
• Cutout: 2 1/16″(52 mm) round hole
• Power: 9-30V DC
• Current Draw @ 12V DC:
  • Nominal: 55 mA
  • Maximum: 95 mA
• Reverse Polarity Protected
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)

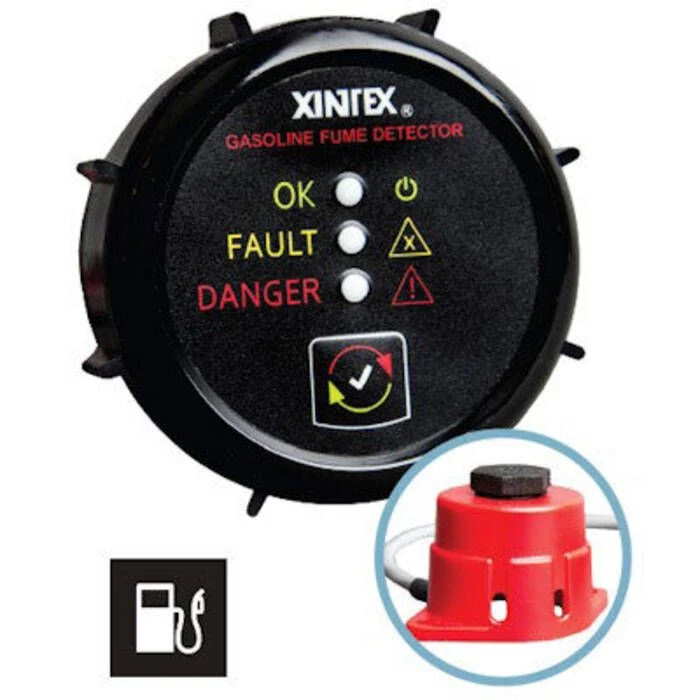

Kit Includes:

• (1) Channel FireBoy Gasoline Detector – G1BR-N01-D
• Plastic Fuel Sensor – FS-T01-S
• Extension Cable, 20′ (6 m) – FS-X01
• Manual – 18140

Installation Instructions
