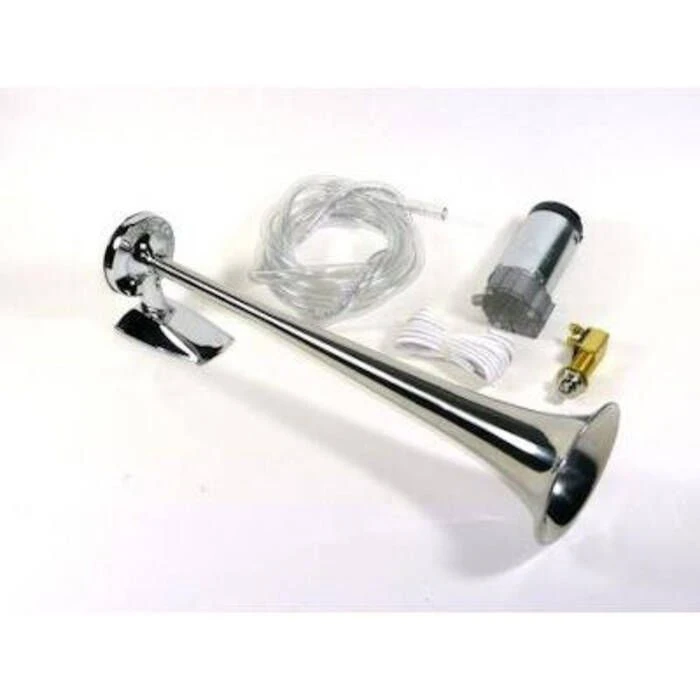

Fiamm Toronado Pneumatic Marine Horn Kit With Air Compressor – 63210-14

The Fiamm Toronado Pneumatic Marine Horn Kit offers the ultimate in contemporary styling, incorporating the very finest quality components for an extra loud and crisp sound.

Features:

• Combination of heavy chrome plated brass and stainless steel for outstanding protection from saltwater
• All models are tuned for an extra loud and crisp sound
• Low air requirement that guarantees dependability and long life
• Mounting pad and hardware installation included
• Includes Compressor
• Made in the USA

Specifications:

• Type: Single Horn
• Low Note Compressed Air Trumpet Horn
• Certified: ABYC and USCG
• Nominal compressor voltage: 12V DC
• Voltage range: 11.5–14.2V DC
• Current consumption: 20 Amps
• Decibels: 120 dB
• Frequency: Low 320 Hz
• Operating temperature range: 0° to +120° ° F
• Storage temperature range: -30° to +180° &
• Corrosion resistance: > 480 (salt spray test) Hours
• Operating relative humidity: 30 to 80 %
• Durability (1 sec ON, 4 sec OFF): 20,000 Cycles
• Continuous blowing: 3 Minutes minimum
• Electrical insulation (compressor): 1000V DC
• Main Materials (Trumpet): 304 Stainless Steel
• Main Materials (Base): Chrome Plated Brass
• Main Applications Marine
• Includes 1/4″ Blade terminals on compressor
• Mechanical connection : Flat and rigid surface with trumpet pointed downwards 3 to 5 degrees minimum
• Horn’s Protection: Designed for external use
• Not to be submerged
• Dimensions: 17″ L x 3-3 / 4″ W x 4-1 / 4″ H

Data Sheet
