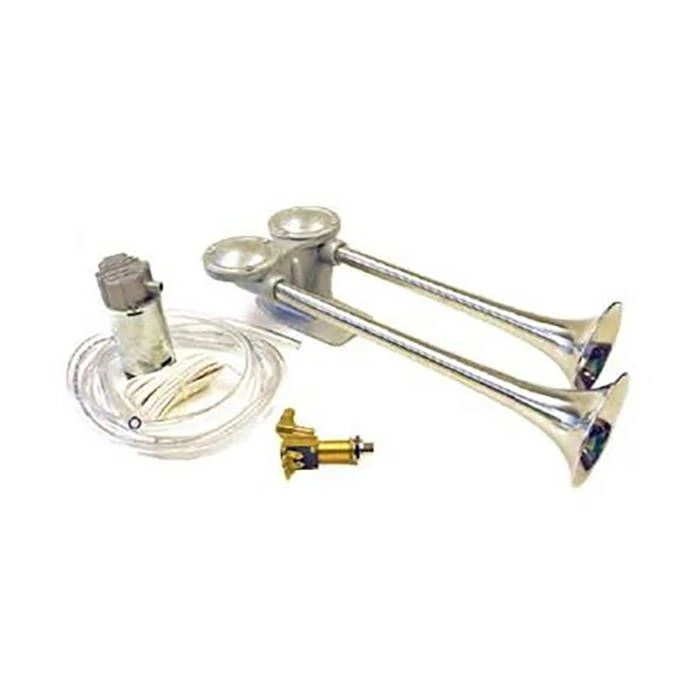

Fiamm Fultone Pneumatic Dual Marine Horn Kit With Air Compressor

The Fiamm 12 and 24V Fultone Pneumatic Dual Marine Horn is the result of a unique sound chamber design which provides increased sound intensity from low pressure air sources.

Features:

• Unique sound chamber design that provides increased sound intensity from low pressure air sources
• Sleek self-mount styling with dual stainless steel projectors and an anodized aluminum motor housing
• Includes Compressor

Specifications:

• Twin Note Compressed Air Trumpet Horns
• Certified: ABYC and USCG
• Nominal compressor voltage: 12 or 24V DC
• Voltage range:
  • 11.5–14.2V DC
    • Current consumption 20 Amps
  • 23–28.4V DC
    • Current consumption 10 Amps
  • Decibels: 114 dB @ 1 M
• Frequency High =300 Hz / Low =260 Hz
• Operating temperature range: 0° to +120° ° F
• Storage temperature range: -30° to +180° &
• Corrosion resistance: > 480 (salt spray test) Hours
• Operating relative humidity: 30 to 80 %
• Durability (1 sec ON, 4 sec OFF): 20,000 Cycles
• Continuous blowing: 3 Minutes minimum
• Electrical insulation (Compressor): 1000V DC
• Main Materials (Trumpets): Stainless Steel
• Main Materials (Base): Painted Aluminum
• Main Applications: Marine OE / Aftermarket
• Includes 1/4″ Blade terminals on compressor
• Mechanical connection : Flat and rigid surface with trumpet pointed downwards 3 to 5 degrees minimum
• Horn’s Protection: Designed for external use
• Not to be submerged
• Dimensions: 16″ L x 7-1 / 2″ W x 4-1 / 8″ D
• Bell Diameter: 3-3/4″

Data Sheet
