Fell Marine MOB+ XFOB Multifob – 72-380-209

General information: As you step aboard your boat, press the xFOB to connect to the xHUB. A green light and an audio signal will confirm the connection and the engine can be started. Should a fall overboard occur, the engine will be shut down, caused by the xFOB being underwater or more than 50 feet from the xHUB. Six seconds after shut down, passengers can restart the engine to save the person in the water. When leaving the boat, press the xFOB once to disconnect. Up to 20 xFOBs can be stored per xHUB (if more than 20 are paired, the initial pairings will be deleted). Up to four xFOB’s can be connected to the xHUB at the same time, with one unit acting as the captain’s stop unit, and the additional three as alarm units for passengers.

Your personal safety guard: The corded kill switch is rarely used since it ties you to a very limited space onboard. With the MOB+ Wireless Man OverBoard System you regain freedom without losing safety. The xFOB is your personal safety guard at sea. You can keep the xFOB in the optional xBAND or xTAG (sold separately), to make it easy to wear without inhibiting any movement or motion. Should you fall into the water the engine(s) will stop in just one second.

MOB+: With the MOB+ Basepack you get one xFOB included. The MOB+ xFOB can be used with the xBAND or xTAG for your optimal comfort. The MOB+ supports up to 4 xFOBs connected at the same time. (xBAND and xTAG sold separately)

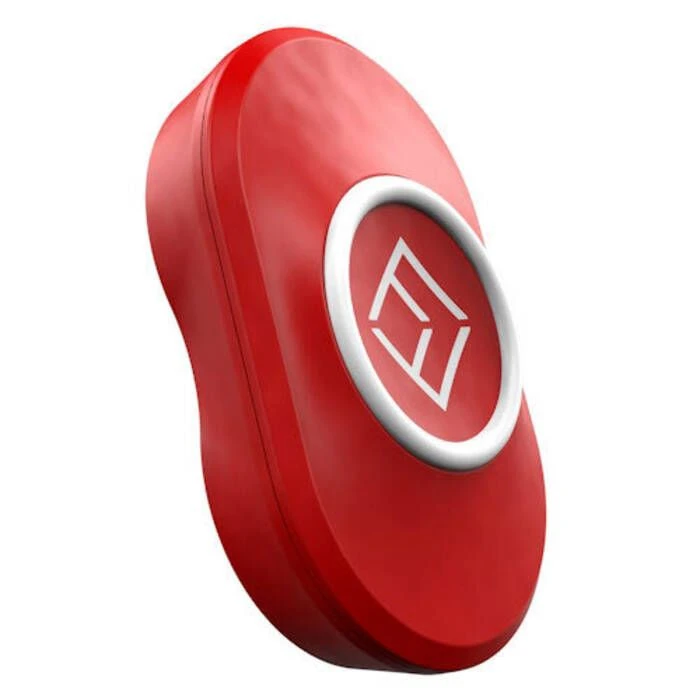

MOB+ xFOB add more to your system: MOB+ xFOB is the heart of the MOB+ Wireless Cut-Off Switch. Such a small device, but packed with wireless technology it is groundbreaking. The xFOB weighs in at only 10 grams and is only 1.74″ long. With the Universal Fit design, it can fit inside the xTAG, xBAND or in your pocket. The MOB+ xTAG can be worn around your neck, or attached to your life vest and garment with the standard lash tab clip-on. With the xFOB, you can virtually use the MOB+ Wireless Cut-Off Switch in any way you can imagine. Select your favorite way of using the MOB+ Wireless Man OverBoard System, using the xBAND or the xTAG option.

Intelligent Man OverBoard System : In a world where electronics surrounds us, it’s almost incredible that the corded cut-off switch still exists. MOB+ is an electronically controlled, wireless cut-off switch that can be used on all boats. Fell Marine recommends using MOB+ on boats of 40 feet or less.

Universal Fit Design : The xFOB fits perfectly inside the xBAND and the xTAG (xBAND and xTAG sold separately). This unique design allows you to decide how you want to use the MOB+ Wireless Man OverBoard System. With this in mind Fell Marine created the xFOB to be universal across all their accessories for the MOB+ system.

The xFOB has up to 300 hours battery life time when connected: The Automatic timer function ensures the unit does not remain turned on should it be forgotten on the boat.

Specifications:

• Weight: 10grams
• Housing material: ASA / TPU / POM
• Temperature range: From -15° C to 55° C
• Voltage Source: Coin Cell Battery – 3V nominal
  • Battery type: CR2032
• Power consumption: 0,3 µA in sleep (0,00033 W) 30 mA in active mode (0,098W)
• Battery life: 300 hours continuous usage
• Wireless performance:
  • Frequency area 915 MHz FCC (US vers.)
  • RF signal (in) 10 dBm max
  • RF signal (out) 10 dBm max
  • 4D Antenna diversity
• Battery MOB Unit:
  • Battery type: CR2032
  • Battery voltage: 3V lithium battery
• Certification US version (FCC):
  • Radio – MOB Unit R&TTE, EN 300 328, Maritime/CE
  • EMC – MOB Unit R&TTE, IEC 60945, Maritime/CE
  • ABYC A-33 compliant
• Immersion MOB Unit IEC 60945, IP68, Maritime/CE – 3 meters water resistant
• RoHS (2002/95/EC) compliant materials
• Flammability – MOB Unit IEC 60950 1&22, Maritime/CE, UL94

Installation Guide (3.97 MB)

Owner’s Manual (11.31 MB)
