Dynamic Dollies & Racks Dolly Type 3 – Sunfish – 13003

Dynamic Boat Dolly Type 3 – Sunfish Sailboat

Features:

• Boat-specific tube and sling lengths of this Type 3 launching dolly provide a custom fit for a Sunfish sailboat, enabling a balanced handle load and easy maneuvering
• Dynamic Dolly Type 3 allows the bow of boats with a curled gunwale to hang from a specifically shaped handle fitting – snug-fitting edge trim atop the handle fitting protects the gunwale gelcoat
• Frame constructed of square, structural-grade anodized aluminum with boat-friendly rounded corners
• Strong 3″ non-stretch polyester sling provides wrap-around boat support
• UV-resistant plastic joint components are injection-molded and through-bolted for increased torque stability
• Adjustable V-fitting on tongue tube provides boat support forward of sling and prevents boat contact with aluminum frame
• Eyelets on sling and handle fittings help to secure boat to dolly in storage, on trailers, or in racks
• Tie-down with the handle fitting eyelet helps prevent boat slippage on steep launch ramps

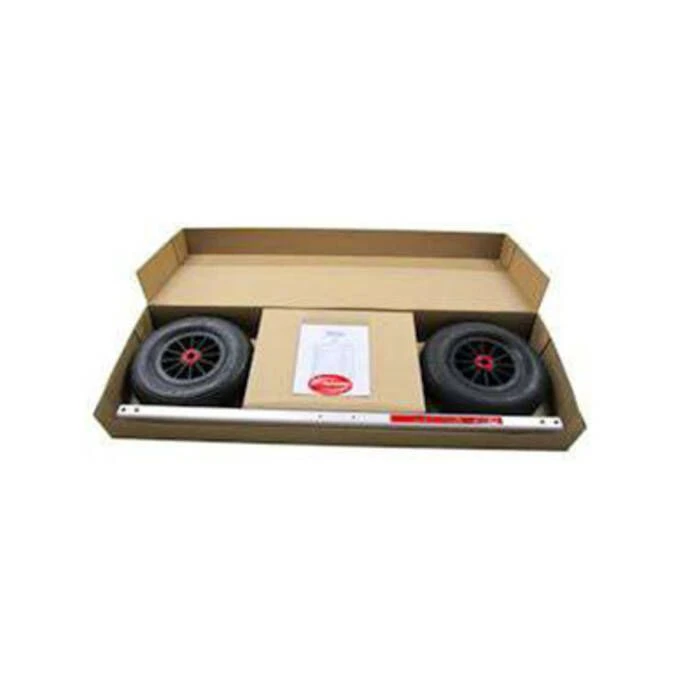

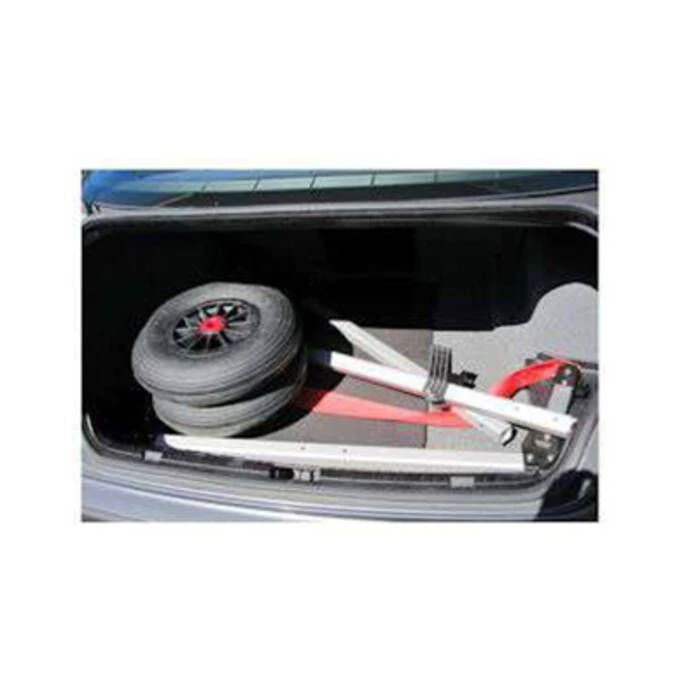

• Dolly assembles quickly and breaks down easily for storage or transport
• Wheel hubs with non-friction Delrin ball bearings for easy rolling on rough surfaces
• Tire pressure can be reduced to increase tire footprint in soft sand conditions
• Made in USA

Specifications:

• Specific Application: Sunfish (13′ 9″)
• Material / Finish: Anodized aluminum frame with polyester sling
• Wheels / Tires: 16″ x 4″ pneumatic with Delrin ball bearings

Assembly Instructions (14.29 MB)

Complete List of Dynamic Dollies for Other Boats

Manufacturer’s Limited Warranty
