Dynamic Dollies & Racks Dolly Type 1 – Dyer 8 – 10004

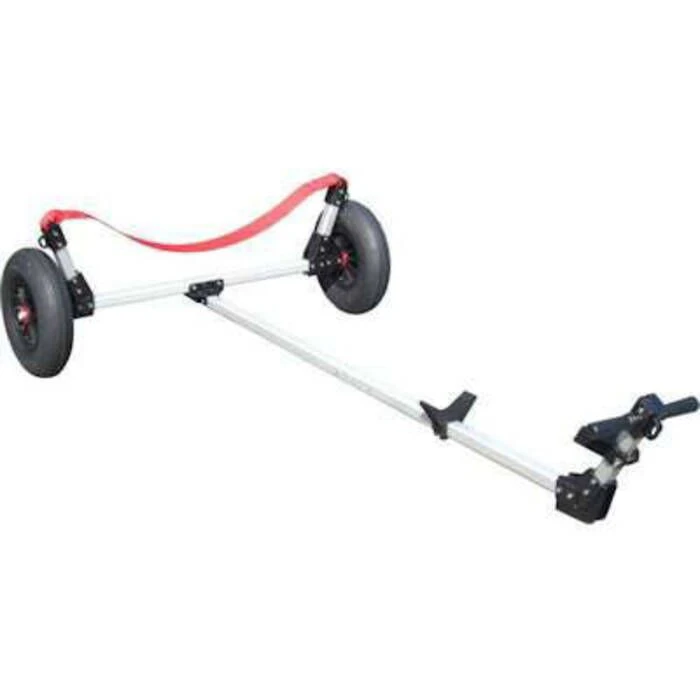

Dynamic Boat Dolly Type 1 – Dyer 8

Features:

• Boat-specific tube and sling lengths of this Type 1 launching dolly provide a custom fit for the Dyer 8 dinghy (7′ 11″), enabling a balanced handle load and easy maneuvering
• Dynamic Dolly Type 1 suits a number of boats up to 250 lbs – including smaller inflatables, tenders, 470, Tasar, Pico and many more
• 1-1/2″ square structural-grade anodized aluminum with boat-friendly rounded corners
• Strong 3″ non-stretch polyester sling provides wrap-around boat support
• UV-resistant plastic joint components are injection-molded and through-bolted for increased torque stability
• Adjustable V-fittings on bow and tongue tubes provide boat support forward of sling and prevent boat contact with aluminum frame
• Eyelets on sling and handle fittings help to secure boat to dolly in storage, on trailers, or in racks
• Tie-down with the handle fitting eyelet helps prevent boat slippage on steep launch ramps

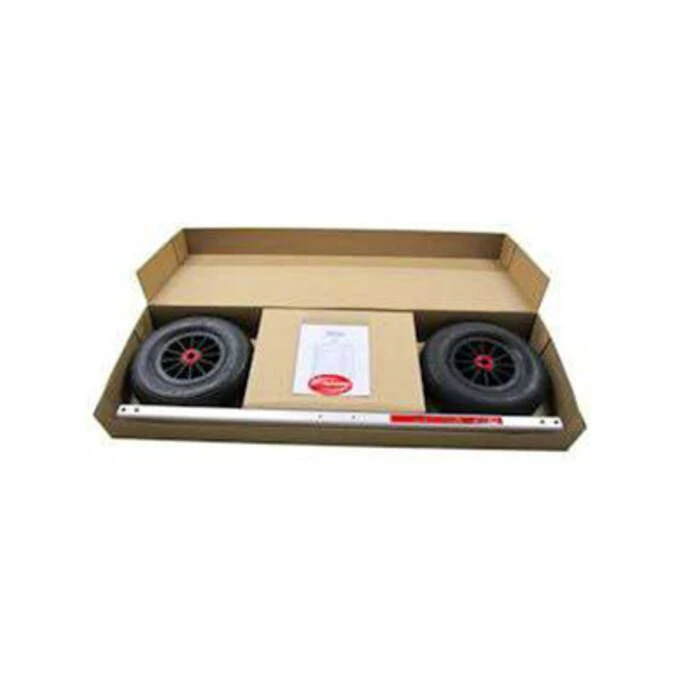

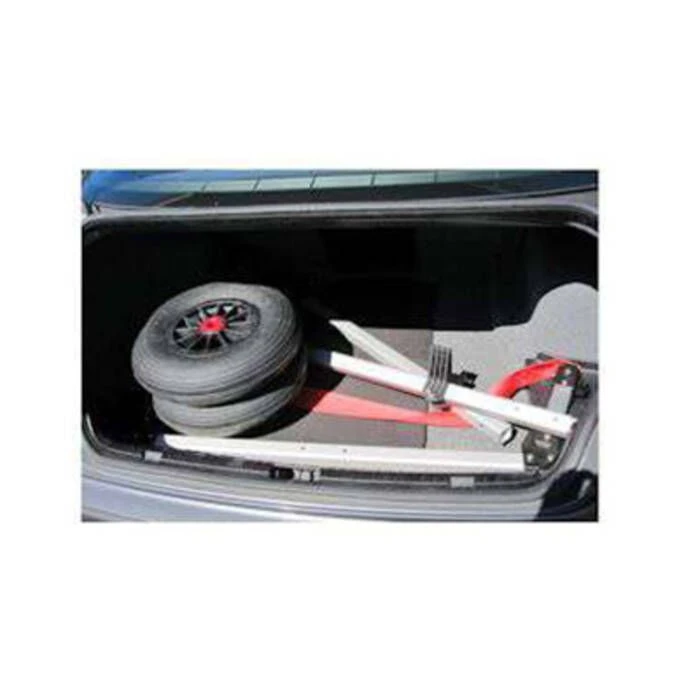

• Dolly assembles quickly and breaks down easily for storage or transport
• Wheel hubs with non-friction Delrin ball bearings for easy rolling on rough surfaces
• Tire pressure can be reduced to increase tire footprint in soft sand conditions
• Made in USA

Specifications:

• Specific Application: 8′ Dyer “Midget” dinghy
• Load Capacity: 250 lbs
• Material / Finish: Anodized aluminum frame with polyester sling
• Wheels / Tires: 16″ x 4″ pneumatic with Delrin ball bearings in hub

Assembly Instructions (14.39 MB)

Complete List of Dynamic Dollies for Other Boats

Manufacturer’s Limited Warranty
