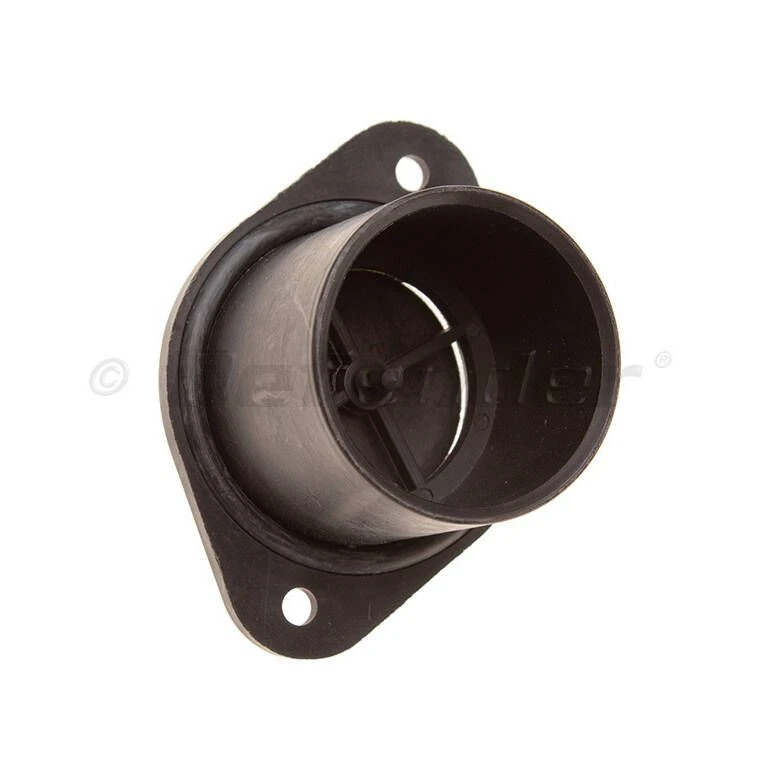

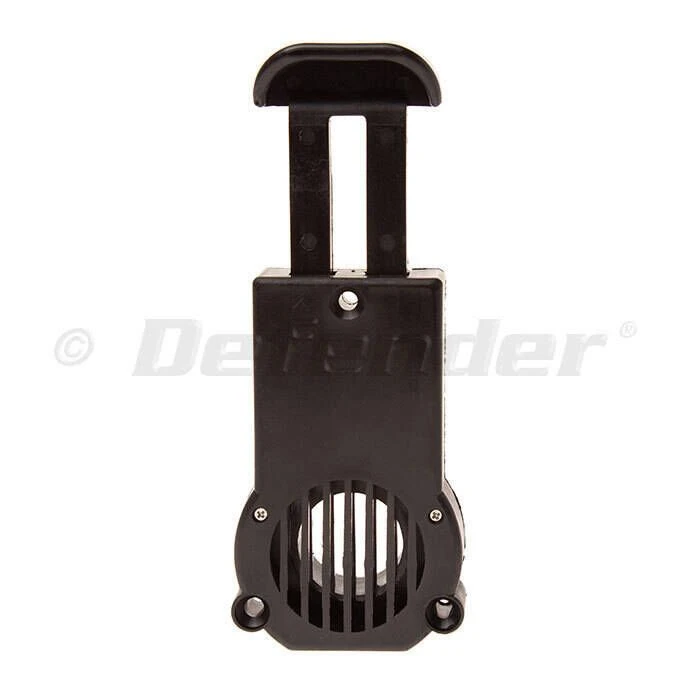

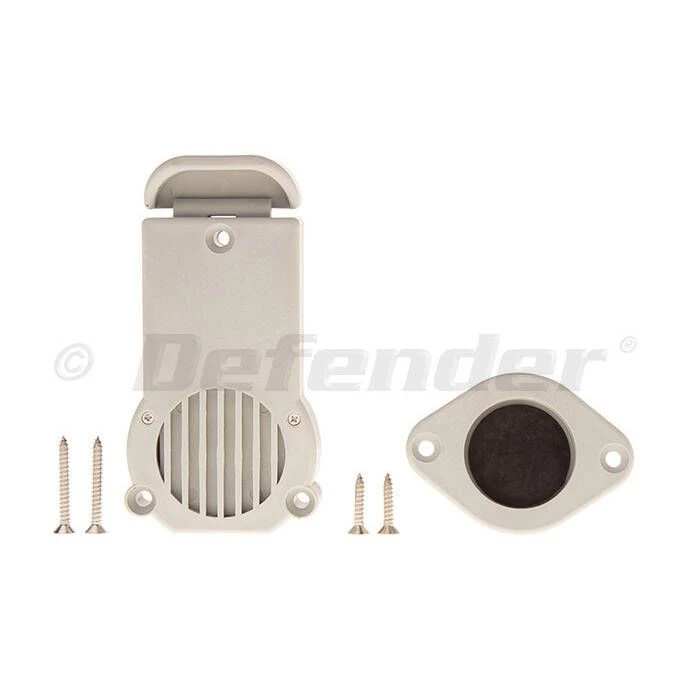

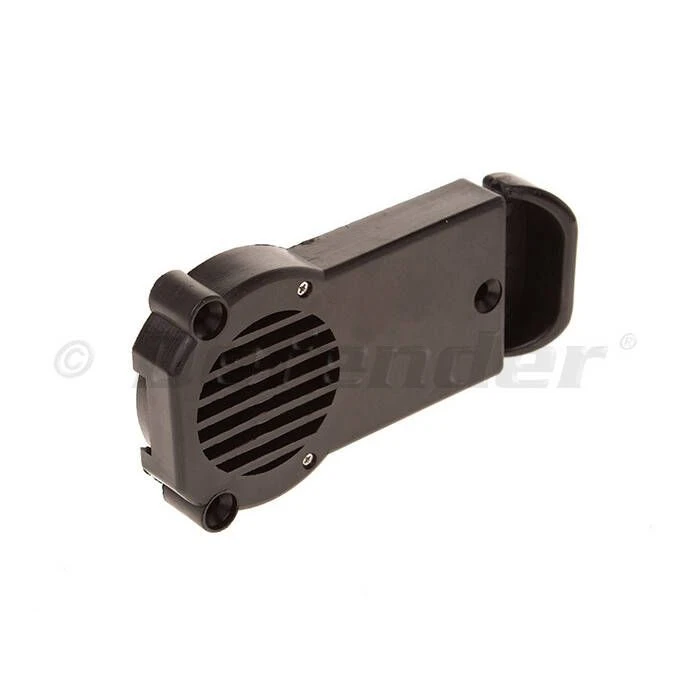

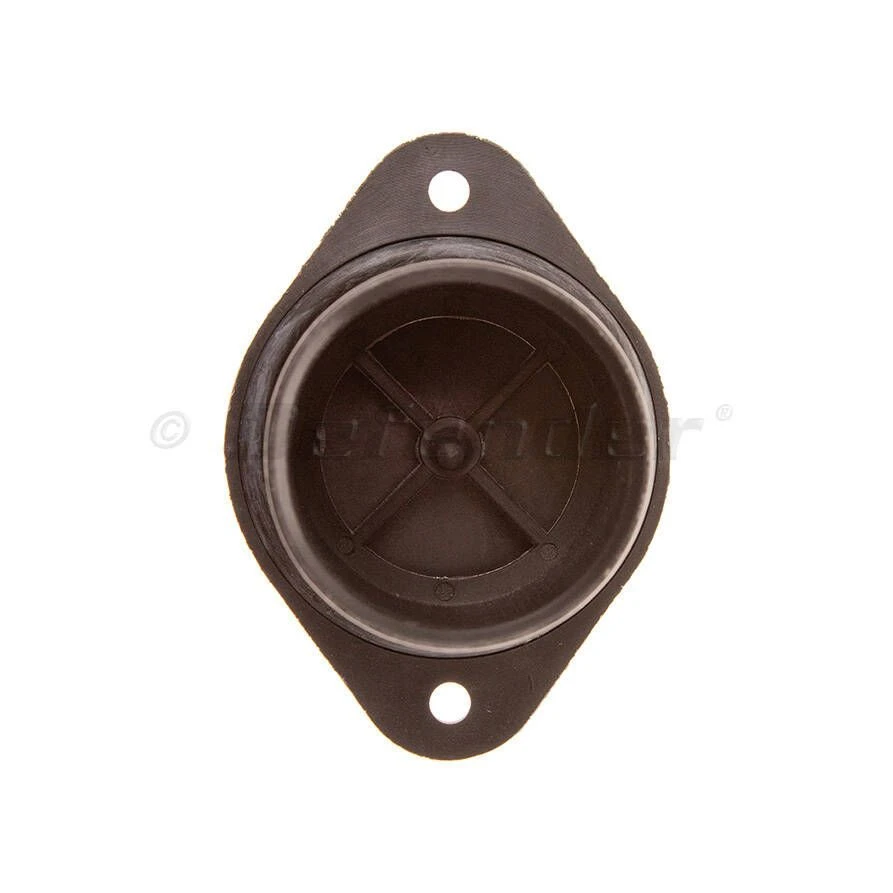

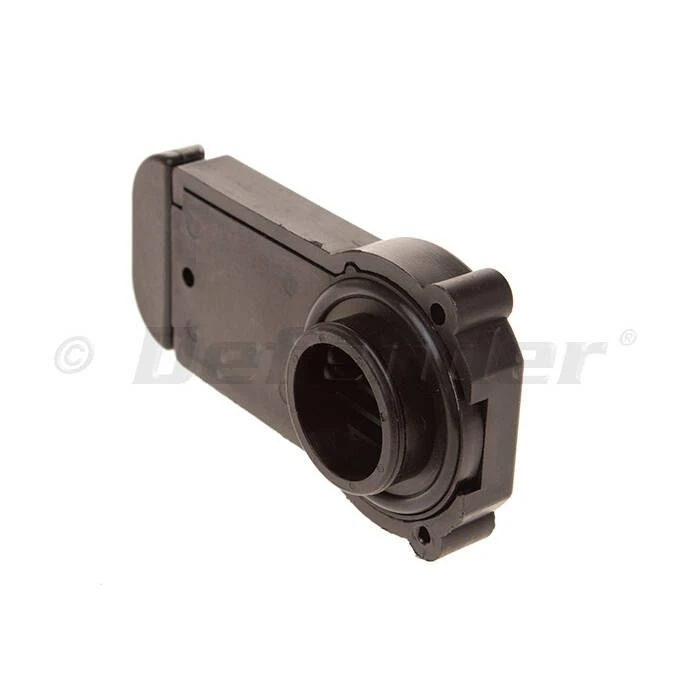

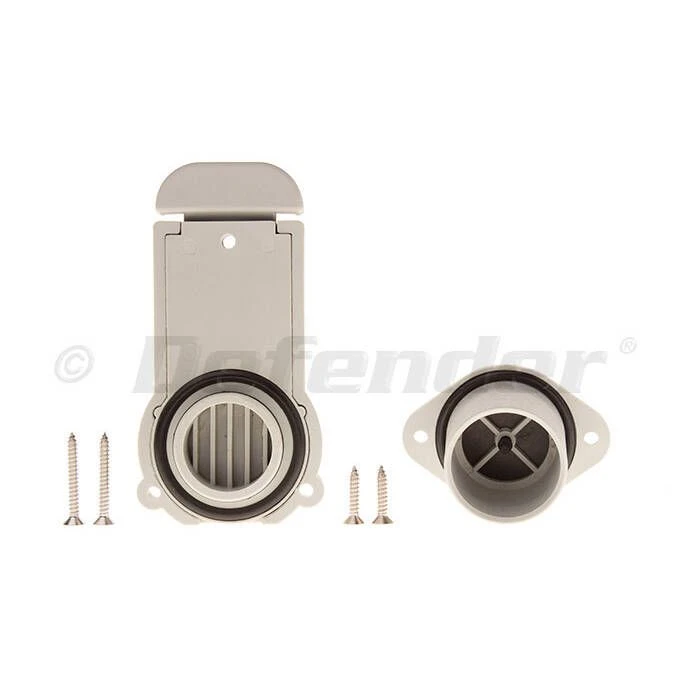

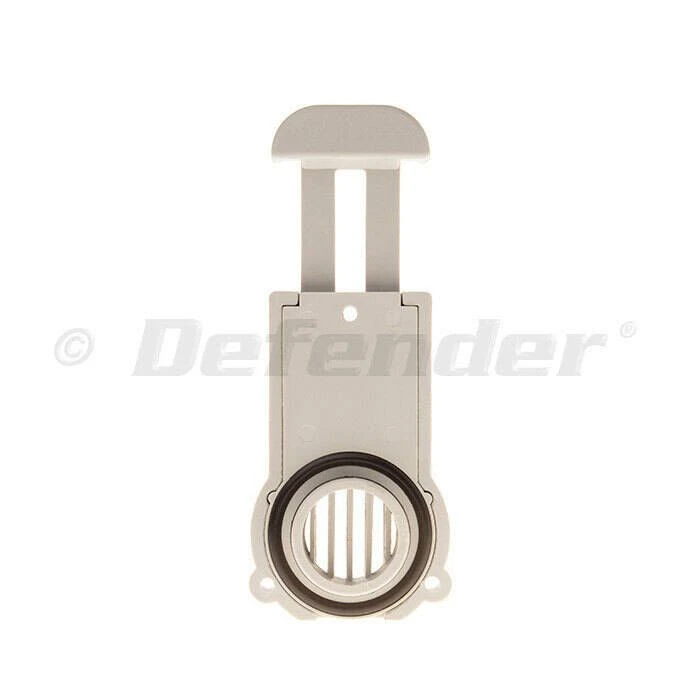

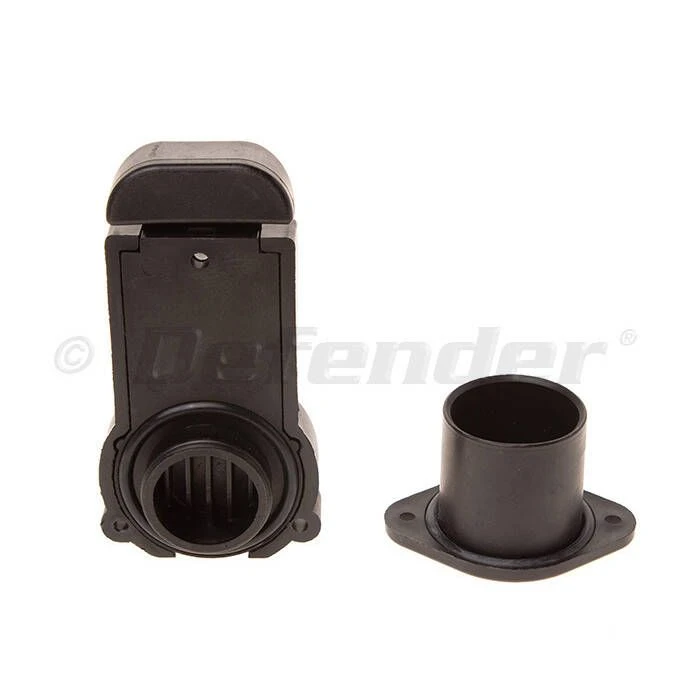

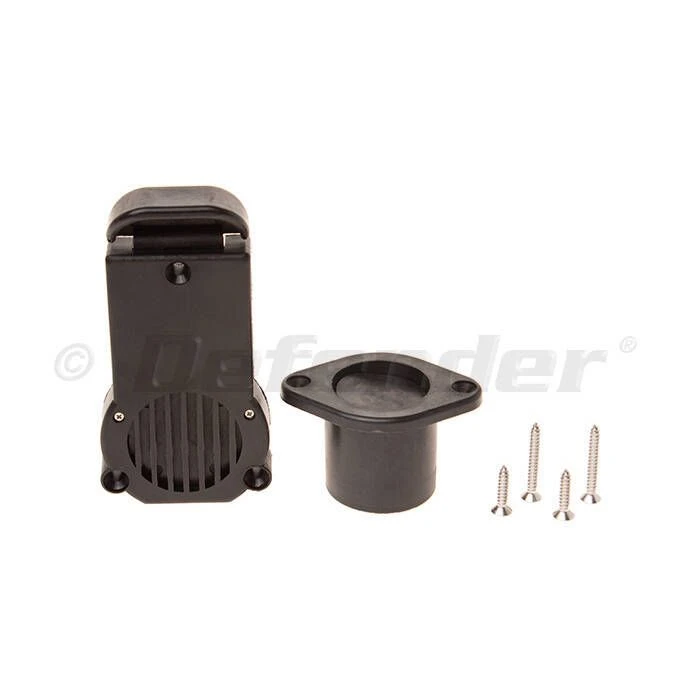

Defender Transom Slide Bailer For Inflatable Boats

Features:

• Defender Transom Slide Bailer is designed for ease of use
• Simply Raise the Slide to Open the Drain and Lower the Slide to Close the Drain
• Adjustable – Transoms 36 – 42 mm thick

Applications:

• Defender Inflatables
• Avon Inflatables
• Zodiac
• Mercury Inflatables
• Caribe
• Quiksiliver
• West Marine
• Inflatables that use a self draining flapper having a 40 mm hole in transom

Specifications:

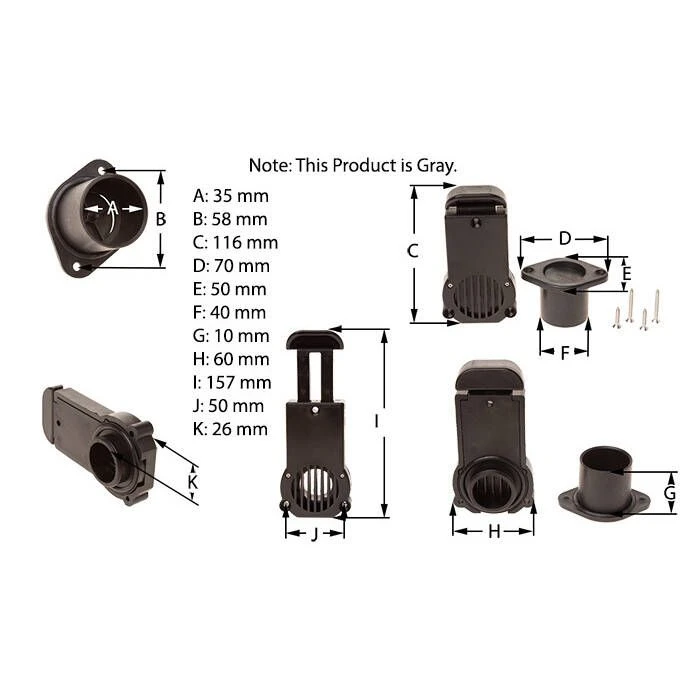

• Dimensions:

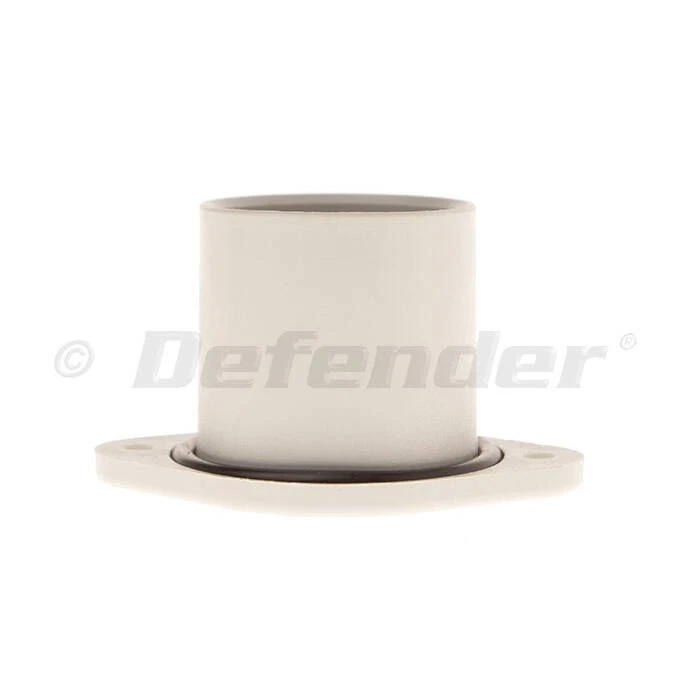

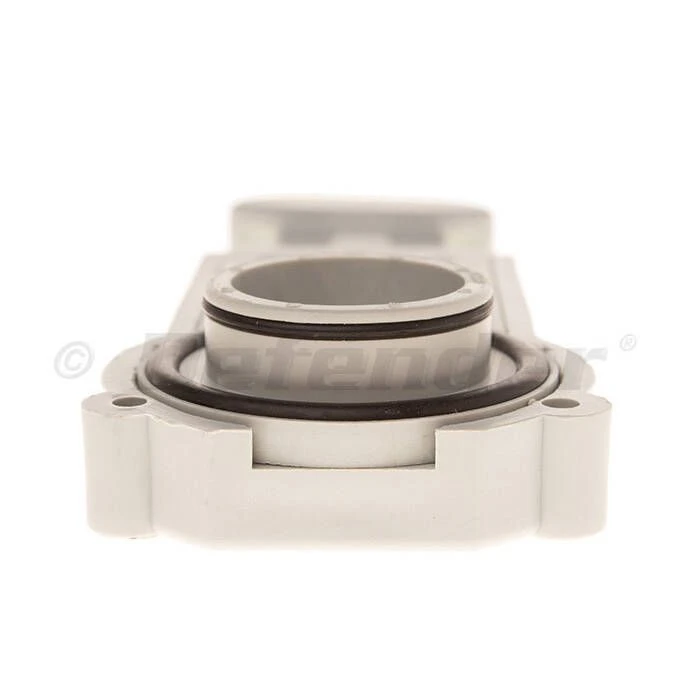

  • (A) Drain Sleeve ID: 35 mm
  • (B) Mounting Hole Distance: 58 mm (Drain Sleeve)
  • (C) Height in Closed Position: 116 mm
  • (D) Drain Sleeve Width: 70 mm
  • (E) Drain Sleeve Height: 50 mm
  • (F) Drain Sleeve OD: 40 mm
  • (G) Sleeve Depth: 35 mm (from mounting flange)
  • (H) Slide Overall Width: 60 mm
  • (I) Height in Open Position: 157 mm
  • (J) Slide Mounting Screws: 50 mm
  • (K) Depth of Slide Assembly: 26 mm

Note: Please measure the diameter of your boat’s drain hole to be certain if this plug is the right size for your boat
