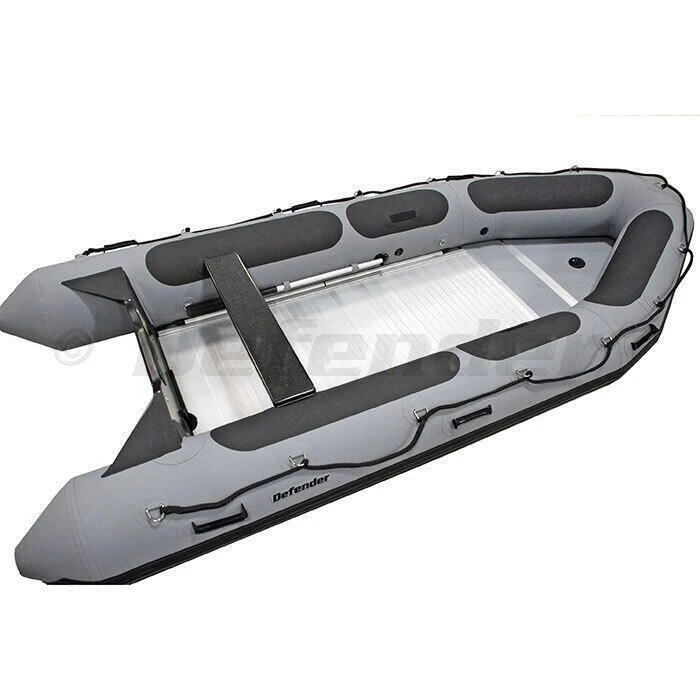

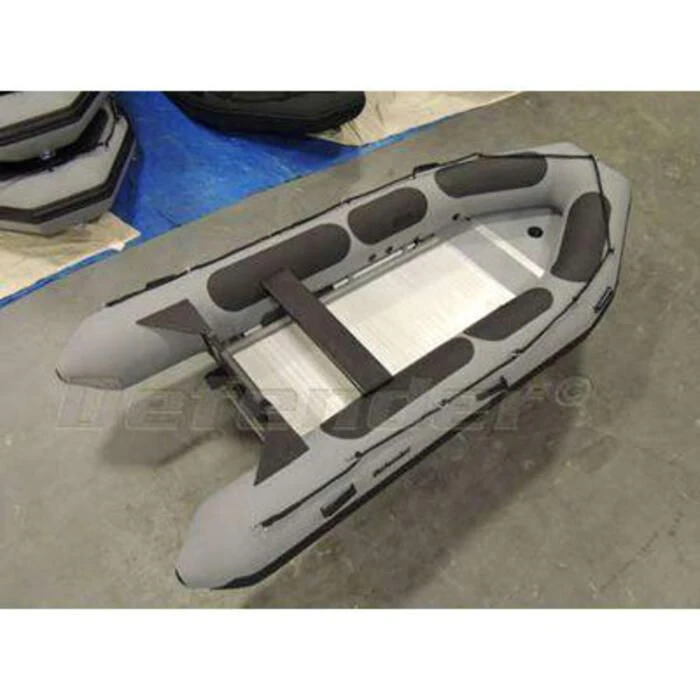

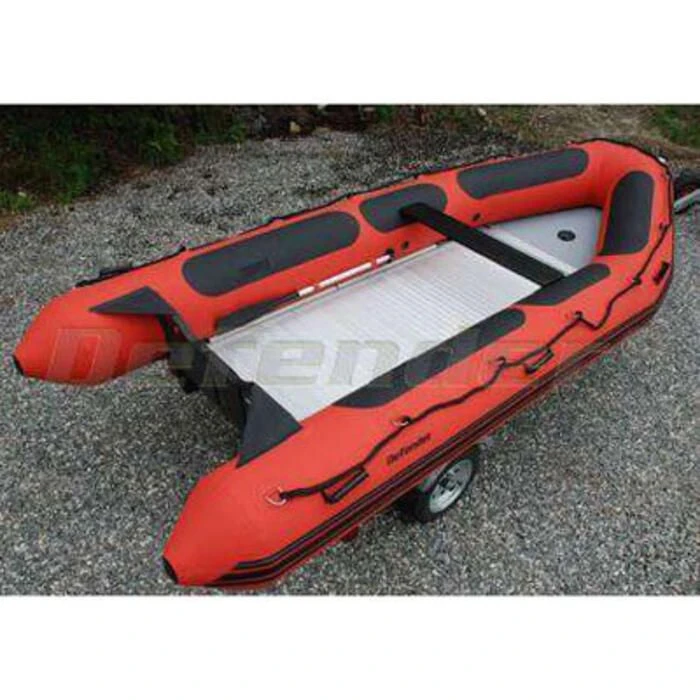

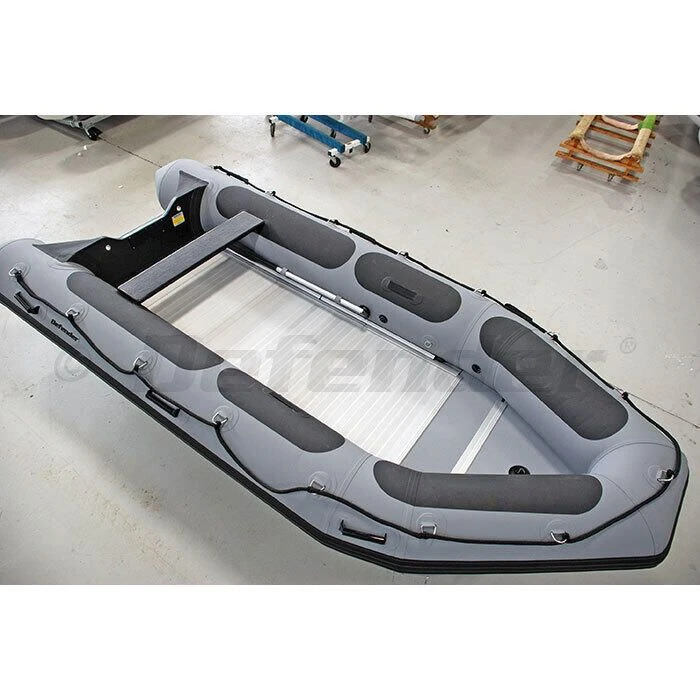

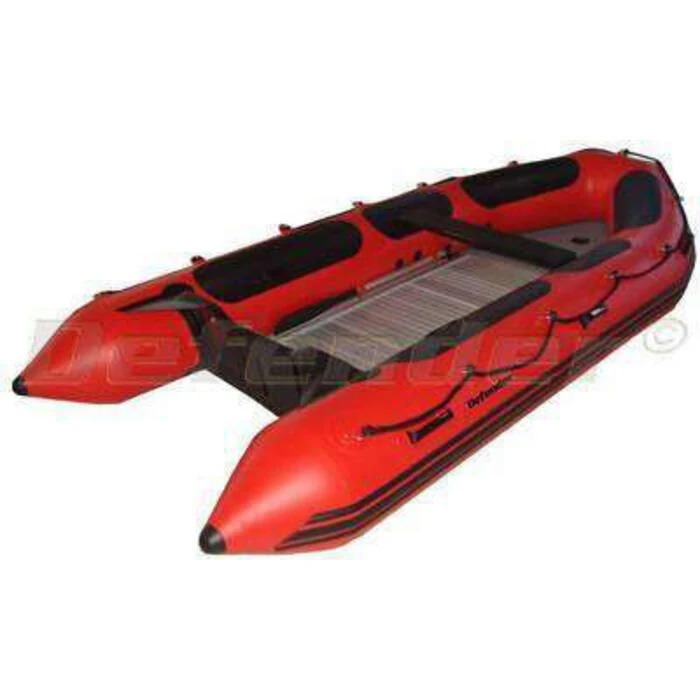

Defender 430 Aluminum Floor 14′ 1″ Boat – 2023

Features:

• Interlocking aluminum floorboards (Bow Sections are Coated Wood)

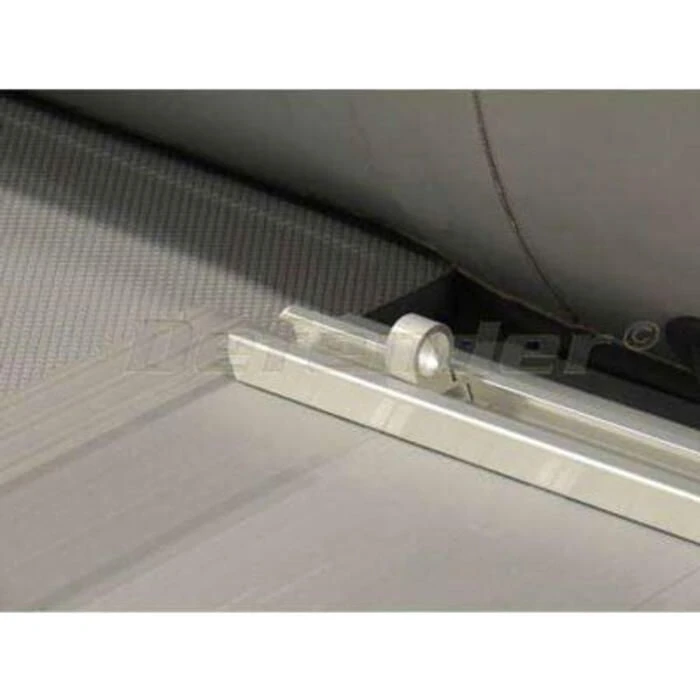

• Aluminum stringers
• Protective rubstrake on sides of tubes

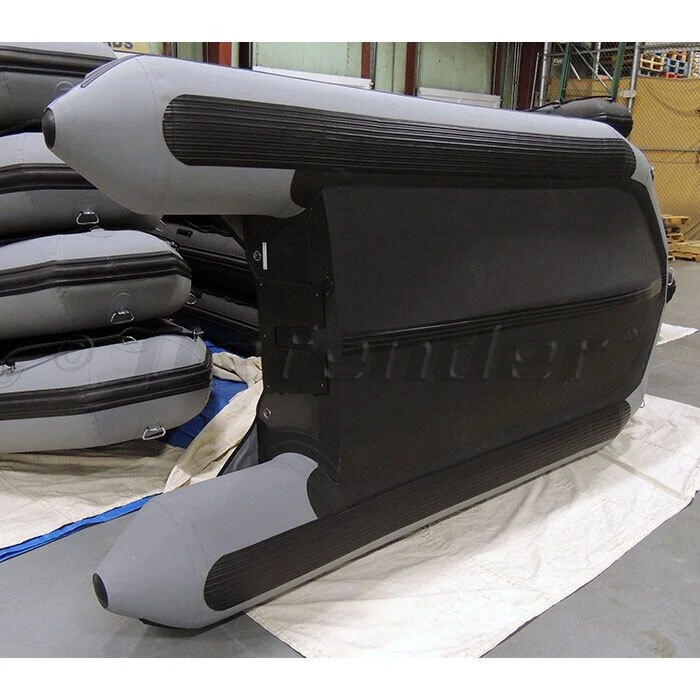

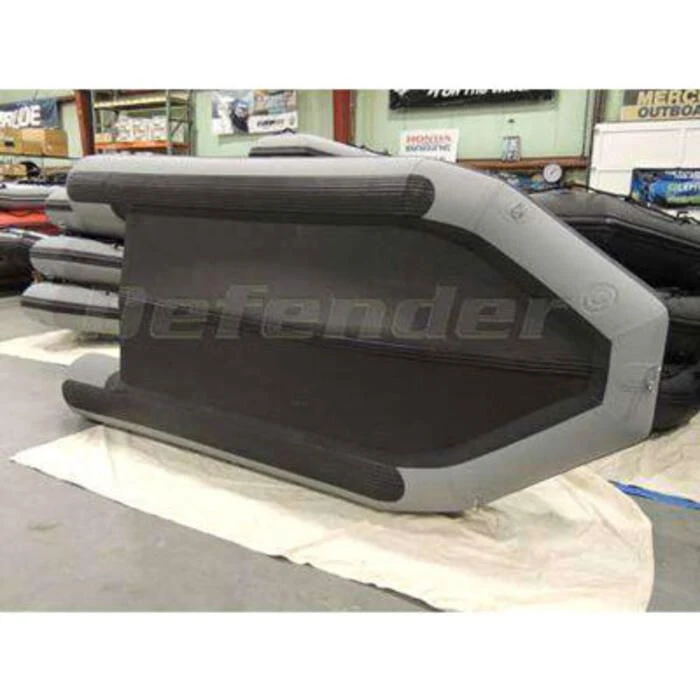

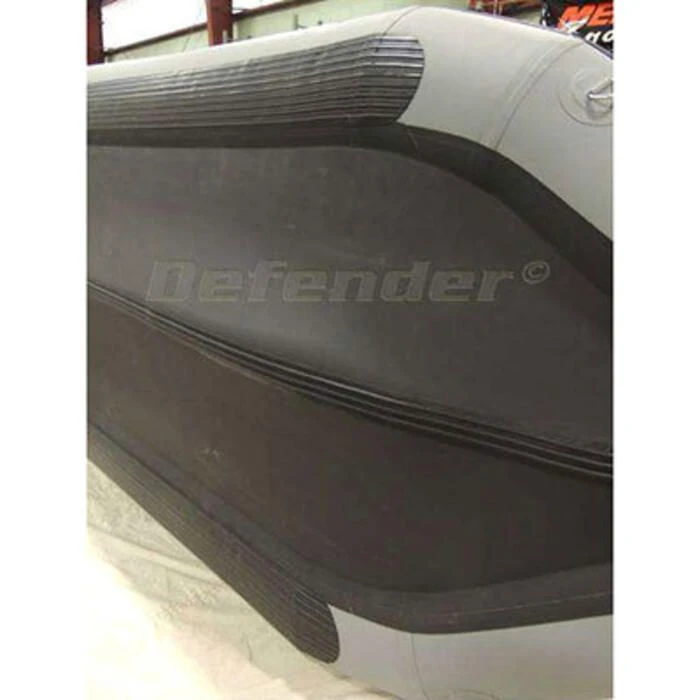

• Protective rubstrake on keel
• Protective rubstrake on bottom of tubes

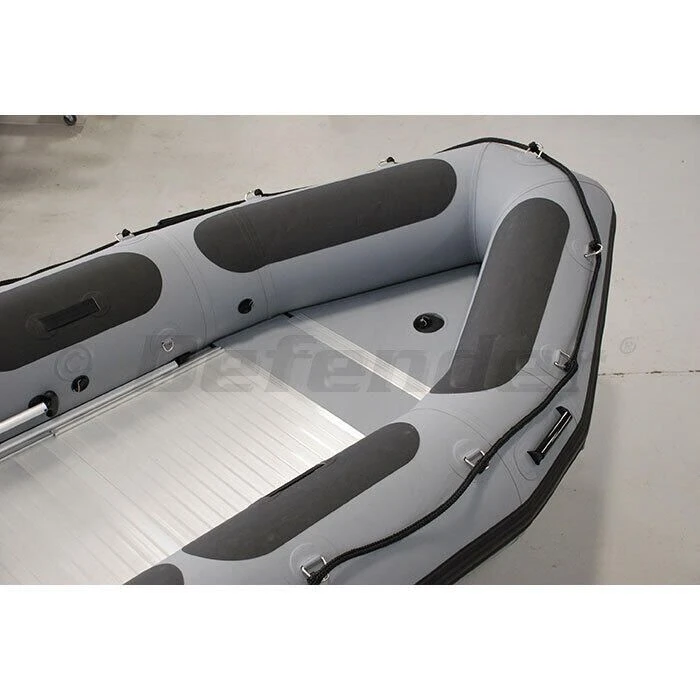

• Wear patches on top of tubes
• Safety grab lines
• (6) Exterior grab/lifting handles

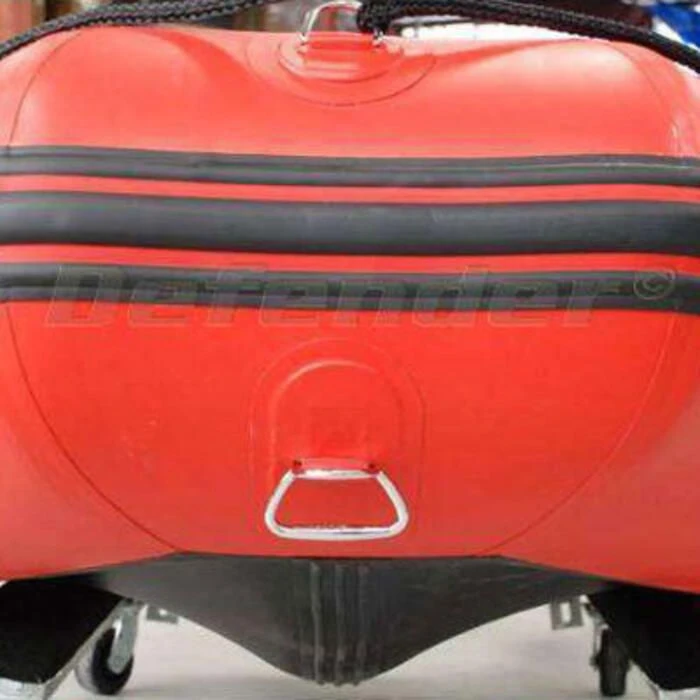

• SS Bow handle/mooring eye
• SS Bow tow eyes (Port and Starboard)
• (4) Interior lifting rings
• Leafield inflation valves, C7
• Leafield over-pressure relief valves (Tube chambers only, not in keel)

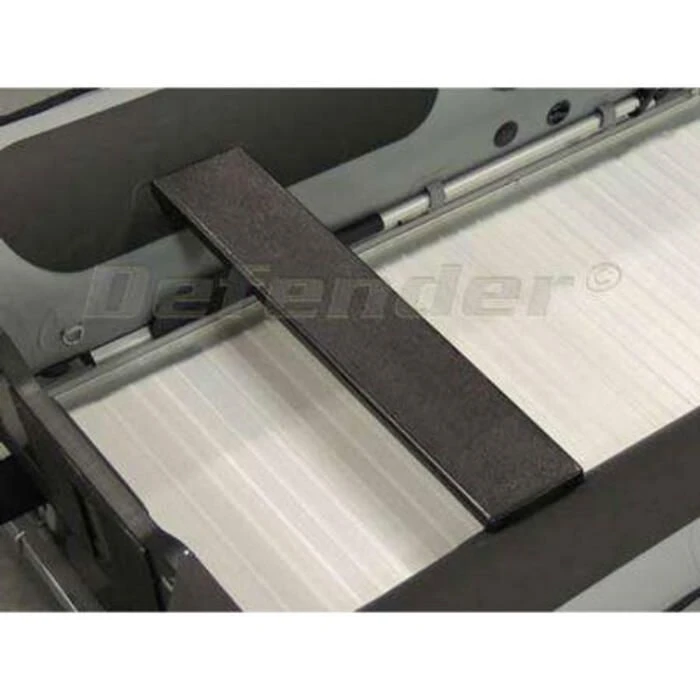

• Removable fiberglass bench seat with secondary seat location
• Cockpit drain in transom
• Protective motor clamp plate
• (2) Paddles

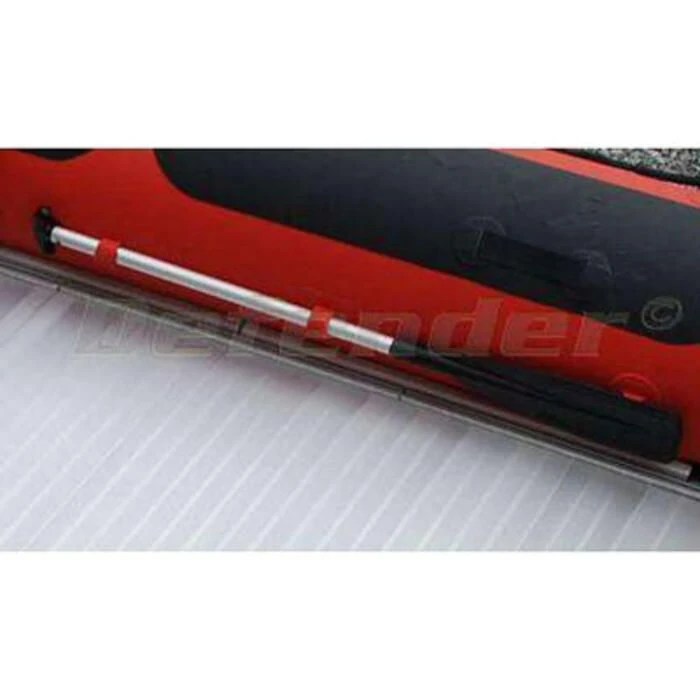

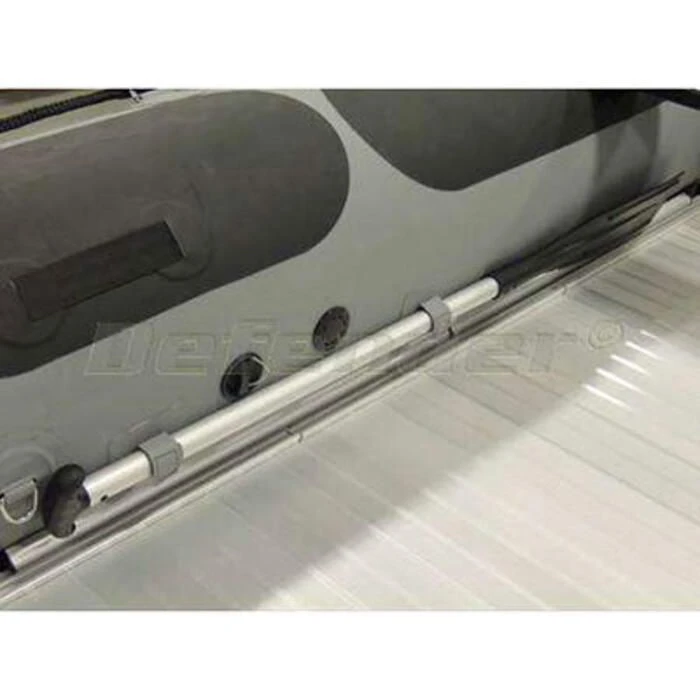

• Interior paddle retainers
• Hand pump
• (2) Carry bags (1 Hull bag + 1 Floor bag)
• Repair kit with valve tool

Specifications:

• Length: 14′ 1″
• Beam: 6′ 2″
• Weight (PVC model): 248 lbs
• Weight (Hypalon model): 276 lbs
• Capacity: 8 Persons or 2094 lbs
• Maximum Motor: 30 hp (Maximum motor weight: 165 lbs)
• Manufacturer recommends: 25 hp (15″ shaft)
• Tube Diameter: 19″
• (3) Separate Air Chambers + Keel
• Fabric Type (PVC model): Mehler Valmex 1100 Decitex, welded construction
• Fabric Type (Hypalon model): T15, Commercial Grade Hypalon, 1670 Decitex
• Factory Warranty: 5 years. Warranty begins on date of purchase.
