C.E. Smith Bolster Swivel Bracket Assembly

C.E. Smith Bolster Swivel Bracket Assembly - Image 2

C.E. Smith Bolster Swivel Bracket Assembly

Original price was: $12.98.Current price is: $9.09.

SKU: ZGVMZ 122872197 Categories: Trailer Components, Trailering

Discover a world of quality products.
Unbeatable Quality Guaranteed
Experience the difference quality makes.
Where quality meets convenience.

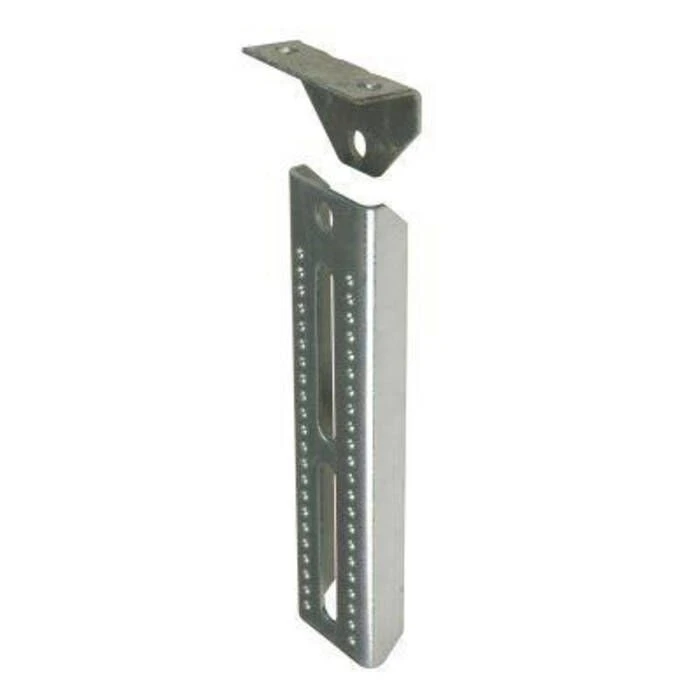

C.E. Smith Bolster Swivel Bracket Assembly Item # 923322

Features:

Hot dip galvanized brackets with a top that swivels to let you set your bunk or bolster boards at the proper angle
- Hot dip galvanizing for years of use in the harsh marine environment
Non-slip dimples ensure secure mounting on trailer frame
Width: 2-1/2″
Mounting holes: 2-1/2″ on center
Slot Length: 3-3/4″
This Smith adjustable bracket is designed to support roller bunks
This bracket assembly includes Bolster Bracket-10101G and Swivel Bracket-10200G
- 10101G Bolster bracket:
  - 10″ bracket
  - 11 Gauge material
  - 2-1/2″ Wide
  - Slots 1/2″ Wide
  - Swivel Hole 1/2″ Diameter
  - Slots 3-3/4″
- 10200G Swivel bracket:
  - 11 gauge material
  - Bunk flange 1-3/8″ x 3-1/2″
  - Bunk flange holes 3/8″ Diameter
  - Swivel flange 2″ Tall x 3-1/2″
  - Swivel flange hole 1/2″ Diameter
  - Hole centers 2-1/2″
  - Overall assembly Length is 11″
This bracket assembly uses Bolster Bracket-10102G and Swivel Bracket-10200G
- 10102G Bolster bracket:
  - 12″ Bracket
  - 11 Gauge material
  - 2-1/2″ Wide
  - Slots 1/2″ Wide
  - Swivel Hole 1/2″ Diameter
  - Slots 4-3/4″
- 10200G Swivel bracket:
  - 11 Gauge material
  - Bunk flange 1-3/8″ x 3-1/2″
  - Bunk flange holes 3/8″ Diameter
  - Swivel flange 2″ tall x 3-1/2″
  - Swivel flange hole 1/2″ Diameter
  - Hole centers 2-1/2″
  - Overall assembly length is 13″
