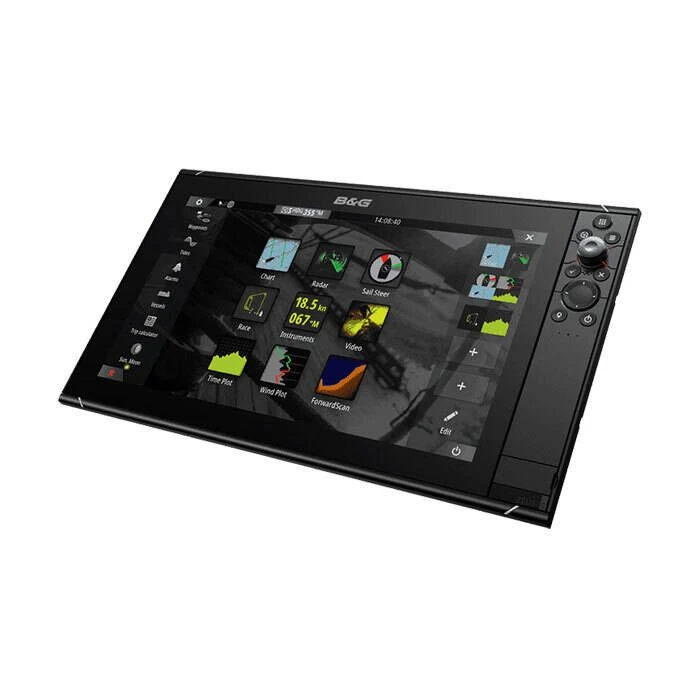

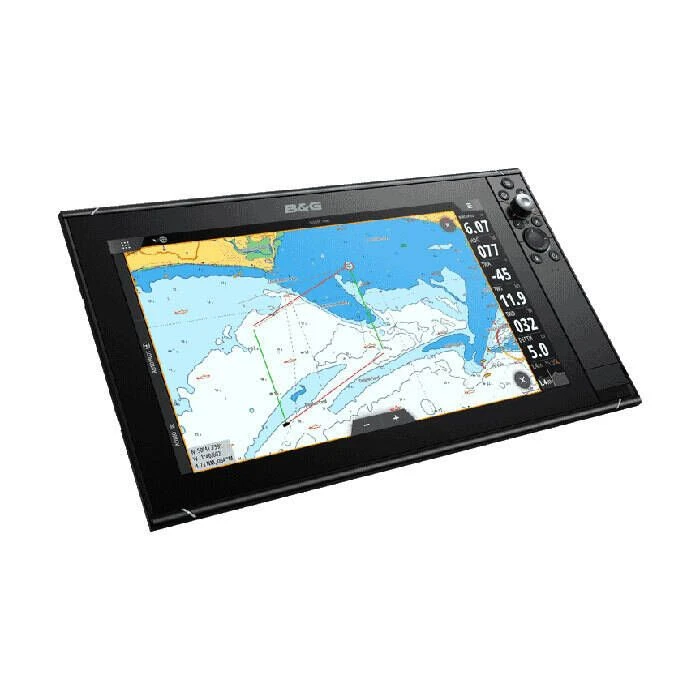

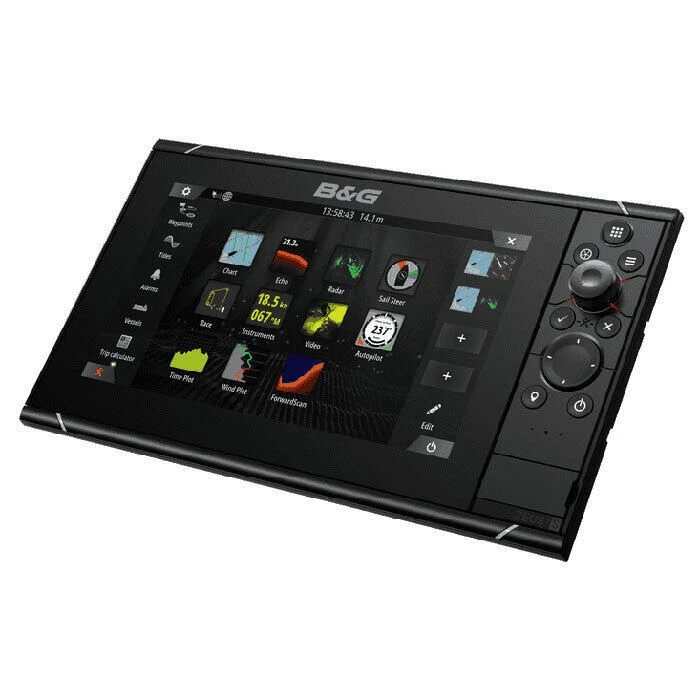

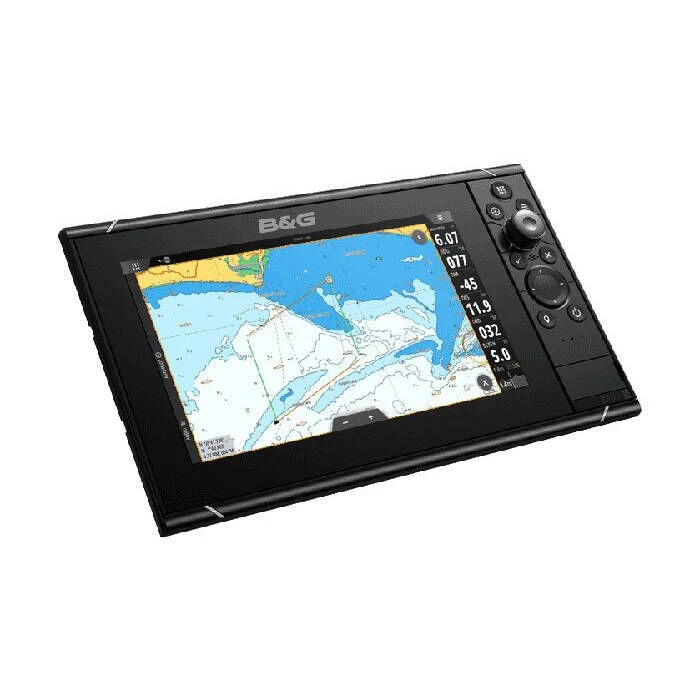

B&G Zeus3S Multifunction Display

Zeus ³ S is a mid-life update to the Zeus ³. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The Zeus ³ is already a feature packed product and the new processor in the Zeus ³ S means that each one of those features is now improved.

Features

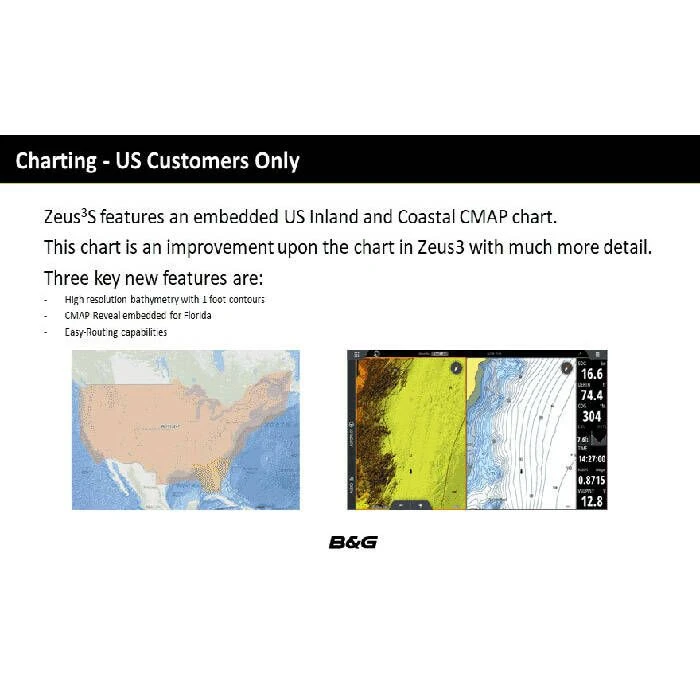

• Includes C-MAP US Enhanced Preloaded Maps with Coastal and Inland Coverage
• Easy to use software and full keypad for simple and precise control in any sea conditions
• Connects to B&G’s premium network modules for the ultimate offshore performance
• Integrates with B&G premium Instrument systems
• Direct Audio and B&G Pilot control
• Low Profile Glass dash styling
• Built in Wi-Fi connectivity
• Software update notifications and downloads when connected to the internet
• Screen mirroring when connected to a mobile device
• Built in high sensitivity 10 Hz GPS antenna
• Dual Micro SD card slots
• The Zeus ³ S features the brand new iMX8 processor that allows for twice the performance of the previous generation processor. The key benefits a user will see from the new processor are:
  • Faster page changes: Page loading times have been halved
  • Smoother transitions: Movements on the screen like chart rotation and panning is much smoother, really capturing the premium experience of the B&G brand
  • Multi-tasking: With such an increase in power Zeus ³ S can multi-task like no product before it
• SolarMAX HD® IPS Display Technology
  • Ultra-wide viewing angles for excellent viewability from any angle on the boat (>80 degrees up/down/left/right)
  • High resolutions for best on-screen detail
  • High brightness LED backlight and antireflective coating for ultimate bright sunlight viewing
  • Very high display operating temperatures for reliable operation in the most harsh boating locations
  • Multi-touch screen for simple, intuitive software control
  • Optical bonding for zero chance of display fogging
  • Oleophobic coating for easy removal of fingerprints

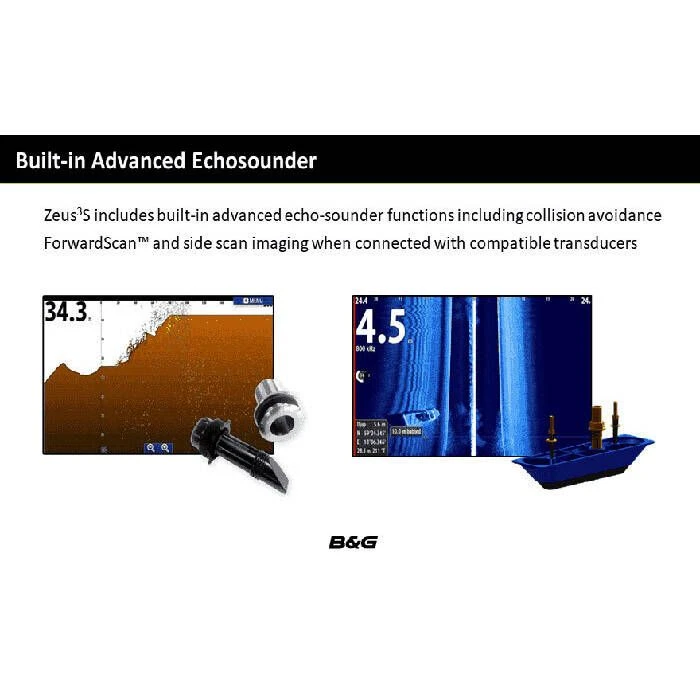

• Built-in Advanced Echosounder
  • Zeus ³ S includes built-in advanced echo-sounder functions including collision avoidance
  • ForwardScan™ and side scan imaging when connected with compatible transducers
• Zeus ³ to Zeus ³ S upgrade has never been simpler
  • All product dimensions are identical
  • Connectors are all identical
  • Screw holes are identical for dash mounting
  • Bracket is identical for bracket mounting

Specifications:

• Environmental
  • Operating temperature range -15°C to +55°C (5° F to 131° F)
  • Environment Shock Vibration 100,000 cycles of 20G
  • Storage temperature range: -20°C to +60°C (4°F to 140°F)
  • Water resistance: IPX6 and 7
• Power
  • Supply voltage: 10 – 31.2 V DC
• Display
  • Display backlight color: White
  • Display screen brightness: 1200 nits
  • Display size and type: High Visibility SolarMax HD® IPS optically bonded TFT
  • Display viewing angles: 80° top/bottom, 80° left/right
  • Interface: Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers
  • External storage: (2) MicroSD slots, max. 32GB each. Larger if formatted to NTFS
  • Internal storage: 16 GB
  • Charts Included: Insight
  • Supported Charts: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

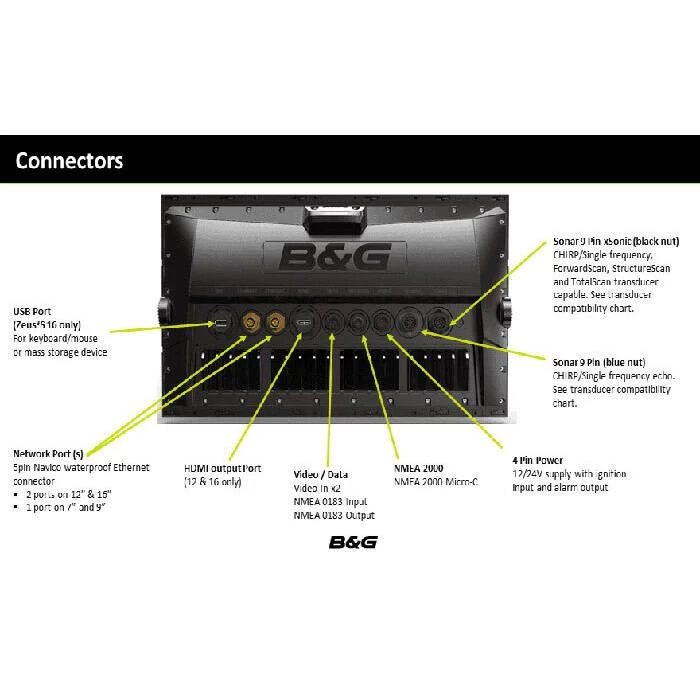

• Connectivity
  • Ethernet: 5 pin yellow connector x 1 Mbit
  • Bluetooth: Internal
  • NMEA2000 connectivity: (1) NMEA 2000 Micro-C port, 1 LEN
  • NMEA 0183 connectivity: (1) Transmit, (1) Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use the same baud rate. Optional data cable required (P/N 000-00129-001)
  • NMEA 0183: sentences Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000) Output GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM”
  • Video connectivity: (1) composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI output (16″ model only)
  • WiFi connectivity Internal
• Sonar
  • Sonar frequencies: 40-250kHz 455-800kHz

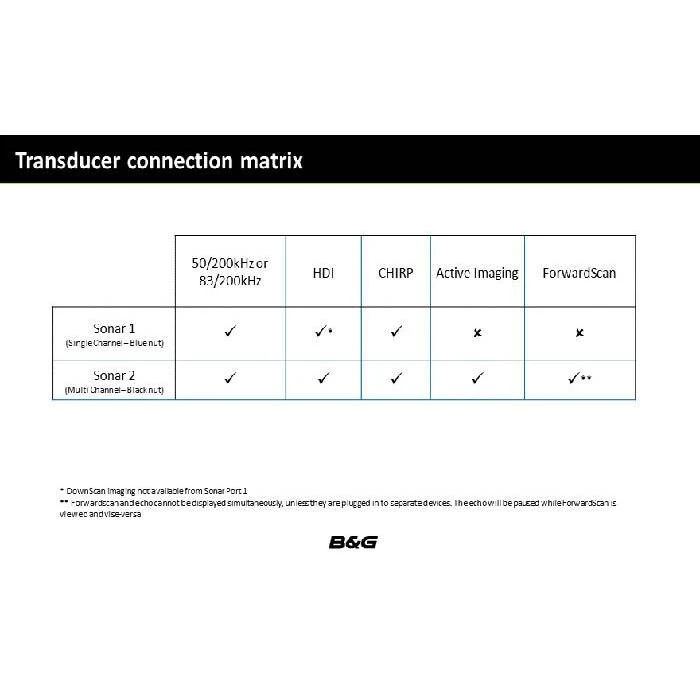

  • Two 9 pin Xsonic Sonar ports
    • Sonar port 1: Single channel CHIRP, 50/200 khz, HDI
    • Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan.Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders”
  • Sonar max depth: 3000’+ (tested with B175L)
  • Sonar output power: 1kW RMS
  • Compliance: CE, C-Tick, HDMI (16″ model only), EN 60950-1:2006, EN 60945:2002EN 300 440-2, V1.4.2
• GPS
  • GPS: Internal
  • GPS update rate: 10 Hz
  • GPS channels: 34 Channels
  • Waypoints, routes & tracks:
    • 6000 waypoints
    • 500 Routes with 100 max route points
    • 50 tracks with up to 12,000 track points
  • GPS correction: WASS, EGNOS, MSAS, GLONASS
  • GPS position accuracy: Horizontal Accuracy 3 m (9.8 ft)
  • GPS time to first fix: Cold start 50 sec
    • Satellite Reacquisition 5 sec
• Other
  • Radar: Supports Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar
  • Weather: SiriusXM via WM-3 (USA only), GRIB
  • AIS: Receive AIS data over NMEA 2000 or NMEA 0183 (has to be wired to all NSS processors)
  • Autopilot integration: Full autopilot control and commissioning
  • Autopilot steering modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, Wind, Wind NAV. ( Boat type set to Sail)
  • Autopilot maneuvers turn patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
  • Digital switching: BEP C-Zone, Naviop
  • Multi-media: via SonicHub2, FusionLink, Sirius, JL Audio. USA only, AUST. & NZ only)
  • Language Support Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish.Other languages supported by Unlock: Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi

In the Box:

• NSS Zeus³S Multifunction Display
• Mounting Bracket (Plastic)
• Dash Mount Kit
• Edge Bezels
• Sun Cover
• Power Cable
