Airmar TM265 Chirp-Ready Transom Mount Transducer – 12-Pin MMC

The TM265, Chirp-ready transom mount is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW of power for excellent performance

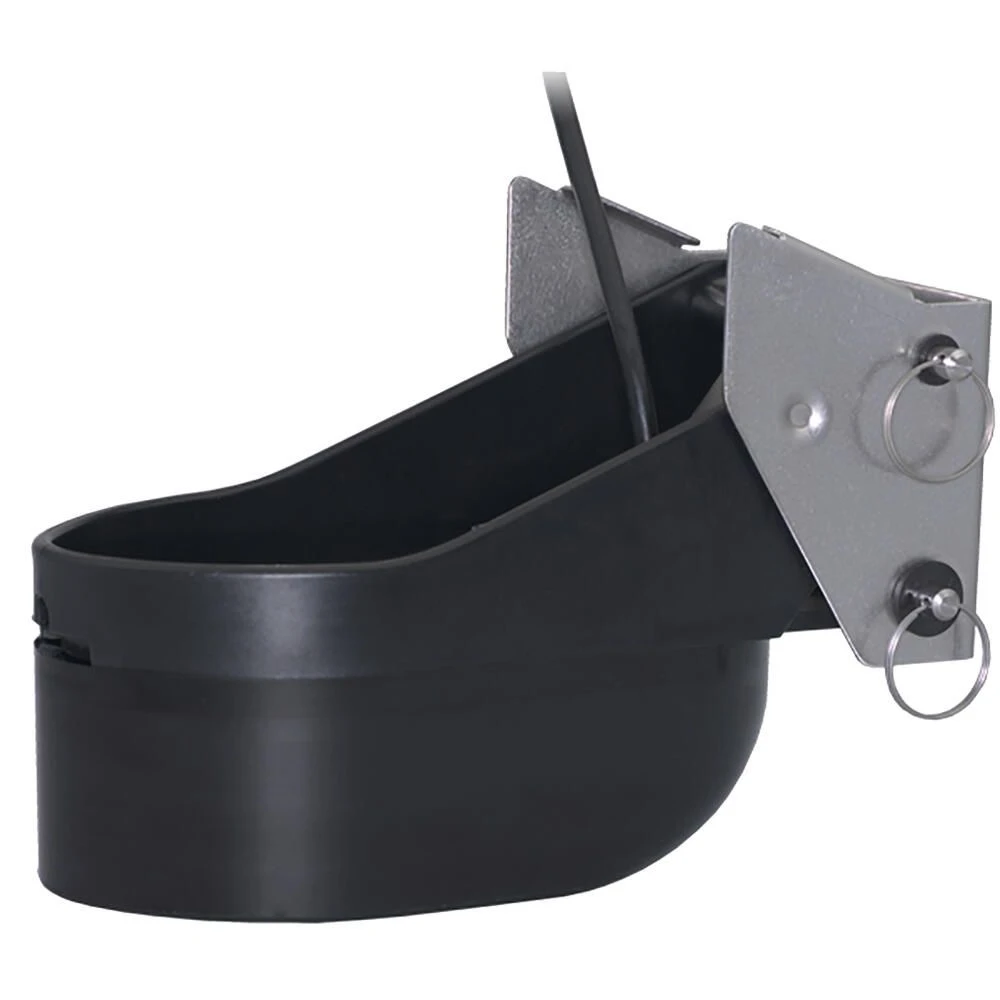

• Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats
• Dual Chirp band covers popular fishing frequencies for detecting certain species of fish
• Exclusive Xducer ID® technology
• Automatic configuration of echosounder to transducer – enables the echosounder to adapt to the transducer connected, providing an optimized system
• Continuous monitoring of ceramic operating temperatures
• Transducer profile information can be presented on the OEM echosounder display
• Includes stainless steel bracket and mounting hardware

Specifications:

• Acoustic window: Urethane
• Connector: Airmar 12-Pin (MMC)
• Low frequency: 42 to 65 kHz

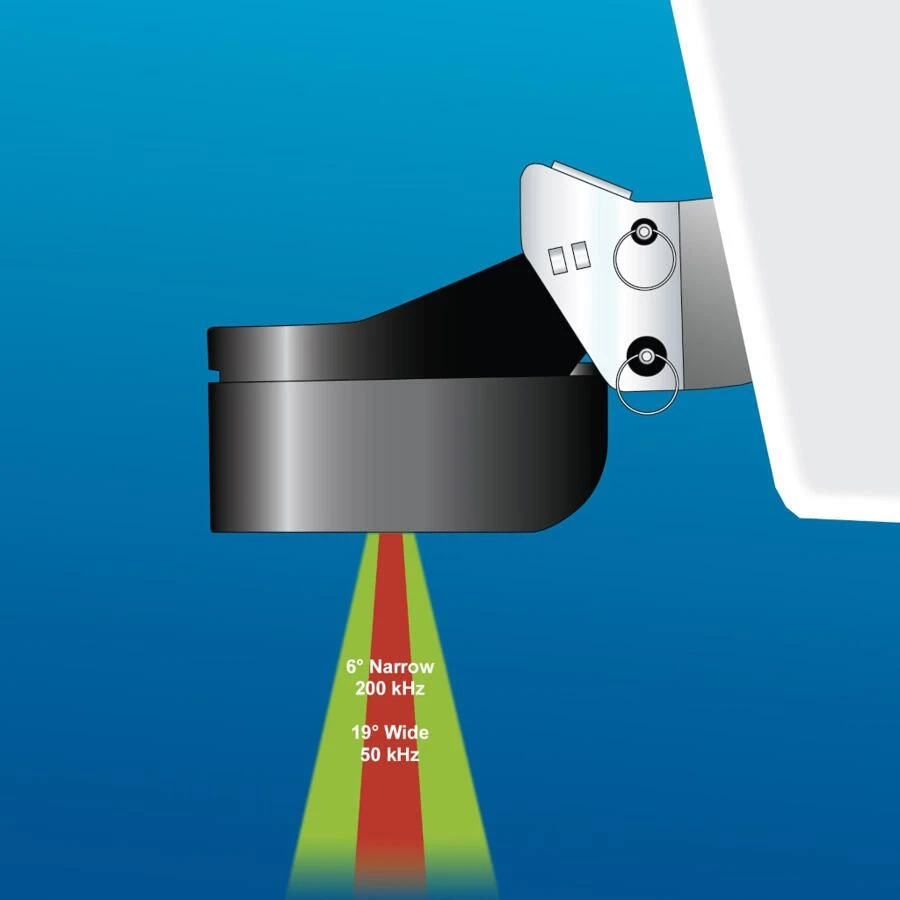

  • 25° to 16° beamwidth
  • Maximum depth: 3,000′ (914 m)
• Medium frequency: 85 to 135 kHz
  • 16° to 11° beamwidth
  • Maximum depth: 1,500′ (457 m)
• High frequency: 130 to 210 kHz
  • 10° to 6° beamwidth
  • Maximum depth of 1,000′ (304 m)
• Power rating: 1 kW
• Mounting style: Transom
• Recommended boat length: Up to 32′ (10 m)
• Hull type: Compatible with all hull materials
• Transom angle: 3° to 21°
• Weight: 8.9 lbs (4 kg)
