Airmar TM185 Chirp-Ready Transom Mount Transducer – 21-Pin Humminbird

Unlock the true potential of your fishfinder with the superior quality and performance of an AIRMAR Chirp-ready transducer.

Features:

• 21-Pin cable end for use with compatible Humminbird sounders
• Depth and fast-response water-temperature sensor
• 1 kW of power for great shallow to mid-depth water performance
• Superior resolution with precise separation between baitfish and gamefish represented on the display with crisp images

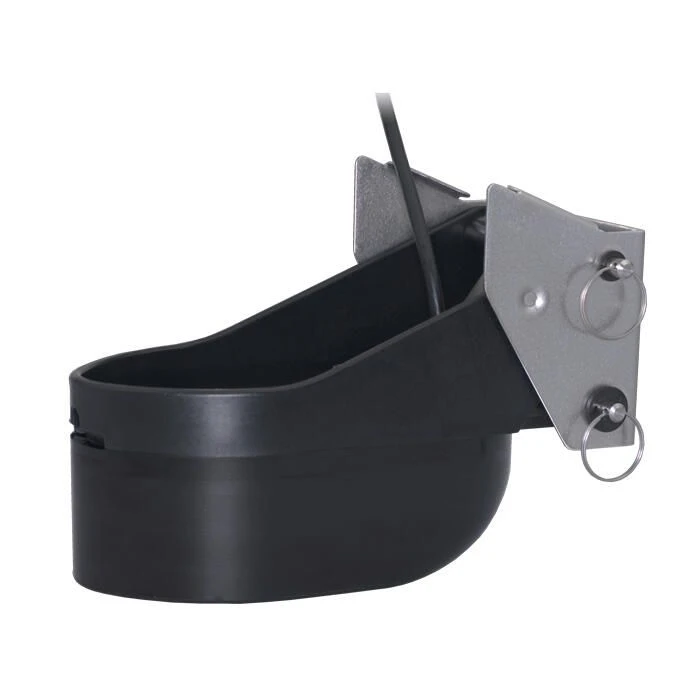

• Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Exclusive Xducer ID® technology
• Automatic configuration of echosounder to transducer – enables the echosounder to adapt to the transducer connected, providing an optimized system
• Continuous monitoring of ceramic operating temperatures
• Transducer profile information can be presented on the OEM echosounder display

Specifications:

• Acoustic window: Urethane
• Transducer element: One internal broadband ceramic assembly
• Cable end connection: 7-Pin Simrad / Lowrance
• Recommended boat length: Up to 10 m (32′)
• Hull type: Fiberglass, wood, aluminum and steel
• Engine type: Single or twin I/O, OB and jet drive systems
• Weight: 4.2 kg (8.9 lb.)

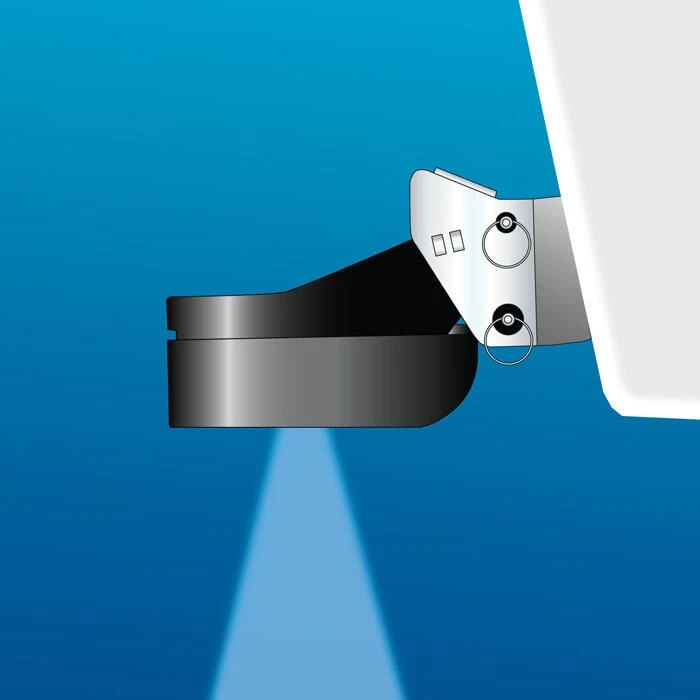

Medium Chirp Band Transducer:

• Medium frequency: 85 to 135 kHz
• 16° to 11° beamwidth
• Maximum depth performance to 457 m (1,500′)
• Provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• 50 kHz of total bandwidth from one transducer

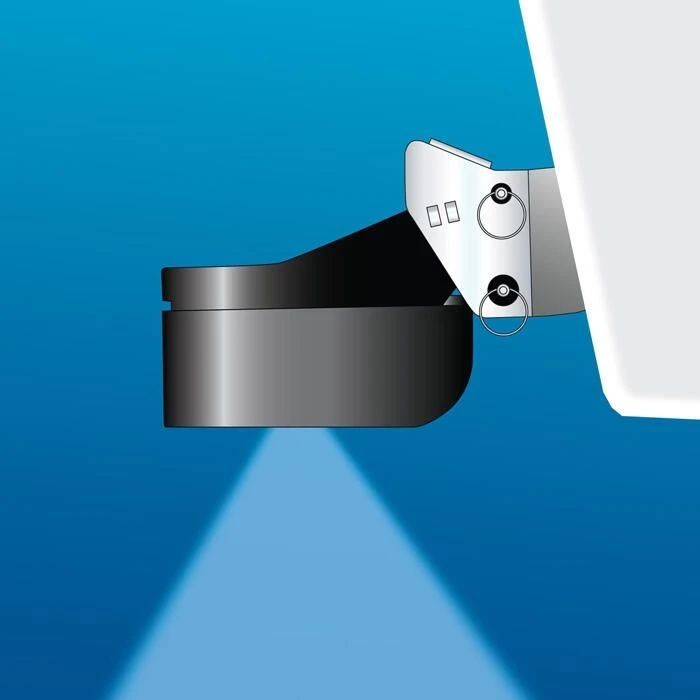

High Chirp Band Transducer:

• High frequency: 150 to 250 kHz
• Constant 25° beamwidth
• Maximum depth performance to 152 m (500′)
• Delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• 100 kHz of total bandwidth from one transducer
