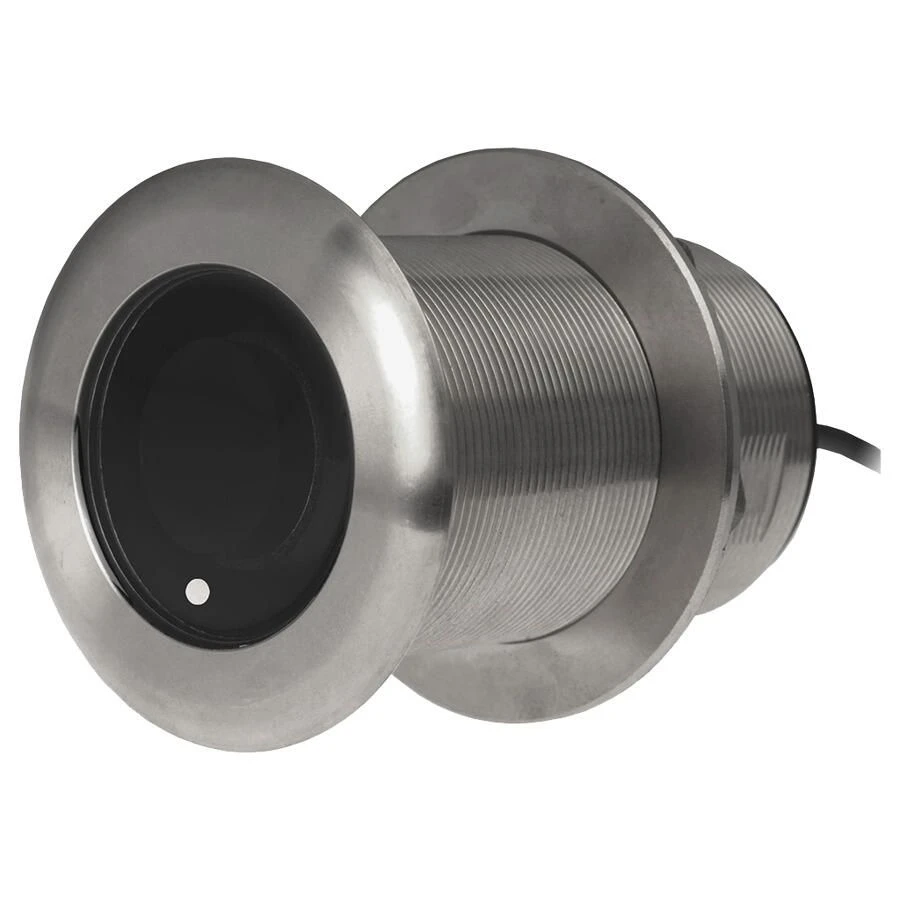

Airmar SS175 Single Band Chirp-Ready Transducer – 12-Pin MMC

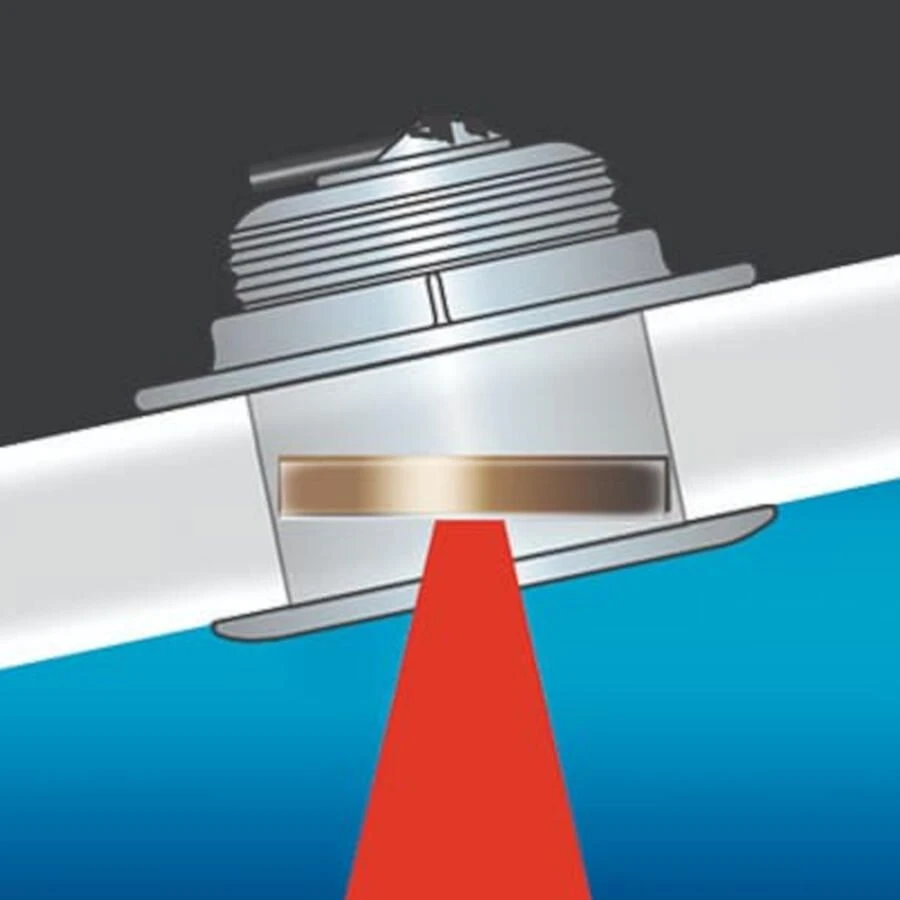

Get more coverage under your boat with Airmar’s SS175 Single Band Chirp-Ready Transducer. This transducer is the perfect addition to smaller boats such as center consoles. The low-frequency band, operates between 40 and 60 kHz, making it a deep-water performer, giving excellent coverage and tracking. The element comes fixed at either a 0°, 12° or 20° angle (model dependent) within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features:

• Depth and fast-response water-temperature sensing
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Stainless steel housing for use in all hull materials
• Patented Xducer ID® technology

Specifications:

• Acoustic window: Urethane
• Connector: 12-Pin MMC
• Low frequency: 40 to 60 kHz
  • 32° to 21° beamwidth
  • Maximum depth: 2,500′ (762 m)
• Medium frequency: 85 to 135 kHz
  • 16° to 11° beamwidth
  • Maximum depth: 1,500′ (457 m)
• High frequency: 130 to 210 kHz
  • 10° to 6° beamwidth
  • Maximum depth: 1,000′ (304 m)
• High/Wide frequency: 150 to 250 kHz
  • Constant 25° beamwidth
  • Maximum depth: 500′ (152 m)
• Functions: Depth/temperature

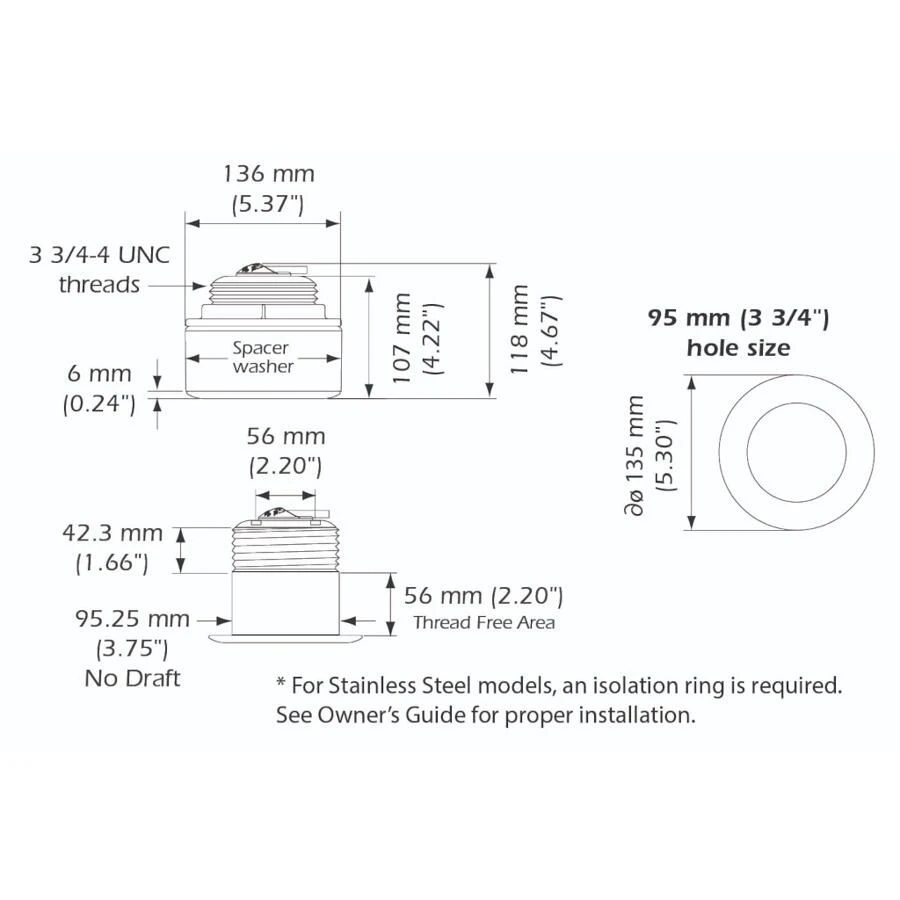

• Hole size: Fiberglass or wood hull 3 3/4″ (95 mm), Metal hull 4 1/8″ (105 mm)
• Hull material: Compatible with all hull materials
• Max deadrise: Up to 24°
• Max vessel LOA: Up to 36′ (11 m)
• Cable length: 33′ (10 m )
• Mounting style: Tilted element thru-hull
• Power rating: 1 kW
• Retractable housing: No
• Single or dual frequency: Chirp-ready single-band
• Tilted element: Yes
• Transducer tilt options:
  • 0° tilt angle that compensates for 0° to 7° hull deadrise
  • 12° tilt angle that compensates for 8° to 15° hull deadrise
  • 20° tilt angle that compensates for 16° to 24° hull deadrise
• Weight: 6 lbs (2.7 kg)
